QL-1335A
BOX型 IntelCore i5-13000
- Intel® Core™ i5-1335U プロセッサー搭載産業用システム／デュアルチャネル DDR5（最大96GB）／HDMI×2／DisplayPort×2／USB Type-C経由のDisplayPort 1.4×1（8K対応）
- • システムサイズ：幅178mm × 奥行125mm × 高さ42.7mm (mm)
- • Intel® Core™ i5-1335U プロセッサー
- • デュアルチャネル DDR5、SO-DIMM ×2
- • HDMI ×2
- • DisplayPort ×2
- • 2.5GbE LANポート ×2
- • USB Type-C経由のDisplayPort 1.4 ×1 (8K対応)
製品仕様
Dimension |
178W x 125D x 42.7H (mm) |
|---|---|
| CPU | Intel® Core™ i5-1335U Processor Intel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHz |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 96 GB Support Dual Channel DDR5 5600 MHz memory modules |
Ethernet |
2 x 2.5GbE LAN ports (Intel® I226V/LM) |
Graphics Support |
Integrated Graphics Processor – Intel® Iris® Xe Graphics eligible: 2 x HDMI 2.1 ports, supporting a maximum resolution of 4096×2160 @60Hz 2 x DP 1.4 ports, supporting a maximum resolution of 7680×4320 @30Hz 1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680×4320 @30Hz (4 independent display outputs) |
| Audio | Realtek® ALC269 |
Expansion Slots |
1 x 2280 M.2 M-Key (PCIe x4) 1 x 2230 M.2 E-Key 1 x 3052/3042 M.2 B-Key with SIM slot (Support 5G) |
| Front I/O | 1 x USB type C (USB 3.2 Gen 2×1, DP Alt Mode & PD Out -30W)(-100W requests to use 250W adapter) 1 x USB type C (USB 3.2 Gen 2×1, PD input-130W) 4 x USB 3.2 Gen 2×1 2 x HDMI 2 x DP 2 x RJ45 LAN Ports 1 x HDD LED 1 x Power button with LED |

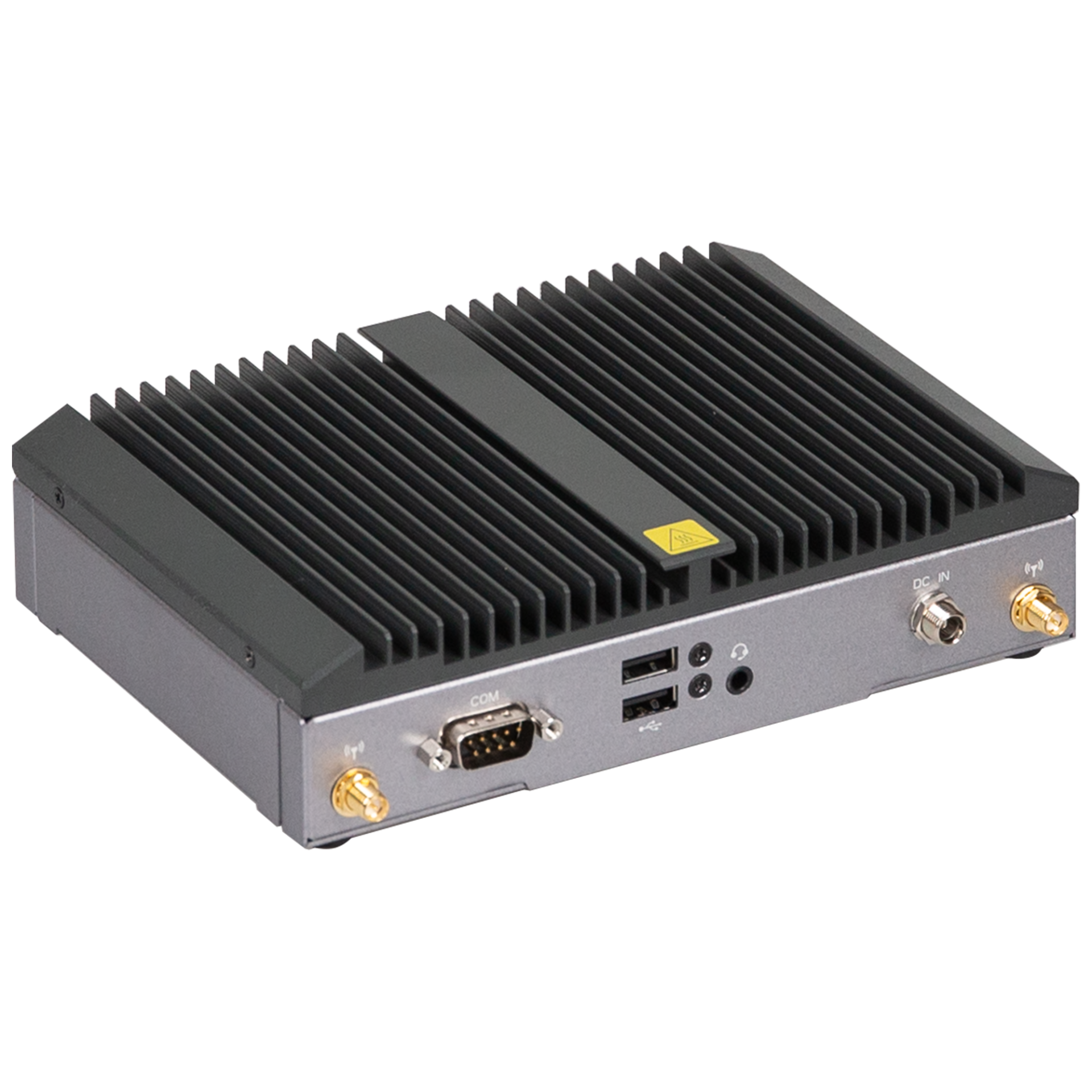

| Rear I/O | 1 x COM Port (RS-232 & RI/5V/12V) 2 x USB 2.0 1 x Headphone Jack 1 x Screw type DC Jack 2 x External Antenna Hole(Optional) |
| Power | +12V~24VDC (Adapter 19.5V/135W) |
Operation Temperature |
Operating temperature: 0°C to 50°C |
Packing Content |
Carton size: 500 x 327 x 217 (mm) Packing Capacity: 5pcs Single Box size: 313 x 191 x 95 (mm) Including: Bracket for Wall Mount x 2 (P/N: 25HB2-CGAA20-CHR) Thermal pad for Memory x 1 (P/N: 25ST3-200086-T5R) PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP2-2135W0-F3S) Power Cord : Optional (by region) |
Mounting |
Wall mount (Default) VESA 75/100 (Optional) |
Order Information |
6BQL1315AMR-SI (Box packing) |
Remark |
∗ 仕様は予告なく変更される場合があります。詳細については、担当の営業担当者にお問い合わせください。 |
