iTXL-N150B
- Intel® プロセッサー N150、シングルチャネル DDR5 メモリ、COM ポート×4、SATA 6Gb/s ポート×1、USB ポート×10 を搭載した Thin Mini-ITX 組み込みマザーボード
- Thin Mini-ITX フォームファクター
- Intel® プロセッサー N150
- シングルチャネル DDR5、SO-DIMM スロット×1
- 2 x GbE LANポート
- 1 x SATA 6Gb/sポート
- マルチディスプレイ対応のHDMI、eDP、LVDSポート
- 4 x COMポート（RS-232/422/485およびRI/5V/12V）
製品仕様
| Form Factor | Thin Mini-ITX 170W x 170D (mm) |
|---|---|
| CPU | Intel® Processor N150 Intel 7, 4 cores, up to 3.60 GHz TDP 6W |
| Socket | 1 x FCBGA1264 |
| Chipset | Intel® H810 Chipset |
| Memory | 1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB Support Single Channel DDR5 4800 MHz memory modules |
Ethernet |
2 x GbE LAN Ports (Realtek® RTL8111H) |
| Video | Integrated Graphics Processor – Intel® Graphics support: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x eDP port, supporting a maximum resolution of 3840×2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920×1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® ALC269 |
| Storage | 2 x SATA 6Gb/s Port |
Expansion Slots |
1 x 2280 M.2 M-Key (PCIe Gen 3×1, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 4-pin ATX main power connector 1 x SATA Power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 6 x USB 2.0 headers 4 x COM headers (RS-232/422/485 & RI/5V/12V) 1 x GPIO (8 bits) & SMBus header 1 x Backlight Control header for eDP 1 x Backlight Control header for LVDS 1 x AT/ATX mode select jumper 1 x ATX control header |

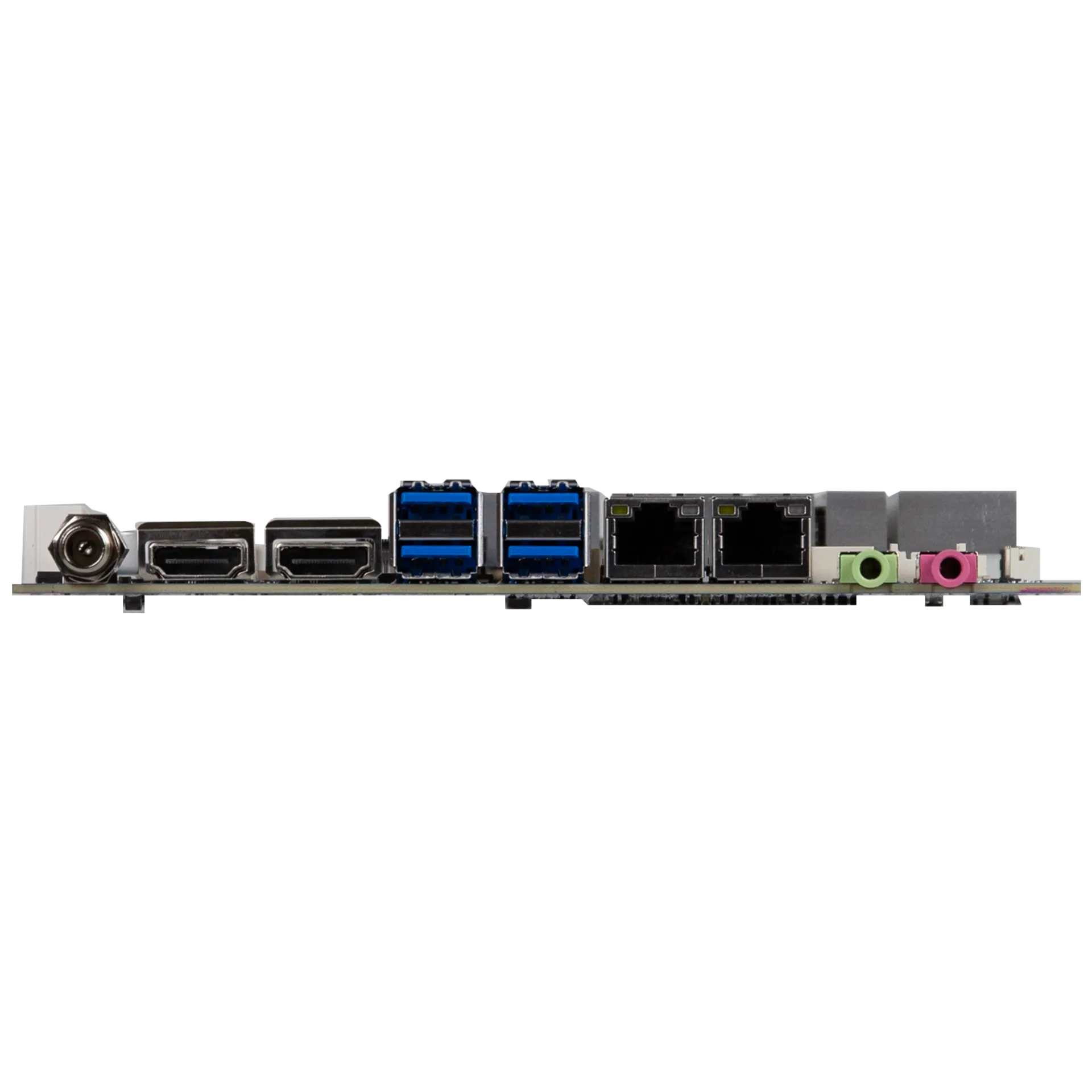

| Rear I/O | 2 x Audio Jacks (Headphone out, Mic in) 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12V~24VDC) |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9672VU2.0 |
OS Compatibility |
Windows 11 IoT Enterprise 24H2 (x64) Windows 11 IoT Enterprise LTSC 2024 (x64) Windows 11 Enterprise LTSC 2024 (x64) |
Operating Properties |
Operating temperature: 0°C to 60°C Operating humidity: 60°C @ 20-95% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 85°C @ 95% (non-condensing) |
Packing Content |
Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Including: |
Order Information |
9MTWN1ATMR-SI (Box packing) |
