iTXL-H810A
- Intel® H810チップセット搭載のThin Mini-ITX、Intel® Core™ Ultraプロセッサー（第2世代）対応、デュアルチャネルDDR5メモリ、COMポート×2、USBポート×8、SATA 6Gb/s×2
- Thin Mini-ITXフォームファクター
- Intel® Core™ Ultraプロセッサー対応 (シリーズ2)
- Intel® H810 Expressチップセット
- デュアルチャネルDDR5、SO-DIMM/CSO-DIMM x 2
- 2 x GbE LANポート
- 2 x SATA 6Gb/sポート
- マルチディスプレイ対応のHDMI、DisplayPort、LVDSポート
- 1 x COMポート (RS-232/422/485 および RI/5V/12V)
- 1 x COMポート (RS-232)
製品仕様
| Form Factor | Thin Mini-ITX 170W x 170D (mm) |
|---|---|
| CPU | Support for Intel® Core™ Ultra Processors (Series 2) TDP under 65W |
| Socket | 1 x LGA 1851 |
| Chipset | Intel® H810 Chipset |
| Memory | 2 x DDR5 SO-DIMM/CSO-DIMM sockets, Max. Capacity 128 GB Support Dual channel DDR5 5600/6400 MHz memory modules |
Ethernet |
2 x GbE LAN Ports (Realtek RTL8111H) |
| Video | Integrated Graphics Processor – Intel® HD Graphics support: 1 x HDMI 2.0 port 1 x DP port 1 x LVDS port (3 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 2 x SATA 6Gb/s Ports |
Expansion Slots |
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key (PCIe x1, USB 2.0) |
| Internal I/O | 1 x 4-pin ATX main power connector 1 x SATA Power connector (5V only) 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 1 x GPIO (8 bits) & SMBus header 4 x USB 2.0 headers 1 x COM header (RS-232) 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x Clear CMOS jumper 1 x Backlight Control header 1 x AT/ATX mode select jumper |

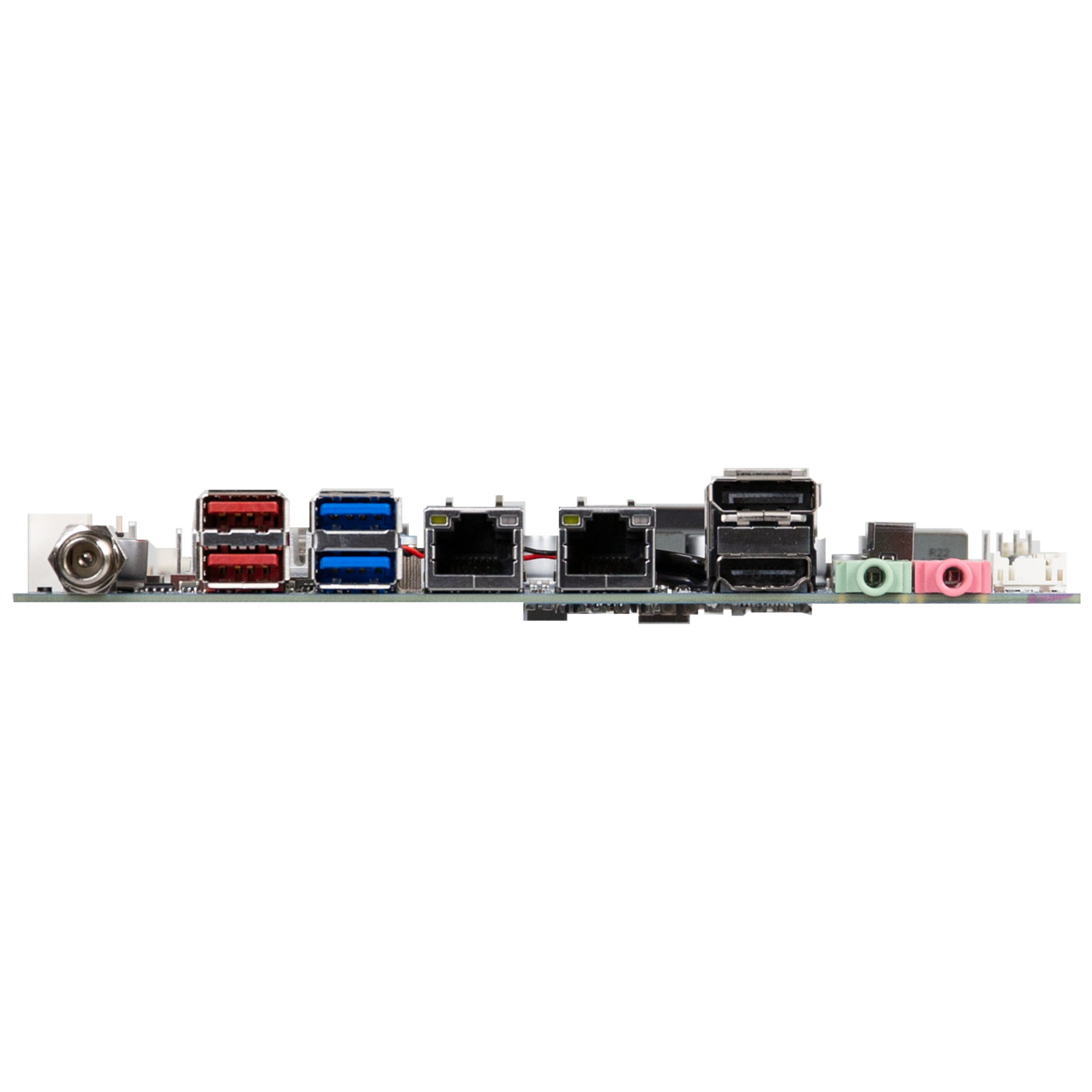

| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x HDMI 1 x Display Port 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2×1 2 x USB 3.2 Gen 1 1 x DC Jack (+12V/+19V~24VDC) |
| TPM | TPM Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0 |
OS Compatibility |
Windows 11 IoT Enterprise LTSC 2024(24H2) 64bits Windows 10 IoT Enterprise LTSC 2021(21H2) 64bits |
Operating Properties |
Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
Packing Content |
Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Including: Standard IO Shield x 1 (P/N: 12AIO-MH610A-00R) Low-Profile IO Shield x 1 (P/N: 12AIO-MH610A-10R) SATA Power Cable x 2 (P/N: 25CRI-300B01-K1R) |
Order Information |
9MH810ATMR-SI (Box Packing) |
Optional Kit |
CPU Cooler : 25ST0-037820-Y0R CPU Cooler Backplate : 12KRH-0A1700-00R |
