mITX-H61ED
Core i9-14900Core i9-13900Core i9-12900Core i7-14700Core i7-13700Core i7-12700Core i5-14000Core i5-13000Core i5-12000Core i3-14000Core i3-13000Core i3-12000PentiumCeleron
- Intel® H610E チップセット搭載のMini-ITX、第14世代/第13世代/第12世代 Intel® Core™ プロセッサー対応、デュアルチャネル DDR5 メモリ、PCIe、COMポート×2、USBポート×8、SATA 6Gb/sポート×2
- Mini-ITX フォームファクター
- 第14世代/第13世代/第12世代 Intel® Core™ プロセッサー対応
- Intel® H610Eチップセット
- デュアルチャネルDDR5、SO-DIMMスロット×2
- 2.5GbE LANポート×6
- SATA 6Gb/sポート×2
- マルチディスプレイ対応のHDMI、VGAポート
- COMポート×1（RS-232/422/485およびRI/5V/12V）
- COMポート×1（RS-232）
製品仕様
| Form Factor | Mini-ITX 170W x 170D (mm) |
|---|---|
| CPU | Support for 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package TDP under 65W |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 96 GB Support Dual channel DDR5 5600 MHz memory modules |
Ethernet |
6 x 2.5GbE LAN Ports (Intel® I226V) |
| Video | Integrated Graphics Processor – depends on CPU: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920×1080 @60Hz (2 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 2 x SATA 6Gb/s Ports |
Expansion Slots |
1 x PCIe x16 (Gen 4×16) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) |
| Internal I/O | 1 x 4-pin ATX main power connector 1 x SATA power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 4 x USB 2.0 headers 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x COM header (RS-232) 1 x GPIO (8-bits) & SMBus header 1 x Clear CMOS jumper 1 x Buzzer header 1 x AT/ATX mode select jumper |

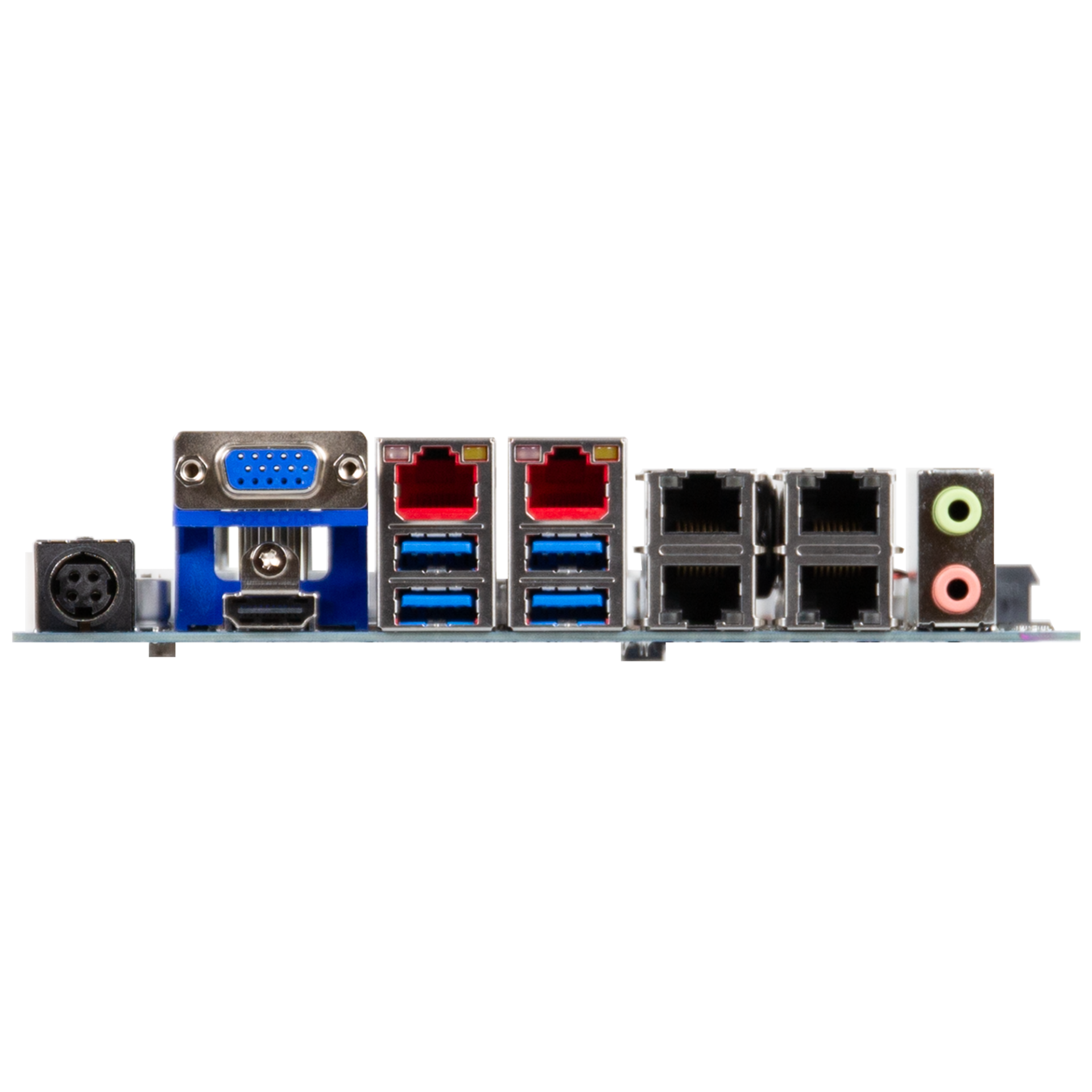

| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x HDMI 1 x VGA 6 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12V/+19V~24VDC) |
| TPM | Onboard TPM 2.0 security chip Infineon SLB9670VQ2.0 |
OS Compatibility |
Windows 11 IoT Enterprise LTSC 64bits_24H2 Windows 10 IoT Enterprise LTSC 64bits_2021(21H2) |
Operating Properties |
Operating temperature: 0°C to 60°C Operating humidity: 60°C @ 20-95% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 85°C @ 95% (non-condensing) |
Packing Content |
Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size : 221 x 178 x 65 (mm) Single Box weight: Approx. 0.8kg Including: IO Shield x 1 (P/N: 12AIO-MH61EC-00R) SATA power Cable x 1 (P/N: 25CRI-300B01-K1R) |
Order Information |
9MH61EDIMR-SI (Box packing) |
Optional Kit |
CPU Cooler : 25ST0-037820-Y0R CPU Cooler Backplate : 12KRH-0A1700-00R |
