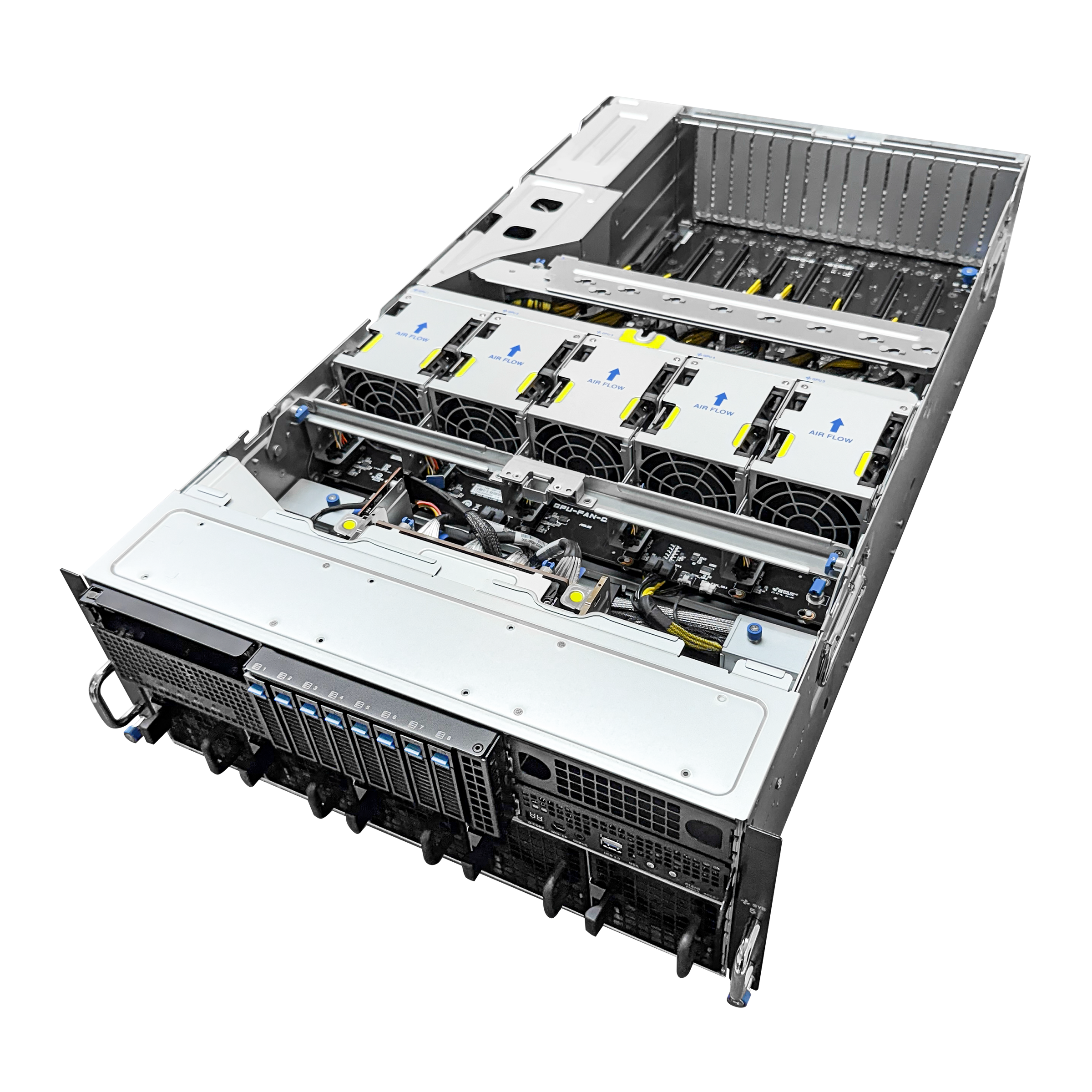

ESC8000A-E13X
4U EPYC9005 8GPU リダンダント電源 GPUサーバー
- 1. AMD EPYC™ 9005 デュアルプロセッサ搭載 4U NVIDIA RTX PRO™ サーバー（ConnectX®-8 SuperNICs 搭載）
- 2. 8基のデュアルスロット NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUをサポート
- 3. GPU間ネットワーク用400Gb/s QSFPポート×8基
- 4. 24個のDIMMスロット
- 5. 8つのPCIe 6.0スロット、2つのPCIe 5.0スロット
- 6. 8台の2.5インチNVMeドライブを搭載
オンサイトサポート
対応製品
製品仕様
| 対応/搭載CPU | 2 x Socket SP5 (LGA 6096) |
| AMD EPYC™ 9005 series processors* | |
| * Up to 500W cTDP, TDP support varies by configuration | |
| メインメモリ | Total Slots: |
| 24 (12 channel per CPU, 12 DIMM per CPU) | |
| Capacity: | |
| Maximum up to 3TB | |
| Memory Type: | |
| DDR5 6400/5600 RDIMM | |
| Memory Size: | |
| 128GB, 96GB, 64GB, 32GB, 16GB RDIMM | |
| * Refer to ASUS server AVL for the latest update | |
| 拡張スロット | Up to 10 slots |
| Rear: | |
| 8 x PCIe x16 for dual-slot GPU cards (Gen6 x16 link, FH/FL) | |
| 1 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL) | |
| Front: | |
| 1 x PCIe x16 (Gen5 x8 link, FH/HL) | |
| ストレージ | 8 x 2.5″ Front Hot-swap Storage Bays |
| Default SKU*: Backplane supports up to 8 x NVMe | |
| *MGX compliance | |
| 2 x M.2 Socket, supports up to 22110 type (PCIe Gen5 x4 link) | |
| (M.2 board supports up to 2 x NVMe) | |
| ネットワーク機能 | 8 x 400Gbps ports (QSFP, ConnectX®-8) |
| 2 x 10GbE LAN ports (RJ45, X710-AT2) | |
| 1 x Management Port | |
| マルチGPUに対応 | Up to 8 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPU Cards* |
| *Support short GPU brackets only | |
| Please find the latest GPU support from https://servers.asus.com/support/gpu | |

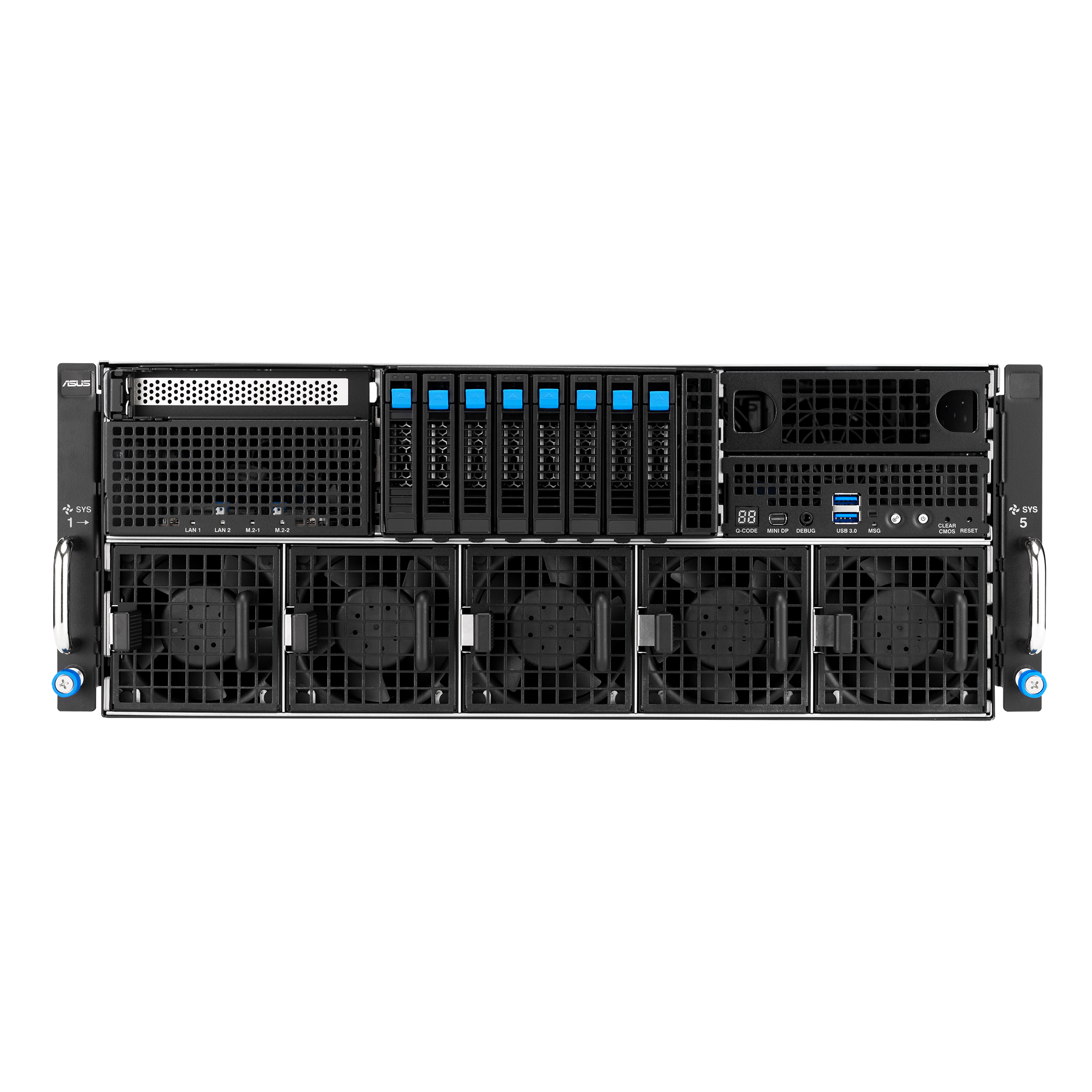

| 前面 I/O ポート | 1 x Mini DisplayPort |
| 2 x USB 5Gbps ports | |
| 1 x Debug port | |

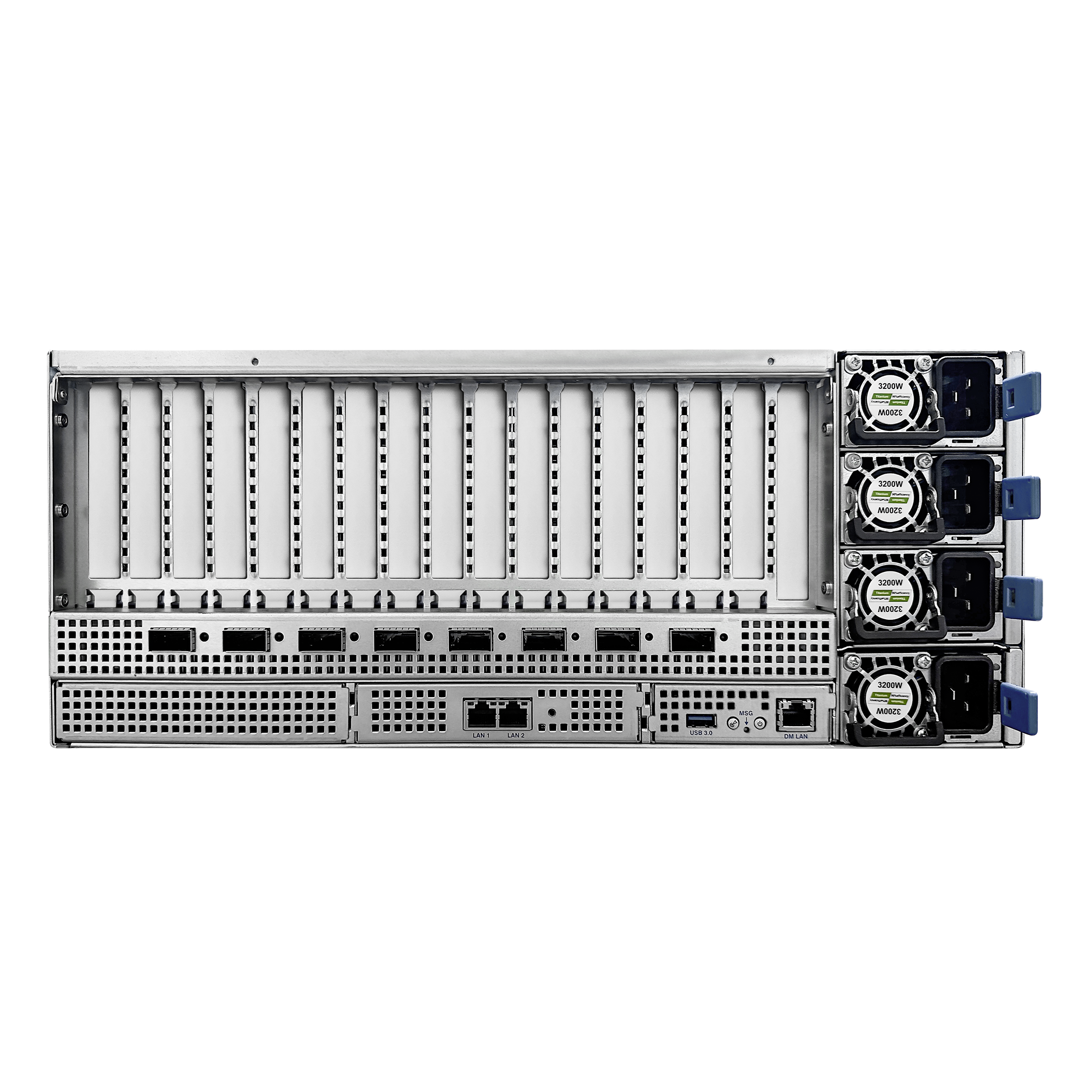

| 背面 I/O ポート | 8 x QSFP ports |
| 1 x USB 5Gbps port | |
| 2 x RJ-45 LAN ports | |
| 1 x RJ-45 management LAN port | |
| Switch/LED | Front : |
| 1 x Power switch/LED | |
| 1 x Location switch/LED | |
| 1 x Message LED | |
| 1 x Clear CMOS switch | |
| 1 x Reset Switch | |
| 2 x M.2 LEDs | |
| 2 x LAN LEDs | |
| 1 x Q-code/Port 80 LED | |
| Rear : | |
| 1 x Power switch/LED | |
| 1 x Location switch/LED | |
| 1 x Message LED | |
| 8 x QSFP LED | |
| OS対応 | Please find the latest OS support from https://servers.asus.com/support/os |
| 管理ソリューション | ASUS Control Center Enterprise (in-band) |
| ASMB12-iKVM for (out-of-band/BMC AST2600) | |
| 法令遵守 | BSMI, CB, CE, FCC(Class A), RCM |
| サイズ | 800mm x 439.5mm x 175mm |
| 31.5” x 17.3” x 6.9” | |
| フォームファクタ | 4U |
| 重量 | Net Weight: 42 Kg |
| Gross Weight: 45 Kg | |
| 電源仕様 | 3+1 redundant 3200W 80 PLUS Titanium power supply |
| 220-240 Vac, 16A (x4) 50/60Hz | |
| 動作環境 | Operating temperature: 10°C ~ 35°C |
| Non-operating temperature: -40°C ~ 60°C | |
| Non-operating humidity: 20% ~ 95% (Non-condensing) | |
| *For operating temperatures above 30°C, please contact your local sales representative | |
| FRU Part List | Motherboard: 90SB0D90-M5XBN0 |
| 8080 GPU Fan module: 90SKS000-MR0BN0 | |
| 8080 System Fan module: 90SKS000-MR1BN0 | |
| 2U Standard CPU heatsink: 90SKS000-M4LAN0 | |
| HDD TRAY TOOLLESS ASY: 90SKH000-MPPBN0 | |
| 3200W TITANIUM PSU: 90SKS000-MMCBN0 | |
| 1M RAIL KIT (not support cable arm): 90SKS000-MR2BN0 | |
| MGX RAIL KIT (support cable arm): 90SKS000-MR3BN0 | |
| CABLE ARM: 90SKS000-MR4BN0 | |
| MINIDP TO VGA DONGLE: 90SKS000-MU3BN0 |
