サーバーマザーボード NEW
iTXL-H610C
IntelCore i9-14900Core i9-13900Core i9-12900Core i7-14700Core i7-13700Core i7-12700Core i5-14000Core i5-13000Core i5-12000Core i3-14000Core i3-13000Core i3-12000PentiumCeleron
- Intel® H610チップセット搭載のThin Mini-ITX、第14世代/第13世代/第12世代 Intel® Core™ プロセッサー対応、デュアルチャネル DDR5 メモリ、COMポート×2、USBポート×8、SATA 6Gb/sポート×2
- Thin Mini-ITX フォームファクター
- 第14世代/第13世代/第12世代 Intel® Core™ プロセッサー対応
- Intel® H610 Expressチップセット
- デュアルチャネルDDR5、SO-DIMMスロット×2
- GbE LANポート×2
- SATA 6Gb/sポート×2
- マルチディスプレイ対応：HDMI、DisplayPort、LVDSポート
- COMポート×1（RS-232/422/485およびRI/5V/12V）
- COMポート×1（RS-232）
- オンボードTPM
製品仕様
| Form Factor | Thin Mini-ITX 170W x 170D (mm) |
|---|---|
| CPU | Support for 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3 processors, Pentium® & Celeron® processors in the LGA1700 package TDP under 65W L3 cache varies with CPU |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR5 5600 MHz memory modules |
Ethernet |
2 x GbE LAN Ports (Realtek® RTL8111H) |
| Video | Integrated Graphics Processor – Intel® HD Graphics support: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096×2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920×1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 2 x SATA 6Gb/s Ports |
Expansion Slots |
1 x 2280 M.2 M-Key (PCIe x4) 1 x 2230 M.2 E-Key (PCIe x1, USB 2.0) |
| Internal I/O | 1 x 4-pin ATX main power connector 1 x SATA Power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 1 x GPIO (8 bits) & SMBus header 4 x USB 2.0 headers 1 x COM header (RS-232) 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x Clear CMOS jumper 1 x Backlight Control header 1 x AT/ATX mode select jumper |

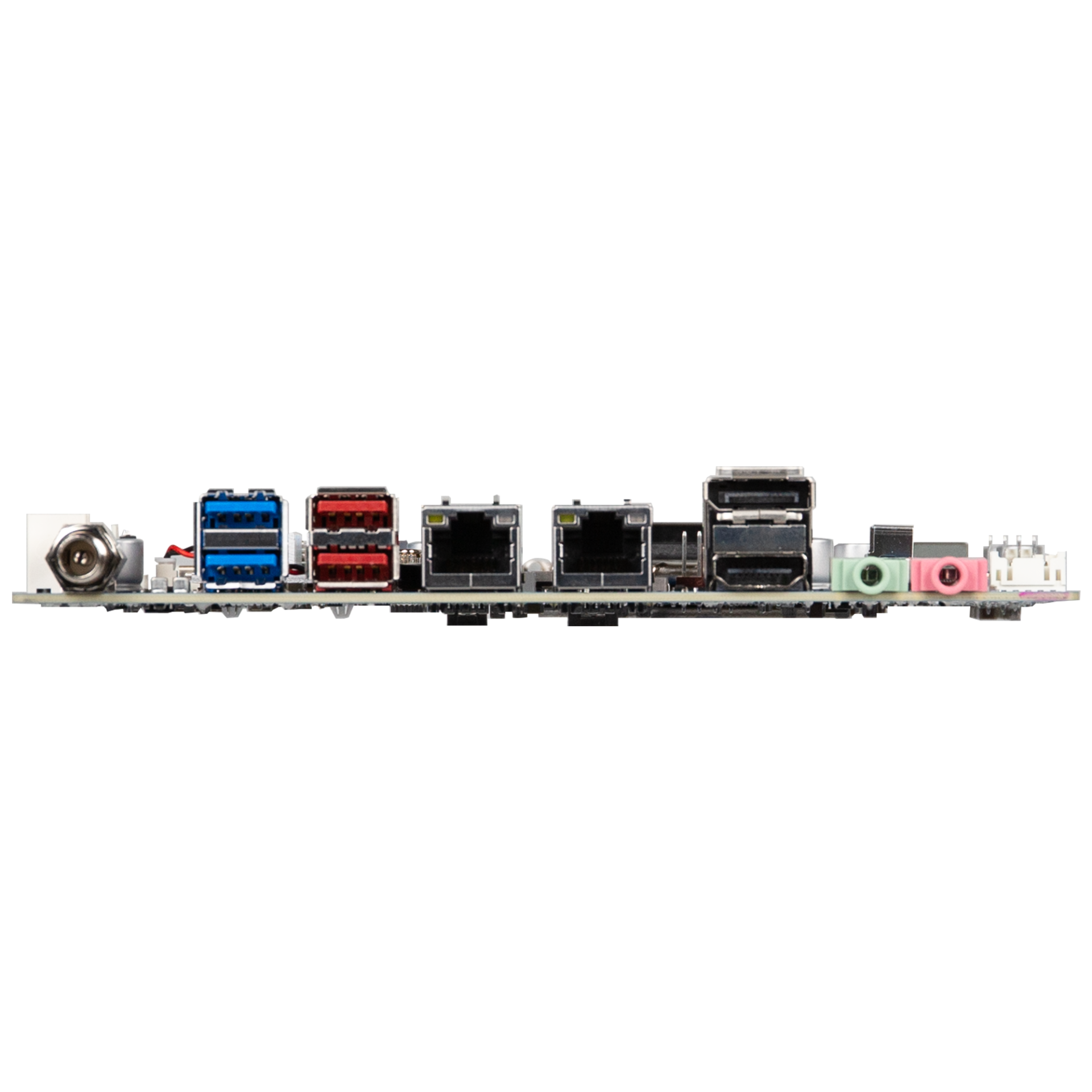

| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x HDMI 1 x Display Port 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2×1 2 x USB 3.2 Gen 1 1 x DC Jack (+12V/+19V~24VDC) |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0 |
OS Compatibility |
Windows® 11 IoT Enterprise LTSC 2024 (x64) Windows® 10 IoT Enterprise LTSC 2021(21H2) (x64) |
Operating Properties |
Operating temperature: 0°C to 60°C Operating humidity: 60°C @ 20-95% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 85°C @ 95% (non-condensing) |
Packing Content |
Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Including: Standard IO Shield x 1 (P/N: 12AIO-MH610A-00R) Low-Profile IO Shield x 1 (P/N: 12AIO-MH610A-10R) SATA Power Cable x 1 (P/N: 25CRI-300B01-K1R) |
Order Information |
9MH610CTMR-SI (Box Packing) |
Optional Kit |
CPU Cooler : 25ST0-037820-Y0R CPU Cooler Backplate : 12KRH-0A1700-00R |
