2U2G-TURIN/HPR
2U EPYC9005EPYC9004 2GPU リダンダント電源 GPUサーバー
- 1. 2Uラックマウント、1+1冗長構成2700W CRPS搭載、80-PLUS Titanium認証
- 2. シングルソケットSP5 (LGA 6096P)、AMD EPYC™ 9005/9004 (AMD 3D V-Cache™テクノロジー搭載) および97x4シリーズプロセッサー対応
- 3. 12 DIMMスロット（1DPC）、DDR5 RDIMM、RDIMM-3DS対応
- 4. 2基のホットスワップ対応2.5インチNVMe（PCIe4.0 x4）ドライブベイ
- 5. 2基のFHFLデュアルスロットPCIe5.0 x16、各GPU/アクセラレータカード最大600W TDP対応（周囲温度25°C時）
- 6. 1 HHHL PCIe5.0 x16
- 7. 1 OCP NIC 3.0 (PCIe5.0 x16)
- 8. 2 M.2 (PCIe5.0 x4 または SATA 6Gb/s)
- 9. リモート管理 (IPMI)
製品仕様
| System | |
| Form Factor | 2U Rackmount |
| Dimensions | 580 x 438 x 87 mm (22.8” x 17.2” x 3.4”) |
| Support MB | TURIND12M3/N/500W |

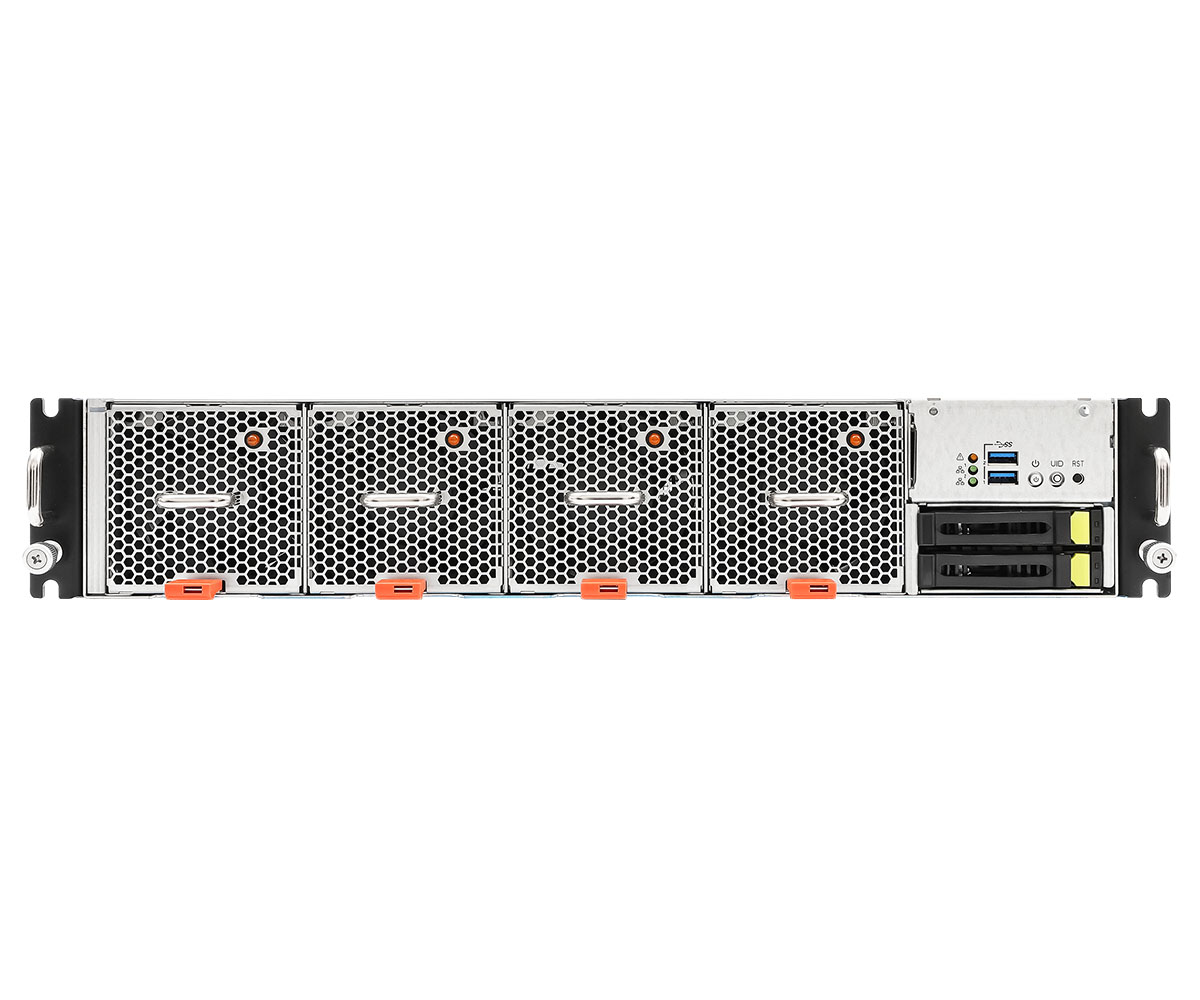

| Front Panel | |
| Buttons | Power button w/ LED, UID button w/ LED, System reset |
| LEDs | HDD Activity, System Event LED |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 2 Hot-swap 2.5″ NVMe (PCIe4.0 x4) drive bays |
| Front Side Backplane | 2-port NVMe passive backplane |
| Internal Side | 2 M-key (PCIe5.0 x4 or 4 SATA 6Gb/s), supports 22110/2280/2260 form factor |
| Power Supply | |
| Type | 1+1 Hot-swap CRPS |
| Output Watts | 1200W @100-127Vac input / 2700W @200-240Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | Low-line*: 100-127Vac, 50/60Hz; High-line: 200-240Vac, 50/60Hz
*Full redundancy may not be supported with low-line input. Redundancy support depends on total system power consumption relative to single PSU capacity. |
| System Fan | |
| Front | 4 PWM Hot-swap 80x56mm fans |
| Middle | 1 PWM fixed 40x28mm fan |
| Processor System | |
| GPU | Supports 2 GPU and accelerator cards of TDP up to 600W each at 25°C ambient temp. or 350W each at 35°C ambient temp. |
| CPU | Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors |
| Socket | Single Socket SP5 (LGA 6096P) |
| Thermal Design Power | Up to 500W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 12 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB (2Rx4) RDIMM-3DS: 256GB (2Rx4) |
| Max. DIMM Frequency | 6400 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots | |
| PCIe x 16 | 2 FHFL dual-slot PCIe5.0 x16** 1 HHHL PCIe5.0 x16**Note: Support GPU cards of up to 600W each (conditions apply). |
| TPM | |
| TPM support | TPM-SPI |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |

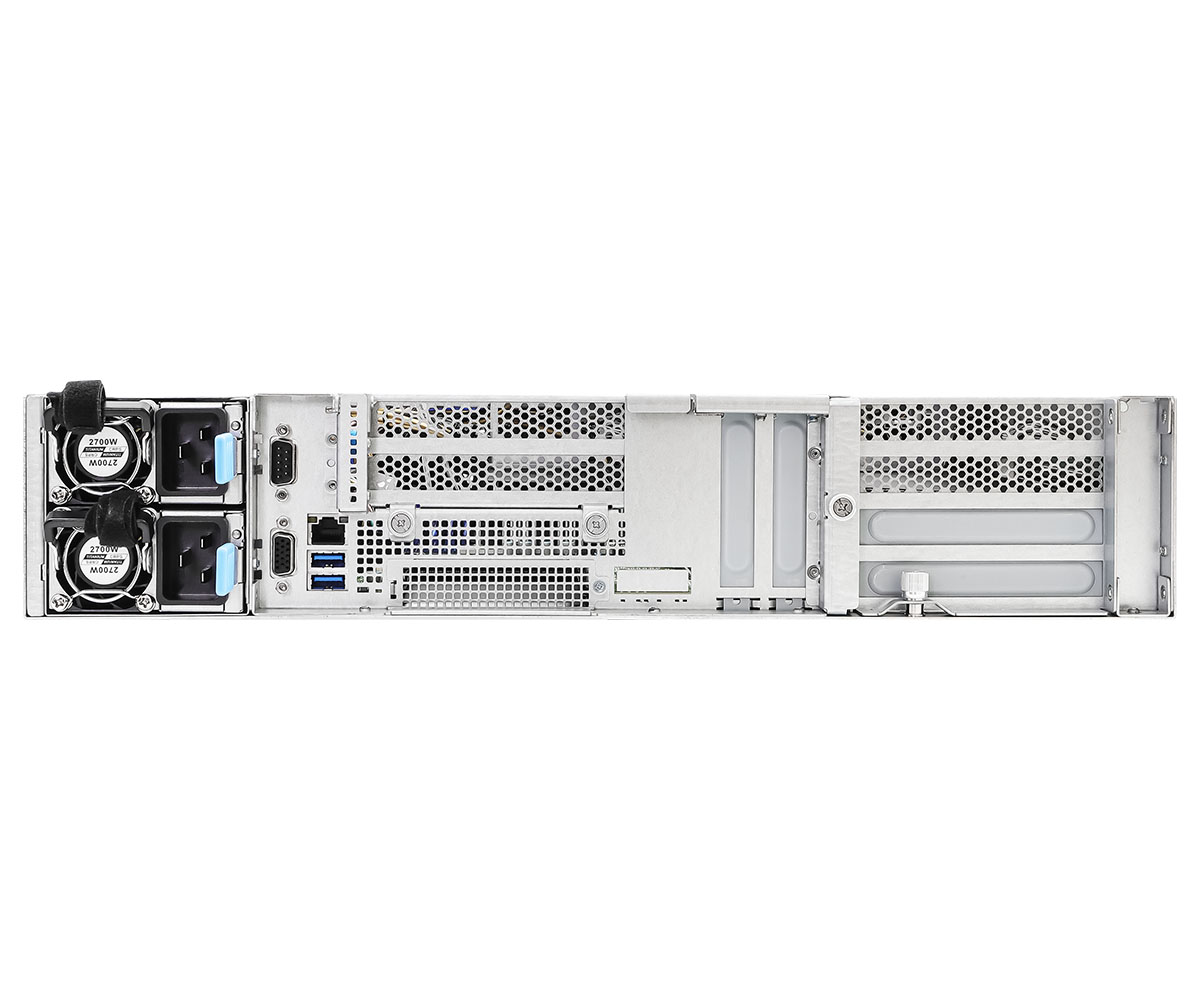

| Rear I/O | |
| Video Port | 1 DB15 (VGA) |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, Memory Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_VCORE0, VOLT_VCORE1, VOLT_P0_VSOC, VOLT_VDD_11, VOLT_VDDIO, VOLT_VDD_33, VOLT_VDD_18, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C*** / Non operation temperature: -40°C ~ 70°C
***Maximum operation temperture 25°C for specific configurations. |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
