6U8M-TURIN2 SYN MI350X
5U以上 EPYC9005EPYC9004 8GPU リダンダント電源 GPUサーバー
- 1. 930 x 448 x 264.7mm (36.6" x 17.6" x 10.4")
- 2. TDP 最大500W
- 3. 6Uラックマウント、6+2フェーズ、80-PLUS Titanium認証、3000W CRPS
- 4. AMD Instinct™ MI350Xプラットフォーム、Infinity Fabric™リンク搭載
- 5. PCIeスイッチ合成モードによるGPU-CPU間、GPUDirect RDMA NIC、GPUDirect Storageの最適化パフォーマンス
- 6. デュアルソケット SP5 (LGA 6096)、AMD EPYC™ 9005/9004 (AMD 3D V-Cache™ テクノロジー搭載) および 97x4 シリーズ プロセッサー対応
- 7. 12+12 DIMM スロット (1DPC)、DDR5 RDIMM、RDIMM-3DS 対応
- 8. 8 HHHL PCIe5.0 x16、1 FHHL PCIe5.0 x16
- 9. PCIeスイッチ接続 8基のホットスワップ対応2.5インチNVMe (PCIe5.0 x4) ドライブベイ
- 10. CPU接続 4基のホットスワップ対応2.5インチNVMe (PCIe5.0 x4) ドライブベイ
- 11. 1基のM.2 (PCIe3.0 x4 または SATA 6Gb/s)、1基のM.2 (PCIe3.0 x4 または SATA 6Gb/s) をサポート
- 12. Intel® i350-AM2 による2基のRJ45 (1GbE)
- 13. リモート管理 (IPMI)
製品仕様
| System | |
| Form Factor | 6U Rackmount |
| Dimensions | 930 x 448 x 264.7mm (36.6” x 17.6” x 10.4”) |
| Support MB | TURIN2D24G-2L+/500W |

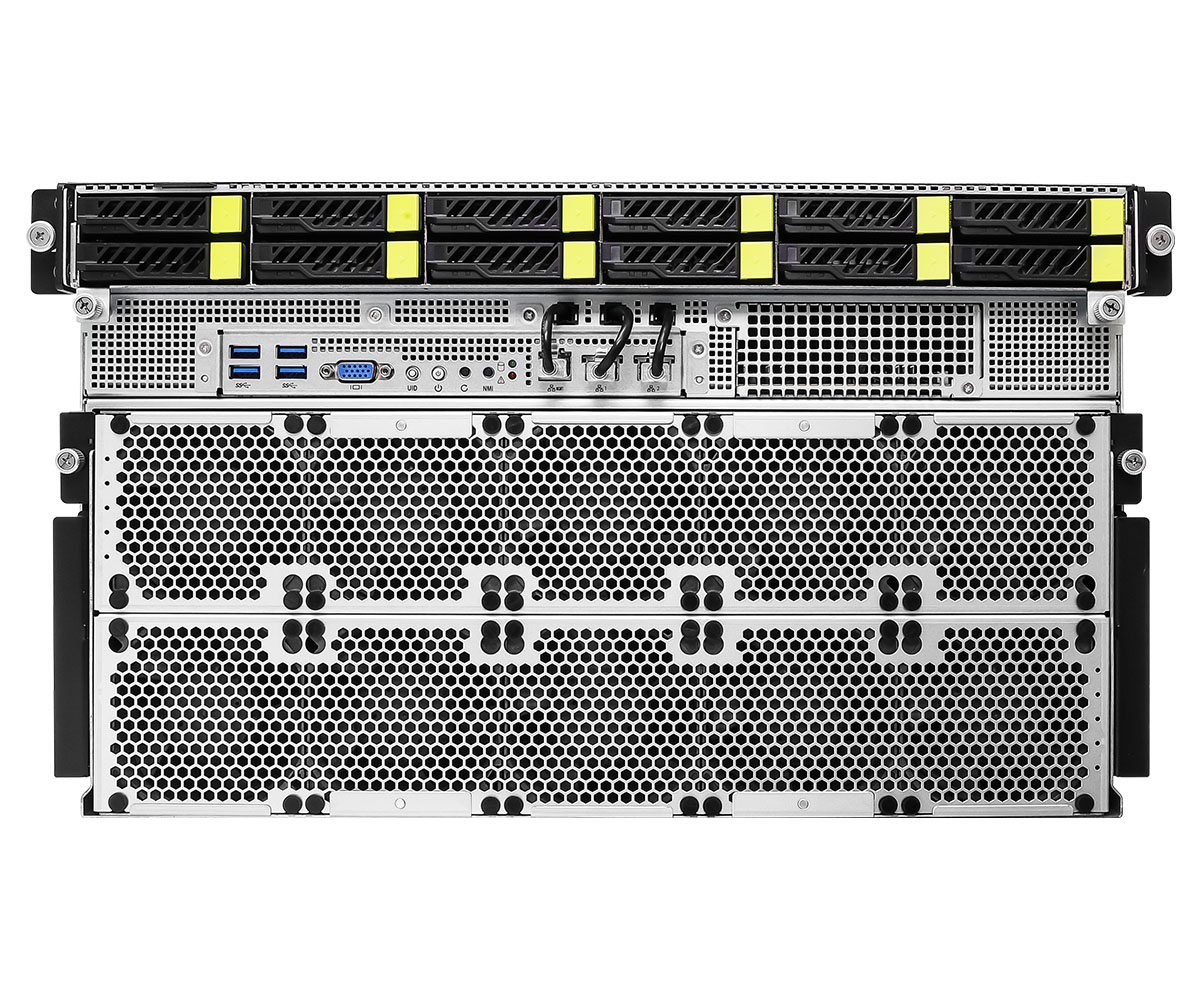

| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 1 dedicated IPMI, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 8 Hot-swap 2.5″ NVMe (PCIe5.0 x4) drive bays from PCIe Switch 4 Hot-swap 2.5″ NVMe (PCIe5.0 x4) drive bays from CPU |
| Internal Side | 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU0] 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [CPU1] |
| Power Supply | |
| Type | 6+2 CRPS |
| Output Watts | 3002.4W @ 220-240Vac input, 2900W @200-220Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 21 PWM Hot-swap 80×80 mm fans |
| Processor System | |
| GPU | AMD Instinct™ MI350X platform with Infinity Fabric™ Links |
| CPU | Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors |
| Socket | Dual Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 500W |
| Chipset | System on Chip |
| System Switch Board | |
| Switch IC | PEX89104 |
| Topology | Synthetic mode for optimized performance of GPU-to-CPU, GPUDirect RDMA NIC, and GPUDirect Storage |
| System Memory | |
| Supported DIMM Quantity | 12+12 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB (2Rx4) RDIMM-3DS: 256GB (2Rx4) |
| Max. DIMM Frequency | 6400 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots | |
| PCIe x 16 | Rear: 8 HHHL PCIe5.0 x16 1 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |

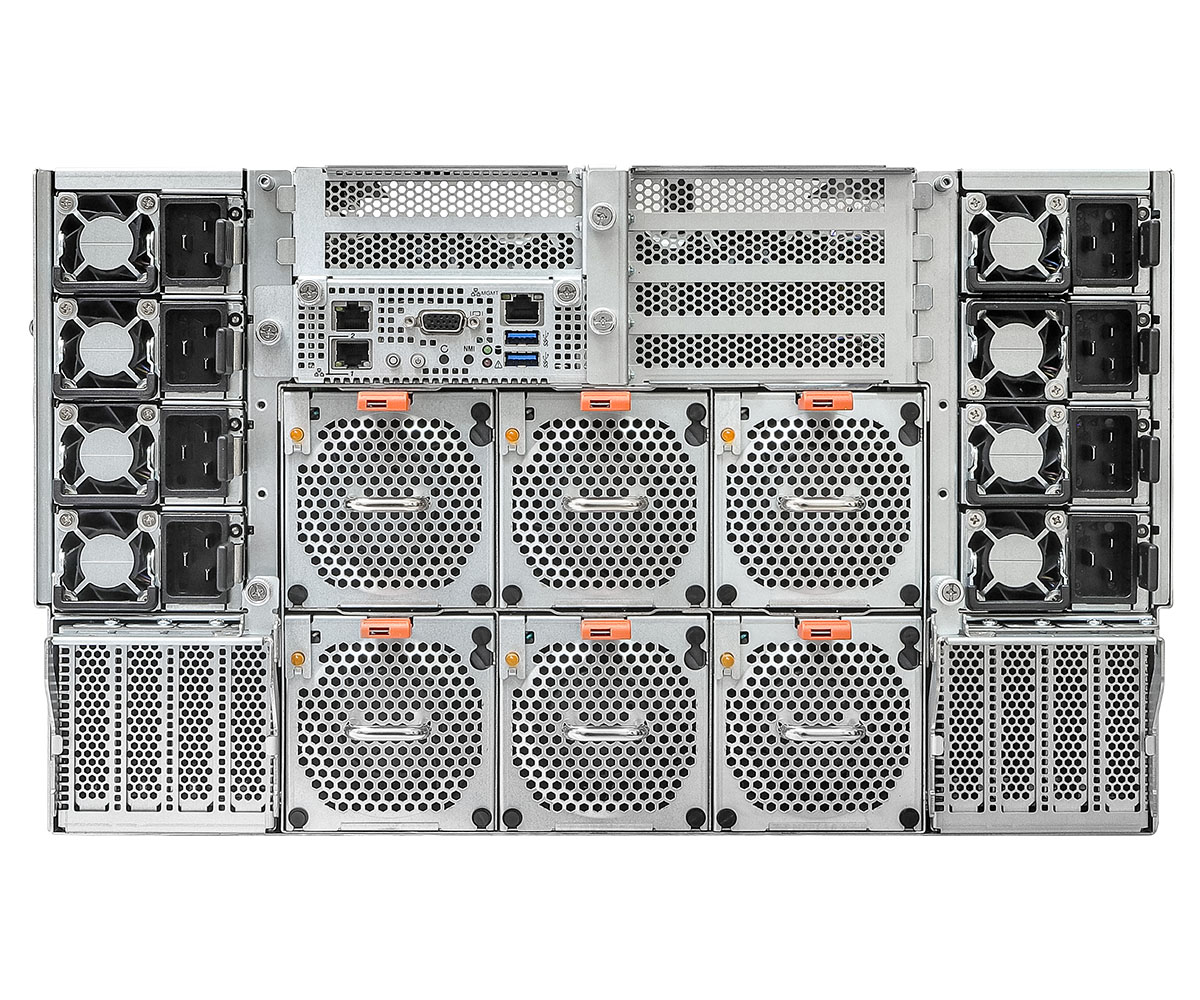

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Other Button/LED | 1 PWR button, 1 RST button, 1 NMI button, 1 HDD LED, 1 SYS LED |
| Video Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel® i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
