1U12E-TURIN/EVAC
1U EPYC9005EPYC9004 リダンダント電源 ストレージサーバー
- 1. 1Uラックマウント、1+1ホットスワップ対応1600WスリムRPSU搭載
- 2. シングルソケットSP5 (LGA 6096)、AMD EPYC™ 9005/9004 (AMD 3D V-Cache™テクノロジー搭載) および97x4シリーズプロセッサー対応
- 3. 12 DIMMスロット（1DPC）、DDR5 RDIMM、RDIMM-3DS対応
- 4. 12基のホットスワップ対応2.5インチNVMe（PCIe5.0 x4）ドライブベイ
- 5. 1基のFHHL PCIe5.0 / CXL2.0 x16
- 6. 2基のM.2スロット対応（PCIe5.0 x4またはSATA 6Gb/s）
- 7. 1基のOCP NIC 3.0（PCIe5.0 / CXL2.0 x16）
- 8. リモート管理（IPMI）
製品仕様
| System | |
| Form Factor | 1U Rackmount |
| Dimensions | 776.5 x 438 x 43.5 mm (30.6” x 17.2” x 1.7”) |
| Support MB | TURIND12M3-NL/500W/1U12E |

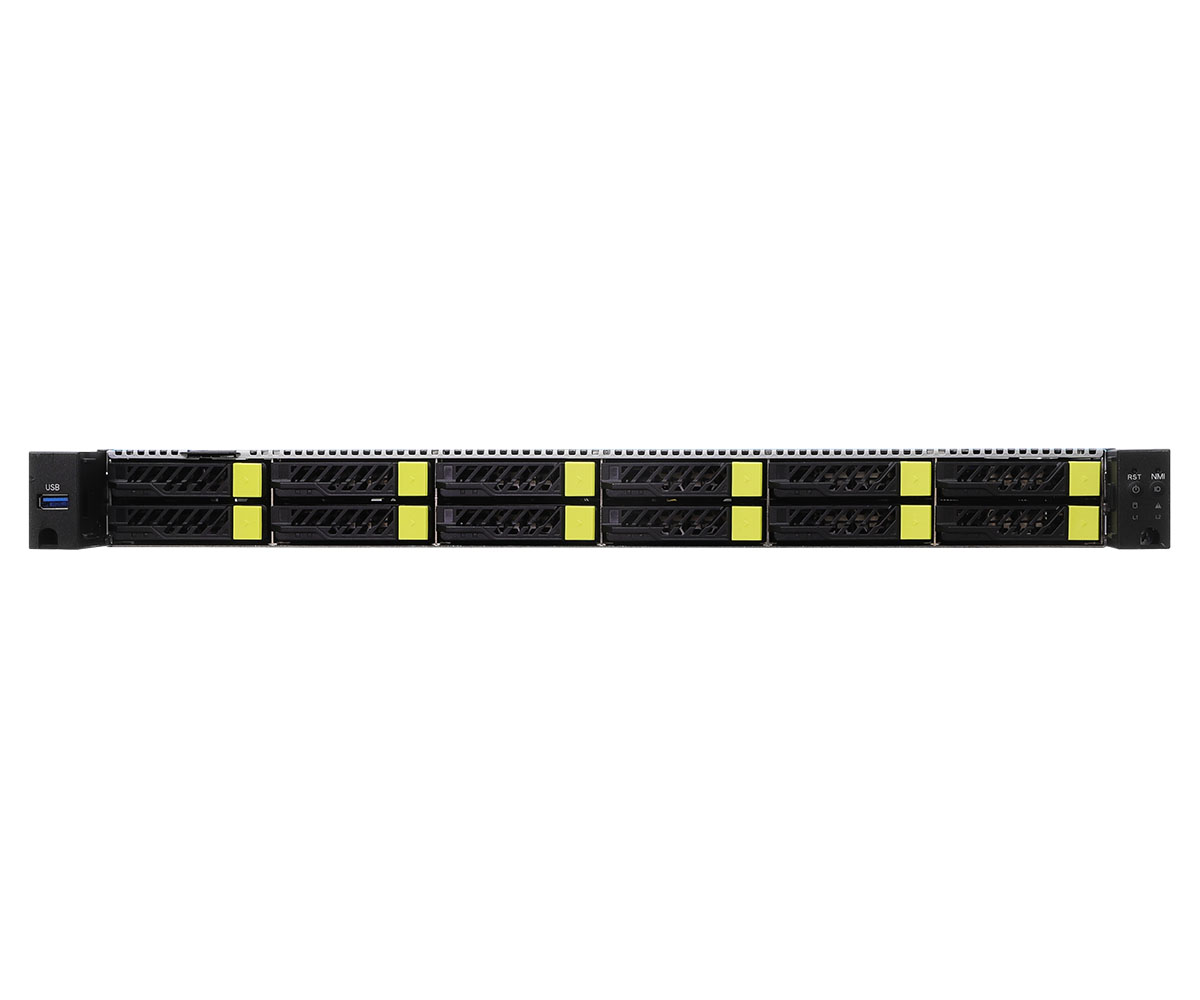

| Front Panel | |
| Buttons | Power button, Reset button, ID button |
| LEDs | Power, System Event, ID, Hard Drive Activity (M.2 only) |
| I/O Ports | 1 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 12 hot-swap 2.5″ NVMe (PCIe5.0 x4) drive bays |
| Front Side Backplane | 12-port NVMe passive backplane |
| Internal Side | 2 M-key (PCIe5.0 x4 or SATA 6Gb/s), supports 22110/2280/2260 form factor |
| Power Supply | |
| Type | 1+1 hot-swap Slim RPSU |
| Output Watts | 1000W @ 100-120Vac input / 1600W @ 200-240Vac input |
| Efficiency | 80-PLUS Platinum |
| AC Input | Low-line: 100-120Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 7 PWM Hot-swap 40×56 mm fans |
| Processor System | |
| CPU | Supports AMD EPYC™ 9005/9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors |
| Socket | Single Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 500W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 12 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 128GB (2Rx4) RDIMM-3DS: 256GB (2Rx4) |
| Max. DIMM Frequency | 6400 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots | |
| PCIe x 16 | 1 FHHL PCIe5.0 / CXL2.0* x16
*Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97×4 series processors |
| Ethernet | |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |

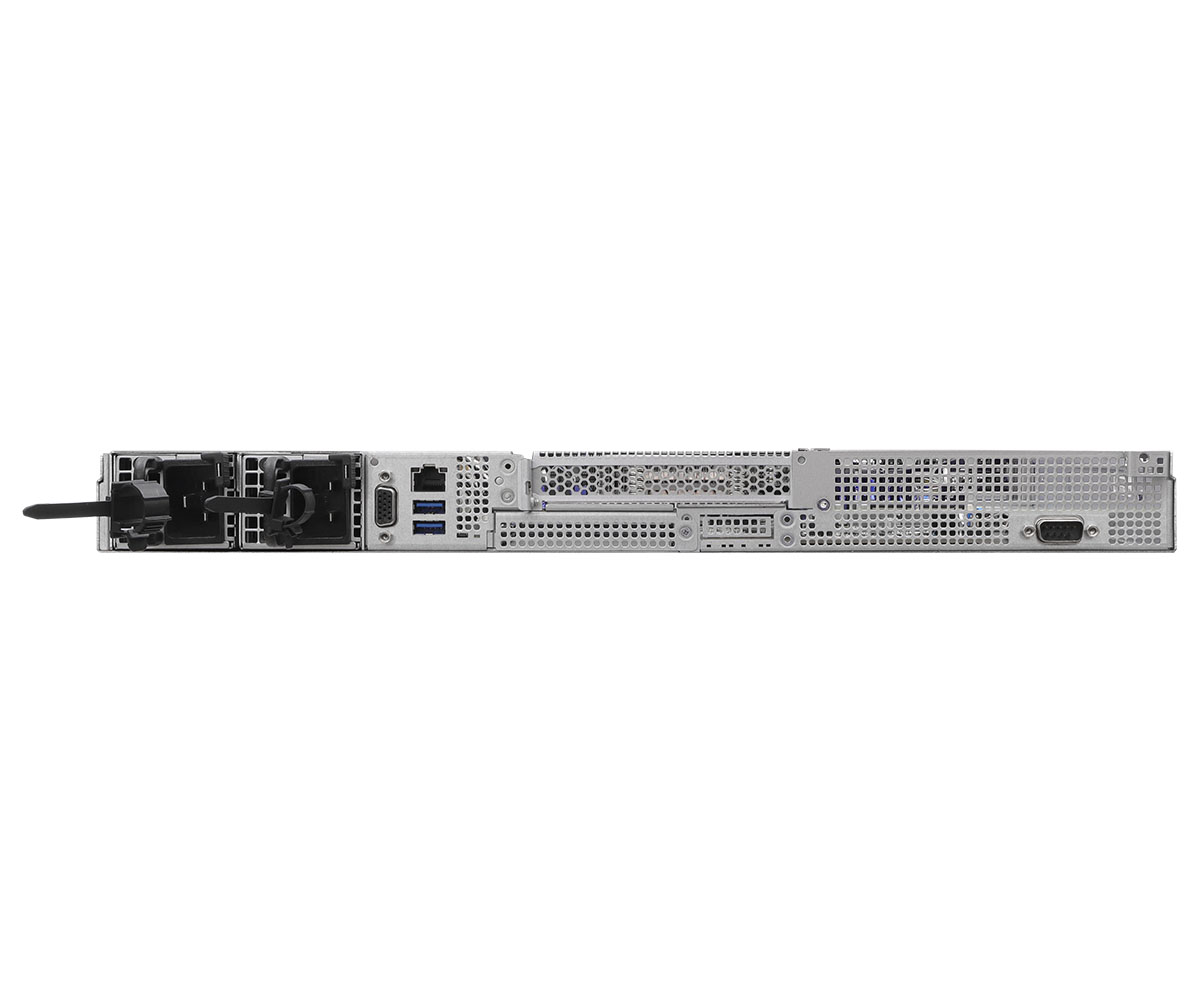

| Rear I/O | |
| Video Port | 1 DB15 (VGA) |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and above compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Temperature sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_VCORE0, VOLT_VCORE1, VOLT_P0_VSOC, VOLT_VDD_11, VOLT_VDDIO, VOLT_VDD_33, VOLT_VDD_18, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
