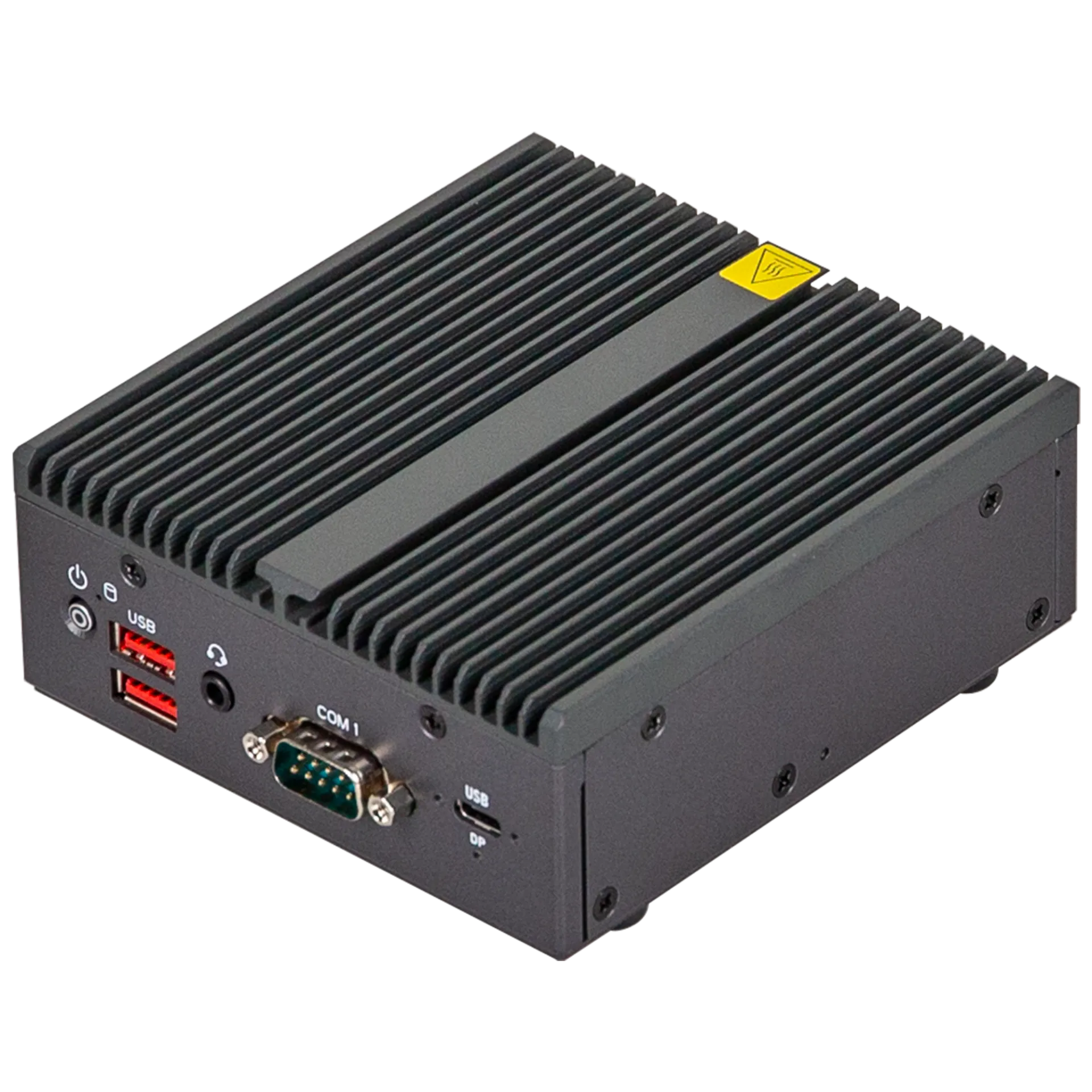

産業用PC NEW
QB-N150A
インテル® プロセッサー N150搭載産業用システム ロック式DCコネクタ/ HDMI×2/ USB Type-C×1（ディスプレイポート代替モード対応）/ LANポート×2/ コンボオーディオジャック×1（ヘッドフォン＆ヘッドセット兼用）
BOX型 DC電源 (or ACアダプタ)
- システムサイズ：幅118×奥行109.4×高さ44.4（mm）
- インテル® プロセッサー N150
- COMポート（RS-232）×1
- シングルチャネル DDR5、SO-DIMM ×1
- HDMI ×2、USB Type-C経由のDP 1.4 ×1（マルチディスプレイ対応）
- GbE LANポート ×2
製品仕様
Dimension |
118W x 109.4D x 44.4H (mm) |
CPU |
Intel® Processor N150 Intel® 7, 4 cores, up to 3.60 GHz |
Memory |
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB Support Single Channel DDR5 4800 MHz memory module |
Ethernet |
2 x GbE LAN Ports (Realtek® RTL8111H) |
Graphics Support |
Integrated Graphics Processor – Intel® Graphics support: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x DP 1.4 through USB Type C (DP Alt.mode), supporting a maximum resolution of 4096×2160 @60Hz(3 independent display outputs) |
Audio |
Realtek® ALC269 |
Expansion-Slots |
1 x 2280 M.2 M-Key (PCIe Gen 3×1, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) |
Front I/O |
2 x USB 3.2 Gen 2×1 1 x COM Port (RS-232) 1 x Combo Audio Jack (Headphone & Headset) 1 x Power button with LED 1 x USB 3.2 Type C with DP 1.4b (DP Alt. mode) |
Rear l/O |
2 x RJ45 LAN Ports 2 x USB 3.2 Gen2x1 2 x HDMI 2 x External Antenna Holes (Optional) 1 x Screw Type DC Jack |
TPM |
Onboard TPM 2.0 security chip NUVOTON NPCT760AABYX |
Power |
+12V~19VDC (Adapter 19V/65W) |
Operation Temperature |
Operating temperature: 0°C to 50°C Operating humidity: 40°C @ 20-95% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 60°C @ 95% (non-condensing) Use wide temperature range memory and storage |
Vibration During Operation |
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr/ Per Axis, with SSD Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr/ Per Axis |
Shock During Operation |
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, with SSD |
Packing Content |
Carton size: 373 x 294 x 296 (mm) Packing Capacity: 8pcsSingle Box size: 256 x 173 x 66 (mm) Single Box weight: Approx. 2kg Including: Power Cord: Optional (by region) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S) VESA Bracket x 1 (P/N: 25HB1-TPL021-S8R) VESA Screws x 1 (P/N: 25KSD-000002-C0R) |
Order Information |
6BQBN150AMR-SI (Box packing) |
