製品仕様
|
Form Factor |

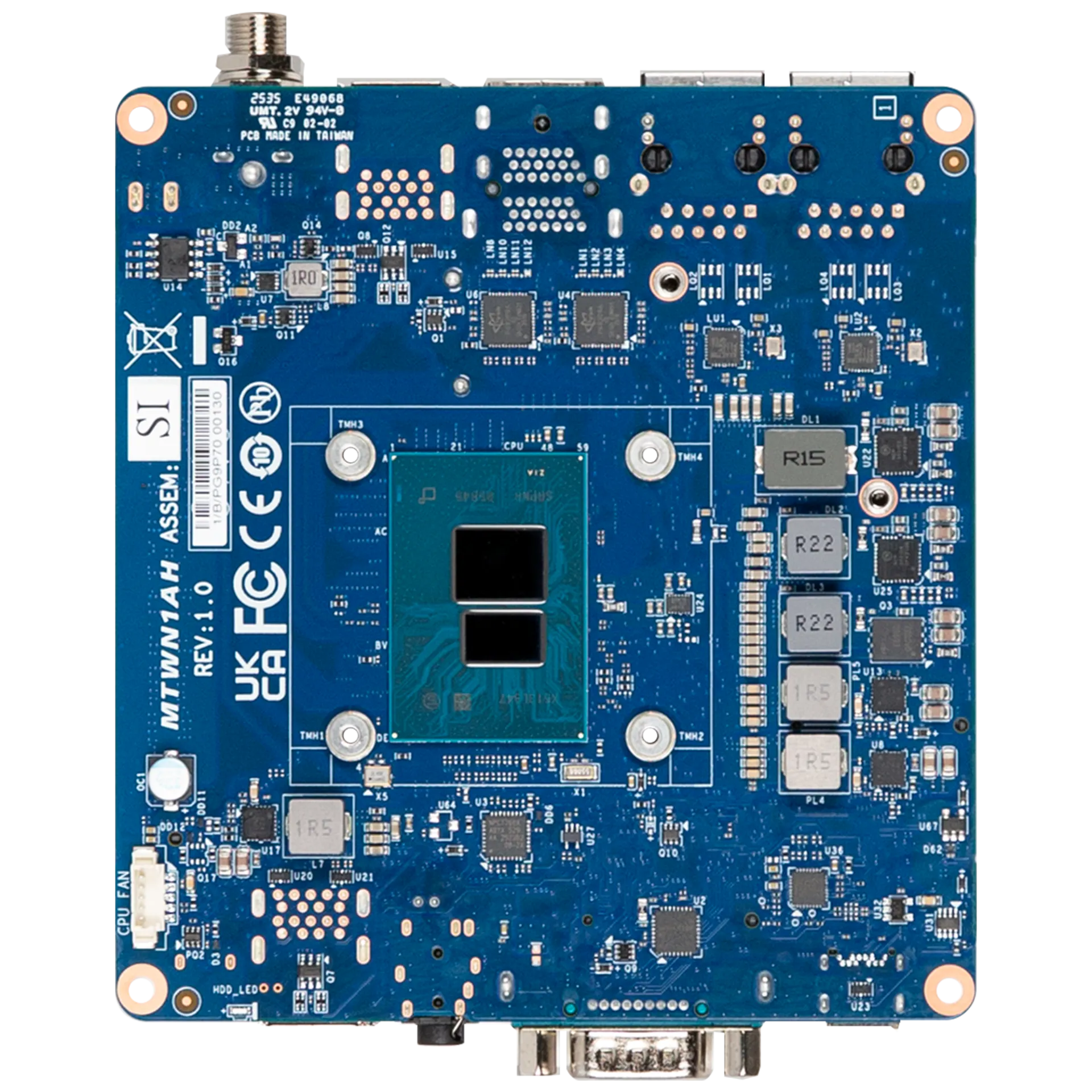

Embedded Compact Board 105W x 110D (mm) |
|
CPU |
Intel® Processor N150 Intel 7, 4 cores, up to 3.60 GHz TDP 6W |
|
Socket |
1 x FCBGA1264 |
|
Memory |
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB Support Single Channel DDR5 4800 MHz memory modules |
|
Ethernet |
2 x GbE LAN Ports (Realtek® RTL8111H) |
|
Video |
Integrated Graphics Processor – Intel® Graphics support: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x DP 1.4 through USB Type C (DP Alt.mode), supporting a maximum resolution of 4096×2160 @60Hz (3 independent display outputs) |
|
Audio |
Realtek® ALC269 |
|
Storage |
1 x SATA 6Gb/s Port |
|
Expansion Slots |
1 x 2280 M.2 M-Key (PCIe Gen 3×1, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
|
Internal I/O |
1 x 2-pin power connector 1 x SATA Power header 1 x CPU fan header 1 x Front panel header 2 x USB 2.0 headers |
|
Front I/O |
2 x USB 3.2 Gen 2×1 1 x Power button with LED 1 x COM Port (RS-232) 1 x Combo audio jack (Headphone & Headset) 1 x USB 3.2 Type C with DP 1.4b (DP Alt. mode) |
|

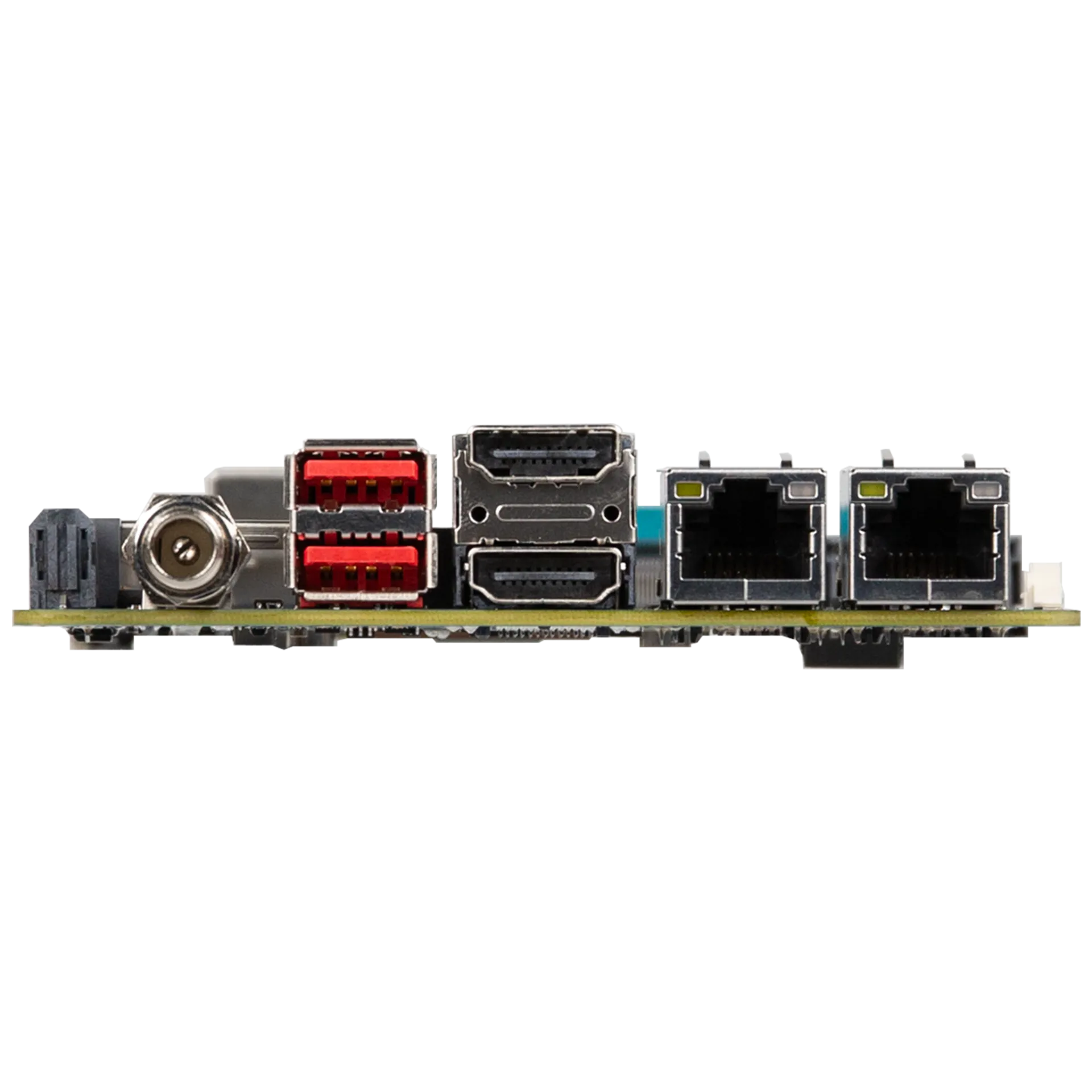

Rear l/O |
2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2×1 2 x HDMI 1 x Screw type DC Jack (+12V~19VDC) |
|
TPM |
Onboard TPM 2.0 security chip NUVOTON NPCT760AABYX |
|
OS Compatibility |
Windows 11 (x64) Ubuntu 24.04.2 LTS (No certification) |
|
Operating Properties |
Operating temperature: 0°C to 60°C Operating humidity: 60°C @ 20-95% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 85°C @ 95% (non-condensing) |
|
Packing Content |
Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.5kg Including: SATA power cable 150mm x 1 (P/N: 25CRI-150621-K1R) |
|
Order Information |
9MTWN1AHMR-SI (Box Packing) |
|
Optional Kit |
Fanless Heatsink P/N: 25ST1-1231Z9-A7R Fansink P/N: 25ST4-123104-A7R Heat spreader P/N: 25ST1-113109-Y0R |
