4U10G-GNR2/RF
4U Xeon6 6500PXeon6 6700PXeon6 6700E 10GPU リダンダント電源 GPUサーバー
- 1. 600W GPUおよびアクセラレータカードの信頼性の高い冷却を実現する強化されたエアフロー
- 2. 4Uラックマウント、3+1、80-PLUS Titanium、3200W CRPS
- 3. デュアルソケットE2（LGA 4710）、Intel® Xeon® 6700Pシリーズ、6500Pシリーズ、6700Eシリーズプロセッサー対応
- 4. 16+16 DIMMスロット（2DPC）、DDR5 RDIMM、MRDIMM対応
- 5. 18基のホットスワップ対応2.5インチNVMe（PCIe5.0 x4）ドライブベイ
- 6. 最大16基のホットスワップ対応2.5インチSATA/SAS*ドライブベイ *追加のRAID/HBAカードが必要
- 7. 10基のFHFLデュアルスロットPCIe5.0 x16（PEX89104 PCIeスイッチ搭載）
- 8. 1 FHFLシングルスロット PCIe5.0 x16 (CPUダイレクトリンク)、2 FHHL PCIe5.0 x16
- 9. 1 M.2 (PCIe5.0 x4) 対応
- 10. 1 OCP NIC 3.0 (PCIe5.0 x16)、2 RJ45 (1GbE) Intel® i350 搭載
- 11. リモート管理 (IPMI)
製品仕様
| System | |
| Form Factor | 4U Rackmount |
| Dimensions | 867 x 438 x 176.5 mm (34.1” x 17.2” x 6.9”) |
| Support MB | GNR2D32G-2L+ |
| Front Panel | |
| Buttons | Power button w/ LED, Reset button, NMI button, UID button |
| LEDs | System fault LED, HDD activity LED |
| I/O Ports | 2 RJ45 (1GbE) by Intel i350, shares with Rear IO 4 Type-A (USB3.2 Gen1) 1 DB15 (VGA) 1 dedicated IPMI, shares with Rear IO |
| External Drive Bay / Storage | |

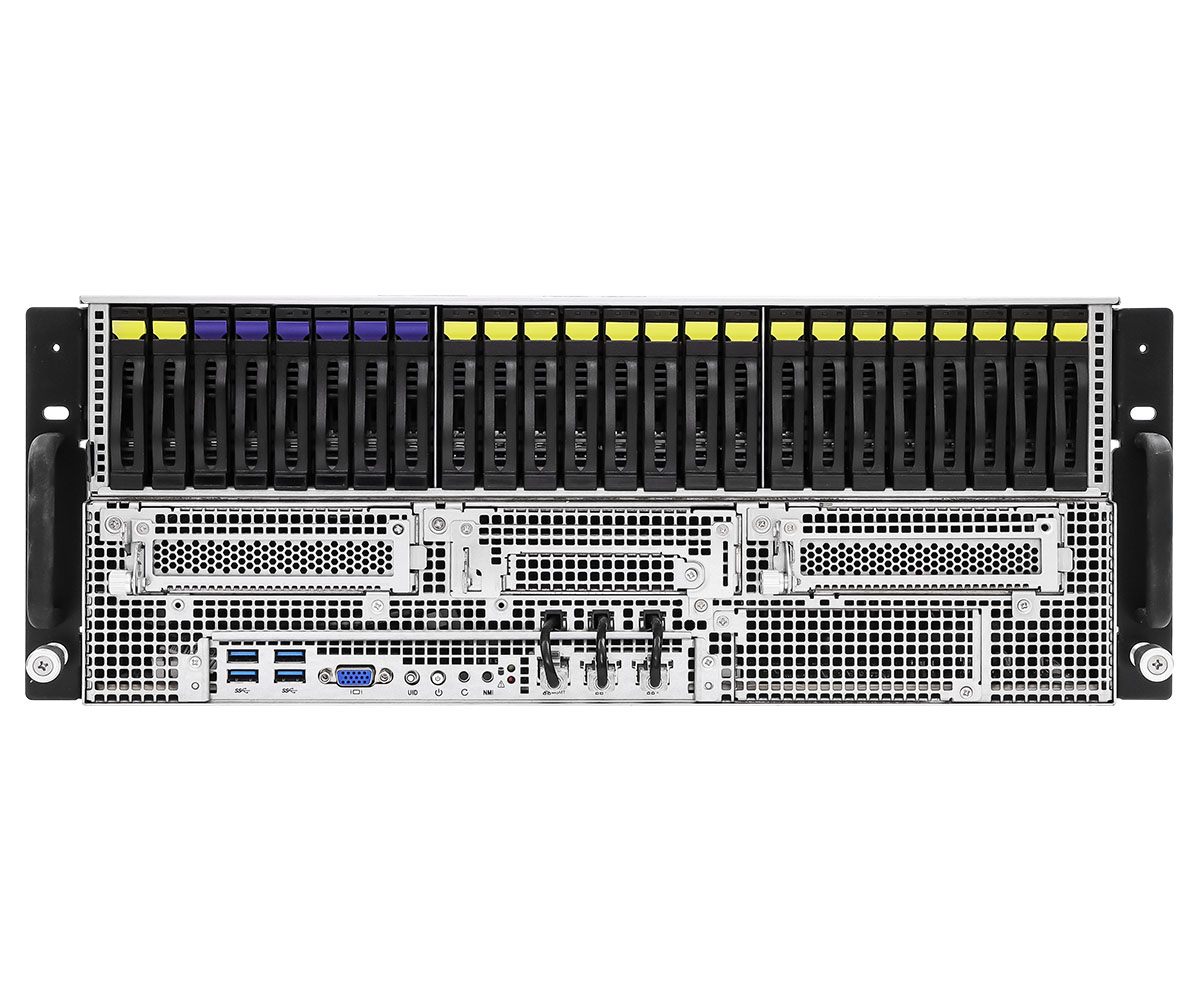

| Front Side Drive Bay | 18 hot-swap 2.5″ NVMe (PCIe5.0 x4) drive bays 6 Hot-swap 2.5″ SATA/SAS* drive bays *Additional RAID/HBA card required to support the 6 x 2.5″ SATA/SAS drive bays |
| Front Side Backplane | 24-port NVMe/SATA/SAS* passive backplanes *SAS drive is only supported with additional RAID/HBA cards |
| Internal Side | 1 M-key (PCIe5.0 x4), supports 22110/2280 form factor [CPU0] |
| Power Supply | |
| Type | 3+1 CRPS |
| Output Watts | 1000W @ 100-127Vac input / 3200W @ 200-240Vac input |
| Efficiency | 80-PLUS Titanium |
| AC Input | Low-line: 100-127Vrms, 50/60Hz ; High-line: 200-240Vrms, 50/60Hz |
| System Fan | |

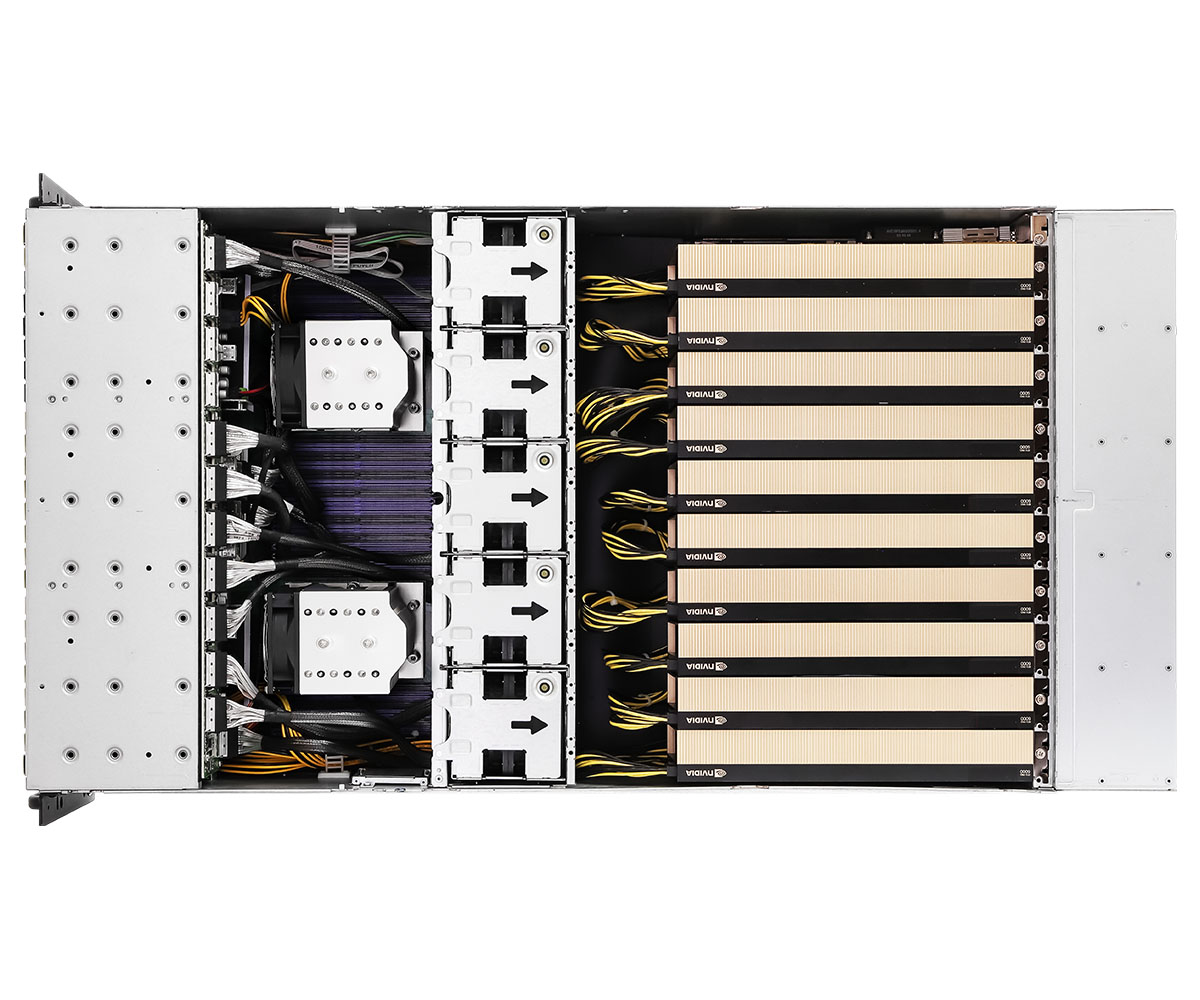

| Fan | 5 middle hot-swap 80×80 mm fans, 5 rear hot-swap 80×80 mm fans |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700P-series, 6500P-series, and 6700E-series processors |
| Socket | 1+1 Socket E2 (LGA 4710) |
| Thermal Design Power | Up to 400W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | DDR5 RDIMM DDR5 MRDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB MRDIMM: 64GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s (1DPC), 5200MT/s (2DPC) MRDIMM: 8000MT/s (1DPC only) |
| Voltage | 1.1V |
| PCIe Expansion Slots | |
| PCIe x 16 | Rear: 10 FHFL dual-slot PCIe5.0 x16 (with PEX89104 PCIe Switch) 1 FHFL single-slot PCIe5.0 x16 (CPU direct link) Front: 2 FHHL PCIe5.0 x16 |
| Ethernet | |
| Additional GbE Controller | Intel® i350: 2 RJ45 (1GbE) |
| OCP slot | 1 OCP NIC 3.0 (PCIe5.0 x16) |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | UID button |
| Video Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) by Intel i350, shares with Front Panel 1 dedicated IPMI, shares with Front Panel |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
