産業用PC NEW
SYS-E100-14AM-E-TB2
コンパクトなファンレス組み込みシステム（4コアCPU搭載）
BOX型 Atom x7000E シングル電源 IoT ファンレス DC電源対応
- Intel® Atom® x7433RE (TDP 9W / 4コア)
- DDR5-4800MT/s 1 DIMM 最大16GB
- 2x RJ45 2.5GbE (Intel i226-IT)
- ファンレス設計、フィン付き底面カバー（オプション）で最大60°C対応
- DC入力 9～36V 端子台 2ピン
- HDMI 1.4ポート×2、USB3.2ポート×4、USB2.0ポート×2、COMポート×4（COM1/2 RS232/422/485 + COM3/4 RS232）
- M.2: M-Key 2242 / 2280 ×1、B-Key 2242 / 2280 /3052 (NANO SIMスロット) ×1、E-Key 2230 ×1
オンサイトサポート
対応製品
製品仕様
| Product SKUs | |
|---|---|
| SYS-E100-14AM-E-TB2 | |

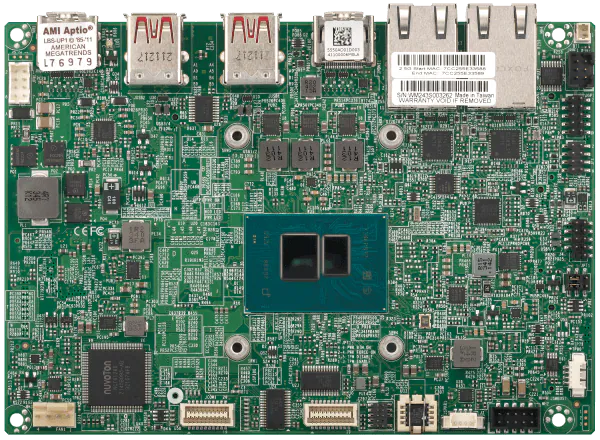

| Motherboard | |
| Super A4SAN-E-WOHS | |
| Processor | |
| CPU | Intel® Atom® x7433RE |
| Core Count | Up to 4C/4T; Up to 6MB Cache |
| Note | Supports up to 9W TDP CPUs (Air Cooled) |
| System Memory | |
| Memory | Slot Count: 1 DIMM slots/1 Channels Max Memory (1DPC): Up to 16GB 4800MT/s non-ECC DDR5 SO-DIMM View Memory Options |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | System on Chip |
| Network Connectivity | 2 RJ45 2.5GbE with Intel® I226-IT |

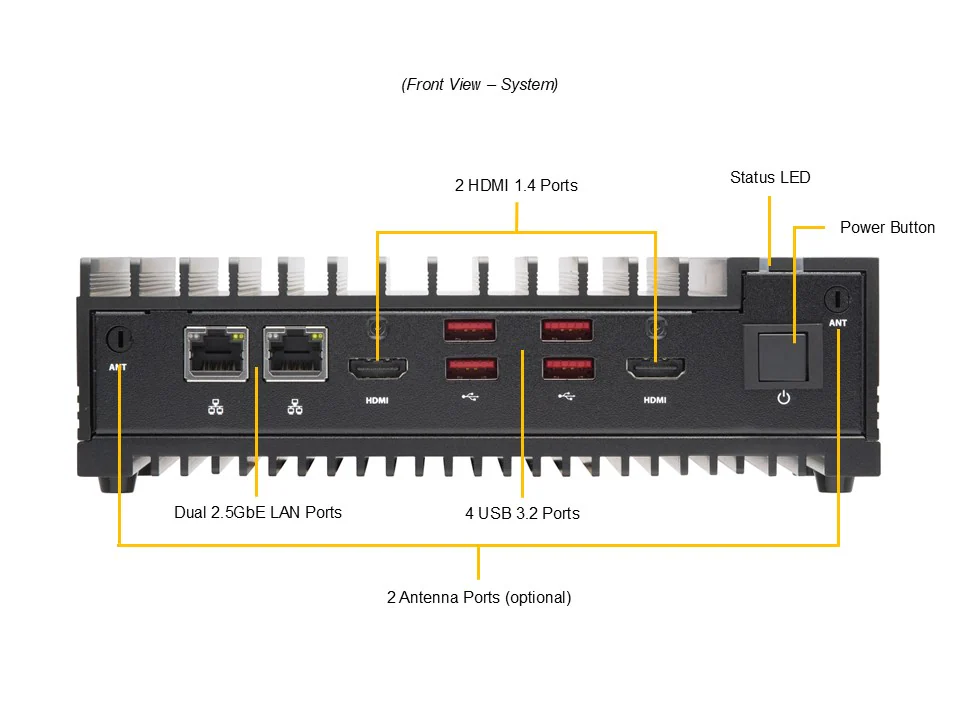

| Input / Output | |
| LAN | 2 RJ45 2.5 GbE LAN ports (Intel® I226) |
| USB | 2 USB 2.0 Type-A ports(rear) 4 USB 3.2 Gen2 Type-A ports(Front) |
| Video | 2 HDMI 1.4 ports(Front) |
| Serial | 4 COM ports(Rear) |
| System BIOS | |
| BIOS Type | AMI 256MB SPI Flash EEPROM |
| Management | |
| Software | Supermicro SuperDoctor® 5 (SD5) |
| Power configurations | ACPI Power Management Power-on mode control for AC power loss recovery Force power-on by jumper +9~36V DC Power Input |
| Security | |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Secure Boot |
| Chassis | |
| Form Factor | Fanless Embedded |
| Model | CSE-E101-05 |

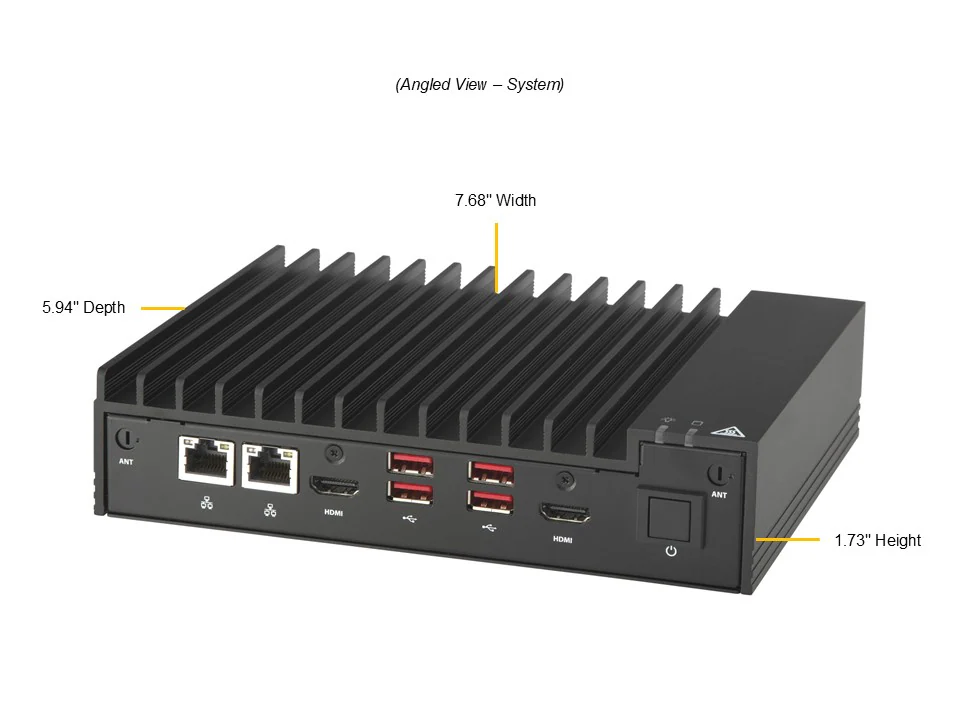

| Dimensions and Weight | |
| Height | 1.73″ (44 mm) |
| Width | 7.68″ (195 mm) |
| Depth | 5.94″ (150 mm) |
| Package | 5.12″ (H) x 11.81″ (W) x 11″ (D) |
| Weight | Gross Weight: 4.3 lbs (1.95 kg) Net Weight: 2.16 lbs (0.98 kg) |
| Palletized Packing (W x H x L) | 54.3″ (1380 mm) x 78.5″ (1993 mm) x 35″ (890 mm) |
| Available Color | Black |
| Expansion Slots | |
| M.2 | 1 M.2 slot (E-key 2230(default)) 1 M.2 PCIe 3.0 x1 SATA slot (M-key 2242/2280) 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280/3052) |
| Drive Bays / Storage | |
| M.2 | 1 M.2 PCIe 3.0 x1 NVMe slot (M-key 2242/2280) 1 M.2 PCIe 3.0 x1 SATA slot (B-key 2242/2280/3052) View M.2 Options |
| System Cooling | |
| Fans | N/A |
| Power Supply | |
| 1x 60W1x 60W power supplyDimension (WxHxL)110 x 31.5 x 62 mm | |
| Operating Environment | |
| ROHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: -20°C to 50°C (-4°F to 122°F) with 0.7 m/s airflow Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing) |
