H174-A80-LAS1

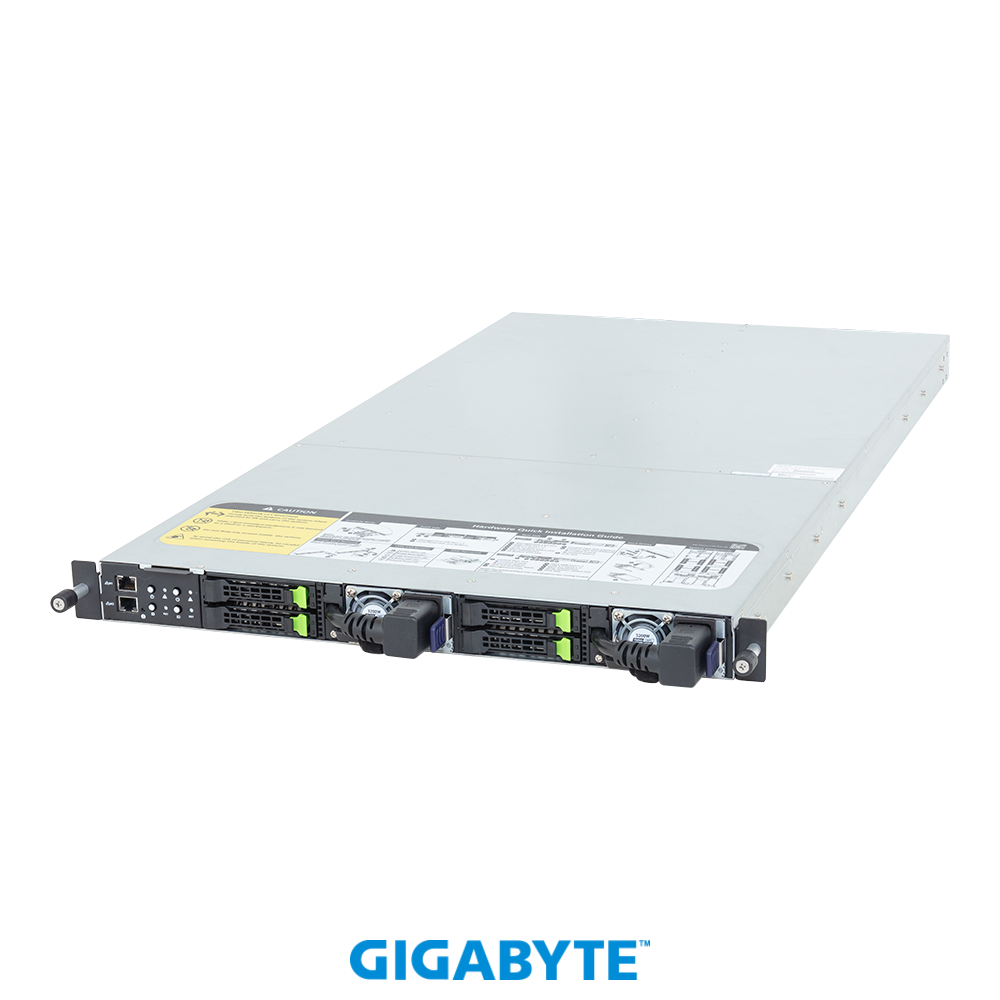

高密度サーバー - Intel® Xeon® 6 プロセッサー - 1U 2ノード DP 4ベイ Gen5 NVMe/SATA/SAS-4 DLC
1U Xeon6 6900P リダンダント電源 汎用サーバー クラウドサーバー 仮想化サーバー マルチノード

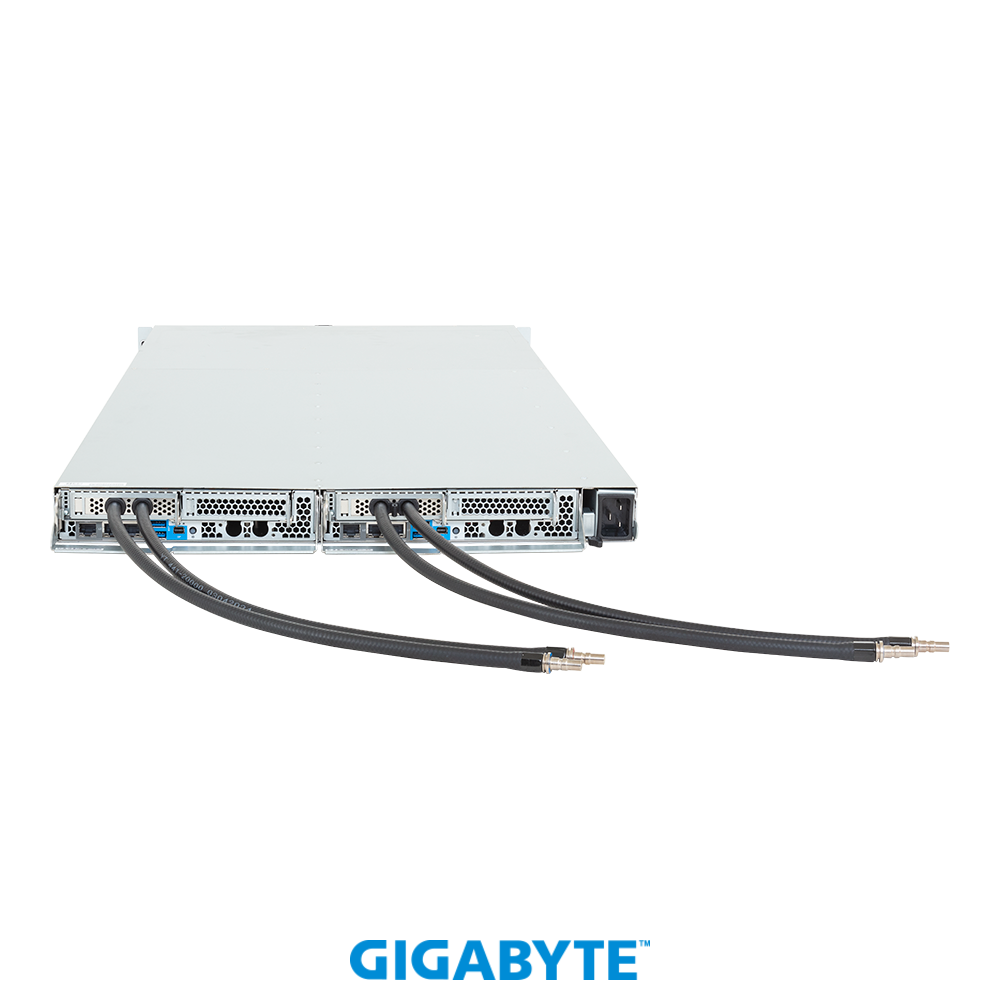

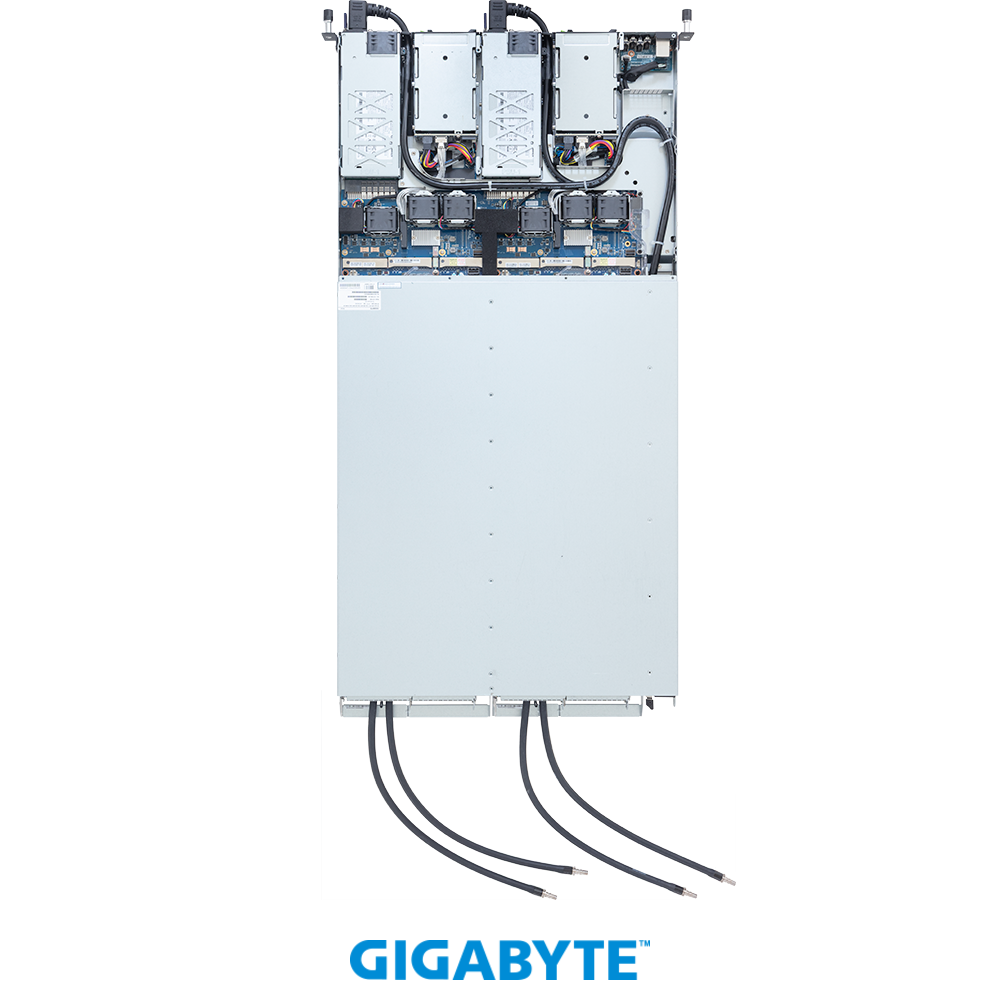

- 1. 漏洩検知機能付きダイレクト液体冷却ソリューション
- 2. 1U 2ノードリアアクセスサーバーシステム
- 3. ノードあたりデュアルIntel® Xeon® 6900シリーズプロセッサー
- 4. 12チャネルDDR5 RDIMM / MRDIMM、ノードあたり24 x DIMM
- 5. デュアルROMアーキテクチャ
- 6. Intel® I350-AM2経由の4 x 1Gb/s LANポート
- 7. 4基の2.5インチGen5 NVMe/SATA/SAS-4ホットスワップベイ
- 8. 2基のLP PCIe Gen5 x16スロット
- 9. 2基のLP PCIe Gen5 x16スロット（オプション）
- 10. 1+1構成 3200W 80 PLUS Titanium認定冗長電源ユニット
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 1U 2-Node – Rear access 440 x 43.4 x 856 |
|---|---|
| Motherboard | MA84-HD0 |
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6900-Series ProcessorsDual processor per node, TDP up to 500W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 4 x LGA 7529 Socket BR |
| Chipset | System on Chip |
| Memory | 48 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 12-Channel memory per processor RDIMM: Up to 6400 MT/s MRDIMM: Up to 8800 MT/s [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores. |
| LAN |
Rear (I/O board – CLNP319 x 2):
4 x 1Gb/s LAN (2 x Intel® I350-AM2) – Support NCSI function2 x 10/100/1000 Mbps Management LAN [1] [1] Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology. |
| Video | Integrated in ASPEED® AST2600 x 2 – 2 x Mini-DP |
| Storage |
Front hot-swap:
4 x 2.5″ Gen5 NVMe/SATA/SAS-4 [1] – (NVMe from CPU_1) [1] Storage card is required to support SATA and SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards Onboard VROC key header |
| PCIe Expansion Slots |
Riser Card CRCH010 x 4:
– 2 x LP x16 (Gen5 x16), from CPU_0 – 2 x LP x16 (Gen5 x16), from CPU_0 [1] [1] Enabling the slots requires specific cold plate loops and tubes relocation. Please contact our sales representatives if the feature is needed. |

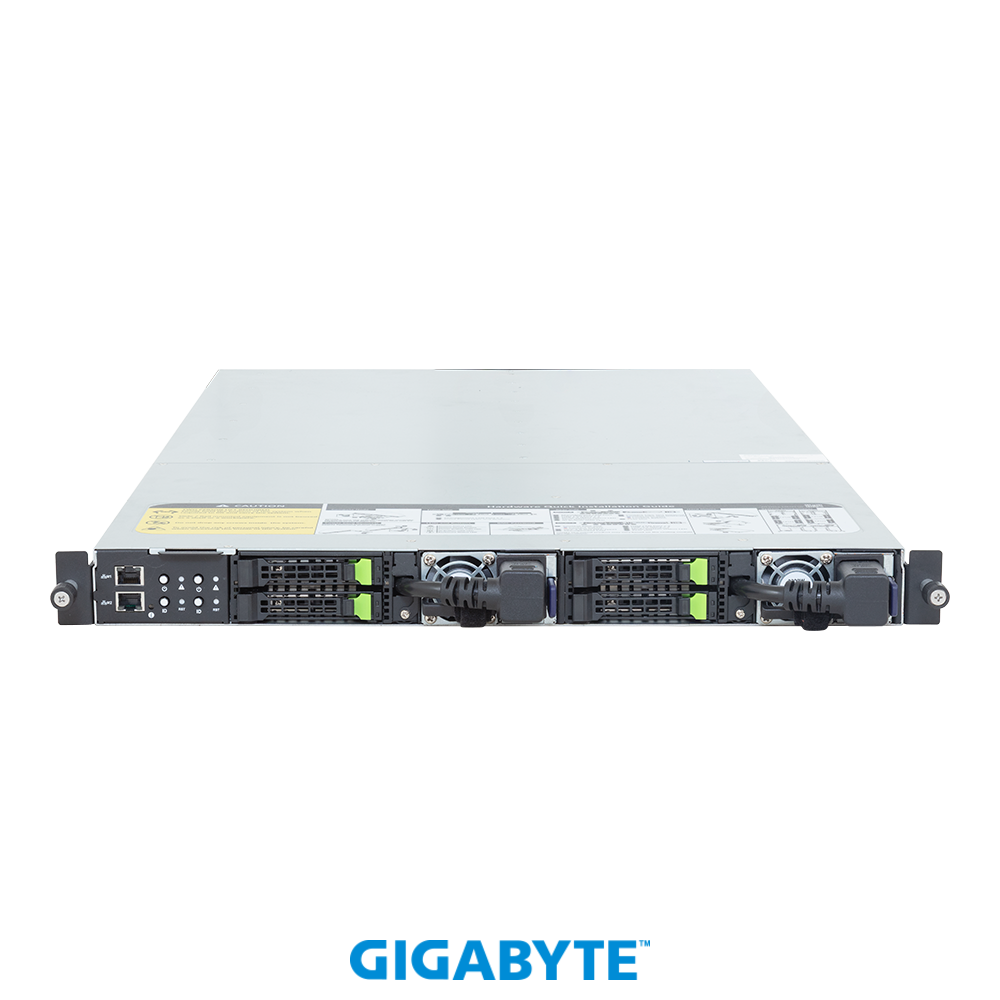

| Front I/O | 2 x MLAN ports 2 x Power buttons with LED 2 x ID buttons with LED 2 x Reset buttons 2 x System status LEDs 1 x CMC status LED |
| Rear I/O | I/O board – CLNP319 x 2: 4 x USB 3.2 Gen1 ports (Type-A) 2 x Mini-DP 4 x RJ45 ports 2 x MLAN ports 2 x ID buttons with LED 2 x System status LEDs |
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 2 x TPM headers with SPI interface – Optional TPM2.0 kit: CTM0122 x PRoT connectors (only enabled on RoT SKU) |
| Power Supply[#1] | 1+1 3200W 80 PLUS Titanium redundant power supplies [1]
AC Input: DC Input: (Only for China) DC Output: [1] The system power supply requires C19 power cord. |
| System Management | |
| OS Compatibility | Please refer to OS compatibility table in support page |
| System Fans |
6 x 40x40x28mm
|
| Operating Properties | Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C. |
| Packaging Dimensions | 1187 x 733 x 281 mm |
| Packaging Content | 1 x H174-A80-LAS1 2 x CoolIT CPU cold plate loops 1 x Mini-DP to D-Sub cable 4 x Carriers 1 x 3-Section Rail kit |
| Part Numbers | – Barebone with cold plates: 6NH174A80DR000LAS1* – Barebone without cold plates: 6NH174A80DZ000LAS1* – Motherboard: 9MA84HD0UR-000* – 3-Section Rail kit: 25HB2-QAJH00-K0R – CoolIT CPU cold plate loop: 25ST7-10000F-C4R – Front panel board – CFPH031: 9CFPH031NR-00* – Backplane board – CBP2025: 9CBP2025NR-00* – Fan module: 25ST2-44282I-N2R – Fan module: 25ST2-44282K-N2R – Riser card – CRCH010: 9CRCH010NR-00* – I/O board – CLNP319: 9CLNP319NR-00* – CoolIT leak sensor board – CDB81: 9CDB81NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-232003-G1S |
