QN-ORAX32-A1
- NVIDIA® Jetson AGX Orin 32GB搭載AIシステム
- システムサイズ：幅175×奥行145×高さ85（mm）
- NVIDIA® Jetson AGX Orin™、最大200 TOPS
- 32GB 256ビット LPDDR5
- AI、NVR、監視アプリケーション
- ファンレスシステム
製品仕様
Dimension |
175W x 145D x 85H (mm) |
|---|---|
AI Accelerator |
NVIDIA® Jetson AGX Orin 32GB |
AI Performance |
Up to 200 TOPs |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| GPU | 1792-core NVIDIA Ampere c GPU with 56 Tensor Cores |
| Memory | 32GB 256-bit LPDDR5 204.8GB/s |
Ethernet |
1 x GbE RTL8211F-CG 1 x GbE PCIE RTL8111H 4 x (PCIe) 10/100/1000Mbps Ethernets (Optional 2 Ports PoE support) – RTL8111H (POE_PSE min : Total 30W, 2 Ports x 15W) |
Display output |
1 x HDMI 2.0 port |
Storage |
1 x 32G eMMC 5.1 (Module) 2 x 2280 M.2 M-Key (SATA or PCIe Gen4) |
| Expansion Slots | 2 x 2280 M.2 M-Key (PCIe x4) 1 x 3052/3042 M.2 B-Key for 5G/LTE (USB 3.2 Gen 2 only) 1 x 2230 M.2 E-Key for WiFi 5/6 1 x M.2 – OOB module (optional) |

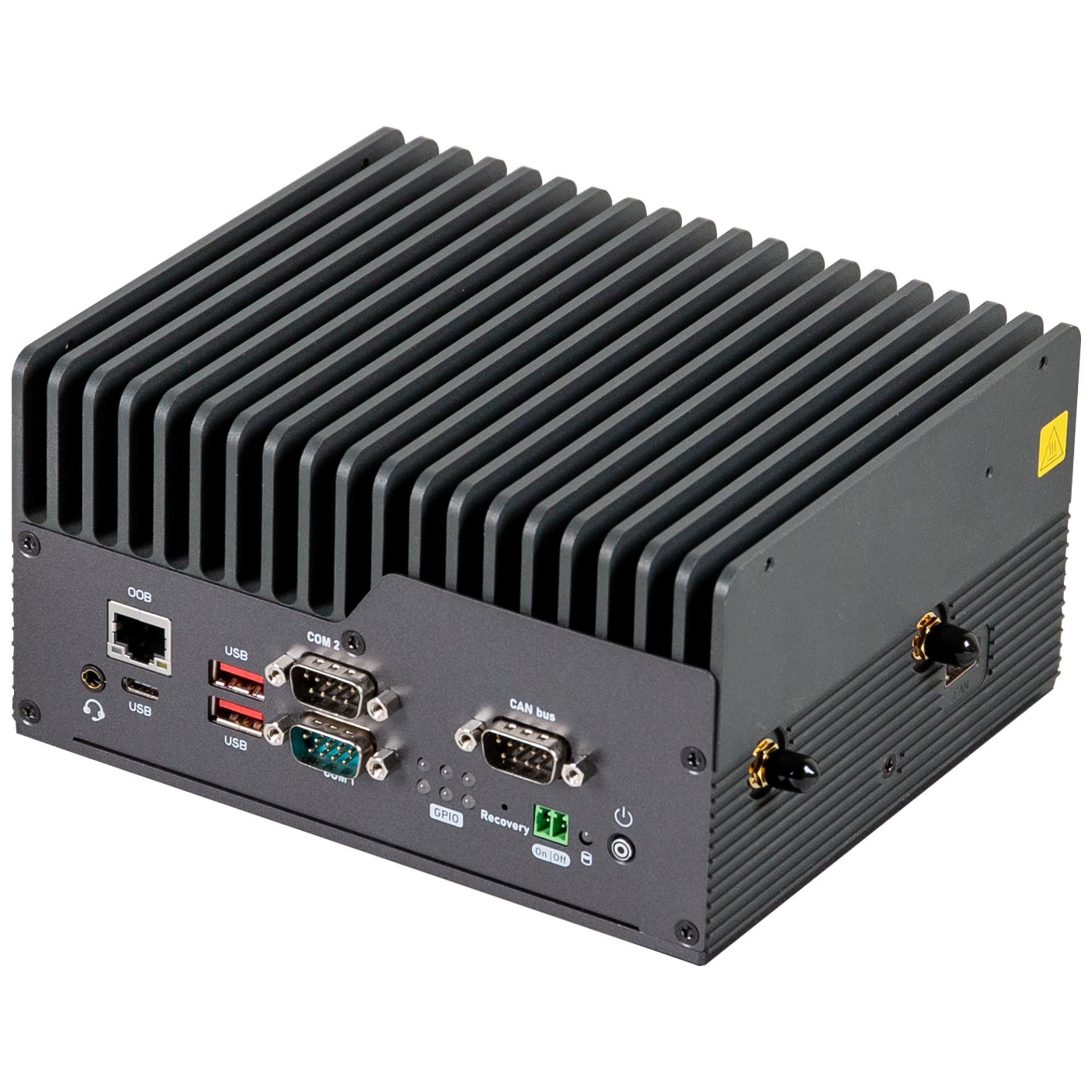

| Front I/O | 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2 Type-C (OTG) 1 x Mic-in (Mono), line-out (Stereo) 1 x Power/reset button 2 x External Antenna Holes (Optional) 1 x Remote control header 2 x COM Ports (RS-232/422/485) |

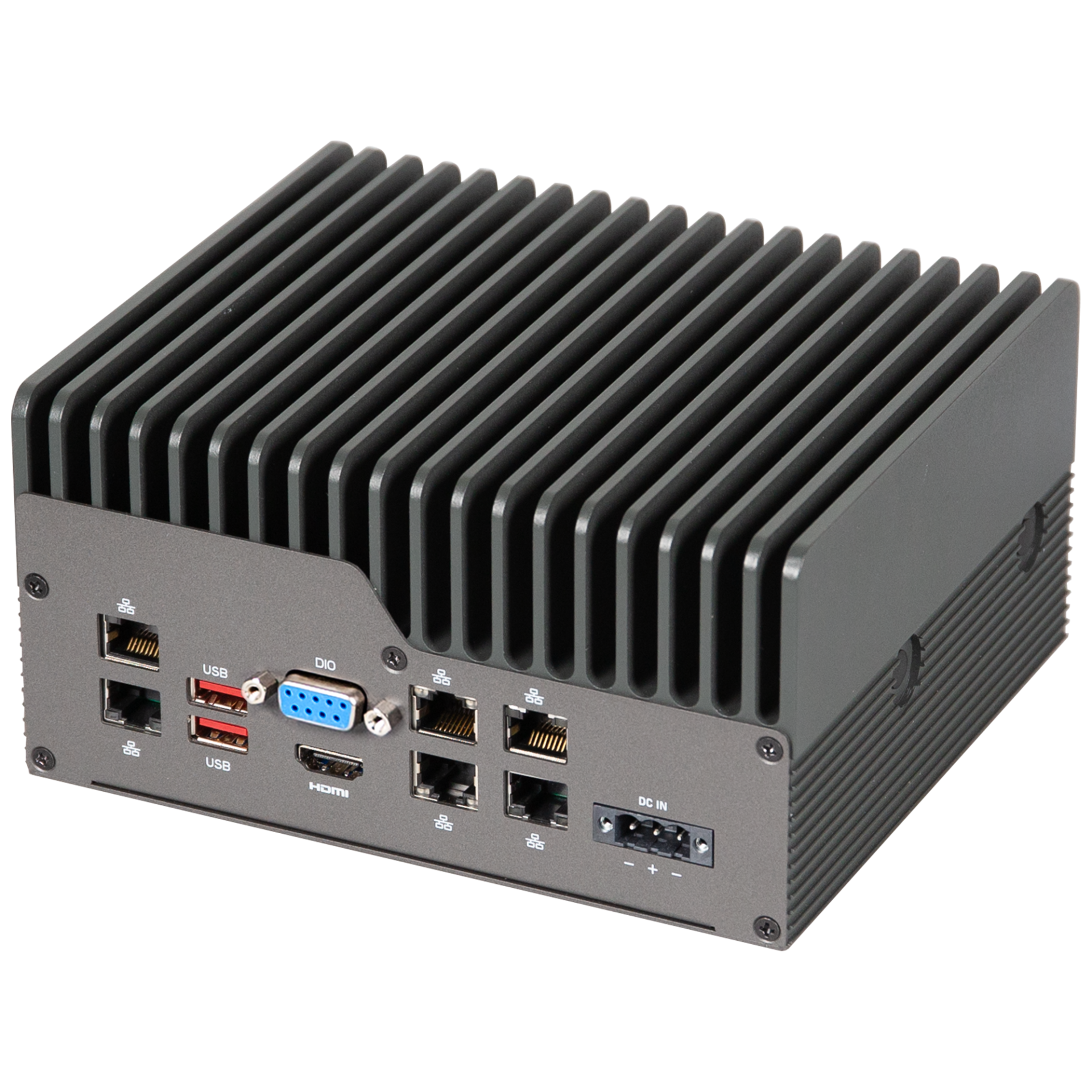

| Rear I/O | 2 x COM Ports (RS-232/422/485) 1 x 3-pin Terminal Block 1 x CANBus 2.0b, isolated (DB9) 6 x user defined LEDs (GPIO for user programming) 2 x GbE LAN Ports 4 x GbE LAN Ports (Support POE) 1 x HDMI 2 x USB 3.2 Gen 2 |
Side I/O |
4 x External Antenna Holes (Optional) |
Power |
+19V~24VDC (Terminal Block) |
Operation Temperature |
Operating temperature: -20°C to 60°C |
Order Information |
9BQNORAXAMR-SI (Box packing)
∗すべての仕様は予告なく変更される場合があります。詳細については、担当の営業担当者にお問い合わせください。 |
