mITX-H810E
Intel® H810チップセット搭載Mini-ITX、Intel® Core™ Ultraプロセッサー(シリーズ2)対応、デュアルチャネルDDR5メモリ、PCIe、COM×6、USB×8、SATA 6Gb/s×2
CoreCore Ultra 3 200Core Ultra 5 200Core Ultra 7 200Core Ultra 9 200
- Mini-ITXフォームファクター
- Intel® Core™ Ultraプロセッサー対応 (シリーズ2)
- Intel® H810チップセット
- デュアルチャネルDDR5、SO-DIMM/CSO-DIMM×2スロット
- 2.5GbE LANポート×1
- GbE LANポート×1
- SATA 6Gb/sポート×2
- HDMI、DP、VGA、LVDSによるマルチディスプレイ対応
- COMポート×1 (RS-232/422/485 & RI/5V/12V)
- COMポート×1 (RS-232/422/485)
- COMポート×4 (RS-232)
製品仕様
| Form Factor | Mini-ITX 170W x 170D (mm) |
|---|---|
| CPU | Support Intel® Core™ Ultra processors (Series 2) TDP under 65W |
| Socket | 1 x LGA 1851 |
| Chipset | Intel® H810 Chipset |
| Memory | 2 x DDR5 SO-DIMM/CSO-DIMMs sockets, Max. Capacity 128 GB Support Dual channel DDR5 5600/6400 MHz memory modules |
|
Ethernet |
1 x GbE LAN Port (Intel® I219V) 1 x 2.5GbE LAN Port (Intel® I226V) |
| Video | Integrated Graphics Processor – depends on CPU: 1 x HDMI 2.1 port, supporting a maximum resolution of 7680×4320 @60Hz 1 x DP port, supporting a maximum resolution of 4096×2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920×1080 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920×1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® ALC897 |
|
Storage |
2 x SATA 6Gb/s Ports |
| Expansion Slots | 1 x PCIe x16 (Gen 4×16) 1 x 2280 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W speaker out header 4 x USB 2.0 headers 1 x COM header (RS-232/422/485) 4 x COM headers (RS-232) 1 x GPIO (8 bits) & SMBus header 1 x Backlight control header 1 x Clear CMOS jumper 1 x Buzzer header 1 x AT/ATX mode select jumper |

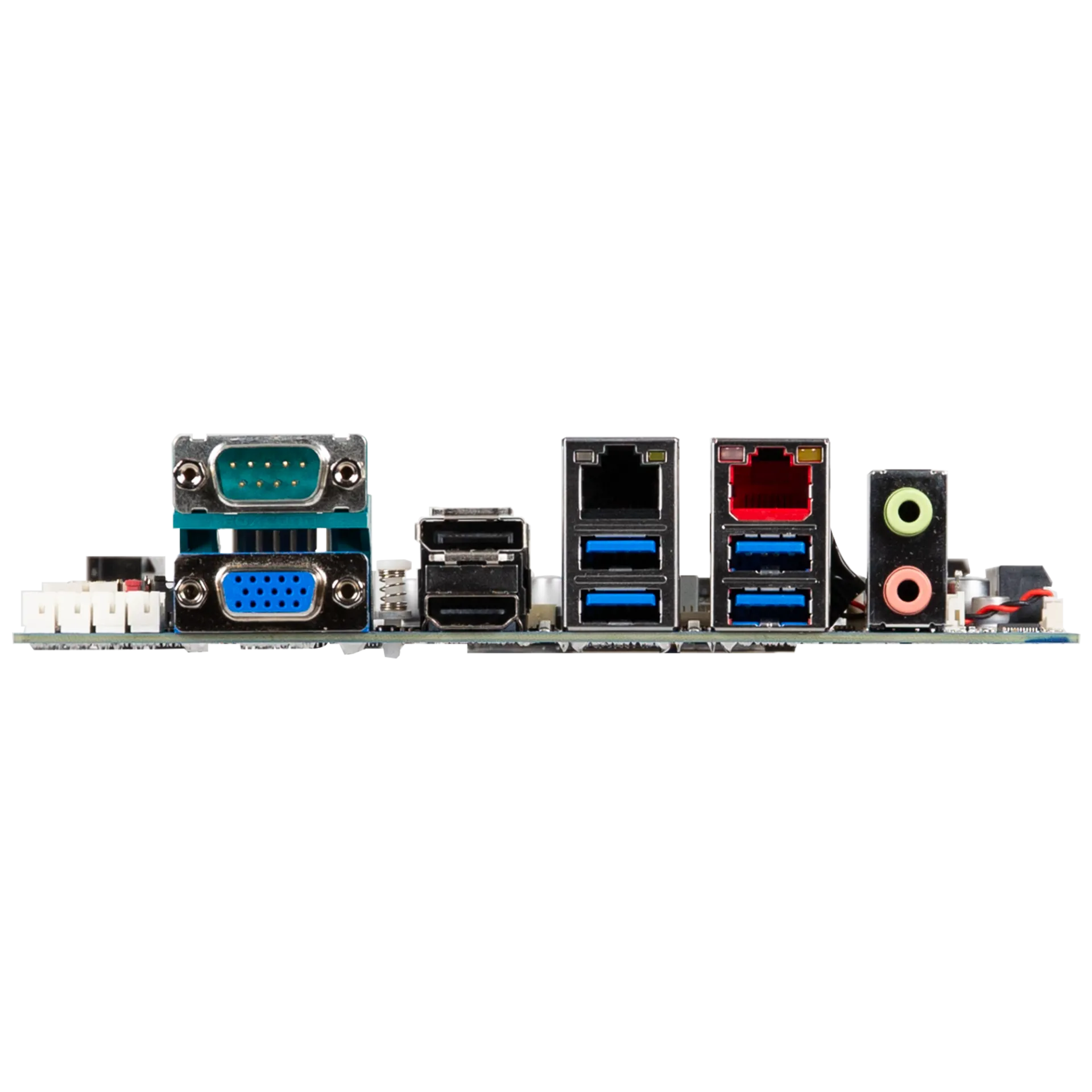

| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x HDMI 1 x Display port 1 x VGA 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2×1 2 x USB 3.2 Gen 1 |
| TPM | Onboard TPM 2.0 security chip Infineon SLB9670VQ2.0 |
|
OS Compatibility |
Windows 10/11 (x64) |
|
Operating Properties |
Operating temperature: 0°C to 60°C Operating humidity: 60°C @ 20-95% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 85°C @ 95% (non-condensing) |
|
Packing Content |
Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size : 221 x 178 x 65 (mm) Including: IO Shield x 1 (P/N: 12AIO-MH610E-00R) SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R) |
|
Order Information |
9MH810EIMR-SI (Box packing) |
|
Optional Kit |
CPU Cooler : 25ST0-037820-Y0R CPU Cooler Backplate : 12KRH-0A1700-00R |
