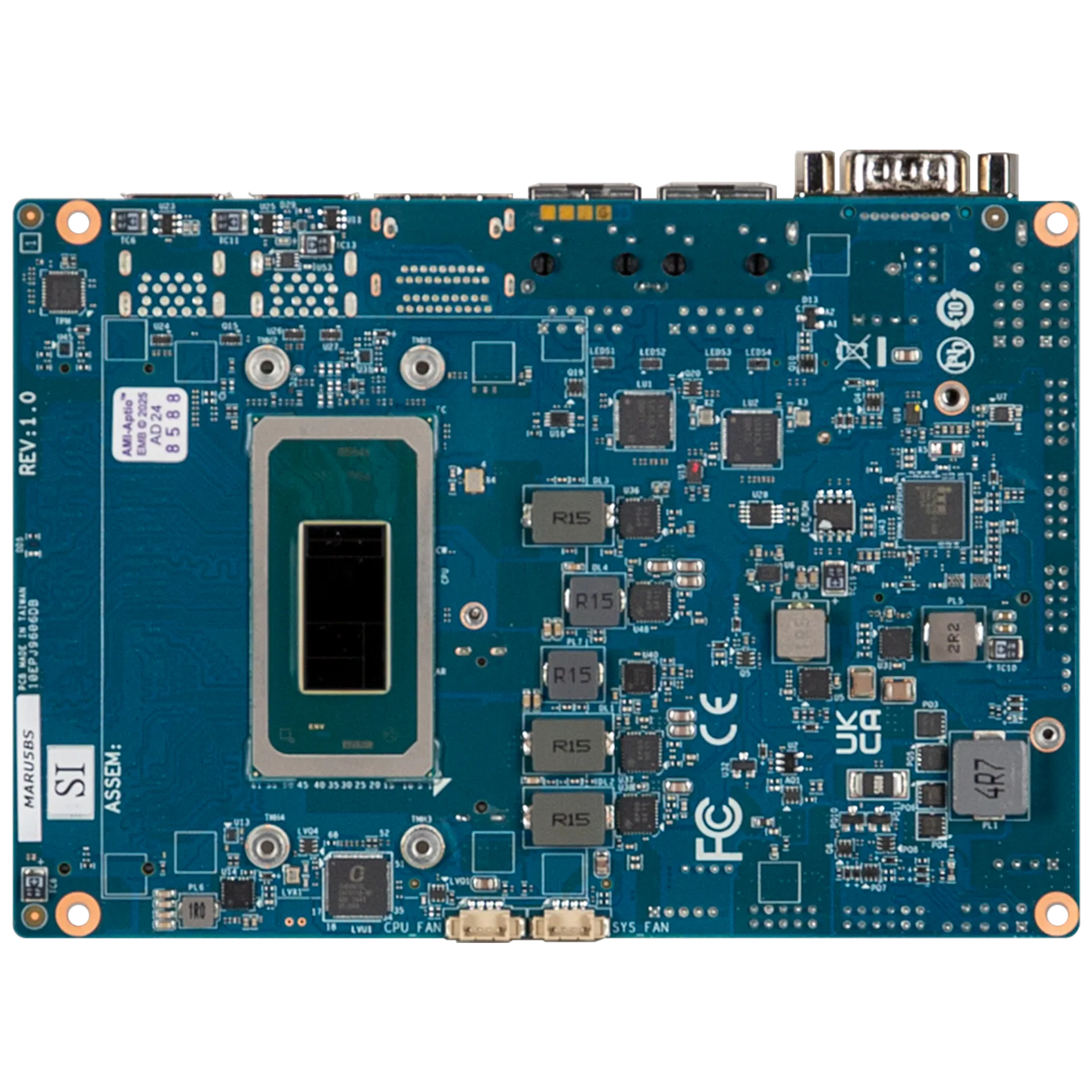

QBiP-255UB
3.5インチ サブコンパクトボード• Intel® Core™ Ultra 7 プロセッサー 255U• デュアルチャネル DDR5 メモリ• COM ポート ×4• SATA 6Gb/s ×1• USB 3.2 Gen 2x1 ×4• USB 2.0 ×4
Core Ultra 7 200
- 3.5インチSBC
- Intel® Core™ Ultra 7 プロセッサー 255U
- デュアルチャネル DDR5、SO-DIMM/CSO-DIMM ×2
- 2.5GbE LANポート ×2
- SATA 6Gb/sポート ×1
- PCIe Gen4 x4インターフェース搭載超高速M.2
- 複数ディスプレイ用 HDMI 2基、LVDSポート
- COMポート 1基 (RS-232/422/485 & RI/5V/12V)
- COMポート 3基 (RS-232/422/485)
- USB 3.2 Gen 2x1 4基
- CANバスヘッダー 1基
製品仕様
| Form Factor | 3.5″ SBC 146W x 101.7D(mm) |
|---|---|
| CPU | Intel® Core™ Ultra 7 Processor 255U Intel® 3, 12 cores, 2P+8E+2LPE, 14 threads, up to 5.20 GHz TDP 15W 12 MB Smart Cache |
| Socket | 1 x FCBGA2049 |
| Memory | 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR5 5600 MHz memory modules |
|
Ethernet |
2 x 2.5GbE LAN Ports (Intel® I226V & I226LM) |
| Video | Integrated Graphics Processor – Intel® Graphics: 2 x HDMI2.1 port, supporting a maximum resolution of 7680×4320 @60Hz (HDMI 2 port support HDMI CEC) 1 x LVDS port, supporting a maximum resolution of 1920×1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® ALC269 |
|
Storage |
1 x SATA 6Gb/s Port (SATA RAID 0/1) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe Genx4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot |
| Internal I/O | 1 x 4-pin box power connector (DC in +9V~36VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232/422/485) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header 1 x CANBus header |

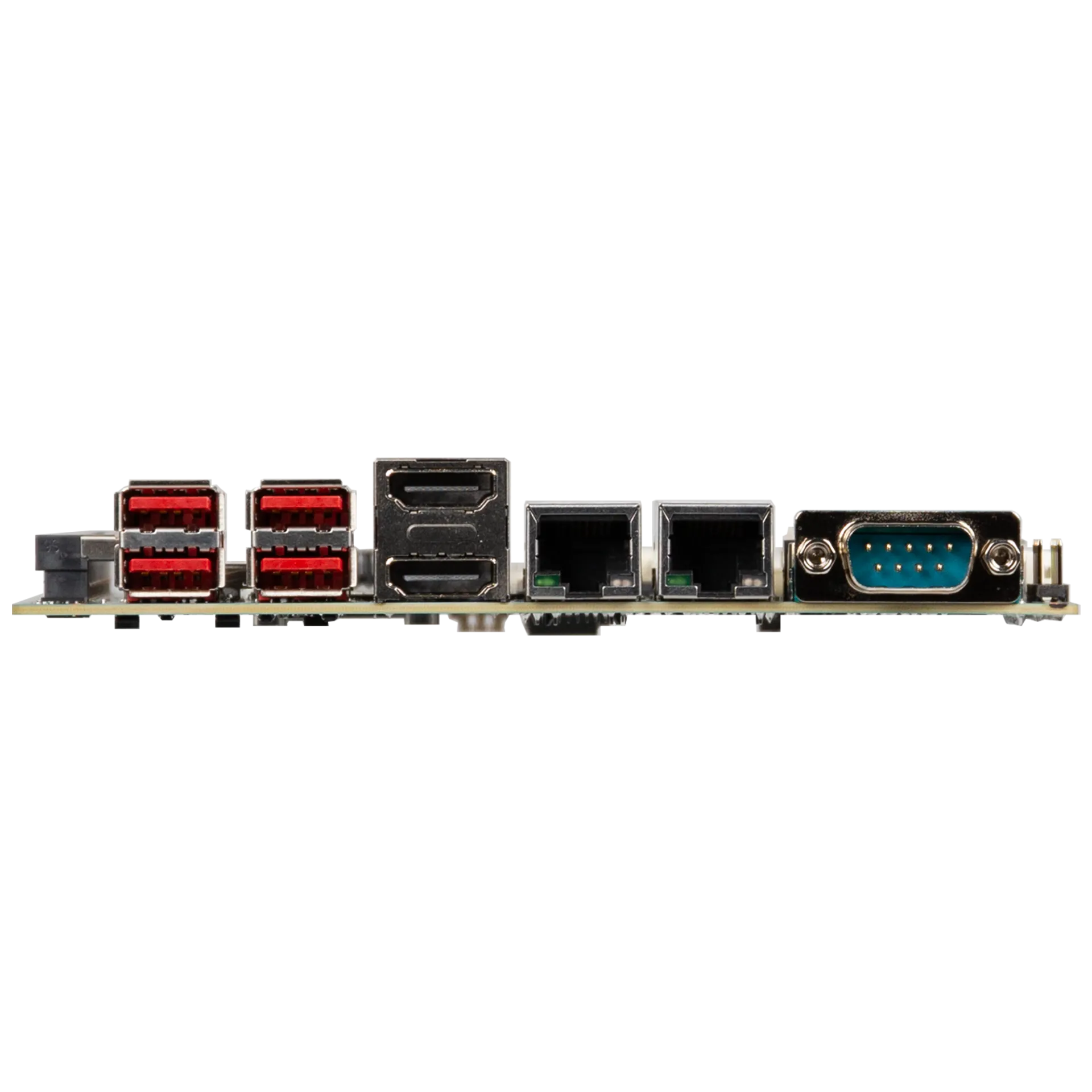

| Rear I/O | 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2×1 |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9672XU2.0 |
|
OS Compatibility |
Windows 10/11 (x64) |
|
Operating Properties |
Operating temperature: 0°C to 60°C Operating humidity: 60°C @ 20-95% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 85°C @ 95% (non-condensing) |
|
Packing Content |
Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.5kg Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Thermal pad for Memory x 1 (P/N: 25ST3-290300-S7R) |
|
Order Information |
9MARU7BSMR-SI (Box Packing) |
|
Optional Kit |
Fanless sink P/N: 25ST1-113105-A7R Heat spreader P/N: 25ST1-713000-Y0R Fansink P/N: 25ST4-113104-A7R |
