QBiP-x7433REAT
3.5インチ サブコンパクト組込みマザーボード（Intel® Atom® x7433RE プロセッサ搭載）、シングルチャネル DDR5 メモリ、COM ポート×4、SATA 6Gb/s×1、USB×6、オンボード TPM、動作温度 -40°C ～ 85°C
Atom x7000E
- 3.5インチ SBC
- Intel® Atom® x7433RE プロセッサ
- シングルチャネル DDR5、SO-DIMM ×1
- 2.5GbE LANポート ×2
- SATA 6Gb/sポート ×1
- HDMI、LVDSポート（マルチディスプレイ対応）
- COMポート ×1（RS-232/422/485 & RI/5V/12V）
- COMポート×1 (RS-232/422/485)
- COMポート×2 (RS-232)
- TPM搭載
- 広温度範囲対応組込みマザーボード
製品仕様
| Form Factor | 3.5″ SBC 146W x 101.7D(mm) |
|---|---|
| CPU | Intel® Atom® x7433RE Processor Intel 7, 4 cores, up to 3.40 GHz TDP 9W |
| Socket | 1 x FCBGA 1264 |
| Memory | 1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB Support Single channel DDR5 4800 MHz memory modules |
|
Ethernet |
2 x 2.5GbE LAN Ports (Intel® I225V) |
| Video | Integrated Graphics Processor -Intel® UHD Graphics: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920×1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® ALC897 |
|
Storage |
1 x SATA 6Gb/s Port |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe Gen3x2) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot |
| Internal I/O | 1 x 4-pin box power connector (+12V~36VDC) 1 x SATA Power header 1 x CPU fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 2 x USB 2.0 headers 2 x COM headers (RS-232) 1 x COM header (RS-232/422/485) 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header 1 x Buzzer header |

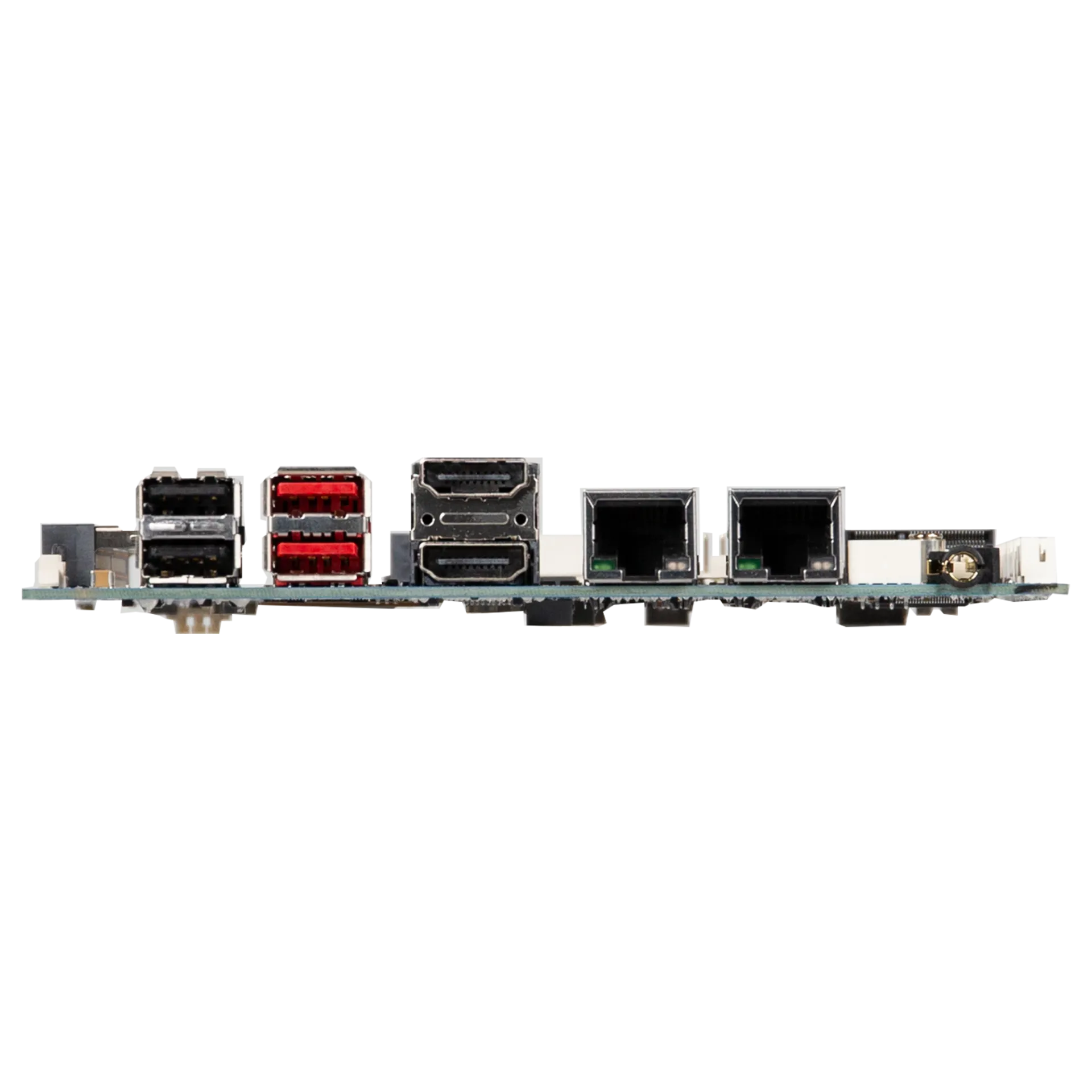

| Rear I/O | 1 x Headphone Jack 2 x HDMI 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2×1 2 x USB 2.0 |
| TPM | Onboard TPM 2.0 security chip INFINEON SLB9670VQ2.0 |
|
OS Compatibility |
Windows 10/11 (x64) |
|
Operating Properties |
Operating temperature: -40°C to 85°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
|
Packing Content |
Carton size: 375 x 324 x 293 (mm) Packing Capacity: 10pcs Single Box size: 256 x 175 x 59 (mm) Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Fanless sink x 1 (P/N: 25ST1-1Z3108-A7R) |
|
Order Information |
9MASLEASMT-SI1 (Box Packing) |
