NEW
QN-ORNX16GH-A1

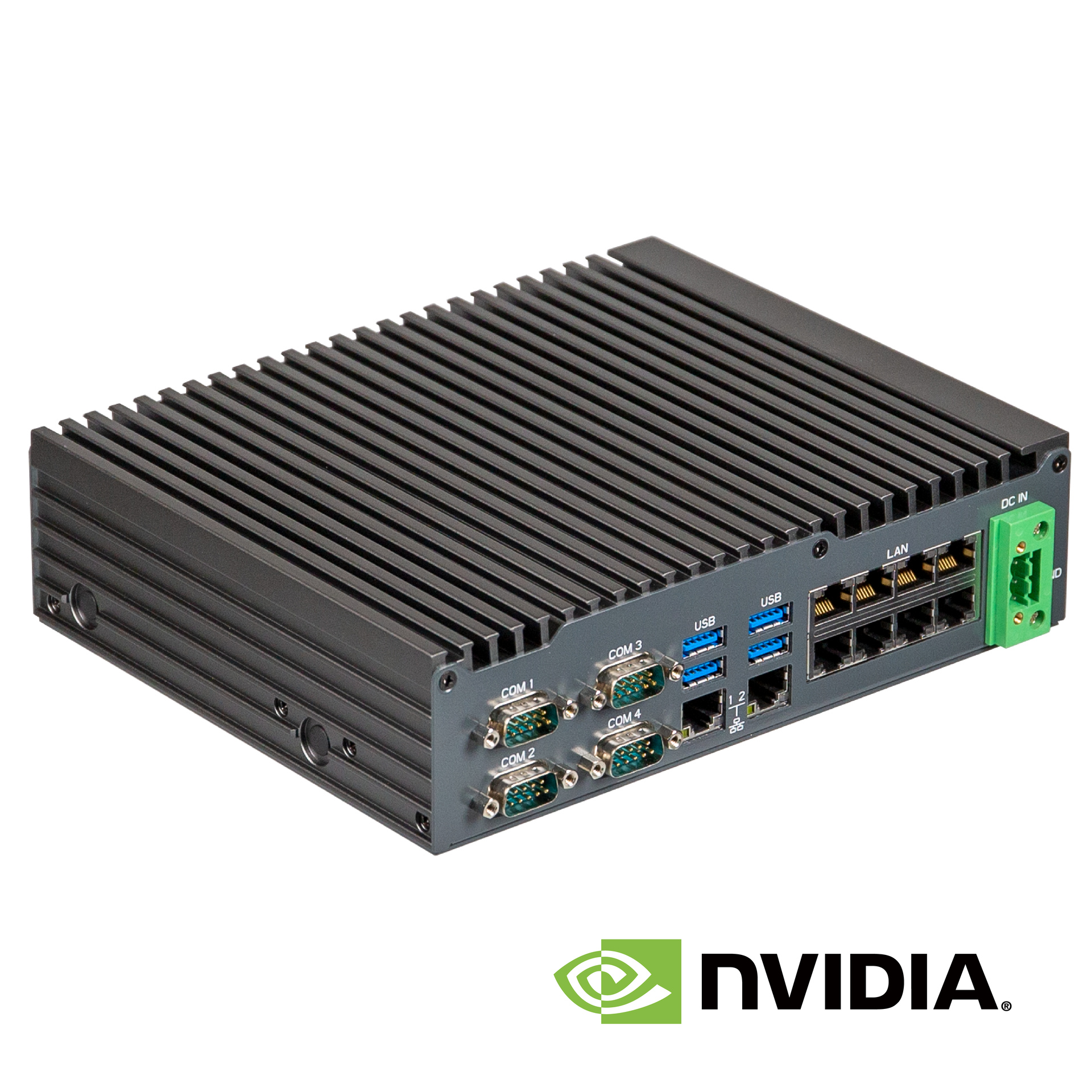

BOX型 Cortex
- NVIDIA® Jetson Orin™ NX搭載AIシステム
- システム外形寸法：幅210×奥行169.8×高さ55.2（mm）
- NVIDIA® Jetson Orin™ NX、最大100 TOPS
- 16GB 128ビット LPDDR5 DRAM
- 10ポートのGbE LANポート
- AI、NVR、監視アプリケーション
- ファンレスシステム
製品仕様
| Dimension | 210W x 169.8D x 55.2H (mm) |
|---|---|
| AI Accelerator | NVIDIA® Jetson Orin™ NX Jetson Orin NX 16GB |
| AI Performance | Up to 100 TOPs |
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| GPU | NVIDIA® Ampere™ architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores |
| Memory | 16GB 128-bit LPDDR4 DRAM (Module) |
Ethernet |
10 x GbE LAN Ports |
| Video | 1 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @ 60Hz 1 x DP port, supporting a maximum resolution of 4096×2160 @60Hz |
| Expansion Slots | 1 x 2280 M.2 B-Key (PCIe Gen4x4) 1 x 2230 M.2 E-Key 1 x Mini PCIe slot 1 x SIM slot |
| Front I/O | 1 x Power button with LED 1 x HDD LED 1 x GPIO (12 bits) 1 x DP 1 x HDMI 1 x USB 2.0 Type Micro B 1 x SD slot (Micro SD) 1 x Recovery button 2 x External Antenna Holes (Optional) |
| Rear I/O | 4 x COM Ports (RS-232/422/485) 4 x USB 3.2 Gen 1 10 x GbE LAN Ports 1 x 3-pin Terminal Block |
| Side I/O | 4 x External Antenna Holes (Optional) |
| Power | +54VDC (PoE support) |
Operation Temperature |
Operating temperature: -20°C to 70°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
Order Information |
9BQNORNXCMR-SI (Box packing) |
