G593-ZX1-LAX1

HPC/AIサーバー - AMD EPYC™ 9004 - 5U DP AMD Instinct™ MI300X 8-GPU DLC

5U以上 EPYC9005EPYC9004 8GPU リダンダント電源 GPUサーバー水冷

1. 液体冷却式 8基 AMD Instinct™ MI300X OAM GPU

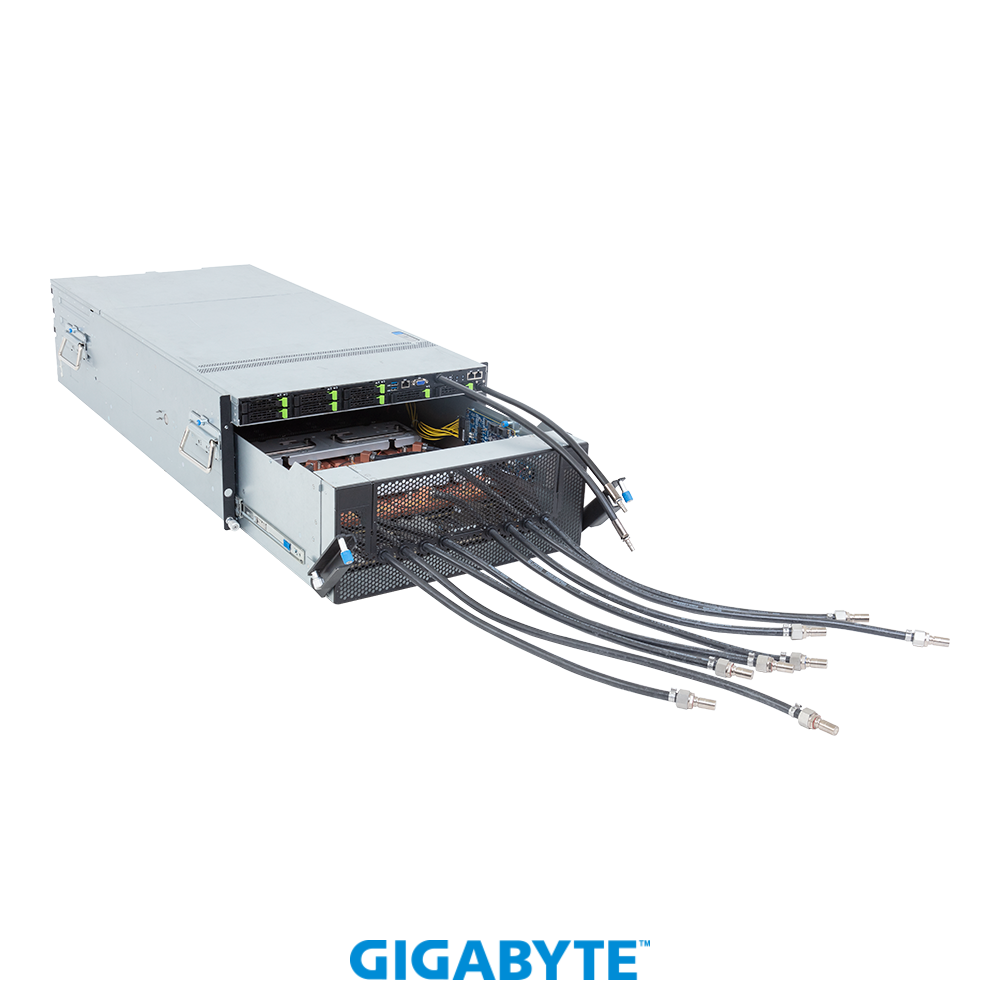

2. CPU+GPU 直接液体冷却ソリューション（漏洩検知機能付き）
3. デュアル AMD EPYC™ 9005/9004 シリーズプロセッサー
4. 12チャネル DDR5 RDIMM、24 x DIMM
5. デュアル ROM アーキテクチャ
6. Intel® X710-AT2 経由の 2 x 10Gb/s LAN ポート
7. PCIe Gen3 x4およびx1インターフェース搭載M.2スロット×2
8. 2.5インチ Gen5 NVMe/SATA/SAS-4対応ホットスワップベイ×8
9. FHHL PCIe Gen5 x16スロット×4
10. LP PCIe Gen5 x16スロット×8
11. 4+2 3000W 80 PLUS Titanium認定冗長電源ユニット

主な仕様

データシート

オンサイトサポート
対応製品

詳しくはこちら

製品仕様

Dimensions (WxHxD, mm)	5U 447 x 219.7 x 945
Motherboard	MZB3-G43
CPU	AMD EPYC^™ 9005 Series Processors AMD EPYC^™ 9004 Series ProcessorsDual processor, cTDP up to 500W ^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket	2 x LGA 6096 Socket SP5
Chipset	System on Chip
Memory	24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processorAMD EPYC^™ 9005: Up to 6400 MT/s AMD EPYC^™ 9004: Up to 4800 MT/s
LAN	Front: 2 x 10Gb/s LAN (1 x Intel^® X710-AT2) – Support NCSI function1 x 10/100/1000 Mbps Management LAN Rear (MLAN board – CDB66): 1 x 10/100/1000 Mbps Management LAN ^[Note]When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video	Integrated in ASPEED^® AST2600 – 1 x VGA port
Storage	Front hot-swap: 8 x 2.5″ Gen5 NVMe/SATA/SAS-4^[1] – (NVMe from PEX89104)Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0 ^[1]Storage card is required to support SATA and SAS drives.
SAS	Require SAS add-in cards
RAID	Require RAID add-in cards
Modular GPU	Liquid-cooled 8 x AMD Instinct^™ MI300X OAM GPUs
PCIe Expansion Slots	Extension Board CPBG044 x 2: – 8 x LP x16 (Gen5 x16), from PEX89104Riser Card CPBGD20 x 2: – 4 x FHHL x16 (Gen5 x16), from PEX89048

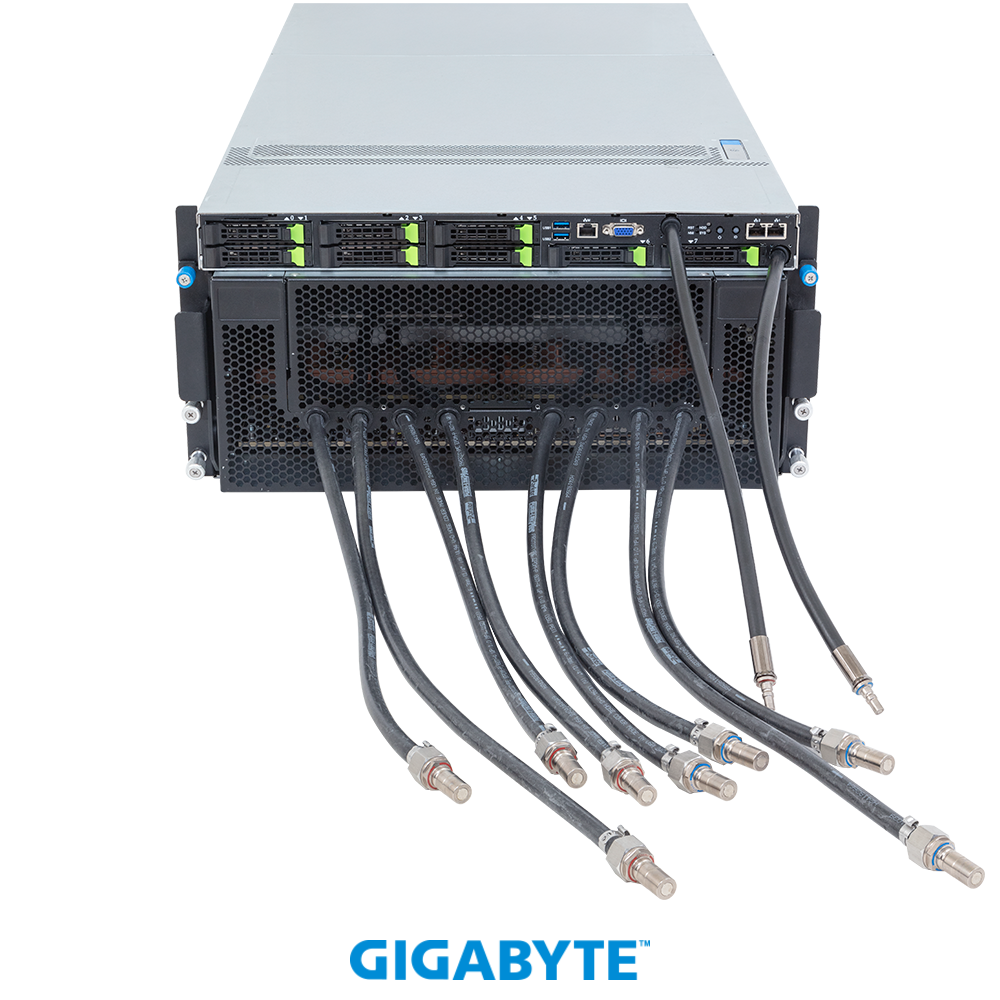

Front I/O	2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port (default) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x Storage activity LED 1 x System status LED

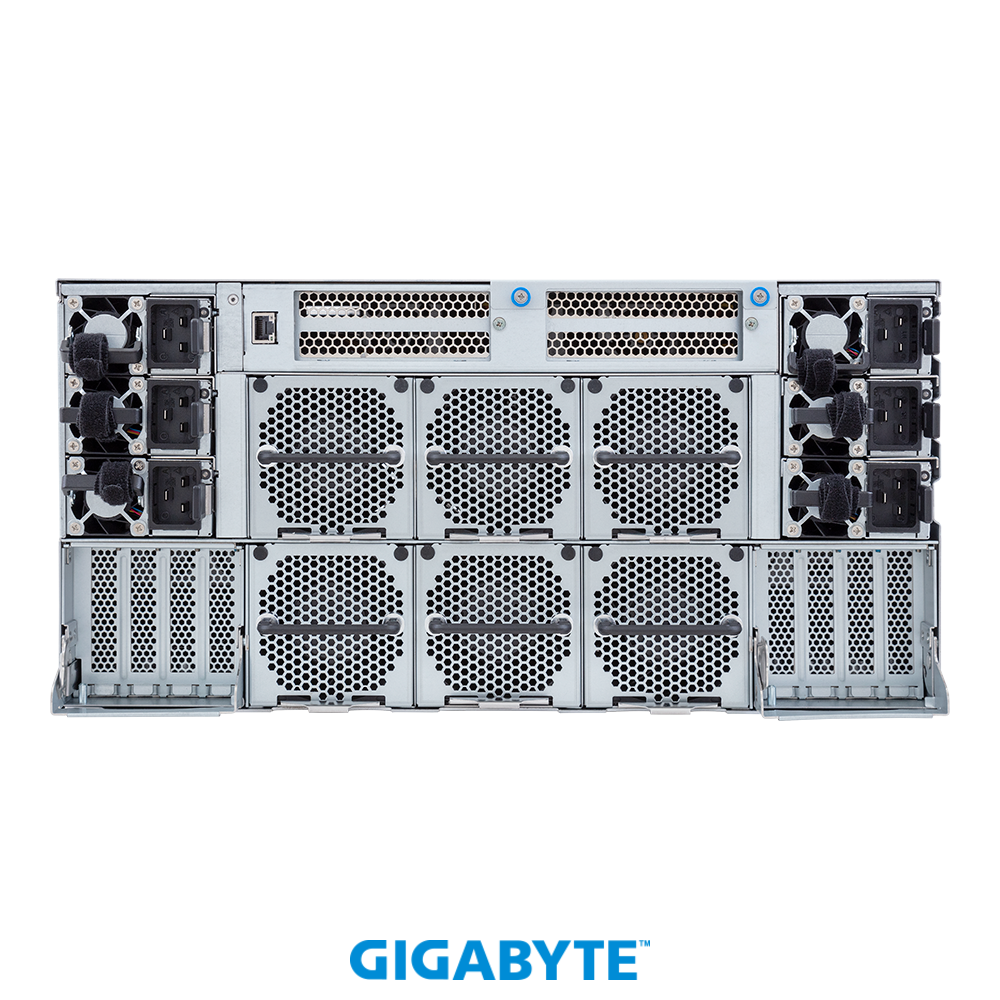

Rear I/O	MLAN board – CDB66: 1 x MLAN port
Backplane Board	Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules	1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010
Power Supply	4+2 3000W 80 PLUS Titanium redundant power supplies^[1] AC Input: – 115-127V~/ 14.2A, 50-60Hz – 200-220V~/ 15.8A, 50-60Hz – 220-240V~/ 14.9A, 50-60Hz DC Input: (Only for China) – 240Vdc/ 14A DC Output: – Max 1450W/ 115-127V~ +54V/ 26.6A +12Vsb/ 3A – Max 2900W/ 200-220V~ +54V/ 53.4A +12Vsb/ 3A – Max 3002.4W/ 220-240V~ or 240Vdc Input +54V/ 55.6A +12Vsb/ 3A ^[1]The system power supply requires C19 power cord.
System Management	ASPEED^® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Compatibility	Red Hat Enterprise Linux 10.0 or later Windows Server 2025
System Fans	Motherboard: 2 x 40x40x56mm 3 x 60x60x56mmPCIe slots: 4 x 40x40x28mm 2 x 40x40x56mm GPU tray: 4 x 80x80x80mm
Operating Properties	Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) ^[Note]To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.
Weight	Net Weight: 91 kg Gross Weight: 101 kg
Packaging Dimensions	1300 x 800 x 485 mm
Packaging Content	1 x G593-ZX1-LAX1 1 x L-shape Rail kit
Part Numbers	– Barebone with AMD module: 6NG593ZX1DR000LCX1* – Motherboard: 9MZB3G43UR-000-3* – L-shape Rail kit: 25HB2-A96102-K0R – CPU cold plate loop: 25ST7-20000N-A3R – GPU cold plate loop: 25ST7-2000G0-A3R/25ST7-2000G1-A3R – Front panel board – CFPG540: 9CFPG540NR-00* – Backplane board – CBPG680: 9CBPG680NR-00* – Fan module 40x40x28mm: 25ST2-44282D-D0R – Fan module 40x40x56mm: 25ST2-40562M-A0R – Fan module 40x40x56mm: 25ST2-40562N-A0R – Fan module 60x60x56mm: 25ST2-665620-S1R – Fan module 80x80x80mm: 25ST2-808037-S1R – Riser card – CPBGD20: 9CPBGD20NR-00* – PCIe extension board – CPBG044: 9CPBG044NR-00* – PCIe switch board – CPBG903: 9CPBG903NR-00* – Rear MLAN board – CDB66: 9CDB66NR-00* – Leak sensor board – CDB86: 9CDB86NR-00* – Power supply: 25EP0-23000J-D0S
