G593-SX1-LAX1
HPC/AIサーバー - 第5/第4世代 Intel® Xeon® - 5U DP AMD Instinct™ MI300X 8-GPU DLC
5U以上 第5世代 Xeon ScalableXeon CPU Max第4世代 Xeon Scalable 8GPU リダンダント電源 GPUサーバー 水冷
- 1. 液体冷却式 8基 AMD Instinct™ MI300X OAM GPU

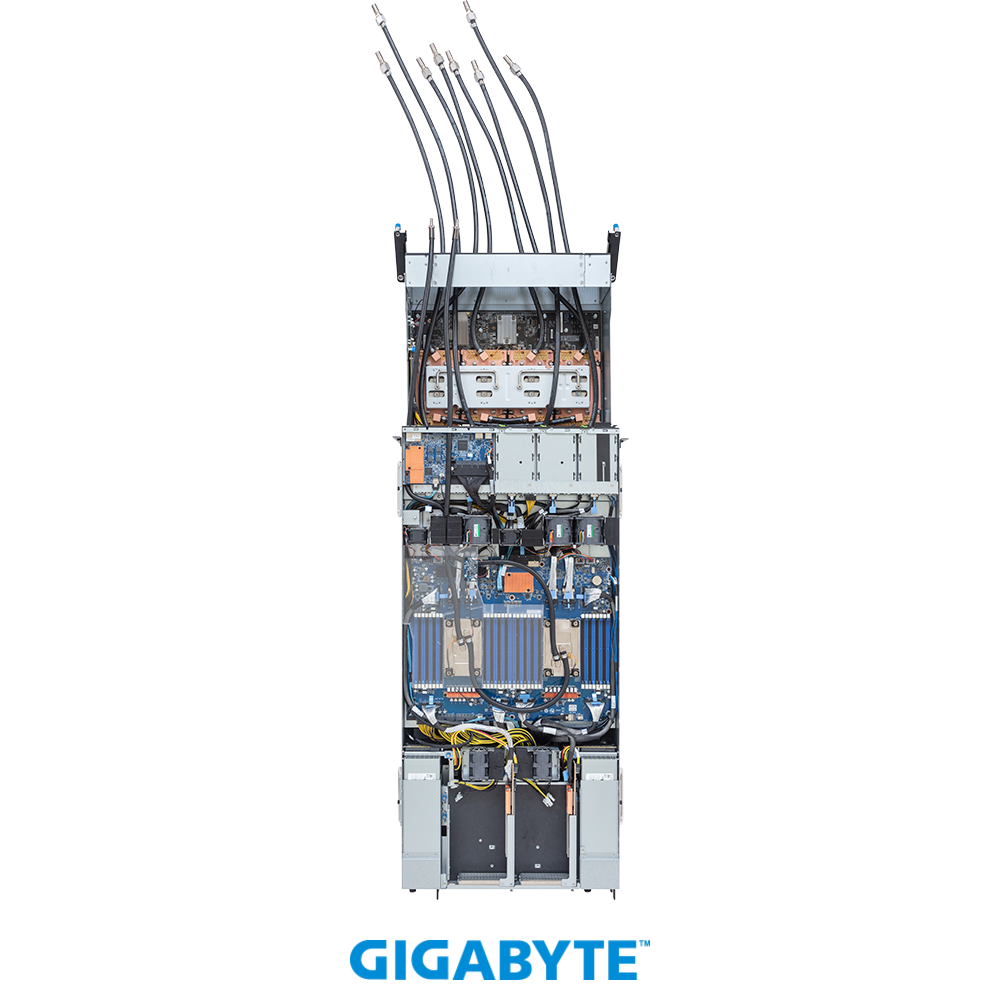

- 2. CPU+GPU 直接液体冷却ソリューション（漏洩検知機能付き）
- 3. デュアル第5/第4世代 Intel® Xeon® スケーラブル プロセッサー
- 4. デュアル Intel® Xeon® CPU Max シリーズ
- 5. 8チャネル DDR5 RDIMM、32 x DIMM
- 6. デュアル ROM アーキテクチャ
- 7. Intel® X710-AT2経由の10Gb/s LANポート×2
- 8. 2.5インチGen5 NVMe/SATA/SAS-4ホットスワップベイ×8
- 9. FHHL PCIe Gen5 x16スロット×4
- 10. LP PCIe Gen5 x16スロット×8
- 11. 4+2 3000W 80 PLUS Titanium認定冗長電源ユニット
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 5U 447 x 219.7 x 945 |
|---|---|
| Motherboard | MSB3-G41 |
| CPU | 5th Generation Intel® Xeon® Scalable Processors 4th Generation Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max SeriesDual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 4677 Socket E |
| Chipset | Intel® C741 |
| Memory | 32 x DIMM slots Support DDR5 RDIMM 8-Channel memory per processor5th Gen Intel® Xeon®: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]4th Gen Intel® Xeon®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)Intel® Xeon® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information. |
| LAN |
Front (I/O board – CDCG120):
2 x 10Gb/s LAN (1 x Intel® X710-AT2) – Support NCSI function1 x 10/100/1000 Mbps Management LANRear (MLAN board – CDB66): 1 x 10/100/1000 Mbps Management LAN [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default. |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Storage |
Front hot-swap:
8 x 2.5″ Gen5 NVMe/SATA/SAS-4 [1] – (NVMe from PEX89104) [1] SAS card is required to support SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Intel® SATA RAID 0/1/10/5
Support optional RAID add-in cards |
| Modular GPU |
Liquid-cooled 8 x AMD Instinct™ MI300X OAM GPUs
|
| PCIe Expansion Slots | Extension Board CPBG044 x 2: – 8 x LP x16 (Gen5 x16), from PEX89104Riser Card CPBGD20 x 2: – 4 x FHHL x16 (Gen5 x16), from PEX89048 |

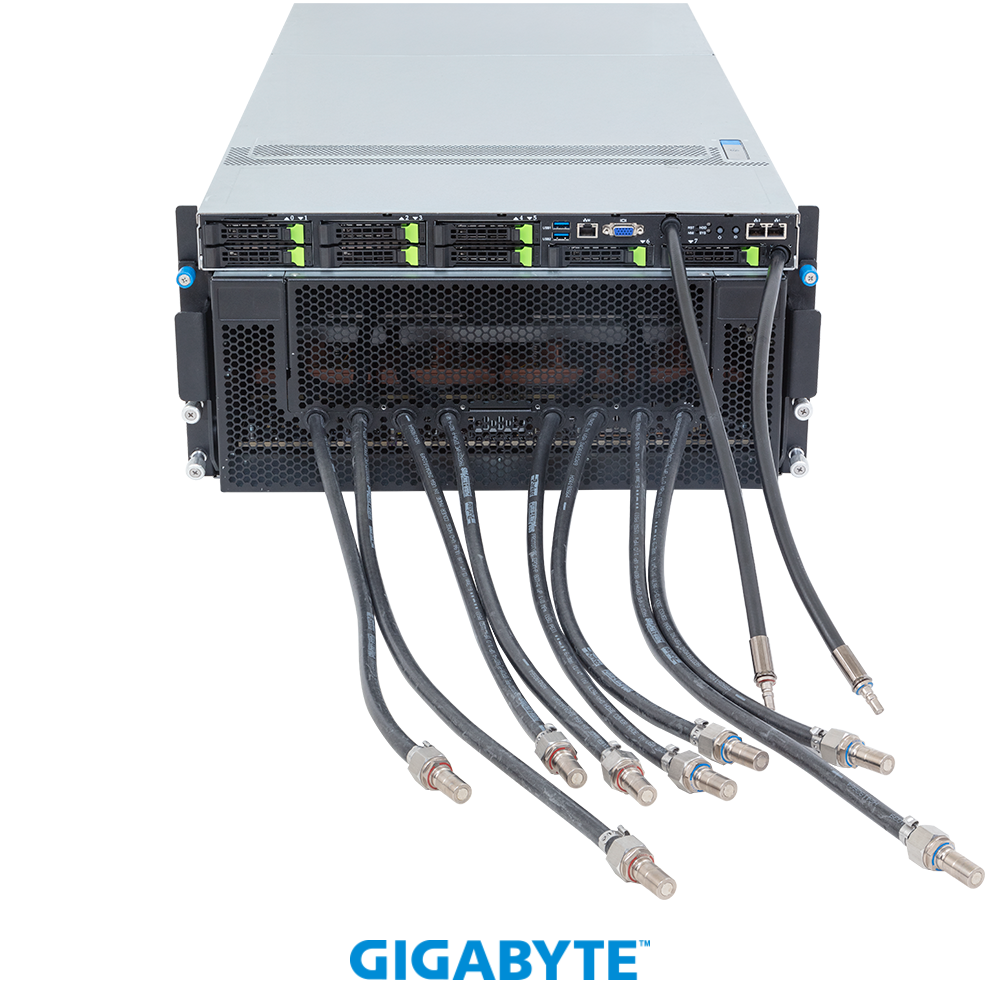

| Front I/O | I/O board – CDCG120: 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port (default) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x Storage activity LED 1 x System status LED |

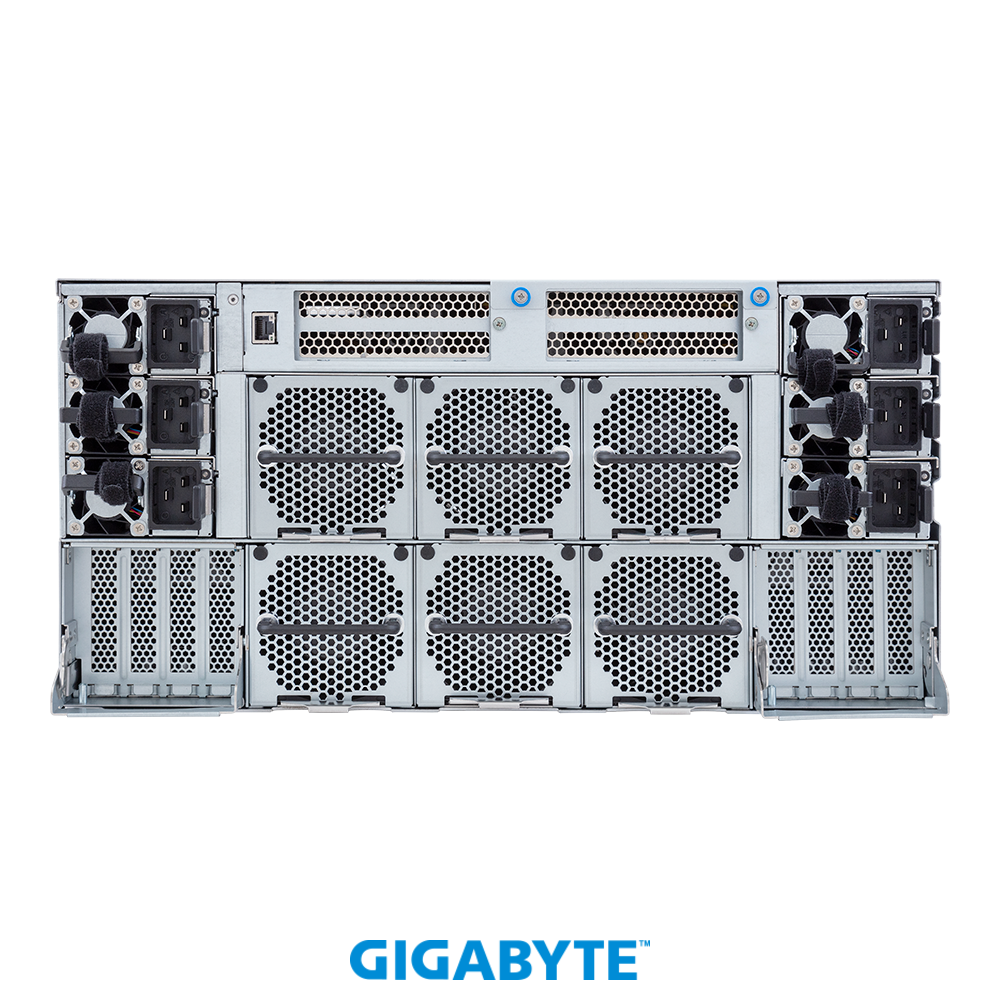

| Rear I/O | MLAN board – CDB66: 1 x MLAN port |
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply | 4+2 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input: DC Input: (Only for China) DC Output: [1] The system power supply requires C19 power cord. |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | Please refer to OS compatibility table in support page |
| System Fans | Motherboard: 2 x 40x40x28mm 3 x 60x60x56mmPCIe slots: 4 x 40x40x28mm 2 x 40x40x56mmGPU tray: 4 x 80x80x80mm |
| Operating Properties | Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C. |
| Packaging Dimensions | 1300 x 800 x 485 mm |
| Packaging Content | 1 x G593-SX1-LAX1 6 x Carriers 1 x L-shape Rail kit |
| Part Numbers | – Barebone with AMD module: 6NG593SX1DR000LBX1* – Motherboard: 9MSB3G41NR-000* – L-shape Rail kit: 25HB2-A96102-K0R – CPU cold plate loop: 25ST7-10000H-A3R – GPU cold plate loop: 25ST7-2000G0-A3R/25ST7-2000G1-A3R – Backplane board – CBPG680: 9CBPG680NR-00* – Fan module 40x40x28mm: 25ST2-44282D-D0R – Fan module 40x40x56mm: 25ST2-40562M-A0R – Fan module 60x60x56mm: 25ST2-665620-S1R – Fan module 80x80x80mm: 25ST2-808037-S1R – Riser card – CPBGD20: 9CPBGD20NR-00* – I/O board – CDCG120: 9CDCG120UR-00* – PCIe extension board – CPBG044: 9CPBG044NR-00* – PCIe switch board – CPBG903: 9CPBG903NR-00* – Rear MLAN board – CDB66: 9CDB66NR-00* – Leak sensor board – CDB86: 9CDB86NR-00* – Power supply: 25EP0-23000J-D0S |
