H253-Z10-LAP1

高密度サーバー - AMD EPYC™ 9005/9004 - 2U 4ノード UP 8ベイ E1.S Gen4 NVMe DLC

2U EPYC9005EPYC9004 リダンダント電源汎用サーバー仮想化サーバーマルチノード水冷

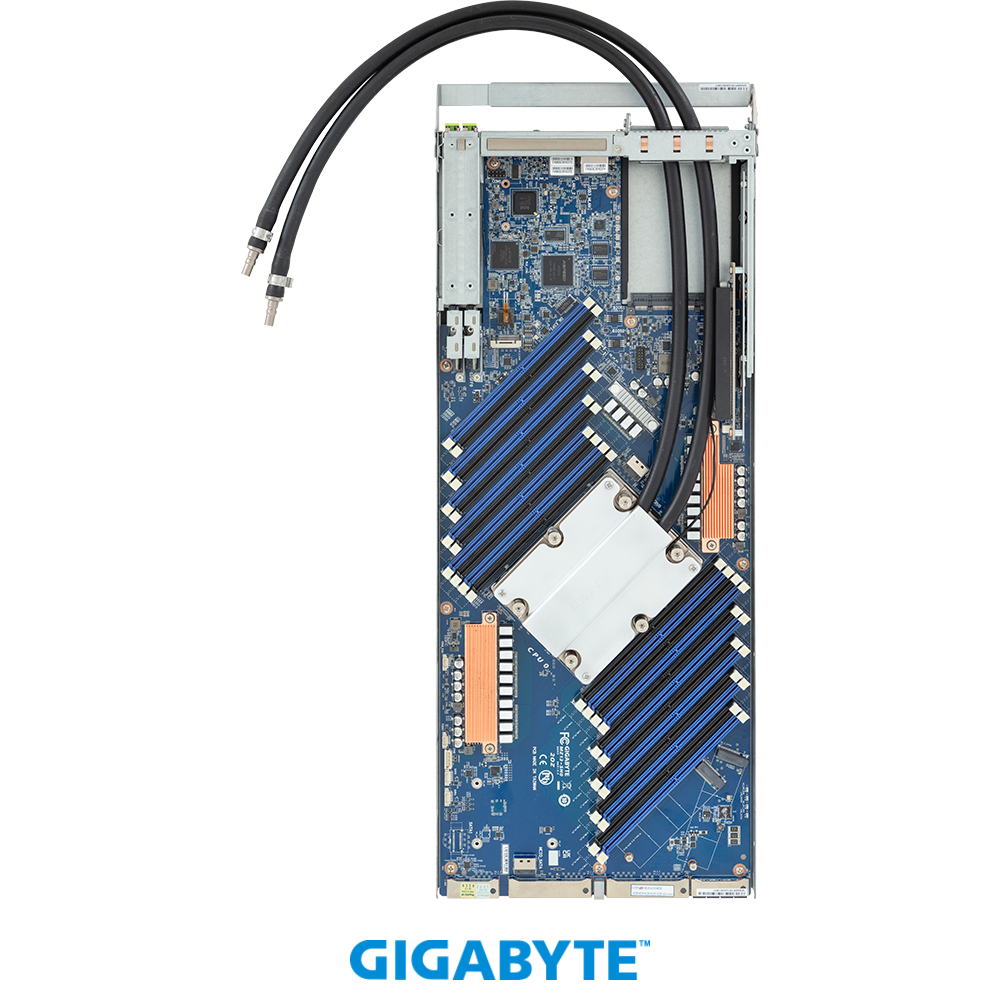

1. ダイレクト液体冷却ソリューション

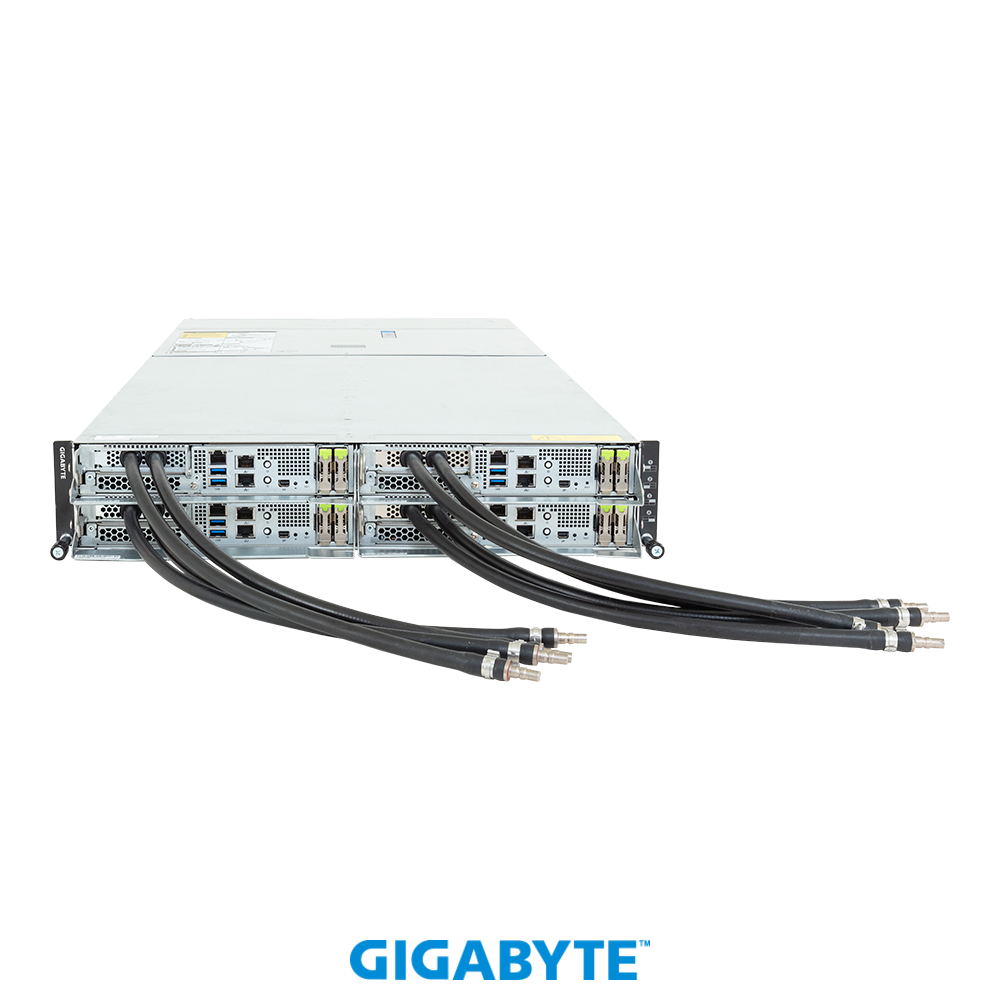

2. 2U 4ノードフロントアクセスサーバーシステム
3. ノードあたりシングルAMD EPYC™ 9005/9004シリーズプロセッサー
4. 12チャネルDDR5 RDIMM、ノードあたり24 x DIMM
5. デュアルROMアーキテクチャ
6. Intel® I350-AM2経由の8 x 1Gb/s LANポート
7. CMCポート×2
8. E1.S Gen4 NVMeホットスワップベイ×8
9. PCIe Gen5 x4およびSATAインターフェース搭載M.2スロット×12
10. OCP NIC 3.0 PCIe Gen5 x16スロット×4
11. デュアル3000W 80 PLUS Titanium認定冗長電源

主な仕様

データシート

オンサイトサポート
対応製品

詳しくはこちら

製品仕様

Dimensions (WxHxD, mm)	2U 4-Node – Front access 447 x 86.8 x 902
Motherboard	MZ13-SH0
CPU	AMD EPYC^™ 9005 Series Processors AMD EPYC^™ 9004 Series Processors Single processor per node, cTDP up to 500W
Socket	4 x LGA 6096 Socket SP5
Chipset	System on Chip
Memory	96 x DIMM slots DDR5 memory supported 12-Channel memory per processor AMD EPYC^™ 9005: RDIMM: Up to 5200 MT/s (1DPC) RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC) AMD EPYC^™ 9004: RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
LAN	Front: 8 x 1Gb/s LAN (4 x Intel^® I350-AM2) – Support NCSI function 4 x 10/100/1000 Mbps Management LAN Rear: 2 x CMC ports ^[Note]Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.
Video	Integrated in ASPEED^® AST2600 x 4 – 4 x Mini-DP
Storage	Front hot-swap: 8 x 9.5mm E1.S Gen4 NVMe Internal M.2: 4 x M.2 (2280/22110), PCIe Gen5 x4 8 x M.2 (2280), SATA via ASM1062R – Support SATA Hardware RAID 0/1
SAS	N/A
RAID	N/A
PCIe Expansion Slots	4 x OCP NIC 3.0 (Gen5 x16) – Support NCSI function
Front I/O	8 x USB 3.2 Gen1 ports (Type-A) 4 x Mini-DP 8 x RJ45 ports 4 x MLAN ports 4 x Power buttons with LED 4 x ID buttons with LED 4 x Reset buttons 4 x System status LEDs
Rear I/O	2 x CMC ports
Backplane Board	N/A
Security Modules	1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010
Power Supply	Dual 3000W 80 PLUS Titanium redundant power supply^[1] AC Input: – 100-127V~/ 15.5A, 50-60Hz – 200-220V~/ 15.5A, 50-60Hz – 220-240V~/ 15.5A, 50-60Hz DC Input: (Only for China) – 240Vdc/ 15.5A DC Output: – Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A – Max 2600W/ 200-220V~ +12.2V/ 213A +12Vsb/ 3A – Max 3000W/ 220-240V~ or 240Vdc Input +12.2V/ 245A +12Vsb/ 3A ^[1]The system power supply requires C19 power cord.
System Management	ASPEED^® AST2600 Baseboard Management Controller ASPEED^® AST2520 Chassis Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Compatibility	Please refer to OS compatibility table in support page Additional certifications: VMware ESXi 8.0

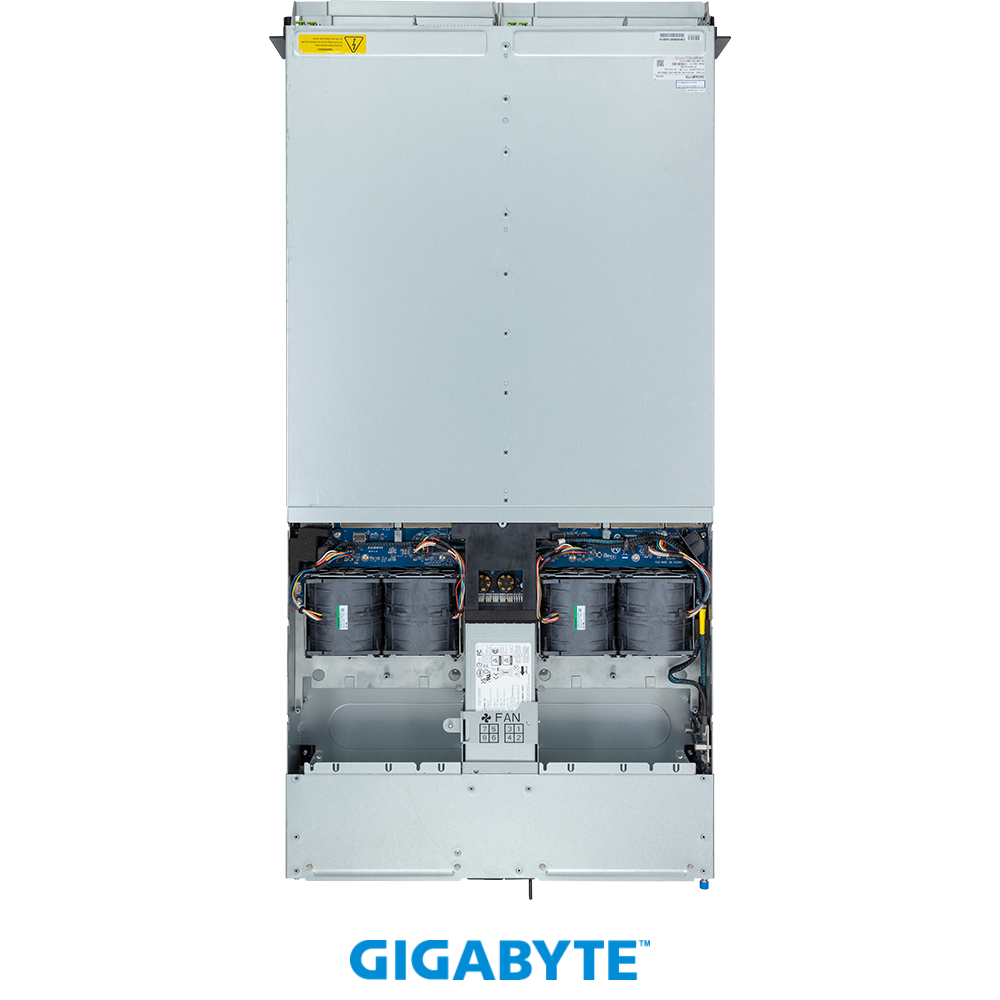

System Fans	4 x 80x80x80mm
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) ^[Note]To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.
Packaging Dimensions	1181 x 718 x 336 mm
Packaging Content	1 x H253-Z10-LAP1 4 x GIGABYTE CPU cold plate loops 1 x Mini-DP to D-Sub cable 1 x L-shape Rail kit
Part Numbers	– Barebone with cold plates: 6NH253Z10DR000LCP1* – Barebone without cold plates: 6NH253Z10DZ000LCP1* – Motherboard: 9MZ13SH0UR-000-3* – L-shape Rail kit: 25HB2-A86104-K0R – GIGABYTE CPU cold plate loop: 25ST7-20000J-J2R – Fan module: 25ST2-888020-S1R – EDSFF riser card – CRSH01X: 9CRSH01XNR-00* – CMC module – CMBH42: 9CMBH42NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-23000R-G1S Optional parts: – E1.S Latch with dummy tray (24 in 1): 6NH253Z10S1000AAP11
