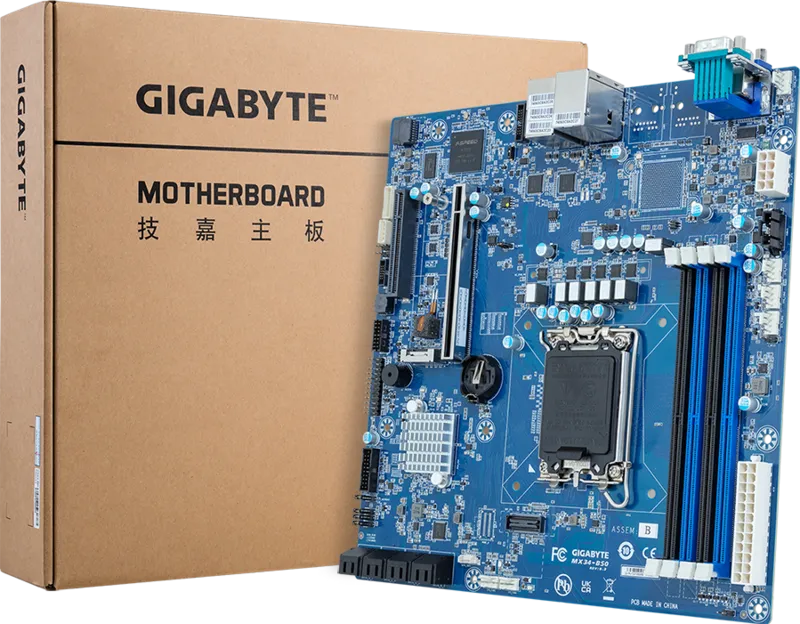

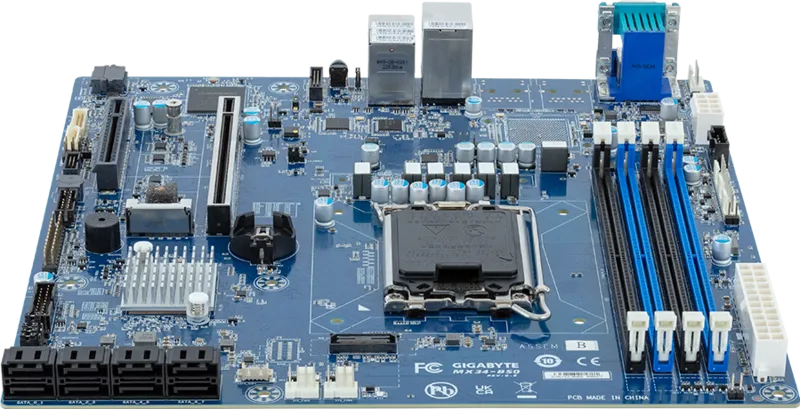

MX34-BS0 (rev. 1.x/3.x)
マザーボード - Intel® Xeon® 6300/E-2400 - microATX UP
Xeon6 6300Xeon E-2400Pentium Gold G7400
- シングル Intel® Xeon® 6300 シリーズ/E-2400 プロセッサー
- シングル Intel® Pentium® Gold G7400 / G7400T プロセッサー
- デュアルチャネル DDR5 ECC UDIMM、4 x DIMM
- Intel® C262 チップセット
- Intel® I210-AT 経由の 2 x 1Gb/s LAN ポート
- 8 x SATA 7ピンポート
- 1 x M.2スロット（PCIe Gen4 x4インターフェース）
- 1 x PCIe Gen5 x16拡張スロット
- 1 x PCIe Gen4 x4拡張スロット
製品仕様
| Form Factor (WxD, mm) | microATX 244 x 244 |
|---|---|
| CPU | Intel® Xeon® 6300-Series Processors Intel® Xeon® E-2400 Processors Intel® Pentium® Gold G7400 / G7400T Processor Single processor, TDP up to 95W |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® C262 |
| Memory | 4 x DIMM slots Support DDR5 ECC UDIMM Dual Channel memory per processor Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R) |
| LAN | 2 x 1Gb/s LAN (2 x Intel® I210-AT) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Audio | N/A |
| Storage Interface | SATA 7-pin: 8 x SATA, from PCH M.2: 1 x M.2 (2280), PCIe Gen4 x4, from CPU |
| RAID | Intel® SATA RAID 0/1/10/5 |
| PCIe Expansion Slots | 1 x PCIe x16 (Gen5 x16) , from CPU 1 x PCIe x8 (Gen4 x4) , from PCH |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 5 x System fan headers 1 x USB 3.2 Gen1 x2 header 1 x M.2 slot 8 x SATA 7-pin connectors 1 x Front panel header 1 x Backplane board header 1 x PMBus header 1 x IPMB header 1 x TPM header |

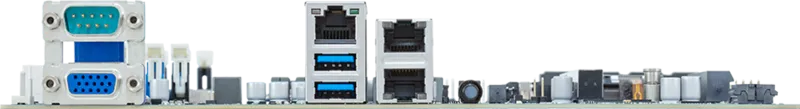

| Rear I/O | 2 x USB 3.2 Gen1 port (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| OS Compatibility | サポートページのOS互換性表をご参照ください |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Operating Properties | Operating temperature: 0°C to 40°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Retail Packaging Content | 1 x MX34-BS0 1 x I/O shield 1 x Quick start guide 2 x SATA cables (500mm) Single Box dimensions: 321 x 308.5 x 78.5 mm Carton dimensions: 630 x 420 x 345 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content | 20 x MX34-BS0 20 x I/O shieldsCarton dimensions: 609 x 581 x 362 mm |
| Reference Numbers | Retail: 9MX34BS0MR-000-3*/1* Bulk: 9MX34BS0NR-000-3*/1* Part Numbers: - I/O shield: 12AIO-MC13LE-00R – SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R |
