H274-A81-LAZ1
高密度サーバー - Intel® Xeon® 6 プロセッサー - 2U 4ノード DP 8ベイ Gen5 NVMe/SATA/SAS-4 DLC

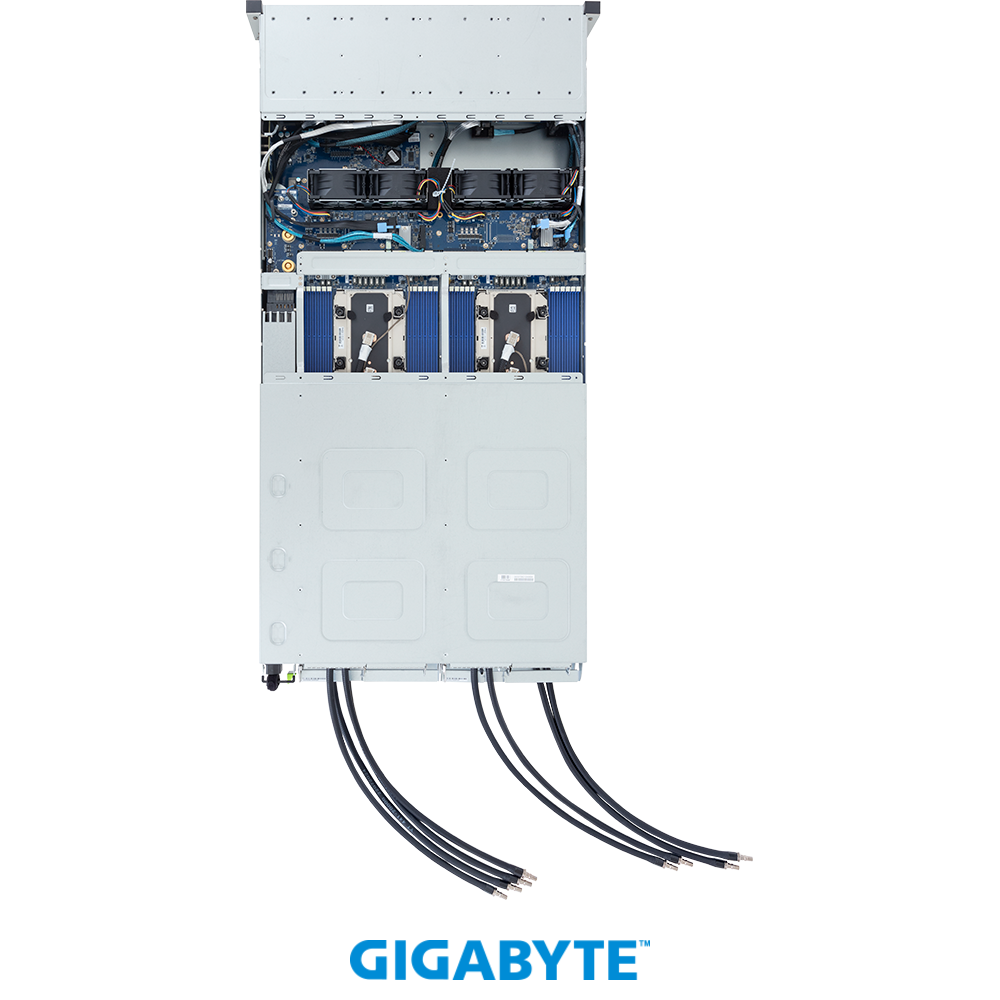

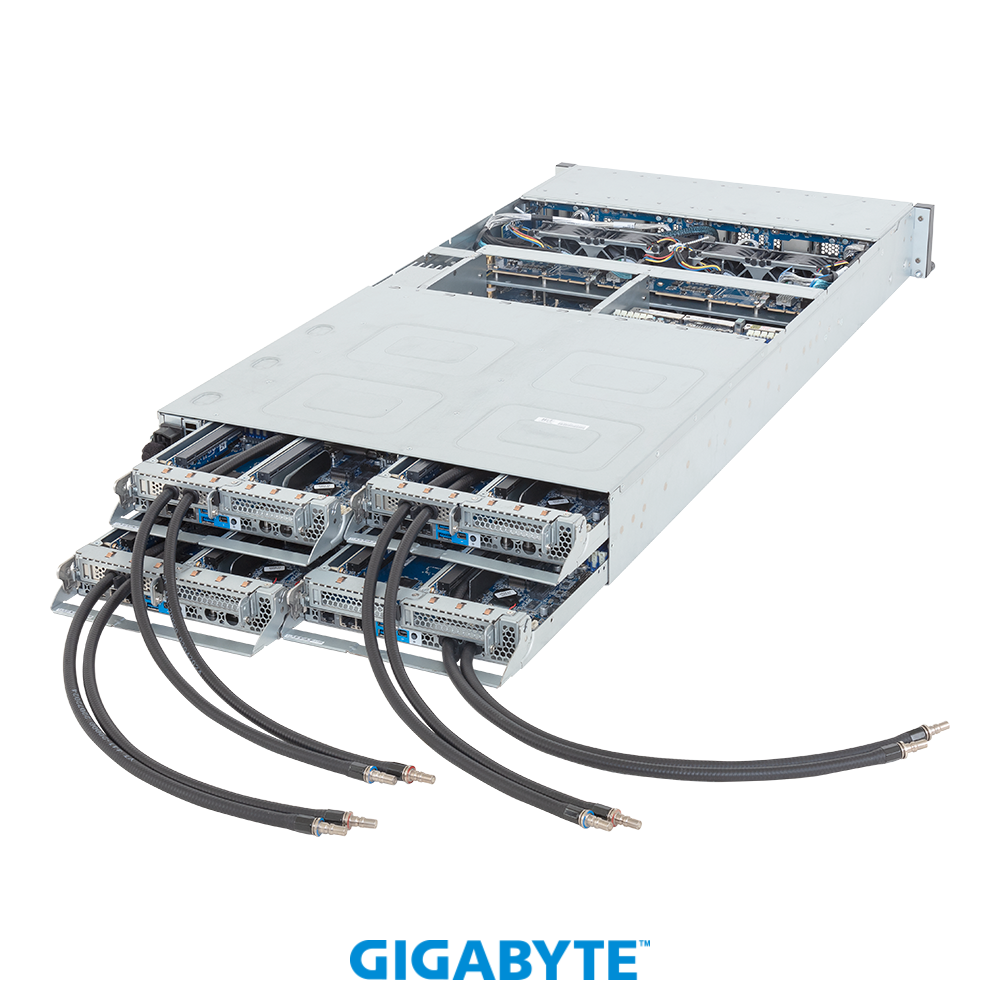

- 1. 漏洩検知機能付きダイレクト液体冷却ソリューション

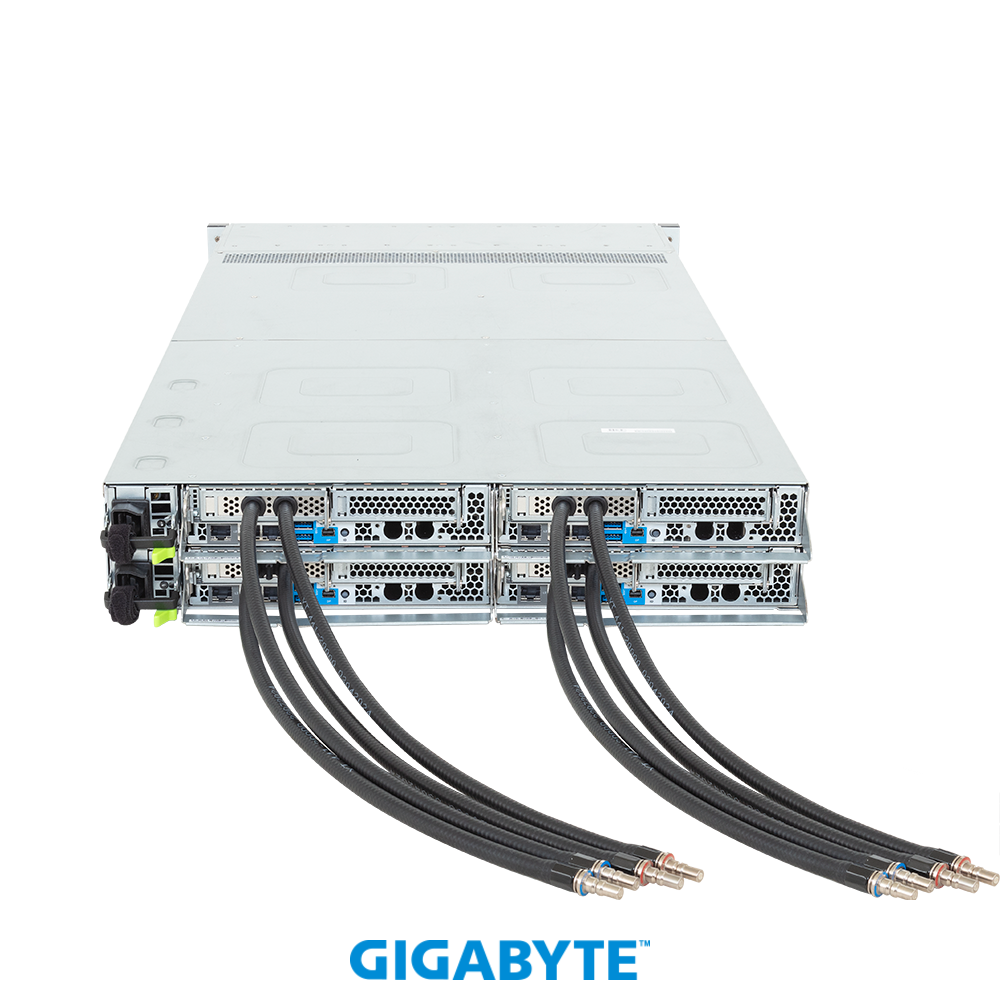

- 2. 2U 4ノードリアアクセスサーバーシステム
- 3. ノードあたりデュアルIntel® Xeon® 6900シリーズプロセッサー
- 4. 12チャネルDDR5 RDIMM / MRDIMM、ノードあたり24 x DIMM
- 5. デュアルROMアーキテクチャ
- 6. Intel® I350-AM2経由の8 x 1Gb/s LANポート

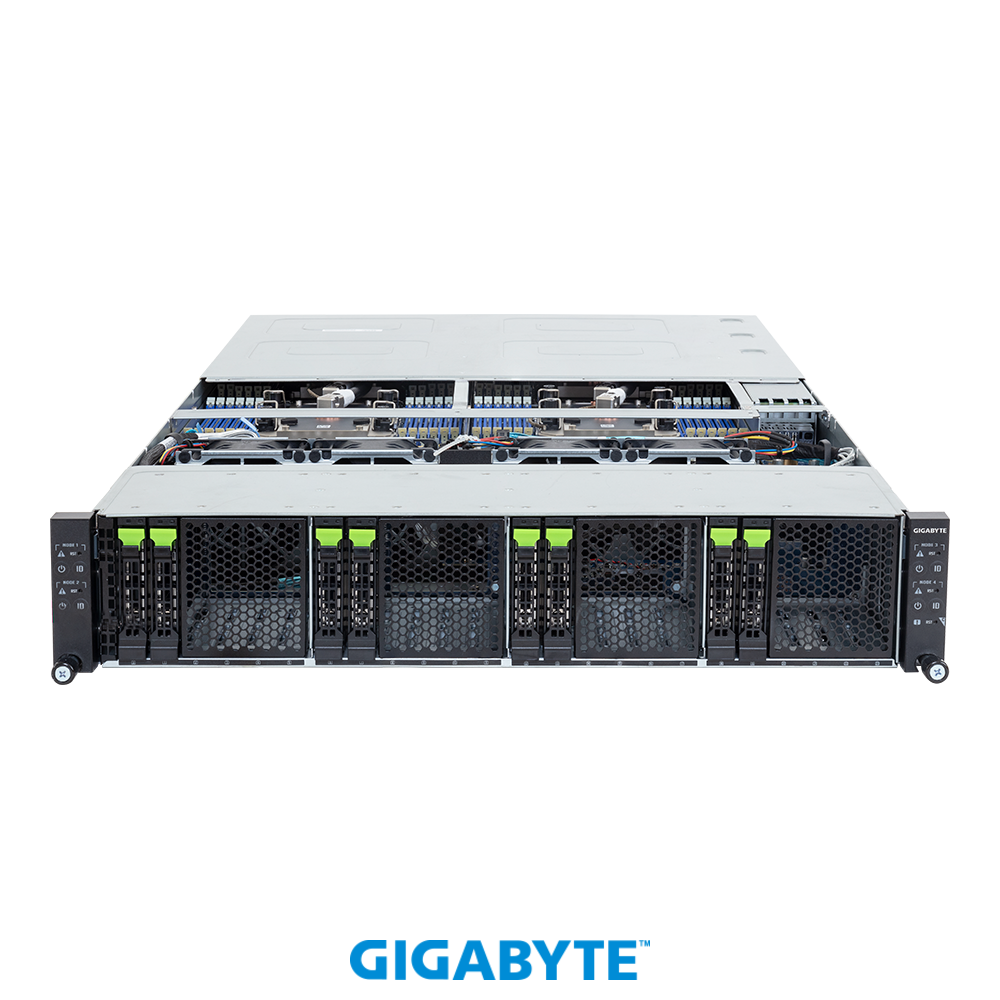

- 7. 8基の2.5インチ Gen5 NVMe/SATA/SAS-4 ホットスワップベイ
- 8. 4基のLP PCIe Gen5 x16スロット
- 9. 4基のLP PCIe Gen5 x16スロット（オプション）
- 10. デュアル3600W 80 PLUS Titanium 冗長電源ユニット
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 2U 4-Node – Rear access 447 x 86.8 x 895 |
|---|---|
| Motherboard | MA84-HD0 |
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6900-Series ProcessorsDual processor per node, TDP up to 500W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 8 x LGA 7529 Socket BR |
| Chipset | System on Chip |
| Memory | 96 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 12-Channel memory per processor RDIMM: Up to 6400 MT/s MRDIMM: Up to 8800 MT/s [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores. [Note] When 96GB DIMMs are installed, the maximum ambient temperature is limited to 30℃. |
| LAN |
Rear (I/O board – CLNP319 x 4):
8 x 1Gb/s LAN (4 x Intel® I350-AM2) – Support NCSI function4 x 10/100/1000 Mbps Management LAN [1] [1] Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology. |
| Video | Integrated in ASPEED® AST2600 x 4 – 4 x Mini-DP |
| Storage |
Front hot-swap:
8 x 2.5″ Gen5 NVMe/SATA/SAS-4 [1] – (NVMe from CPU_1) [1] Storage card is required to support SATA and SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards Onboard VROC key header |
| PCIe Expansion Slots |
Riser Card CRCH010 x 8:
– 4 x LP x16 (Gen5 x16), from CPU_0 – 4 x LP x16 (Gen5 x16), from CPU_0 [1] [1] Enabling the slots requires specific cold plate loops and tubes relocation. Please contact our sales representatives if the feature is needed. [Note] When NVIDIA® BlueField®-3 DPUs/SuperNICs or NVIDIA ConnectX®-7 NICs are installed, the maximum ambient temperature is limited to 30℃. |
| Front I/O | 4 x Power buttons with LED 4 x ID buttons with LED 4 x Reset buttons 4 x System status LEDs 1 x CMC status LED 1 x CMC reset button |
| Rear I/O | I/O board – CLNP319 x 4: 8 x USB 3.2 Gen1 ports (Type-A) 4 x Mini-DP 8 x RJ45 ports 4 x MLAN ports 4 x ID buttons with LED 4 x System status LEDs |
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 4 x TPM headers with SPI interface – Optional TPM2.0 kit: CTM0124 x PRoT connectors (only enabled on RoT SKU) |
| Power Supply | Dual 3600W 80 PLUS Titanium redundant power supply [1]
AC Input: DC Input: DC Output: [1] The system power supply requires SDG400 power cord. |
| System Management | |
| OS Compatibility | Please refer to OS compatibility table in support page |
| System Fans | 4 x 80x80x38mm |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C. |
| Packaging Dimensions | 1190 x 711 x 423 mm |
| Packaging Content | 1 x H274-A81-LAZ1 4 x CoolIT CPU cold plate loops 1 x Mini-DP to D-Sub cable 8 x Carriers 1 x L-shape Rail kit |
| Part Numbers | – Barebone with cold plates: 6NH274A81DR000LAZ1* – Barebone without cold plates: 6NH274A81DZ000LAZ1* – Motherboard: 9MA84HD0UR-000* – L-shape Rail kit: 25HB2-A86104-K0R – CoolIT CPU cold plate loop: 25ST7-10000F-C4R – Front panel board – CFPH004: 9CFPH004NR-00* – Backplane board – CBPH081: 9CBPH081NR-00* – Fan module: 25ST2-88382P-S1R – Riser card – CRCH010: 9CRCH010NR-00* – I/O board – CLNP319: 9CLNP319NR-00* – CoolIT leak sensor board – CDB81: 9CDB81NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-236003-L0S |
