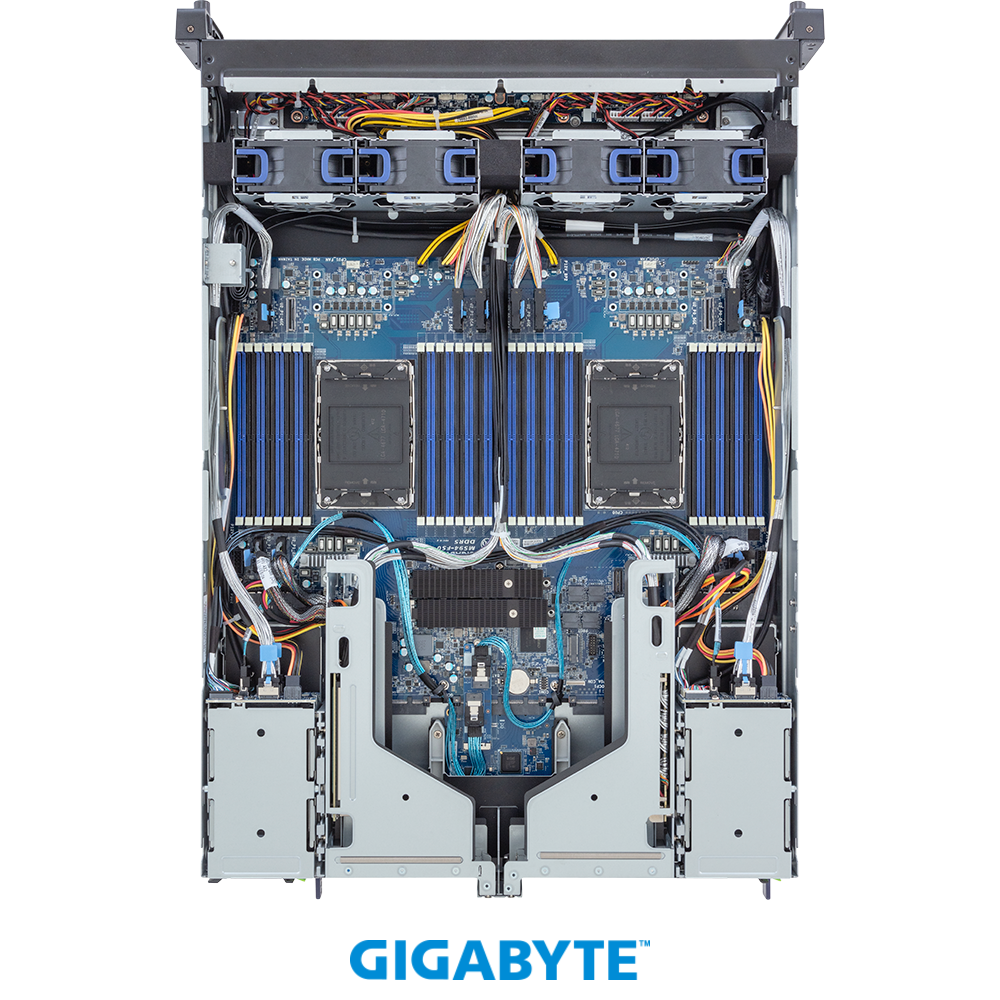

E284-S90-AAJ1
エッジサーバー - Intel® Xeon® 6 プロセッサー - 2U DP 4ベイ Gen5 NVMe/SATA/SAS-4
2U Xeon6 6500PXeon6 6700P リダンダント電源 汎用サーバー クラウドサーバー
- 1. デュアル Intel® Xeon® 6700/6500 シリーズ プロセッサー
- 2. 8 チャネル DDR5 RDIMM / MRDIMM、32 x DIMM
- 3. デュアル ROM アーキテクチャ
- 4. Intel® I350-AM2 経由の 2 x 1Gb/s LAN ポート
- 5. 背面側に4基の2.5インチ Gen5 NVMe/SATA/SAS-4 ホットスワップベイ
- 6. PCIe Gen5 x4インターフェース搭載M.2スロット×2
- 7. FHHL PCIe Gen5 x16スロット×6
- 8. OCP NIC 3.0 PCIe Gen5 x16スロット×2
- 9. 1+1構成 2000W 80 PLUS Titanium 冗長電源ユニット
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 2U 438 x 87.5 x 625 |
|---|---|
| Motherboard | MS94-FS0 |
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6700-Series Processors – Intel® Xeon® 6500-Series ProcessorsDual processor, TDP up to 300W – At 25°C ambient, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 4710 Socket E2 |
| Chipset | System on Chip |
| Memory | 32 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 8-Channel memory per processor RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s [1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration. |
| LAN | Rear (I/O board – CDCR010): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) – Support NCSI function1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x Mini-DP |
| Storage | Rear hot-swap: 4 x 2.5″ Gen5 NVMe/SATA/SAS-4 [1] – (2 x NVMe from CPU_0, 2 x NVMe from CPU_1) – (SATA from CPU_0, through I/O board) Internal M.2: 2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1 Internal M.2 (I/O board – CDCR010): 1 x M.2 (2280), PCIe Gen5 x2, from CPU_0, occupied for SATA [1] SAS card is required to support SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards Onboard VROC key header |
| PCIe Expansion Slots | PCIe Cable x 4: – 2 x FHHL x16 (Gen5 x16), from CPU_0 – 2 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS101J: – 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101K: – 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 – Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 – Supports NCSI function |

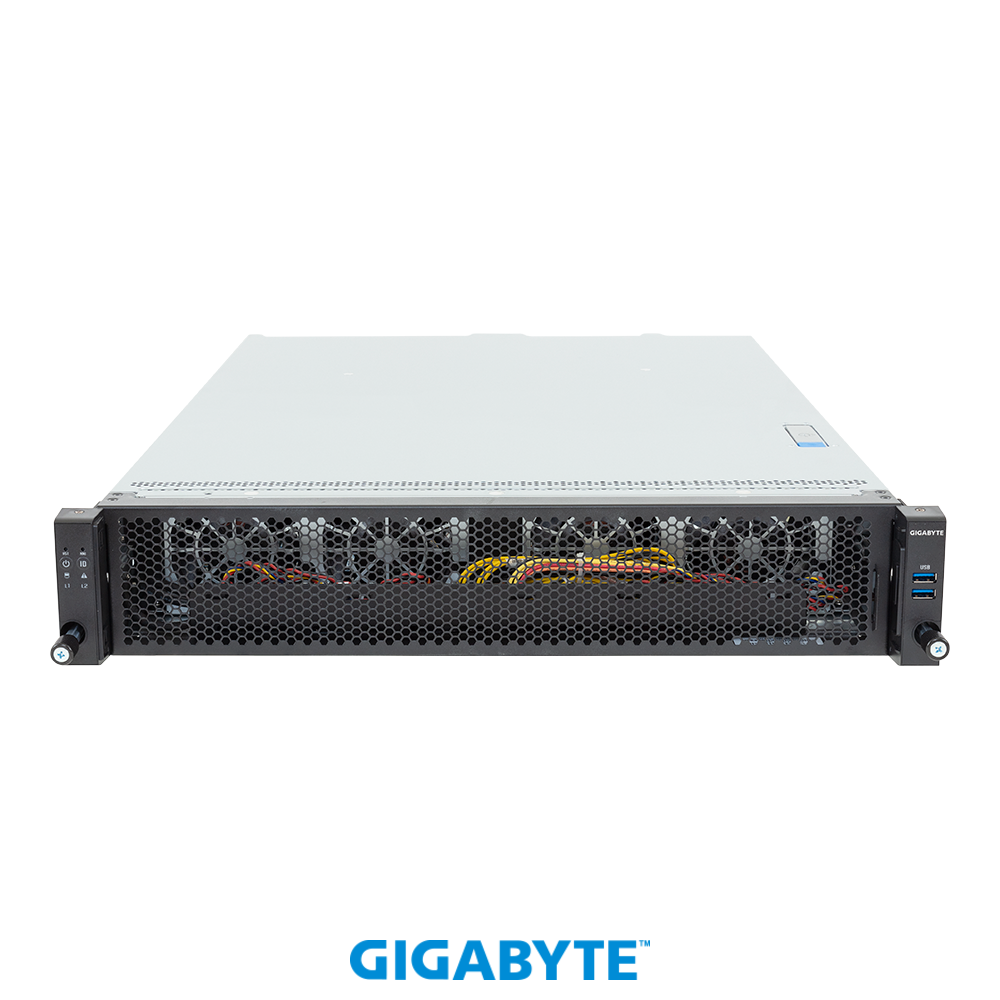

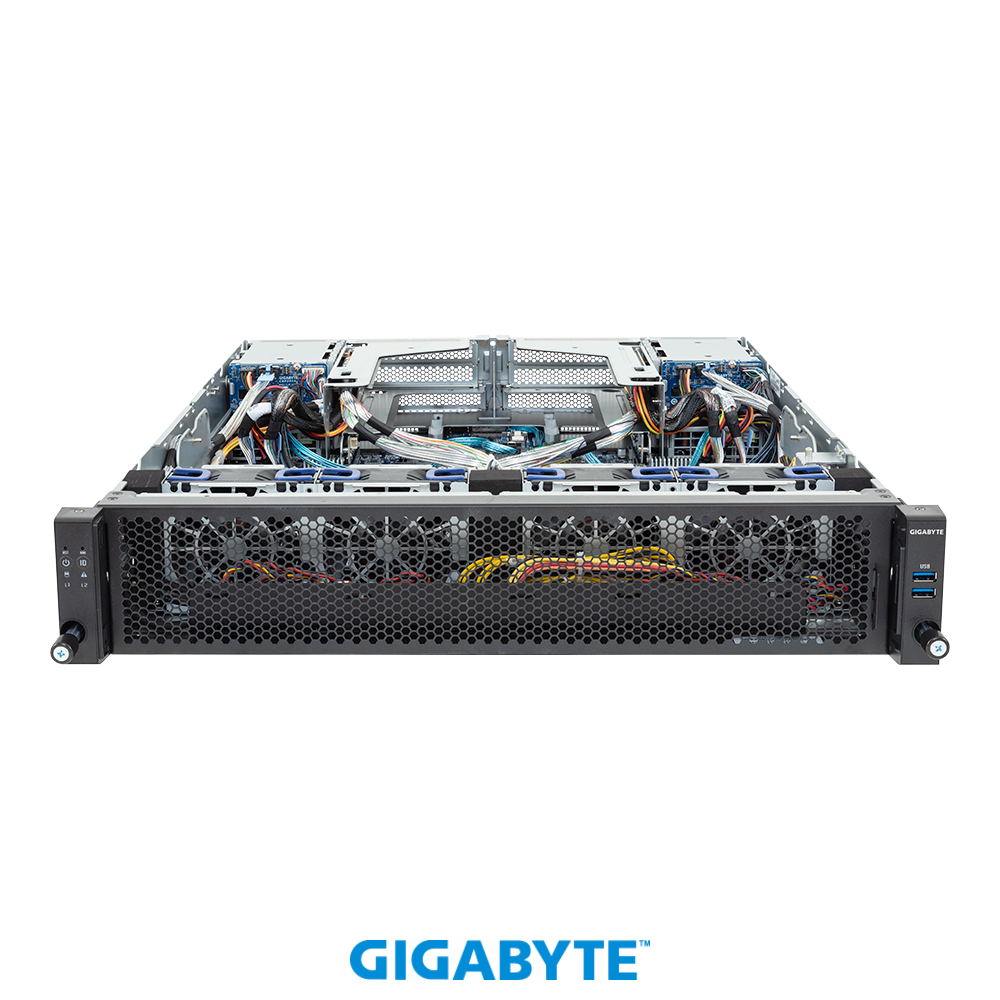

| Front I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |

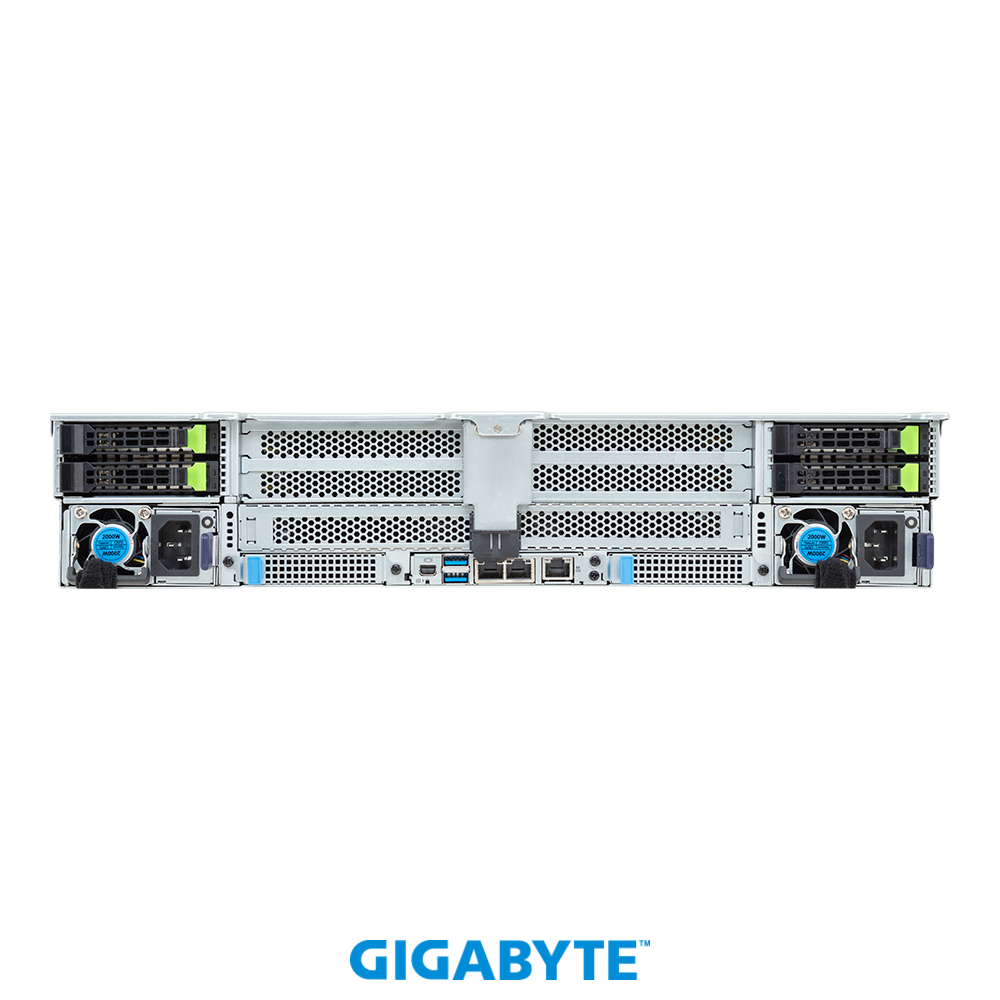

| Rear I/O | I/O board – CDCR010: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM012 1 x PRoT connector (only enabled on RoT SKU) |
| Power Supply | 1+1 2000W 80 PLUS Titanium redundant power supplies AC Input: – 100-127V~/ 13A, 50-60Hz – 200-220V~/ 10A, 50-60Hz – 220-240V~/ 10A, 50-60Hz DC Input: (Only for China) – 240Vdc/ 10A DC Output: – Max 1000W/ 100-127V~ +12.2V/ 82A +12.2Vsb/ 3A – Max 1800W/ 200-220V~ +12.2V/ 148A +12.2Vsb/ 3A – Max 2000W/ 220-240V~ or 240Vdc Input +12.2V/ 164A +12.2Vsb/ 3A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| System Management | |
| OS Compatibility | Please refer to OS compatibility table in support page |
| System Fans | 4 x 80x80x38mm (16,000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Packaging Dimensions | 987 x 594 x 282 mm |
| Packaging Content | 1 x E284-S90-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 4 x Carriers [Note] Rail kit not included. Please refer to optional parts for compatible rail kit. |
| Part Numbers | – Barebone package: 6NE284S90DR000AAJ1* – Motherboard: 9MS94FS0UR-000* – CPU heatsink: 25ST1-4Z3201-S7H – M.2 heatsink: 12SP2-11000E-00R – Front panel board – CFP2001: 9CFP2001NR-00* – Backplane board – CBP2025: 9CBP2025NR-00* – Fan module: 25ST2-88382Y-A0R – Riser card – CRS101J: 9CRS101JNR-00* – Riser card – CRS101K: 9CRS101KNR-00* – I/O board with M.2 slot – CDCR010: 9CDCR010NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-22000L-G1S Optional parts: – 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R – RMA packaging: 6NE284S90SR-RMA-A100 |
