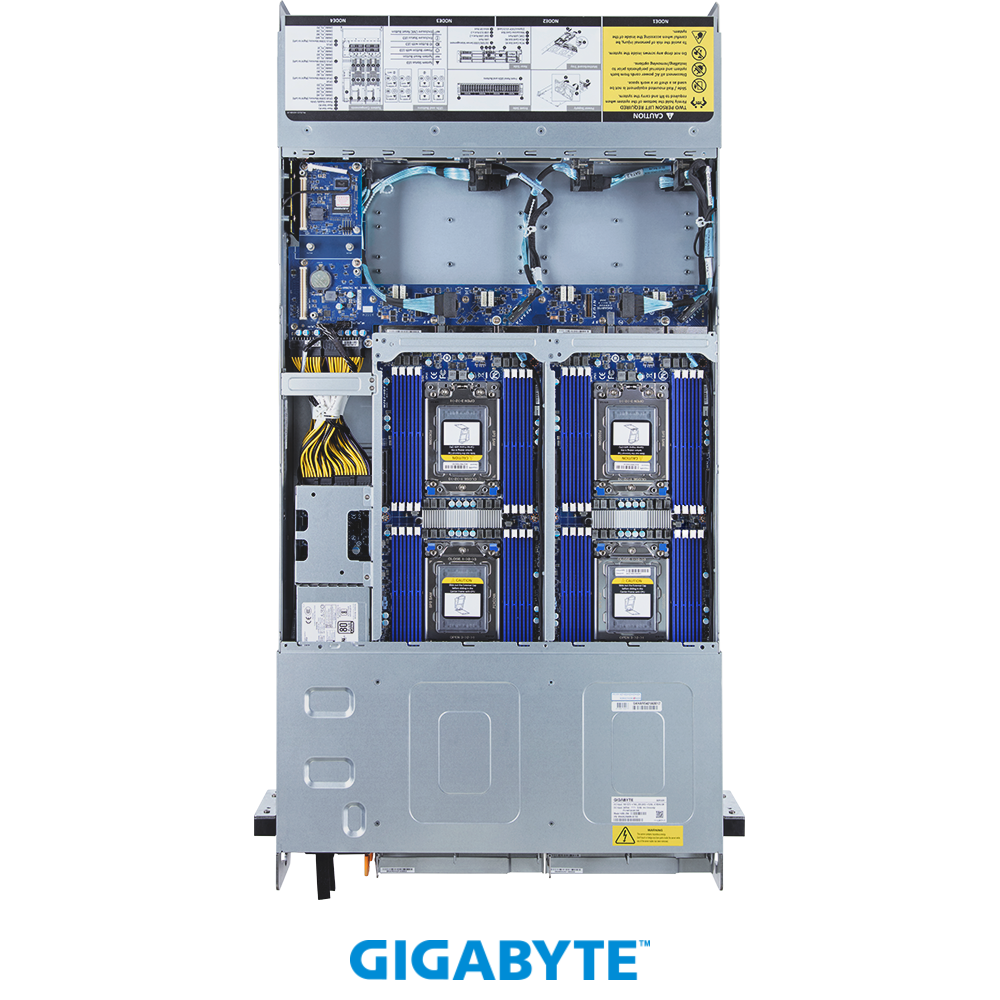

H262-Z6B-ICP1
高密度サーバー - AMD EPYC™ 7003/7002 - 2U 4ノード DP 8ベイ Gen4 NVMe/SATA 液冷冷却 3000W
2U EPYC7003EPYC 7002 リダンダント電源 汎用サーバー クラウドサーバー 仮想化サーバー マルチノード
- 1. 液浸冷却サーバー
- 2. ハードウェアレベルの信頼の根源サポート
- 3. 2U 4ノードフロントアクセスサーバーシステム
- 4. ノードあたりデュアルAMD EPYC™ 7003/7002シリーズプロセッサー
- 5. 8チャネルDDR4 RDIMM/LRDIMM、ノードあたり16 x DIMM
- 6. Intel® I350-AM2経由の8 x 1Gb/s LANポート
- 7. 1 x CMCポート
- 8. 8 x 2.5インチ Gen4 NVMe/SATAホットスワップベイ
- 9. 4 x M.2スロット（PCIe Gen4 x4インターフェース）
- 10. 8 x LP PCIe Gen4 x16スロット
- 11. 4 x OCP NIC 3.0 PCIe Gen4 x16スロット
- 12. デュアル3000W 80 PLUS Titanium冗長電源ユニット
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 2U 4-Node – Front access 440 x 87.5 x 840 |
|---|---|
| Motherboard | MZ62-HD4 Rev. 3.0 |
| CPU | AMD EPYC™ 7003 Series Processors AMD EPYC™ 7002 Series ProcessorsDual processor, TDP up to 280W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 8 x LGA 4094 Socket SP3 |
| Chipset | System on Chip |
| Memory | 64 x DIMM slots DDR4 memory supported 8-Channel memory per processor RDIMM/LRDIMM: Up to 3200 MT/s |
| LAN | Top: 8 x 1Gb/s LAN (4 x Intel® I350-AM2) – Support NCSI function4 x 10/100/1000 Mbps Management LAN 1 x CMC port |
| Video | Integrated in ASPEED® AST2500 x 4 – 4 x Mini-DP |
| Storage | Bottom hot-swap: 8 x 2.5″ Gen4 NVMe/SATA – (NVMe from CPU_1) – (SATA from CPU_0)Internal M.2: 4 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0 |
| SAS | N/A |
| RAID | N/A |
| PCIe Expansion Slots | Riser Card CRSH01E x 4: – 4 x LP x16 (Gen4 x16), from CPU_0Riser Card CRSH01H x 4: – 4 x LP x16 (Gen4 x16), from CPU_0 4 x OCP NIC 3.0 (Gen4 x16), from CPU_0 |
| Top I/O | 8 x USB 3.2 Gen1 ports (Type-A) 4 x Mini-DP 8 x RJ45 ports 4 x MLAN ports 4 x Power buttons with LED 4 x ID buttons with LED 4 x Reset buttons 4 x System status LEDs 4 x ID LEDs 1 x CMC port 1 x CMC status LED 1 x CMC reset button |
| Backplane Board | Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply | Dual 3000W 80 PLUS Titanium power supply [1]
AC Input: DC Input: (Only for China) DC Output: [1] The system power supply requires C19 power cord. |
| System Management | ASPEED® AST2500 Baseboard Management Controller ASPEED® AST2520 Chassis Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later SUSE Linux Enterprise Server 12 SP5 or later Ubuntu 18.04.5 LTS or later VMware ESXi 6.7 Update3 P03 or later Windows Server 2016 (X2APIC/256T not supported) |
| Operating Properties | Operating coolant temperature: 25°C to 35°C Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing) |
| Packaging Dimensions | 1180 x 779 x 300 mm |
| Packaging Content | 1 x H262-Z6B 8 x CPU heatsinks |
| Part Numbers | – Barebone package: 6NH262Z6BRR000ICP1* – Motherboard: 9MZ62HD4NR-00* – CPU heatsink: 25ST1-443109-A3R/25ST1-44310A-A3R – Backplane board: 9CBPH082NR-00* – Riser card – CRSH01E: 9CRSH01ENR-00* – Riser card – CRSH01H: 9CRSH01HNR-00* – Power supply: 25EP0-23000E-G1SOptional parts: – C19 power cord 125V/15A (US): 25CP1-018000-Q0R |
