G294-S42-IAP1
HPC/AIサーバー - Intel® Xeon® 6 プロセッサー - 2U DP 8 x PCIe Gen5 GPU (PCIeスイッチ搭載) 液浸冷却
2U Xeon6 6500PXeon6 6700P 8GPU リダンダント電源 GPUサーバー
- 1. 液浸冷却サーバー
- 2. 最大8基のデュアルスロットGen5 GPUをサポート
- 3. デュアルIntel® Xeon® 6700/6500シリーズプロセッサー
- 4. 8チャネルDDR5 RDIMM / MRDIMM、24基のDIMM
- 5. デュアルROMアーキテクチャ
- 6. Intel® X710-AT2経由の10Gb/s LANポート×2
- 7. 8基の2.5インチGen5 NVMe/SATA/SAS-4ベイ
- 8. GPU用FHFL PCIe Gen5 x16スロット×8基
- 9. LP PCIe Gen5 x16スロット×2基
- 10. デュアル3000W 80 PLUS Titanium認定冗長電源
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 2U 448 x 87.5 x 800 |
|---|---|
| Motherboard | MS44-G20 |
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6700-Series Processors – Intel® Xeon® 6500-Series Processors Dual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 4710 Socket E2 |
| Chipset | System on Chip |
| Memory | 24 x DIMM slots [1] Support DDR5 RDIMM/MRDIMM [2] 8-Channel memory per processor RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s [1] Intel® Xeon® 6700E-Series Processors only support up to 16 x DIMMs. [2] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration. |
| LAN | Top: 2 x 10Gb/s LAN (1 x Intel® X710-AT2) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Storage |
Bottom:

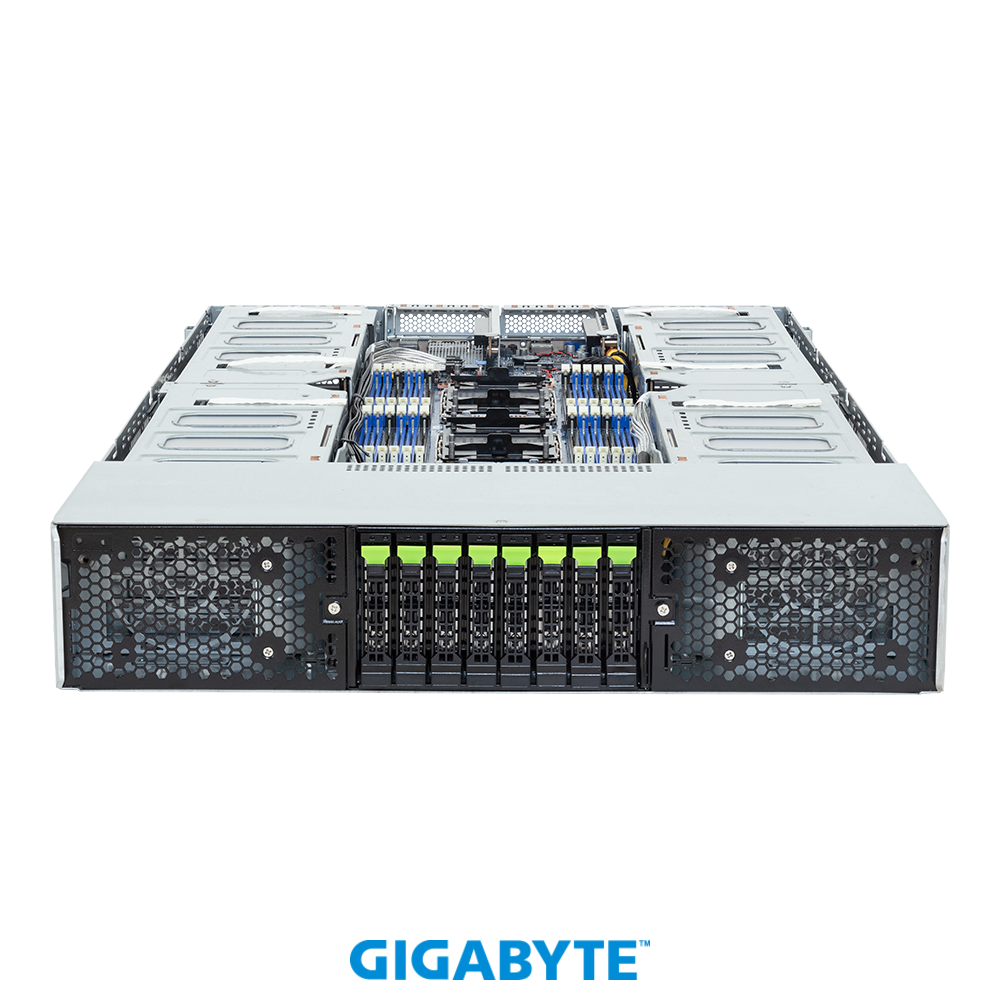

8 x 2.5″ Gen5 NVMe/SATA/SAS-4 [1] – (4 x NVMe from CPU_0, 4 x NVMe from CPU_1) [1] Storage card is required to support SATA and SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards Onboard VROC key headers |
| PCIe Expansion Slots |
Riser Card CRCG620 x 2:
– 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs Riser Card CRCG621 x 2: Riser Card CRSG01F x 2: [Note] Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm. [Note] The system is only validated with a uniform GPU model. |

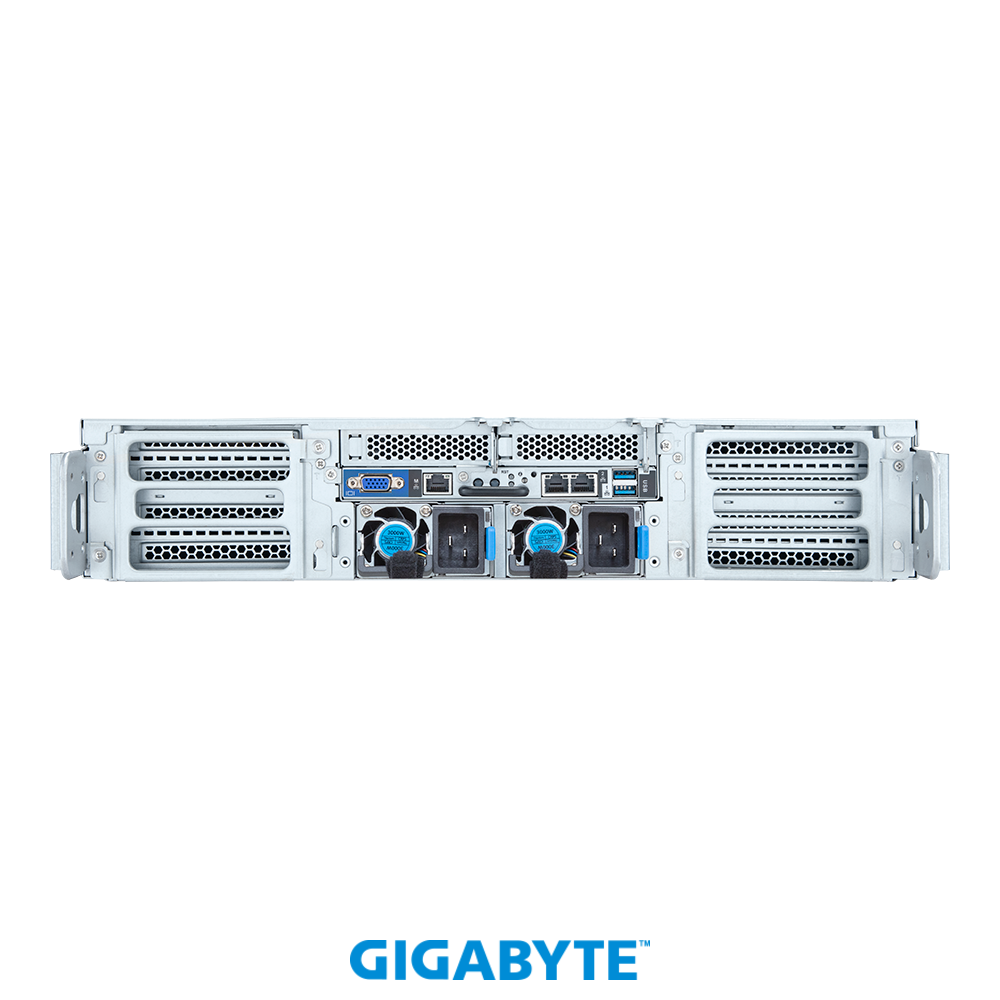

| Top I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x System status LED |
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM012 1 x PRoT connector (only enabled on RoT SKU) |
| Power Supply | Dual 3000W 80 PLUS Titanium redundant power supply [1]
AC Input: DC Input: (Only for China) DC Output: [1] The system power supply requires C19 power cord. |
| System Management | |
| OS Compatibility | Please refer to OS compatibility table in support page |
| Operating Properties | Operating coolant temperature: 20°C to 35°C Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Packaging Dimensions | 1175 x 727 x 266 mm |
| Packaging Content | 1 x G294-S42-IAP1 2 x CPU heatsinks 4 x GPU power cables (16-pin, 250mm) 4 x GPU power cables (16-pin, 280mm) 4 x Carriers |
| Part Numbers | – Barebone package: 6NG294S42DR000IAP1* – Motherboard: 9MS44G20UR-000* – CPU heatsink: 25ST1-453219-C1R – Backplane board – CBPG086: 9CBPG086NR-00* – M.2 expansion card – CMTP1A0: 9CMTP1A0NR-00* – Riser card – CRCG620: 9CRCG620NR-00* – Riser card – CRCG621: 9CRCG621NR-00* – Riser card – CRSG01F: 9CRSG01FNR-00* – GPU power cable (16-pin, 250mm): 25CRI-2503B3-Y4R – GPU power cable (16-pin, 280mm): 25CRI-3000B2-Y4R – Power supply: 25EP0-23000Z-G1S |
