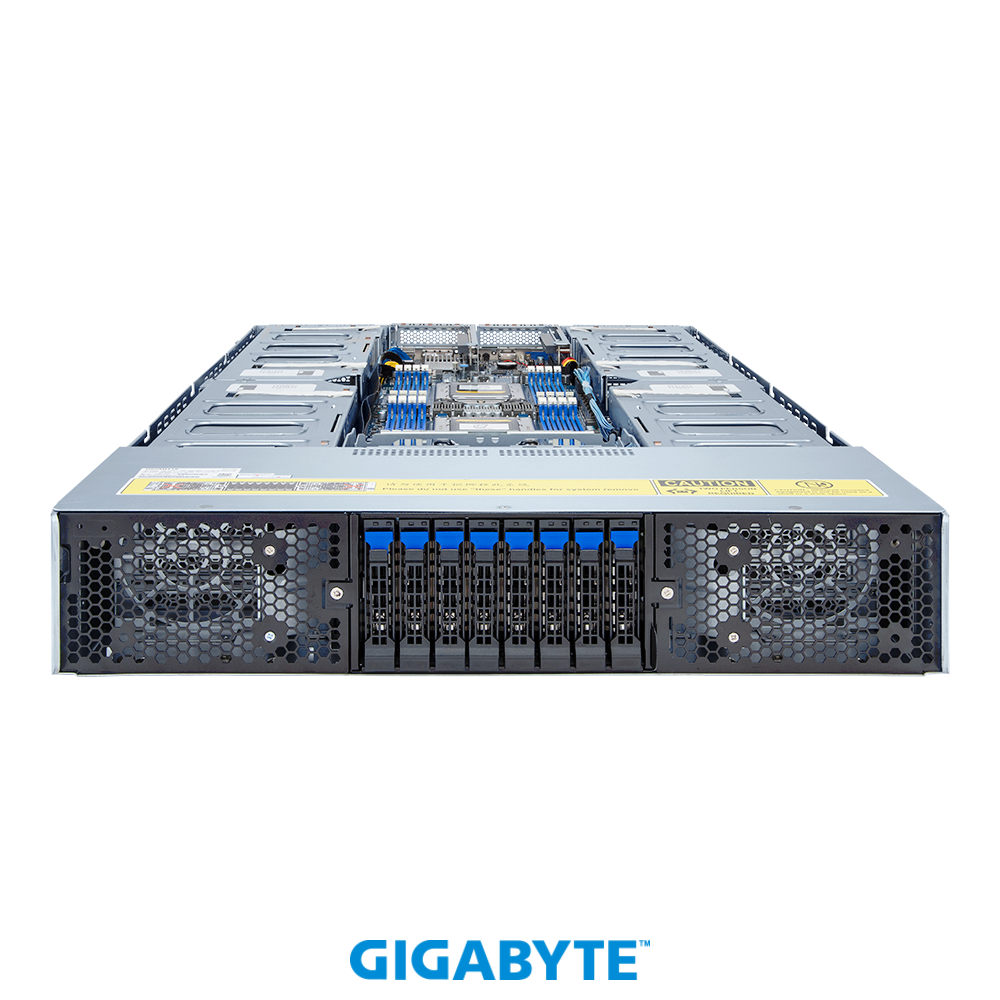

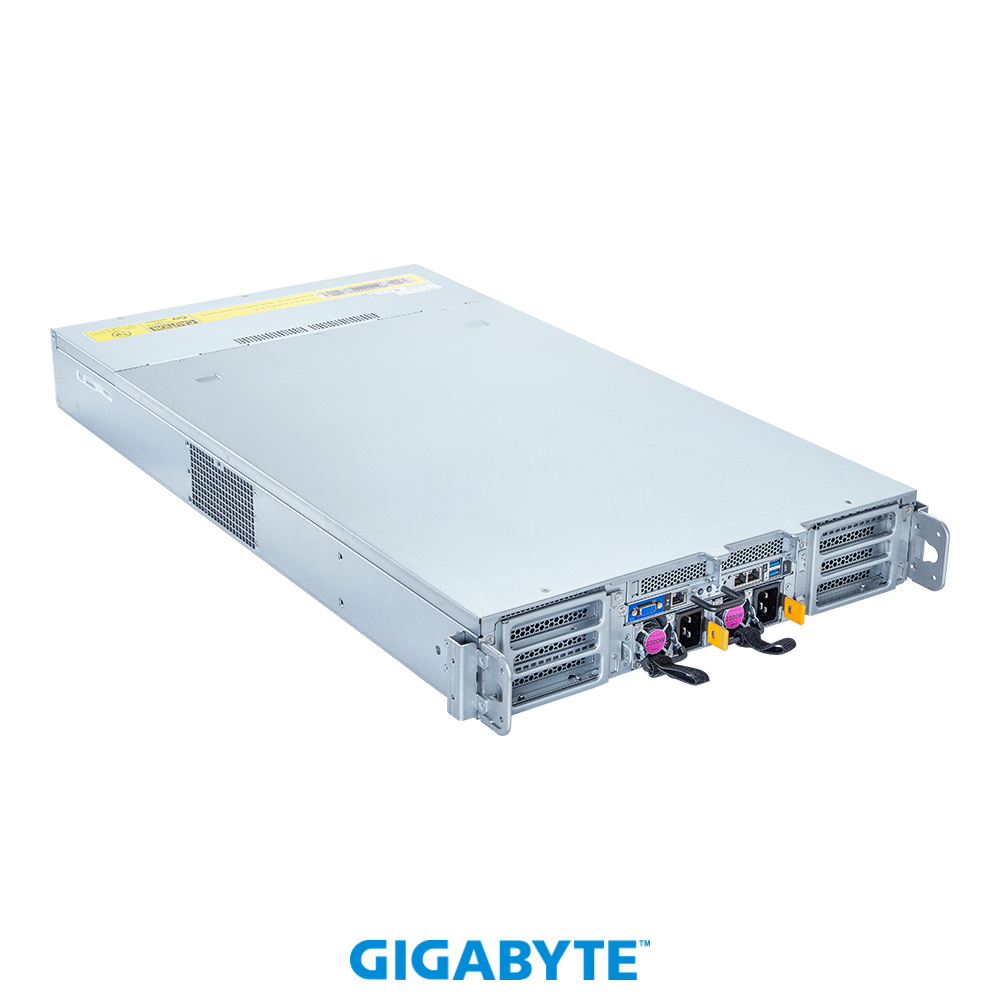

G292-Z45-ICM1

HPC/AIサーバー - AMD EPYC™ 7003/7002 - 2Uデュアルプロセッサー 8基のPCIe Gen4 GPU搭載イマージョンタイタニウム

2U EPYC7003EPYC 7002 8GPU リダンダント電源 GPUサーバー

1. 液浸冷却サーバー
2. 最大8基のデュアルスロットGen4 GPUをサポート
3. デュアルAMD EPYC™ 7003/7002シリーズプロセッサー
4. 8チャネルDDR4 RDIMM/LRDIMM、16基のDIMM
5. Intel® I350-AM2経由の2基の1Gb/s LANポート
6. 8基の2.5インチSATA/SASホットスワップベイ
7. GPU用FHFL PCIe Gen4 x16スロット×8基
8. アドインカード用LP PCIe Gen4 x16およびx8スロット×2基
9. デュアル2200W 80 PLUS Titanium認定冗長電源

主な仕様

データシート

製品仕様

Dimensions (WxHxD, mm)	2U 448 x 87.5 x 800
Motherboard	MZ42-G21
CPU	AMD EPYC™ 7003 Series Processors AMD EPYC™ 7002 Series ProcessorsDual processor, cTDP up to 240W ^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket	2 x LGA 4094 Socket SP3
Chipset	System on Chip
Memory	16 x DIMM slots DDR4 memory supported 8-Channel memory per processor RDIMM/LRDIMM: Up to 3200 MT/s
LAN	Top: 2 x 1Gb/s LAN (1 x Intel^® I350-AM2) – Support NCSI function1 x 10/100/1000 Mbps Management LAN
Video	Integrated in ASPEED^® AST2500 – 1 x VGA port
Storage	Bottom hot-swap: 8 x 2.5″ SATA/SAS^[1] ^[1]SAS card is required to support SAS drives. Recommended 12Gb/s SAS cards: CRA4448 CRA4548
SAS	Require SAS add-in cards
RAID	Require RAID add-in cards
PCIe Expansion Slots	Riser Card CRSG226 x 2: 2 x FHFL x16 (Gen4 x16), from CPU_0, for GPUs 2 x FHFL x16 (Gen4 x16), from CPU_1, for GPUsRiser Card CRSG227 x 2: 2 x FHFL x16 (Gen4 x16), from CPU_0, for GPUs 2 x FHFL x16 (Gen4 x16), from CPU_1, for GPUs Riser Card CRSG01A x 2: 1 x LP x16 (Gen4 x16), from CPU_1 1 x LP x16 (Gen4 x8), from CPU_0 ^[Note]Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm. ^[Note]The system is only validated with a uniform GPU model.

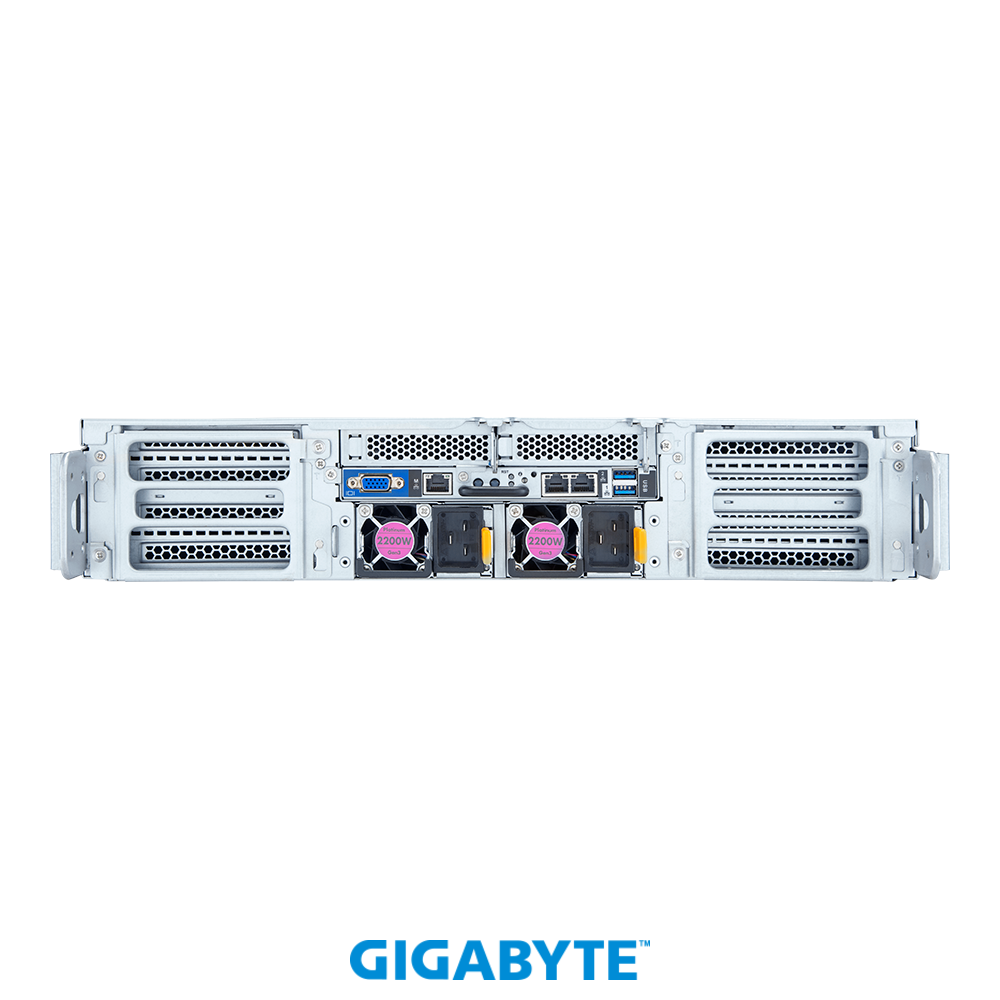

Top I/O	2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x System status LED
Backplane Board	Speed and bandwidth: SATA 6Gb/s or SAS 12Gb/s
Security Modules	1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010
Power Supply	Dual 2200W 80 PLUS Titanium redundant power supply^[1] AC Input: – 100-127V~/ 15.5A, 50-60Hz – 200-240V~/ 15.5A, 50-60Hz DC Input: (Only for China) – 240Vdc/ 15.5A DC Output: – Max 1000W/ 100-127V~ +12.2V/ 81A +12Vsb/ 3A – Max 2200W/ 200-240V~ or 240Vdc Input +12.2V/ 180A +12Vsb/ 3A ^[1]The system power supply requires C19 power cord.
System Management	ASPEED^® AST2500 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard JAVA Based Serial Over LAN HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage/Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Compatibility	Citrix Hypervisor 8.2.0 or later Red Hat Enterprise Linux 8.3 or later Red Hat Enterprise Linux 9.0 or later SUSE Linux Enterprise Server 12 SP5 or later SUSE Linux Enterprise Server 15 SP2 or later Ubuntu 18.04.5 LTS or later Ubuntu 20.04 LTS or later Ubuntu 22.04 LTS or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later VMware ESXi 8.0 or later Windows Server 2016 (X2APIC/256T not supported) Windows Server 2019 Windows Server 2022
Operating Properties	Operating coolant temperature: 25°C to 35°C Non-operating temperature: -40°C to 60°C Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions	1133 x 724 x 261 mm
Packaging Content	1 x G292-Z45-ICM1 2 x CPU heatsinks
Part Numbers	– Barebone package: 6NG292Z45MR000ICM1* – Motherboard: 9MZ42G21NR-00* – CPU heatsink: 25ST1-44320N-A3R/25ST1-44320P-A3R – Backplane board – CBPG084: 9CBPG084NR-00* – Riser card – CRSG226: 9CRSG226NR-00* – Riser card – CRSG227: 9CRSG227NR-00* – Riser card – CRSG01A: 9CRSG01ANR-00* – Power supply: 25EP0-22200B-G1SOptional parts: – C19 power cord 125V/15A (US): 25CP1-018000-Q0R – C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R – RMA packaging: 6NG292Z45SR-RMA-I101
