製品仕様
| Dimensions (WxHxD, mm) | 2OU 537 x 93 x 807.7 |
|---|---|
| Open Rack Version | ORv3 |
| LAN | Front: 1 x 10/100/1000 Mbps Management LAN |

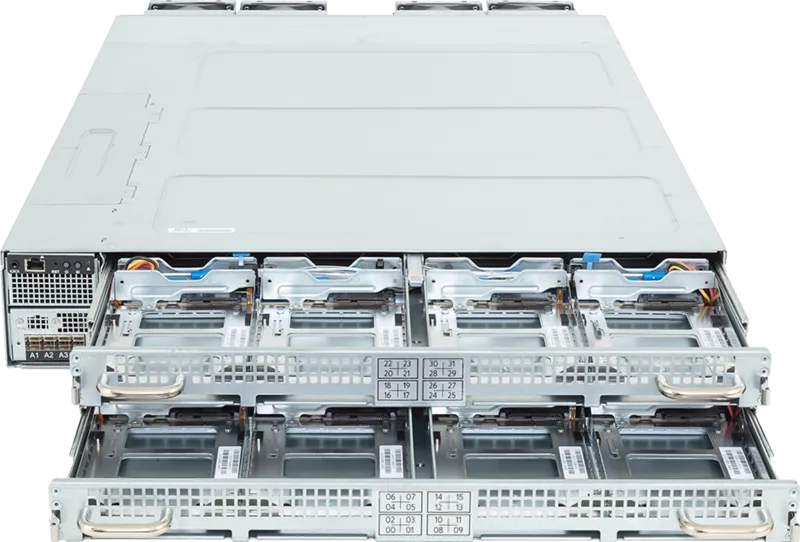

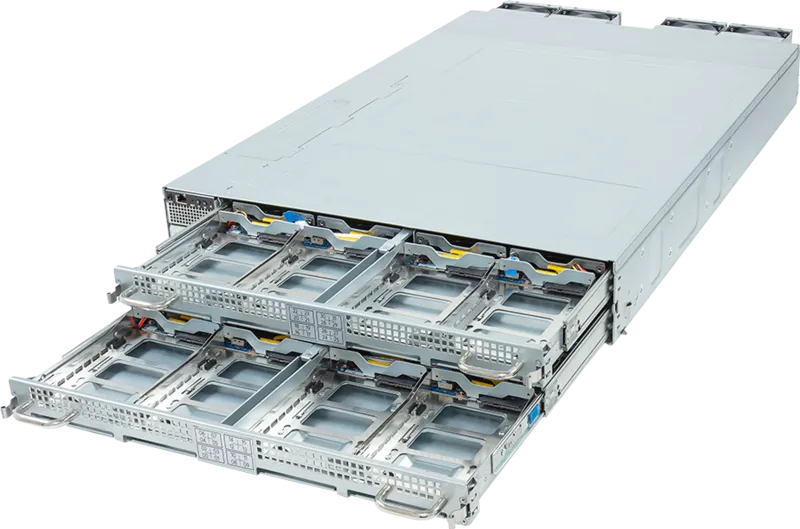

| Storage | Front access: 32 x 3.5″/2.5″ SATA/SAS-3 |
| SATA | Supported |
| SAS | Support SAS 12Gb/s |
| SAS Expander | 1 x Broadcom SAS4x48 expander, single-path |

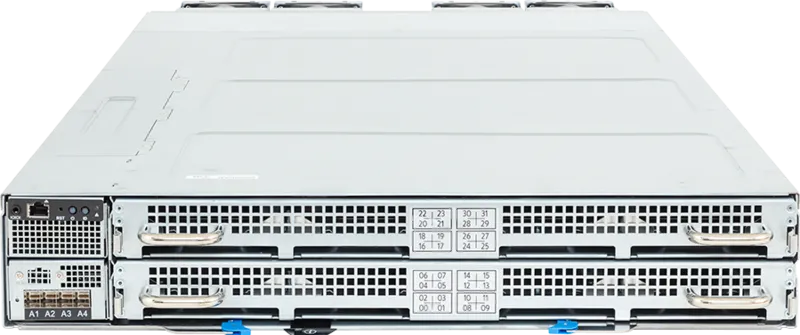

| Front I/O | 4 x Mini-SAS HD ports 1 x MLAN port 1 x UART audio jack 1 x Power button with LED 1 x ID button with LED 1 x BMC reset button 1 x System status LED 1 x MLAN access LED |
| System Management | ASPEED® AST2520 Remote Management Controller |

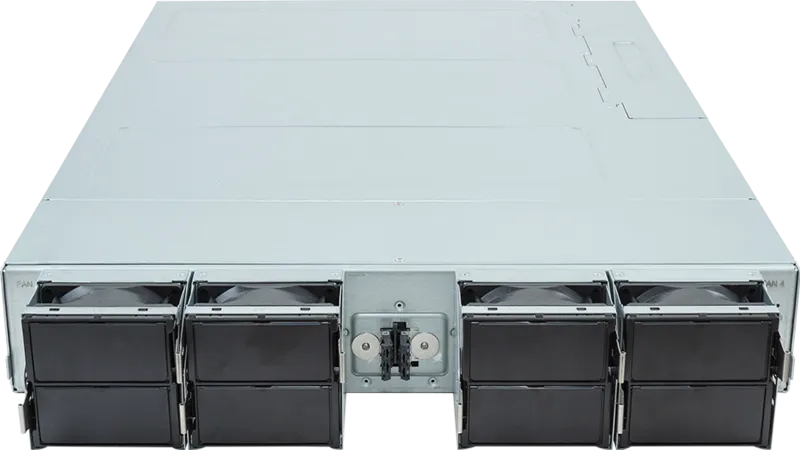

| System Fans | 4 x 92x92x38mm |
| Packaging Dimensions | 1165 x 764 x 282 mm |
| Packaging Content | 1 x TO24-JD2-AA01 |
| No. of Bus Bars | 1 x 48V Bus Bar |
| Part Numbers | – Barebone package: 6NTO24JD2MR000AA01* |
