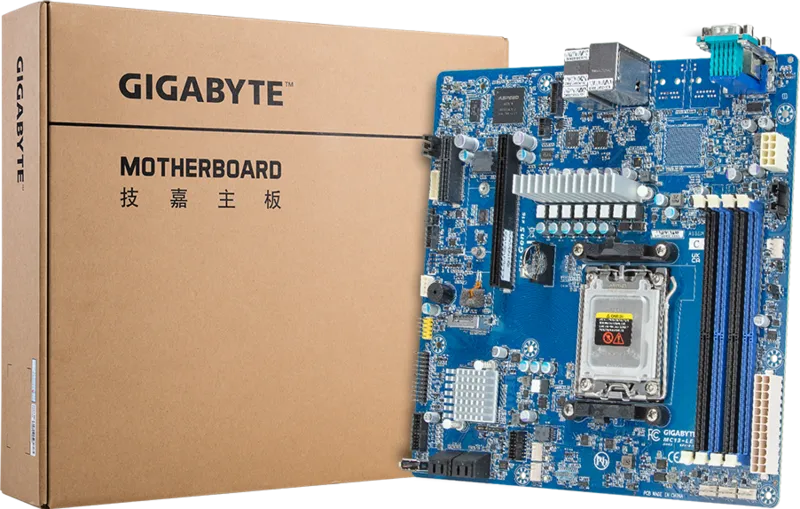

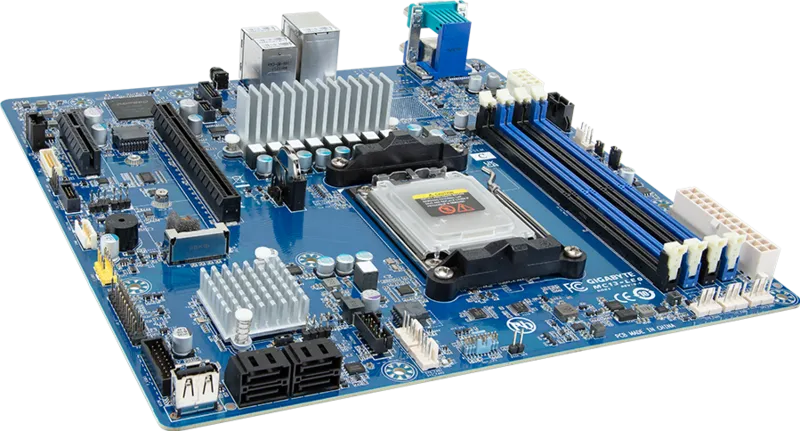

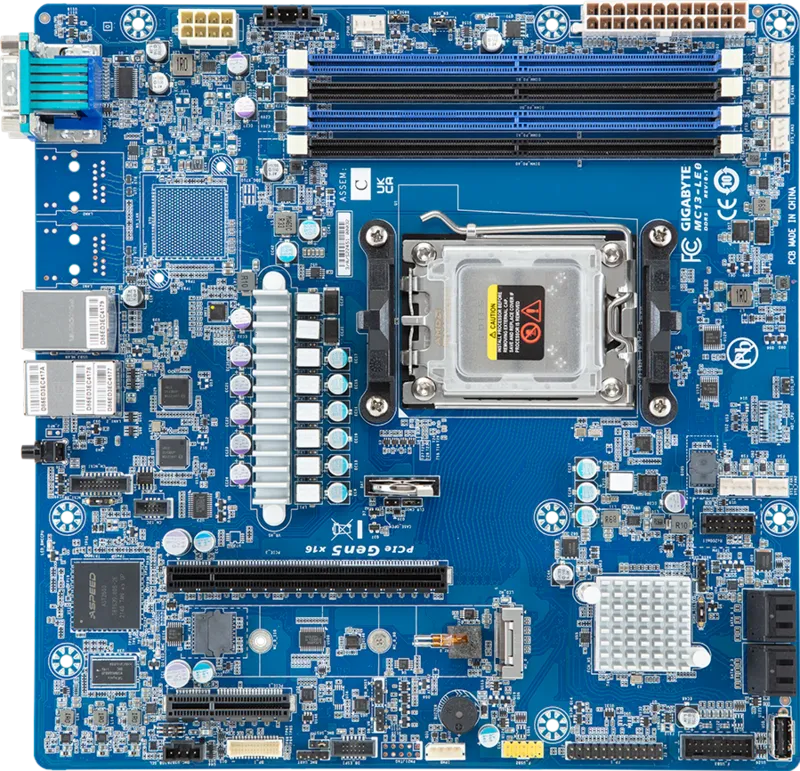

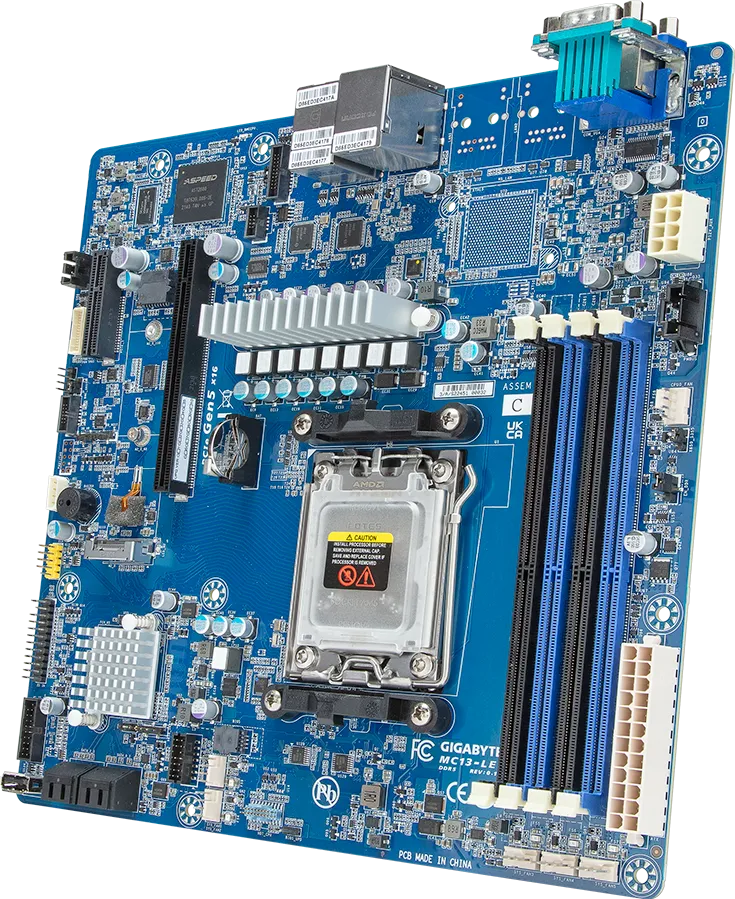

サーバーマザーボード
MC13-LE0 (rev. 1.x/3.x/4.x)
マザーボード - AMD EPYC™ 4005/4004 および Ryzen™ 9000/7000 対応 - microATX、1Gb/s LAN搭載
EPYC4005EPYC4004Ryzen 9000Ryzen 7000
- AMD EPYC™ 4005/4004 および Ryzen™ 9000/7000 シリーズ プロセッサ（シングル）
- デュアルチャネル DDR5 ECC/非ECC UDIMM、DIMMスロット×4
- Intel® I210-AT 経由の 1Gb/s LAN ポート x 2
- SATA 7ピンポート x 4
- PCIe Gen5 x4 インターフェース搭載 M.2 スロット x 1
- PCIe Gen5 x16 拡張スロット x 1
- PCIe Gen4 x4 拡張スロット x 1
製品仕様
| Form Factor (WxD, mm) | microATX 244 x 244 |
|---|---|
| CPU | AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 170W [注] 170WのCPUには、水冷キットの取り付けをお勧めします。 [注] CPUやGPUに水冷キットを取り付ける際は、熱がこもらないよう、適切な通気性を確保してください。 |
| Socket | 1 x AM5 |
| Chipset | AMD B650E |
| Memory | 4 x DIMM slots Support DDR5 ECC/Non-ECC UDIMM Dual channel memory per processor AMD EPYC™ 4005 / Ryzen™ 9000: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC) |
| LAN | 2 x 1Gb/s LAN (2 x Intel® I210-AT) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Audio | N/A |
| Storage Interface | SATA 7-pin: 4 x SATA, from FCH M.2: 1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU |
| RAID | RAID 0/1/10 |
| PCIe Expansion Slots | Slot_3: PCIe x16 (Gen5 x16), from CPU Slot_1: PCIe x4 (Gen4 x4), from FCH |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 5 x System fan headers 1 x USB 3.2 Gen1 x2 header 1 x USB 2.0 x2 header 1 x USB 2.0 port (Type-A) 1 x M.2 slot 4 x SATA 7-pin connectors 1 x Front panel header 1 x Backplane board header 1 x PMBUS connector 1 x IPMB connector 1 x TPM header |

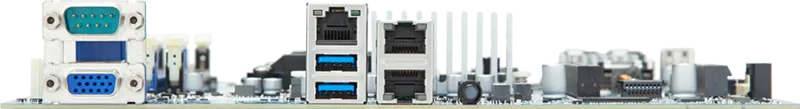

| Rear I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| OS Compatibility | EPYC 4005/4004 Series: Ubuntu 22.04 Ubuntu 24.04 Windows Server 2022 Windows Server 2025 Ryzen 9000/7000 Series: Windows 10 21H2 Windows 11 |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Operating Properties | Operating temperature: 10°C to 40°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Retail Packaging Content | 1 x MC13-LE0 1 x I/O shield 1 x Quick start guide 4 x SATA cables (500mm)Single Box dimensions: 321 x 308.5 x 78.5 mm Carton dimensions: 630 x 420 x 345 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content | 10 x MC13-LE0 10 x I/O shields Carton dimensions: 609 x 581 x 362 mm |
| Reference Numbers | Retail: 9MC13LE0MR-000-4*/3*/1* Bulk: 9MC13LE0NR-000-4*/3*/1* Part Numbers: - I/O shield: 12AIO-MC13LE-00R – SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R |
