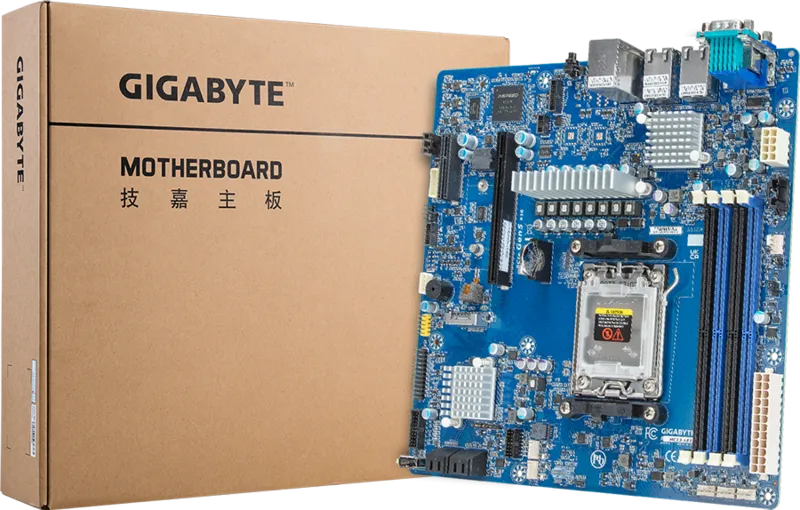

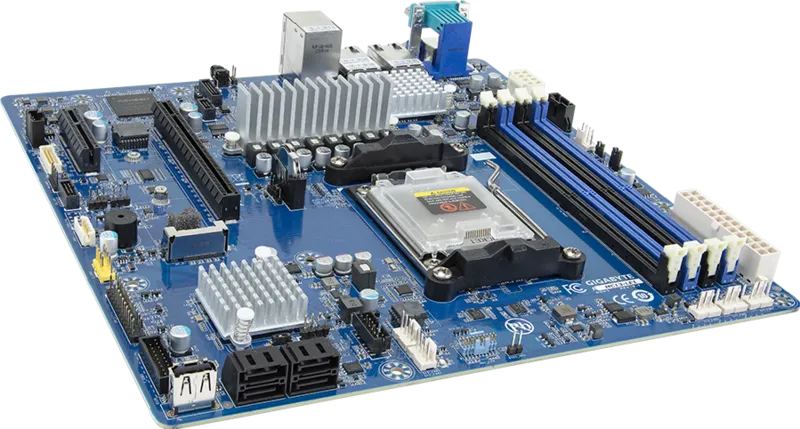

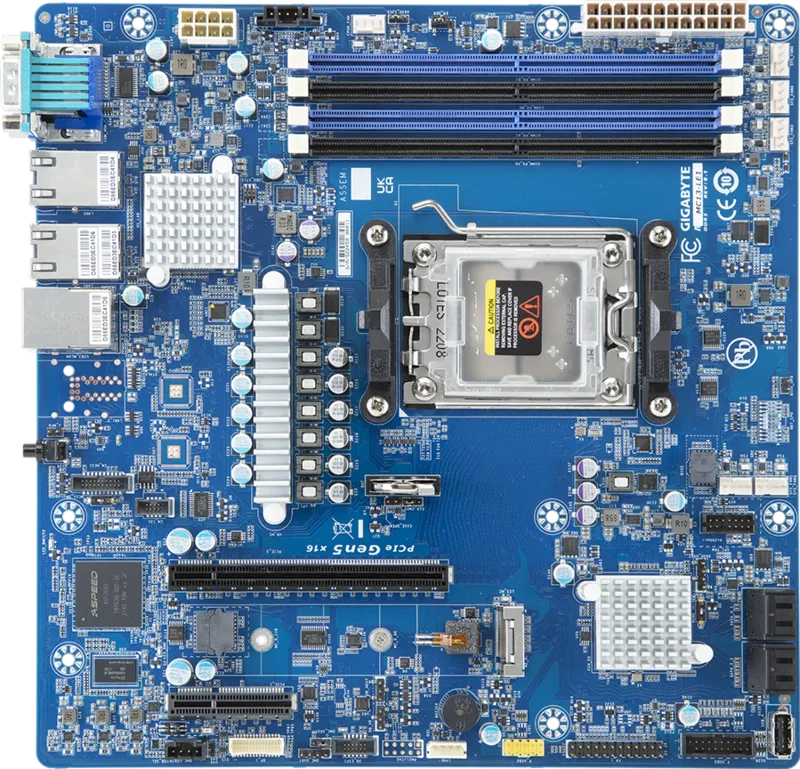

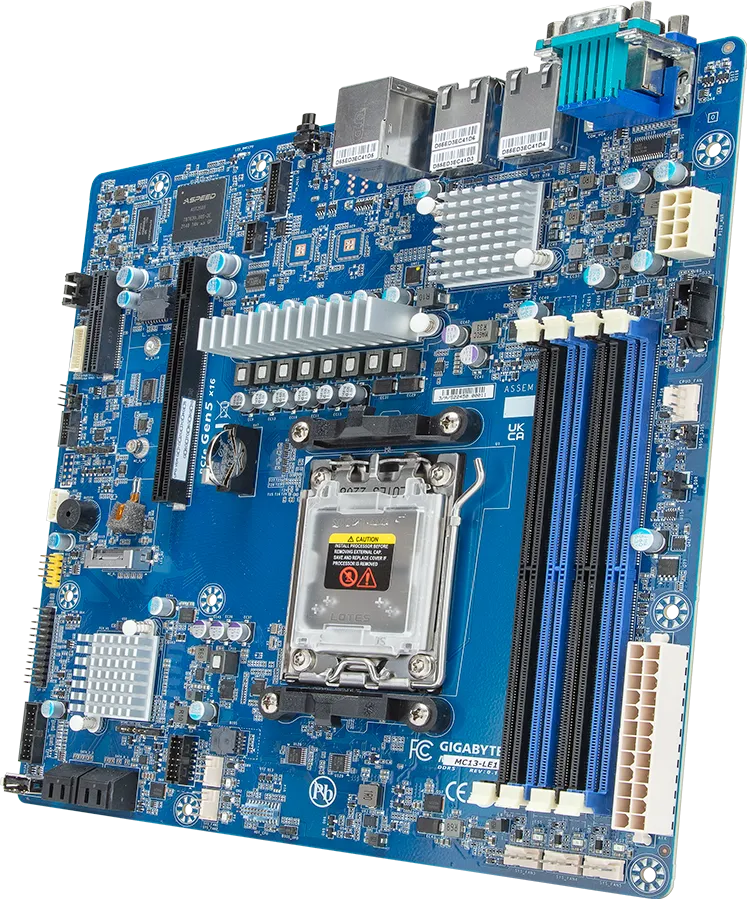

サーバーマザーボード
MC13-LE1 (rev. 1.x/3.x/4.x)
マザーボード - AMD EPYC™ 4005/4004 および Ryzen™ 9000/7000 対応 - microATX、10Gb/s LAN搭載
EPYC4005EPYC4004Ryzen 9000Ryzen 7000
- AMD EPYC™ 4005/4004 および Ryzen™ 9000/7000 シリーズ プロセッサ（シングル）
- デュアルチャネル DDR5 ECC/非ECC UDIMM、DIMM 4スロット
- Intel® X710-AT2 搭載 10Gb/s LAN ポート×2
- SATA 7ピンポート ×4
- PCIe Gen5 x4インターフェース搭載M.2スロット ×1
- PCIe Gen5 x16拡張スロット ×1
- PCIe Gen4 x4拡張スロット ×1
製品仕様
| Form Factor (WxD, mm) | microATX 244 x 244 |
|---|---|
| CPU | AMD EPYC™ 4005 Series Processors AMD EPYC™ 4004 Series Processors AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 7000 Series Processors Single processor, TDP up to 170W [注] CPUには170W対応のモデルと水冷キットを組み合わせて使用することを推奨します。 [注] CPUやGPUに水冷キットを取り付ける際は、熱がこもらないよう、適切な通気性を確保してください。 |
| Socket | 1 x AM5 |
| Chipset | AMD B650E |
| Memory | 4 x DIMM slots Support DDR5 ECC/Non-ECC UDIMM Dual channel memory per processor AMD EPYC™ 4005 / Ryzen™ 9000: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC) AMD EPYC™ 4004 / Ryzen™ 7000: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC) |
| LAN | 2 x 10Gb/s LAN (1 x Intel® X710-AT2) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Audio | N/A |
| Storage Interface | SATA 7-pin: 4 x SATA, from FCH M.2: 1 x M.2 (2242/2280), PCIe Gen5 x4, from CPU |
| RAID | RAID 0/1/10 |
| PCIe Expansion Slots | Slot_3: PCIe x16 (Gen5 x16), from CPU Slot_1: PCIe x4 (Gen4 x4), from FCH |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 5 x System fan headers 1 x USB 3.2 Gen1 x2 header 1 x USB 2.0 x2 header 1 x USB 2.0 port (Type-A) 1 x M.2 slot 4 x SATA 7-pin connectors 1 x Front panel header 1 x Backplane board header 1 x PMBUS connector 1 x IPMB connector 1 x TPM header |

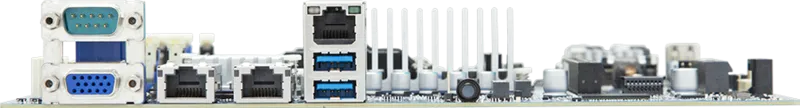

| Rear I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| OS Compatibility | EPYC 4005/4004 Series: Ubuntu 22.04 Ubuntu 24.04 Windows Server 2022 Windows Server 2025 Ryzen 9000/7000 Series: Windows 10 21H2 Windows 11 |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| PSU Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Operating Properties | Operating temperature: 10°C to 40°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Retail Packaging Content | 1 x MC13-LE1 1 x I/O shield 1 x Quick start guide 4 x SATA cables (500mm) Single Box dimensions: 321 x 308.5 x 78.5 mm Carton dimensions: 630 x 420 x 345 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content | 10 x MC13-LE1 10 x I/O shields Carton dimensions: 609 x 581 x 362 mm |
| Reference Numbers | Retail: 9MC13LE1MR-000-4*/3*/1* Bulk: 9MC13LE1NR-000-4*/3*/1* Part Numbers: - I/O shield: 12AIO-MC13LE-10R – SATA cable (500mm)(2 in 1 package): 12CF1-2SAT1B-01R |
