G363-ZR0-AAX4 (rev. 3.x)

HPC/AIサーバー - AMD EPYC™ 9005/9004 - 3U DP HGX™ H200 4-GPU

3U EPYC9005EPYC9004 4GPU リダンダント電源 GPUサーバー

NVIDIA HGX™ H200 4-GPU
900GB/s 第4世代 NVIDIA NVLink™
デュアル AMD EPYC™ 9005/9004 シリーズプロセッサ
12チャネル DDR5 RDIMM、24 x DIMM
デュアル ROM アーキテクチャ
Broadcom® BCM57416 搭載 10Gb/s LAN ポート x 2
Intel® I350-AM2経由の1Gb/s LANポート×2
2.5インチ Gen5 NVMe/SATA/SAS-4 ホットスワップベイ ×4
2.5インチ Gen5 NVMe ホットスワップベイ ×4
PCIe Gen4 x4 インターフェース搭載 M.2 スロット ×1
LP PCIe Gen5 x16 スロット ×6
2+1 3000W 80 PLUS Titanium 冗長電源

主な仕様

データシート

製品仕様

Dimensions (WxHxD, mm)	3U 448 x 131 x 850.2
Motherboard	MZ83-HD1
CPU	AMD EPYC^™ 9005 Series Processors AMD EPYC^™ 9004 Series Processors Dual processor, cTDP up to 400W^[1][2] ^[1]検証済みのCPU SKUについては、サポートページのQVLをご参照いただくか、弊社営業担当までお問い合わせください。 ^[2]NVIDIA® BlueField®-3 DPUを搭載する場合、周囲温度は30°Cまでに制限されます。^[注]CPUを1基のみ搭載している場合、一部のPCIeまたはメモリ機能が利用できない場合があります。
Socket	2 x LGA 6096 Socket SP5
Chipset	System on Chip
Memory	24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC^™ 9005: Up to 6400 MT/s AMD EPYC^™ 9004: Up to 4800 MT/s
LAN	Front (I/O board – CLBH160): 2 x 1Gb/s LAN (1 x Intel^® I350-AM2) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN Rear: 2 x 10Gb/s LAN (1 x Broadcom^® BCM57416) – Support NCSI function Rear (MLAN board – CDB66): 1 x 10/100/1000 Mbps Management LAN ^[注]両方のMLANポートがケーブルで接続されている場合、前面のMLANポートがデフォルトとして設定されます。
Video	Integrated in ASPEED^® AST2600 – 1 x Mini-DP
Storage	Front hot-swap: 4 x 2.5″ Gen5 NVMe/SATA/SAS-4^[1] 4 x 2.5″ Gen5 NVMe – (4 x NVMe from CPU_0, 4 x NVMe from CPU_1) – (SATA from CPU_0) Internal M.2 (CMTP192): 1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0 ^[1]SASドライブを使用するには、SASカードが必要です。
SAS	SASアドインカードが必要
RAID	RAIDアドインカードが必要
Modular GPU	NVIDIA HGX^™ H200 with 4 x SXM GPUs
PCIe Expansion Slots	Front: 1 x LP x16 (Gen5 x16), from CPU_0 1 x LP x16 (Gen5 x16), from CPU_11 x OCP NIC 3.0, from CPU_0, disabled Rear: 4 x LP x16 (Gen5 x16), from PEX89144, support RDMA – (Equipped with full-height brackets)

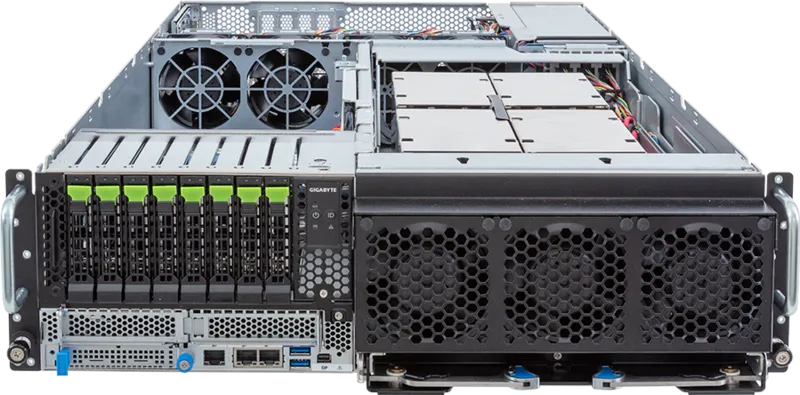

Front I/O	1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x Storage activity LED 1 x System status LED I/O board – CLBH160: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports (Intel I350) 1 x MLAN port (default)

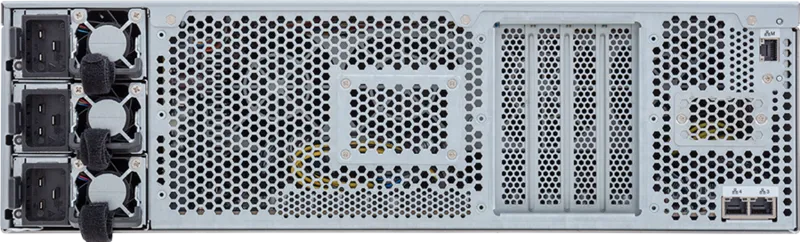

Rear I/O	2 x RJ45 ports (Broadcom BCM57416) MLAN board – CDB66: 1 x MLAN port
Backplane Board	Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules	1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010
Power Supply^[#1]	2+1 3000W 80 PLUS Titanium redundant power supplies^[1] AC Input: – 115-127V~/ 14.2A, 50-60Hz – 200-220V~/ 15.8A, 50-60Hz – 220-240V~/ 14.9A, 50-60Hz DC Input: (Only for China) – 240Vdc/ 14A DC Output: – Max 1450W/ 115-127V~ +54V/ 26.6A +12Vsb/ 3A – Max 2900W/ 200-220V~ +54V/ 53.4A +12Vsb/ 3A – Max 3002.4W/ 220-240V~ or 240Vdc Input +54V/ 55.6A +12Vsb/ 3A ^[1]本システムの電源には、C19電源コードが必要です。
System Management	ASPEED^® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Compatibility	Please refer to OS compatibility table in support page
System Fans	7 x 80x80x80mm
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Weight	Net Weight: 93.7 kg Gross Weight: 95.7 kg
Packaging Dimensions	1200 x 800 x 439 mm
Packaging Content	1 x G363-ZR0-AAX4 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x L-type Rail kit
Part Numbers	– Barebone with NVIDIA module: 6NG363ZR0DR000ACX4* – Motherboard: 9MZ83HD1UR-000-3* – L-type Rail kit: 25HB2-A86102-K0R – CPU heatsink: 25ST1-15320H-A3R – GPU heatsink: 25ST1-3332G0-F2R – Front panel board – CFP1000: 9CFP1000NR-00* – Backplane board – CBP2081: 9CBP2081NR-00* – Fan module: 25ST2-808035-S1R – Fan module: 25ST2-888030-S1R – Fan module: 25ST2-888031-S1R – M.2 expansion card – CMTP192: 9CMTP192NR-00* – Riser card – CRSH01R: 9CRSH01RNR-00* – OCP card – CNVC171: 9CNVC171NR-00* – Front I/O board (incl. I350-AM2) – CLBH160: 9CLBH160NR-00* – PCIe switch board – CPBG901: 9CPBG901NR-00* – Rear MLAN board – CDB66: 9CDB66NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-23000A-D0S Optional parts: - RMA packaging: 6NG363ZR0SR-RMA-A100
