TO15-Z40-IA01 (rev. 3.x)
ORv3 GPUサーバー - AMD EPYC™ 9005/9004 - 1OU デュアルプロセッサ、PCIe Gen5対応GPU×4基、Immersion
1U EPYC9005EPYC9004 4GPU リダンダント電源 GPUサーバー
- 単相浸漬冷却対応サーバー
- 最大4基のデュアルスロットGen5 GPUに対応
- AMD EPYC™ 9005/9004シリーズプロセッサを2基搭載
- 12チャネルDDR5 RDIMM、DIMMスロット24基
- デュアルROMアーキテクチャ
- Broadcom® BCM57416搭載の10Gb/s LANポート×2
- 15mm E1.S NVMeホットスワップベイ ×4
- SATAインターフェース搭載M.2スロット ×2（オプション）
- GPU用FHFL PCIe Gen5 x16スロット ×4 または FHFL PCIe Gen5 x8スロット ×8
- LP PCIe Gen5 x16スロット ×2

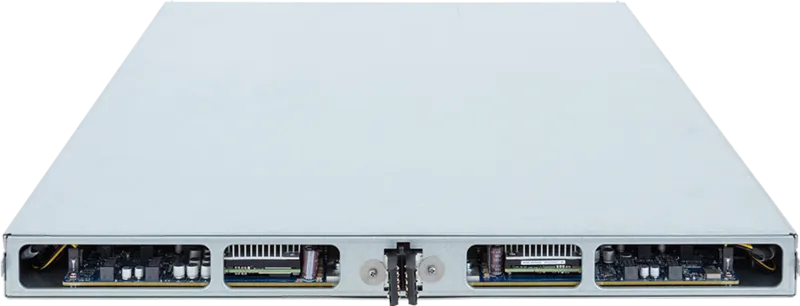

- 48V DCバスバー電源ソリューション
製品仕様
| Dimensions (WxHxD, mm) | 1OU 537 x 45 x 805.7 |
|---|---|
| Open Rack Version | ORv3 |
| Motherboard | MZ43-G20 |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Dual processor, cTDP up to 400W [注] CPUが1つしか搭載されていない場合、一部のPCIe機能やメモリ機能が利用できないことがあります。 |
| Memory | 24 x DIMM slots Support DDR5 RDIMM 12-Channel memory per processor AMD EPYC™ 9005: Up to 6400 MT/s AMD EPYC™ 9004: Up to 4800 MT/s |
| LAN | Top: 2 x 10Gb/s LAN (1 x Broadcom® BCM57416) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Storage | Top hot-swap: 4 x 15mm E1.S NVMe Optional internal M.2 (COMTP61): 2 x M.2 (2280/22110), SATA, from CPU_1 |
| SAS | N/A |
| RAID | N/A |
| PCIe Expansion Slots | Riser Card CORC206 x 2: – 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs – 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs Riser Card CORC207 x 2: – 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_0, for GPUs – 1 x FHFL x16 (Gen5 x16) or 2 x FHFL x16 (Gen5 x8), from CPU_1, for GPUs Riser Card CRSG01F x 2: – 2 x LP x16 (Gen5 x16), from CPU_0 |

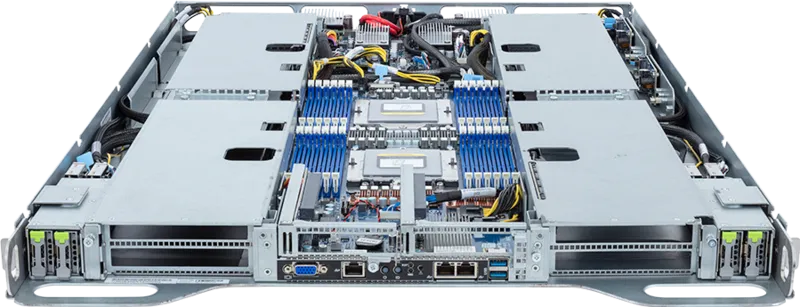

| Top I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x System status LED |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | OS certifications: Windows Server 2022 Windows Server 2025 |
| Weight | Net Weight: 24.04 kg Gross Weight: 29.04 kg |
| Packaging Dimensions | 1100 x 715 x 249 mm |
| Packaging Content | 1 x TO15-Z40-IA01 2 x CPU heatsinks 4 x GPU power cables (16-pin, 550mm) |
| No. of Bus Bars | 1 x 48V Bus Bar |
| Part Numbers | – Barebone package: 6NTO15Z40DR000IC01* – Motherboard: 9MZ43G20UR-000-3* – CPU heatsink: 25ST1-453217-A0R – Riser card – CORC206: 9CORC206NR-00* – Riser card – CORC207: 9CORC207NR-00* – Riser card – CRSG01F: 9CRSG01FNR-00* – EDSFF base board – COBP720: 9COBP720NR-00* – EDSFF riser card – CSPP010: 9CSPP010NR-00* – GPU power cable (16-pin, 550mm): 25CRI-5500B0-Y4R Optional parts: - M.2 expansion card – COMTP61: 9COMTP61NR-00* – RMA packaging: 6NTO15Z40SR-RMA-I100 |
