製品仕様
| Dimensions (WxHxD, mm) | 2U 438 x 87 x 815 |
|---|---|
| Motherboard | MZ93-FS0 |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Dual processor, cTDP up to 240W [1] [1] cTDPが240WのEPYC 9005シリーズ・プロセッサは、周囲温度が25°Cの場合にのみサポートされます。 [注] CPUが1基のみ搭載されている場合、一部のPCIeまたはメモリ機能が利用できないことがあります。 |
| Socket | 2 x LGA 6096 Socket SP5 |
| Chipset | System on Chip |
| Memory | 24 x DIMM slots DDR5 memory supported 12-Channel memory per processor RDIMM: Up to 4800 MT/s |
| LAN | Rear (G-SCM board – CDCR114): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x Mini-DP |
| Storage | Front hot-swap: 4 x 3.5″/2.5″ Gen4 NVMe/SATA/SAS [1] 8 x 3.5″/2.5″ SATA/SAS [1] – (NVMe from CPU_1) – (6 x SATA via CRS2810 from CPU_0) – (6 x SATA via CRS2810 from CPU_1) Rear hot-swap: 4 x 2.5″ SATA/SAS [1] – (SATA via CRS2810 from CPU_1) Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1, occupied for SATA 1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1, occupied for SATA [1] SASドライブをサポートするには、SASカードが必要です。 [注] SATAホットプラグユーティリティは、サポートページからダウンロードできます。 |
| SAS | SASアドインカードが必要 |
| RAID | RAIDアドインカードが必要 Optional compatible RAID Cards: NVMe RAID Cards with SupremeRAID™ by Graid Technology |
| PCIe Expansion Slots | Riser Card CRS101T: – 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101Q: – 1 x FHHL x16 (Gen5 x16), from CPU_1 Riser Card CRS201I: – 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs Riser Card CRS2227: – 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 – Supports NCSI function1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 – Supports NCSI function |

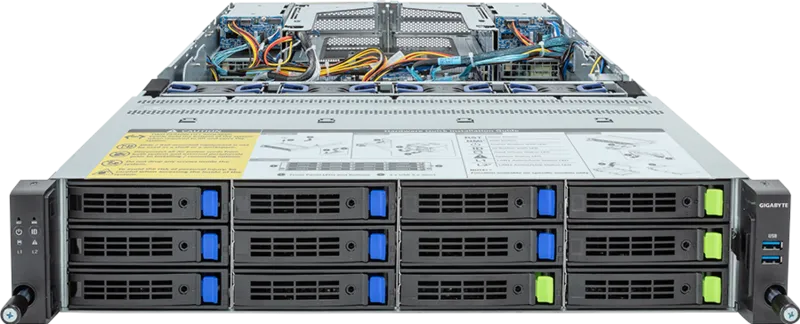

| Front I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |

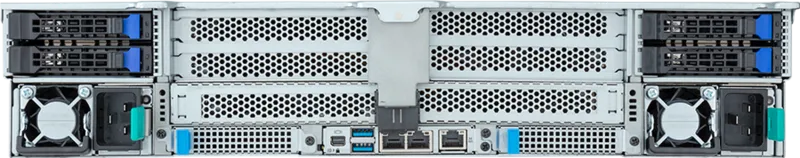

| Rear I/O | G-SCM board – CDCR114: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Backplane Board | Speed and bandwidth: Front – CBP20C5: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s Rear – CBP2022: SATA 6Gb/s or SAS 12Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply[#1] | 1+1 2400W 80 PLUS Platinum redundant power supplies [1] AC Input: DC Input: (Only for China) DC Output: [1] 本システムの電源には、C19電源コードが必要です。 [注] GIGABYTEでは、さまざまな効率等級および出力仕様の電源ユニット（PSU）をご用意しています。完全な冗長性はサーバーの構成によって異なる場合があり、別の電源ユニットの選択肢が必要になることがあります。最適な電源ソリューションについては、弊社営業担当までお問い合わせください。 |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | Please refer to OS compatibility table in support page Additional certifications: |
| System Fans | 4 x 80x80x38mm (18,300rpm) |
| Operating Properties | Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Weight | Net Weight: 30 kg Gross Weight: 32.5 kg |
| Packaging Dimensions | 1082 x 685 x 314 mm |
| Packaging Content | 1 x R283-Z93-AAF1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 2 x GPU power cables (2x PCIe 8pin, 350mm) 1 x 2-Section Rail kit |
| Part Numbers | – Barebone package (EPYC 9005/9004): 6NR283Z93DR000ABF1* – Barebone package (EPYC 9004): 6NR283Z93DR000AAF1* – Motherboard: 9MZ93FS0UR-000* – 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R – CPU heatsink: 25ST1-553202-A0R – Front panel board – CFP2001: 9CFP2001NR-00* – Backplane board – CBP2022: 9CBP2022NR-00* – Backplane board – CBP20C5: 9CBP20C5NR-00* – Fan module: 25ST2-88382T-S1R – M.2 type SATA card – CRS2810: 9CRS2810NR-00* – Riser card – CRS101Q: 9CRS101QNR-00* – Riser card – CRS101T: 9CRS101TNR-00* – Riser card – CRS201I: 9CRS201INR-00* – Riser card – CRS2227: 9CRS2227NR-00* – G-SCM board – CDCR114: 9CDCR114NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – GPU power cable (2x PCIe 8pin, 350mm): 25CRI-350305-Y4R – Power supply: 25EP0-224000-D0S Optional parts: - RAID card (SR-1001-ED4): 25FC1-SR1000-AFS – 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R – Cable Management Arm: 25HB1-R18300-K0R – RMA packaging: 6NR283Z93SR-RMA-A100 |
[#1] サーバーパッケージには電源コードは含まれておりません。お客様ご自身でオプションのアクセサリーから適切な電源コードをお選びいただくか、カスタマイズについては営業担当までお問い合わせください。
