TO25-Z12-AA01 (rev. 3.x)
ORv3 コンピュートノード - AMD EPYC™ 9005/9004 - 2OU 2ノード UP 1 x PCIe Gen5 GPU
EPYC9005EPYC9004 DC電源 (or ACアダプタ) ブレードサーバー
- デュアルスロット Gen5 GPU × 1 枚に対応
- AMD EPYC™ 9005/9004 シリーズ プロセッサ × 1 基
- 12 チャネル DDR5 RDIMM、DIMM × 12 枚
- デュアル ROM アーキテクチャ
- E1.S Gen4 NVMe ホットスワップベイ × 4 基
- PCIe Gen4 x4 インターフェース搭載 M.2 スロット × 1 基（オプション）
- GPU用 FHFL PCIe Gen5 x16 スロット ×1
- FHFL PCIe Gen5 x16 スロット ×1
- LP PCIe Gen5 x16 スロット ×1
- OCP NIC 3.0 PCIe Gen5 x16 スロット ×1
- 48V DC バスバー電源ソリューション
製品仕様
| Dimensions (WxHxD, mm) | 2OU 2-Node 262.7 x 90 x 740 |
|---|---|
| Open Rack Version | ORv3 |
| Motherboard | MZ13-HD0 |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series Processors Single processor, cTDP up to 240W |
| Memory | 12 x DIMM slots DDR5 memory supported 12-Channel memory per processor AMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s |
| LAN | Front: 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Storage | Front hot-swap: 4 x 9.5mm E1.S Gen4 NVMe Optional internal M.2 (CMTP192): 1 x M.2 (2280/22110), PCIe Gen4 x4 |
| SAS | N/A |
| RAID | N/A |
| PCIe Expansion Slots | PCIe Cable x 2: – 1 x FHFL x16 (Gen5 x16), for GPUs – 1 x FHFL x16 (Gen5 x16) Riser Card CRSH01Q: – 1 x LP x16 (Gen5 x16)1 x OCP NIC 3.0 (Gen5 x16) – Supports NCSI function |

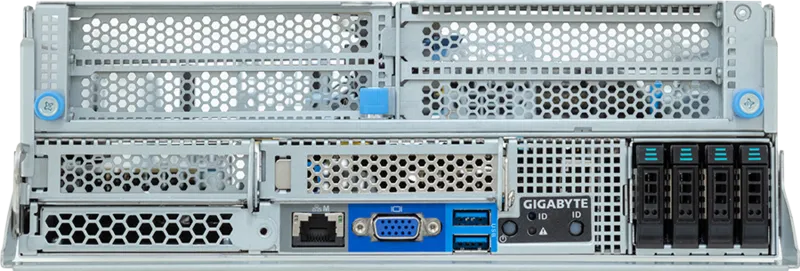

| Front I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x MLAN port 1 x Power button with LED 1 x ID button with LED 1 x System status LED 1 x ID LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply | Supports up to 1600W |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | サポートページのOS互換性一覧表をご参照ください Additional certifications: |
| System Fans | N/A |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Weight | Net Weight: 13 kg Gross Weight: 15.2 kg |
| Packaging Dimensions | 1182 x 485 x 275 mm |
| Packaging Content | 1 x TO25-Z12-AA01 1 x CPU heatsink 1 x GPU power cable (12VHPWR, 350mm) |
| No. of Bus Bars | 1 x 48V Bus Bar |
| Part Numbers | – Barebone package: 6NTO25Z12DR000AC01* – Motherboard: 9MZ13HD0UR-000-3* – CPU heatsink: 25ST1-553206-M1R – Front panel board – COFP111: 9COFP111NR-00* – Riser card – CRSH01Q: 9CRSH01QNR-00* – EDSFF base board – COBP740: 9COBP740NR-00* – EDSFF riser card – CSPP010: 9CSPP010NR-00* – GPU power cable (12VHPWR, 350mm): 25CRI-3500B3-Y4R Optional parts: - M.2 expansion card – CMTP192: 9CMTP192NR-00* |
