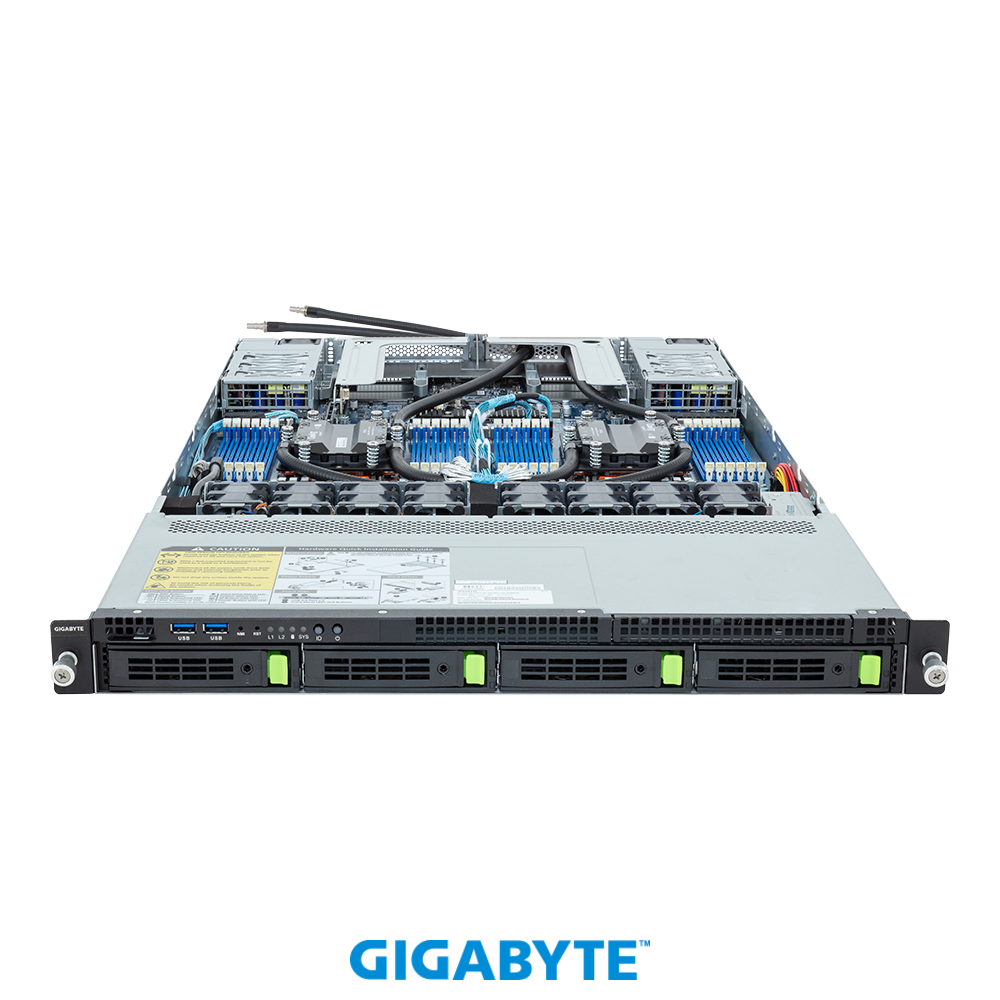

R183-Z90-LAD1 (rev. 3.x)
ラックサーバー - AMD EPYC™ 9005/9004 - 1U デュアルプロセッサ 4ベイ Gen4 NVMe/SATA/SAS DLC
1U EPYC9005EPYC9004 リダンダント電源 汎用サーバー クラウドサーバー 水冷

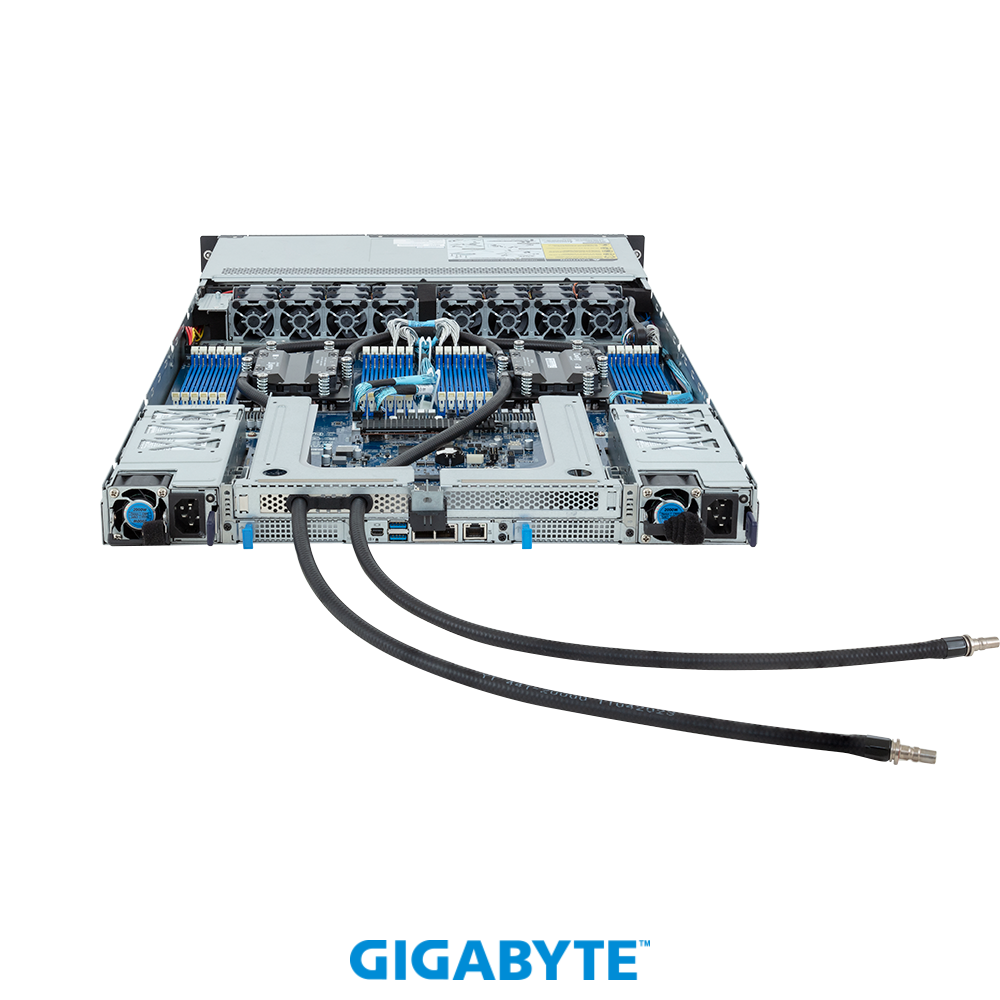

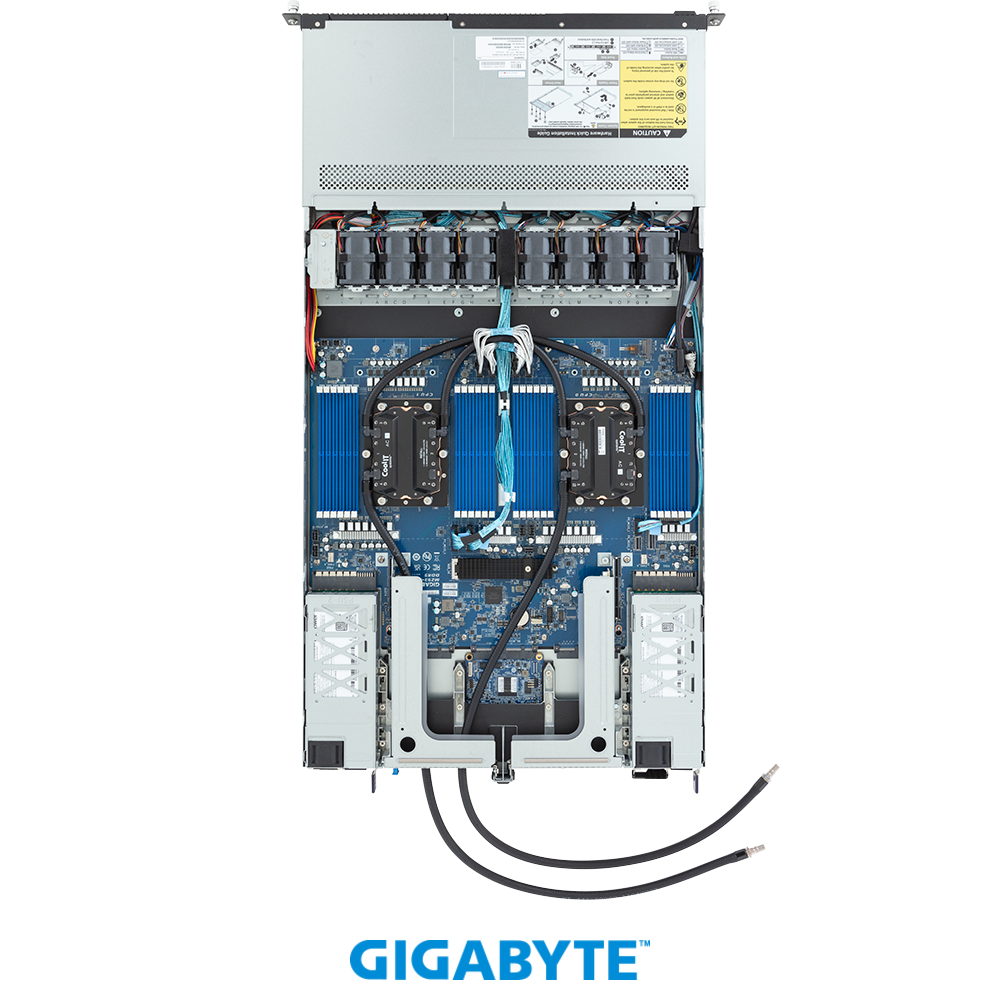

- ダイレクト液体冷却ソリューション
- AMD EPYC™ 9005/9004 シリーズ プロセッサ（デュアル）
- 12チャネル DDR5 RDIMM、DIMM 24スロット
- デュアル ROM アーキテクチャ
- Intel® I350-AM2 経由の 1Gb/s LAN ポート 2基
- 3.5インチ/2.5インチ Gen4 NVMe/SATA/SAS ホットスワップベイ ×4
- PCIe Gen3 x4 および x2 インターフェース搭載 M.2 スロット ×3
- FHHL PCIe Gen5 x16 スロット ×1
- OCP NIC 3.0 PCIe Gen5 x16 スロット ×2
- 1600W 80 PLUS Platinum 冗長電源 ×2
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 815 |
|---|---|
| Motherboard | MZ93-FS0 |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series ProcessorsDual processor, cTDP up to 400W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 6096 Socket SP5 |
| Chipset | System on Chip |
| Memory | 24 x DIMM slots DDR5 memory supported 12-Channel memory per processorAMD EPYC™ 9005: RDIMM: Up to 6400 MT/sAMD EPYC™ 9004: RDIMM: Up to 4800 MT/s |
| LAN | Rear (G-SCM board – CDCR114): 2 x 1Gb/s LAN (1 x Intel® I350-AM2) – Support NCSI function1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x Mini-DP |
| Storage | Front hot-swap: 4 x 3.5″/2.5″ Gen4 NVMe/SATA/SAS [1] – (NVMe from CPU_1) – (SATA from CPU_0)Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1 [1] SAS card is required to support SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards |
| PCIe Expansion Slots | Riser Card CRS101T: – 1 x FHHL x16 (Gen5 x16), from CPU_01 x OCP NIC 3.0 (Gen5 x16), from CPU_0 – Supports NCSI function1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 – Supports NCSI function |
| Front I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Rear I/O | G-SCM board – CDCR114: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Backplane Board | Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply | Dual 1600W 80 PLUS Platinum redundant power supply
AC Input: DC Input: (Only for China) DC Output: [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | Please refer to OS compatibility table in support page
Additional certifications: |
| System Fans | 8 x 40x40x56mm (32,000rpm) |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) [Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C. |
| Weight | Net Weight: 24.4 kg Gross Weight: 29.4 kg |
| Packaging Dimensions | 1091 x 594 x 275 mm |
| Packaging Content | 1 x R183-Z90-LAD1 1 x CoolIT CPU cold plate loop 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit |
| Part Numbers | – Barebone with cold plates: 6NR183Z90DR000LCD1* – Barebone without cold plates: 6NR183Z90DZ000LCD1* – Motherboard: 9MZ93FS0UR-000-3* – 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R – CoolIT CPU cold plate loop: 25ST7-20000G-C4R – M.2 heatsink: 12SP2-11000E-00R – Front panel board – CFP1010: 9CFP1010NR-00* – Backplane board – CBP1047: 9CBP1047NR-00* – Fan module: 25ST2-40562H-A0R – Riser card – CRS101T: 9CRS101TNR-00* – G-SCM board – CDCR114: 9CDCR114NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-216008-L0SOptional parts:– 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R – Cable Management Arm: 25HB1-R18300-K0R – CoolIT Leak sensor board: 6NR183Z90S1000LAD10 – RMA packaging: 6NR183Z90SR-RMA-L10* |
