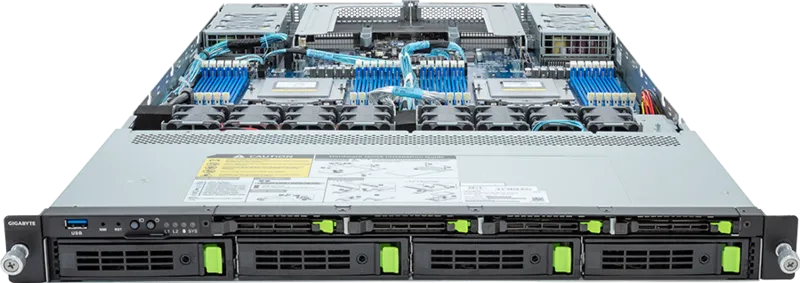

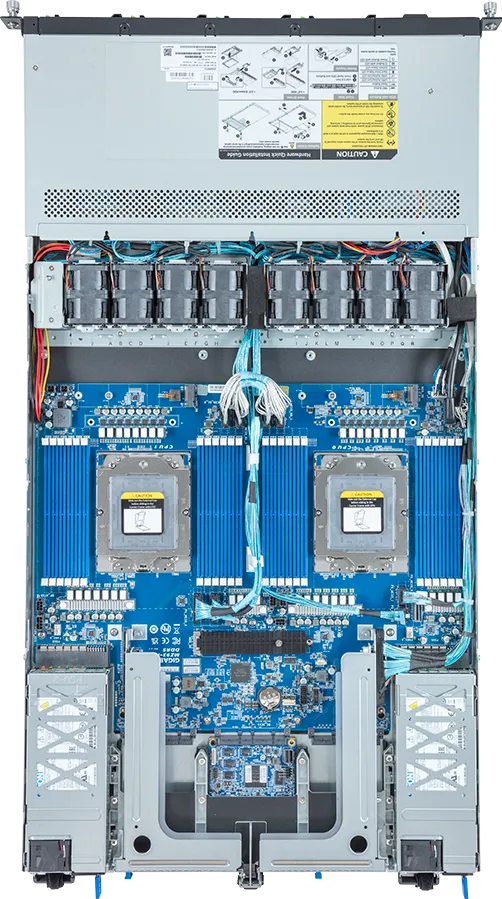

R183-Z91-AAD1 (rev. 3.x)
Rack Server - AMD EPYC™ 9005/9004 - 1U DP 8-Bay Gen4 NVMe/SATA/SAS Platinum
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swap bays
- 4 x 2.5" 9.5mm Gen4 NVMe/SATA/SAS hot-swap bays
- 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- Dual 1600W 80 PLUS Platinum redundant power supply
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 815 |
|---|---|
| Motherboard | MZ93-FS0 |
| CPU | |
| Socket | 2 x LGA 6096 Socket SP5 |
| Chipset | System on Chip |
| Memory | |
| LAN | |
| Video | |
| Storage | Front hot-swap: 4 x 3.5″/2.5″ Gen4 NVMe/SATA/SAS [1] 4 x 2.5″ 9.5mm Gen4 NVMe/SATA/SAS [1] – (4 x NVMe from CPU_0, 4 x NVMe from CPU_1) – (SATA from CPU_0) Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1 [1] SAS card is required to support SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards |
| PCIe Expansion Slots | Riser Card CRS101T: – 1 x FHHL x16 (Gen5 x16), from CPU_0 Riser Card CRS101Q: – 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 – Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 – Supports NCSI function |
| Front I/O | 1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED |
| Rear I/O | G-SCM board – CDCR114: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED |
| Backplane Board | Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply | Dual 1600W 80 PLUS Platinum redundant power supply AC Input: – 100-120V~/ 12A, 50/60Hz – 200-240V~/ 10A, 50/60Hz DC Input: (Only for China) – 240Vdc/ 10A DC Output: – Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A – Max 1600W/ 200-240V~ or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| System Management | |
| OS Compatibility | Please refer to OS compatibility table in support page Additional certifications: Windows Server 2022 (x64) |
| System Fans | 8 x 40x40x56mm (32,000rpm) |
| Operating Properties | |
| Weight | Net Weight: 23.07 kg Gross Weight: 25.76 kg |
| Packaging Dimensions | 1045 x 595 x 249 mm |
| Packaging Content | 1 x R183-Z91-AAD1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit |
| Part Numbers | – Barebone package: 6NR183Z91DR000ACD1* – Motherboard: 9MZ93FS0UR-000-3* – 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R – CPU heatsink: 25ST1-553202-A0R – M.2 heatsink: 12SP2-11000E-00R – Front panel board – CFP1013: 9CFP1013NR-00* – Backplane board – CBP1045: 9CBP1045NR-00* – Backplane board – CBP1047: 9CBP1047NR-00* – Fan module: 25ST2-40562H-A0R – Riser card – CRS101Q: 9CRS101QNR-00* – Riser card – CRS101T: 9CRS101TNR-00* – G-SCM board – CDCR114: 9CDCR114NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-216008-L0S Optional parts: – 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R – Cable Management Arm: 25HB1-R18300-K0R – RMA packaging: 6NR183Z91SR-RMA-A100 |
