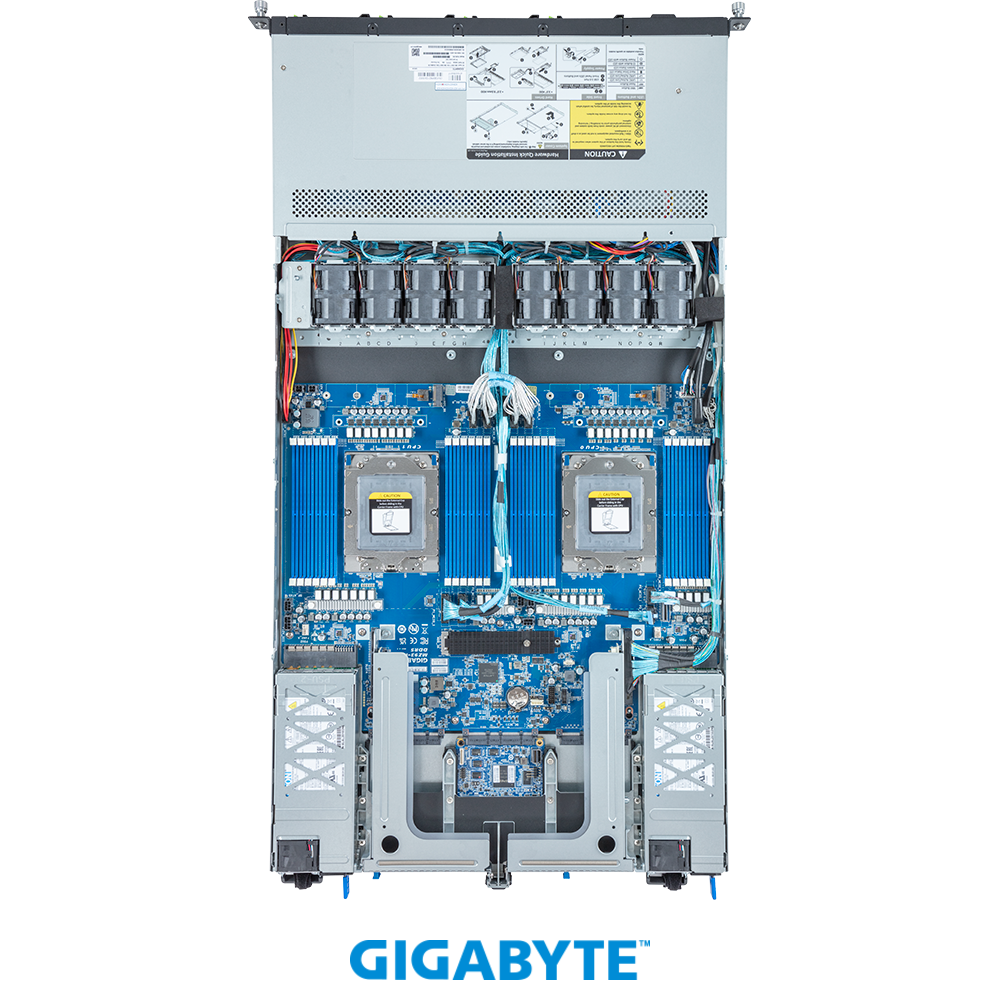

    R183-Z91-AAD2 (rev. 3.x)

    ラックサーバー - AMD EPYC™ 9005/9004 - 1U デュアルプロセッサ 8ベイ SATA/SAS プラチナ

    1U EPYC9005EPYC9004 リダンダント電源 汎用サーバー クラウドサーバー

    • AMD EPYC™ 9005/9004 シリーズ プロセッサ（デュアル）
    • 12チャネル DDR5 RDIMM、DIMM 24スロット
    • デュアル ROM アーキテクチャ
    • Intel® I350-AM2 経由の 1Gb/s LAN ポート 2基
    • 3.5インチ/2.5インチ SATA/SAS ホットスワップベイ 4基
    • 2.5インチ 9.5mm SATA/SAS ホットスワップベイ ×4
    • PCIe Gen3 x4 および x2 インターフェース搭載 M.2 スロット ×3
    • FHHL PCIe Gen5 x16 スロット ×2
    • OCP NIC 3.0 PCIe Gen5 x16 スロット ×2
    • デュアル 1600W 80 PLUS Platinum 冗長電源
    主な仕様
    データシート

    オンサイトサポート
    対応製品

    詳しくはこちら

    製品仕様

    Dimensions (WxHxD, mm) 1U
    438 x 43.5 x 815
    Motherboard MZ93-FS0
    CPU AMD EPYC™ 9005 Series Processors
    AMD EPYC™ 9004 Series ProcessorsDual processor, cTDP up to 300W
    – OCP NIC 3.0 ≦ 21W at 30°C ambient, cTDP up to 400W [1] [1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
    Socket 2 x LGA 6096
    Socket SP5
    Chipset System on Chip
    Memory 24 x DIMM slots
    DDR5 memory supported
    12-Channel memory per processorAMD EPYC™ 9005:
    RDIMM: Up to 6400 MT/sAMD EPYC™ 9004:
    RDIMM: Up to 4800 MT/s
    LAN Rear (G-SCM board – CDCR114):
    2 x 1Gb/s LAN (1 x Intel® I350-AM2)
    – Support NCSI function1 x 10/100/1000 Mbps Management LAN
    Video Integrated in ASPEED® AST2600
    – 1 x Mini-DP
    Storage Front hot-swap:
    4 x 3.5″/2.5″ SATA/SAS [1]
    4 x 2.5″ 9.5mm SATA/SAS [1]
    – (SATA from CPU_0)Internal M.2:
    1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
    1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
    1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1 [1] SAS card is required to support SAS drives.
    SAS Require SAS add-in cards
    RAID Require RAID add-in cards
    PCIe Expansion Slots Riser Card CRS101T:
    – 1 x FHHL x16 (Gen5 x16), from CPU_0Riser Card CRS101Q:
    – 1 x FHHL x16 (Gen5 x16), from CPU_11 x OCP NIC 3.0 (Gen5 x16), from CPU_0
    – Supports NCSI function1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
    – Supports NCSI function
    Front I/O 1 x USB 3.2 Gen1 port (Type-A)
    1 x Power button with LED
    1 x ID button with LED
    1 x NMI button
    1 x Reset button
    2 x LAN activity LEDs
    1 x Storage activity LED
    1 x System status LED

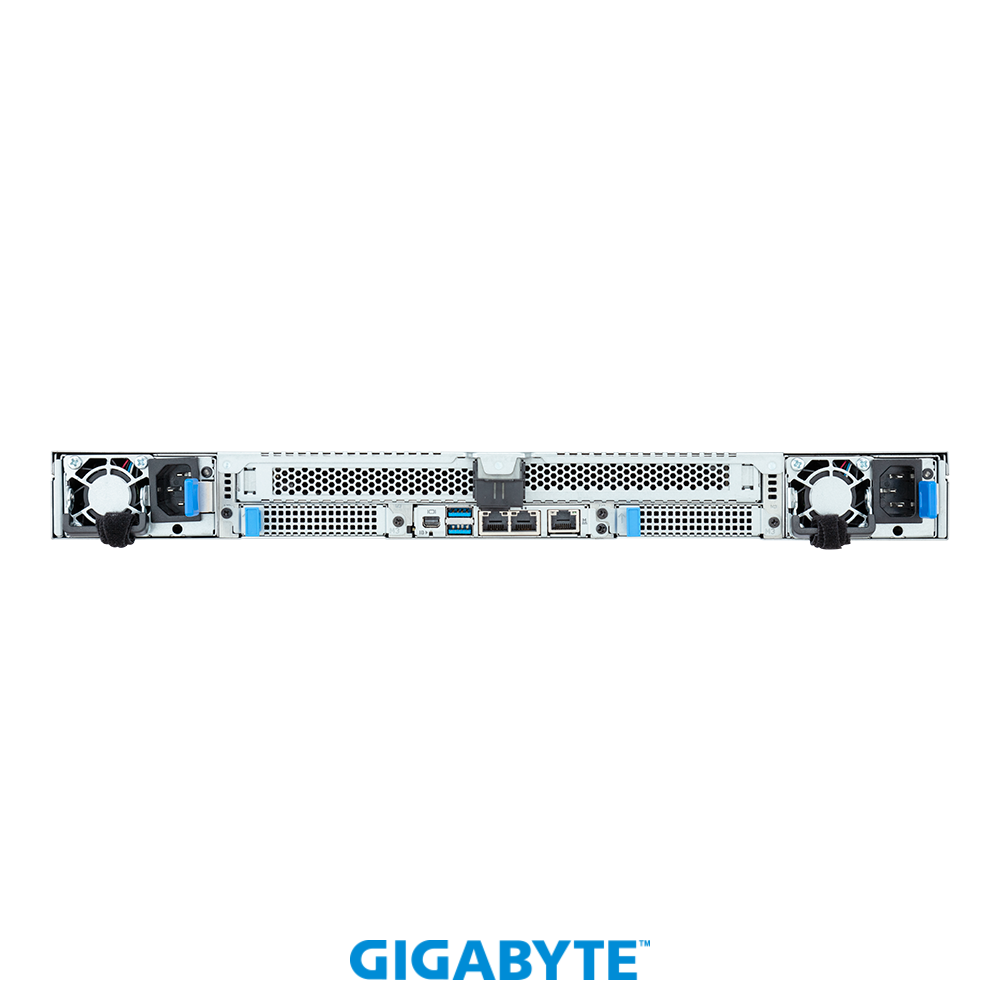

    Rear I/O G-SCM board – CDCR114:
    2 x USB 3.2 Gen1 ports (Type-A)
    1 x Mini-DP
    2 x RJ45 ports
    1 x MLAN port
    1 x ID LED
    Backplane Board Speed and bandwidth:
    SATA 6Gb/s or SAS 12Gb/s
    Security Modules 1 x TPM header with SPI interface
    – Optional TPM2.0 kit: CTM010
    Power Supply Dual 1600W 80 PLUS Platinum redundant power supply

    AC Input:
    – 100-120V~/ 12A, 50/60Hz
    – 200-240V~/ 10A, 50/60Hz

    DC Input: (Only for China)
    – 240Vdc/ 10A

    DC Output:
    – Max 1000W/ 100-120V~
    +12V/ 81.5A
    +12Vsb/ 2.5A
    – Max 1600W/ 200-240V~ or 240Vdc Input
    +12V/ 133A
    +12Vsb/ 2.5A

    [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

    System Management ASPEED® AST2600 Baseboard Management Controller
    GIGABYTE Management Console web interface

    • Dashboard
    • HTML5 KVM
    • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
    • Sensor Reading History Data
    • FRU Information
    • SEL Log in Linear Storage / Circular Storage Policy
    • Hardware Inventory
    • Fan Profile
    • System Firewall
    • Power Consumption
    • Power Control
    • Advanced power capping
    • LDAP / AD / RADIUS Support
    • Backup & Restore Configuration
    • Remote BIOS/BMC/CPLD Update
    • Event Log Filter
    • User Management
    • Media Redirection Settings
    • PAM Order Settings
    • SSL Settings
    • SMTP Settings
    OS Compatibility Please refer to OS compatibility table in support page

    Additional certifications:
    Windows Server 2022
    Windows Server 2025
    System Fans 8 x 40x40x56mm (32,000rpm)
    Operating Properties Operating temperature: 10°C to 35°C
    Operating humidity: 8% to 80% (non-condensing)
    Non-operating temperature: -40°C to 60°C
    Non-operating humidity: 20% to 95% (non-condensing)
    Weight Net Weight: 22.92 kg
    Gross Weight: 26 kg
    Packaging Dimensions 1052 x 602 x 267 mm
    Packaging Content 1 x R183-Z91-AAD2
    2 x CPU heatsinks
    1 x Mini-DP to D-Sub cable
    1 x 2-Section Rail kit
    Part Numbers – Barebone package: 6NR183Z91DR000ACD2*
    – Motherboard: 9MZ93FS0UR-000-3*
    – 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
    – CPU heatsink: 25ST1-553202-A0R
    – M.2 heatsink: 12SP2-11000E-00R
    – Front panel board – CFP1013: 9CFP1013NR-00*
    – Backplane board – CBP1045: 9CBP1045NR-00*
    – Backplane board – CBP1047: 9CBP1047NR-00*
    – Fan module: 25ST2-40562H-A0R
    – Riser card – CRS101Q: 9CRS101QNR-00*
    – Riser card – CRS101T: 9CRS101TNR-00*
    – G-SCM board – CDCR114: 9CDCR114NR-00*
    – Mini-DP to D-Sub cable: 25CRN-200801-K1R
    – Power supply: 25EP0-216008-L0SOptional parts:– 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
    – Cable Management Arm: 25HB1-R18300-K0R
    – RMA packaging: 6NR183Z91SR-RMA-A100
