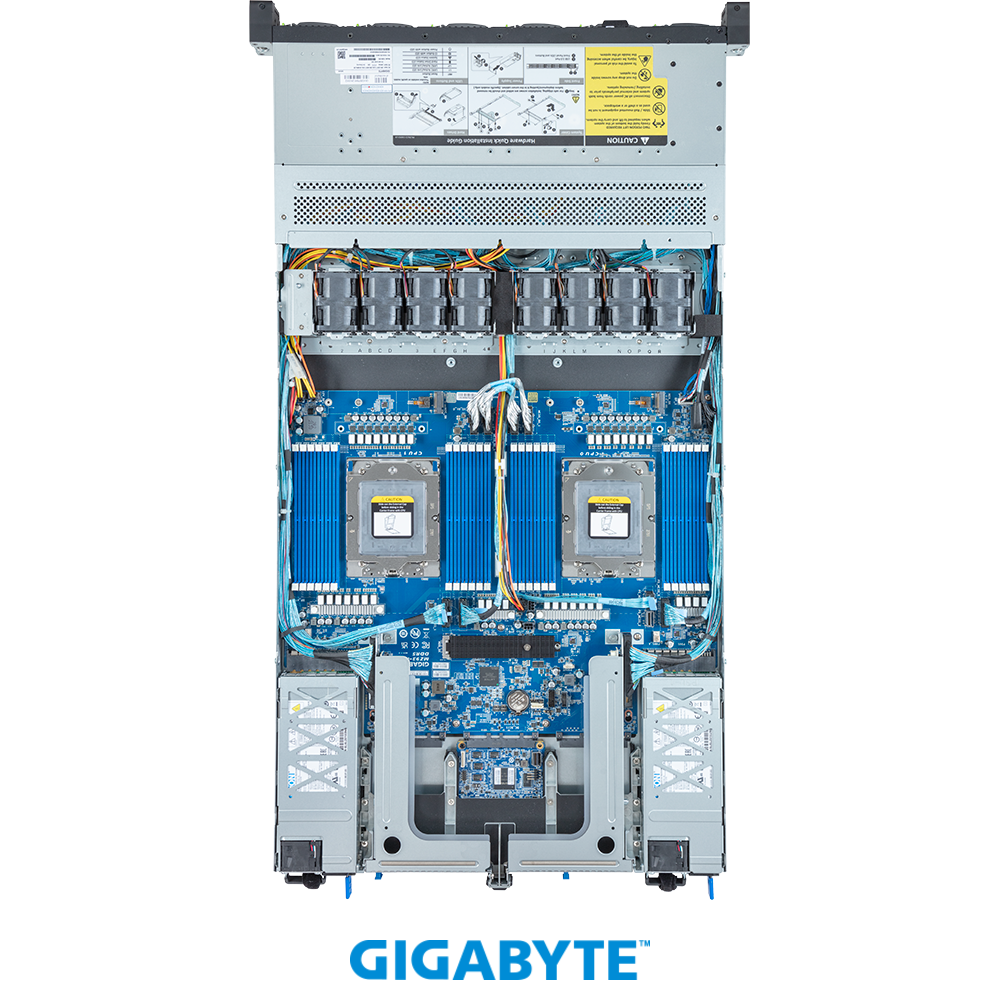

R183-Z92-AAD1 (rev. 3.x)

ラックサーバー - AMD EPYC™ 9005/9004 - 1U デュアルプロセッサ 12ベイ Gen4 NVMe/SATA/SAS (12 x NVMe) プラチナ

1U EPYC9005EPYC9004 リダンダント電源汎用サーバークラウドサーバー GRAID搭載モデル

AMD EPYC™ 9005/9004 シリーズプロセッサ（デュアル）
12チャネル DDR5 RDIMM、DIMM 24スロット
デュアル ROM アーキテクチャ
Intel® I350-AM2 経由の 1Gb/s LAN ポート 2基

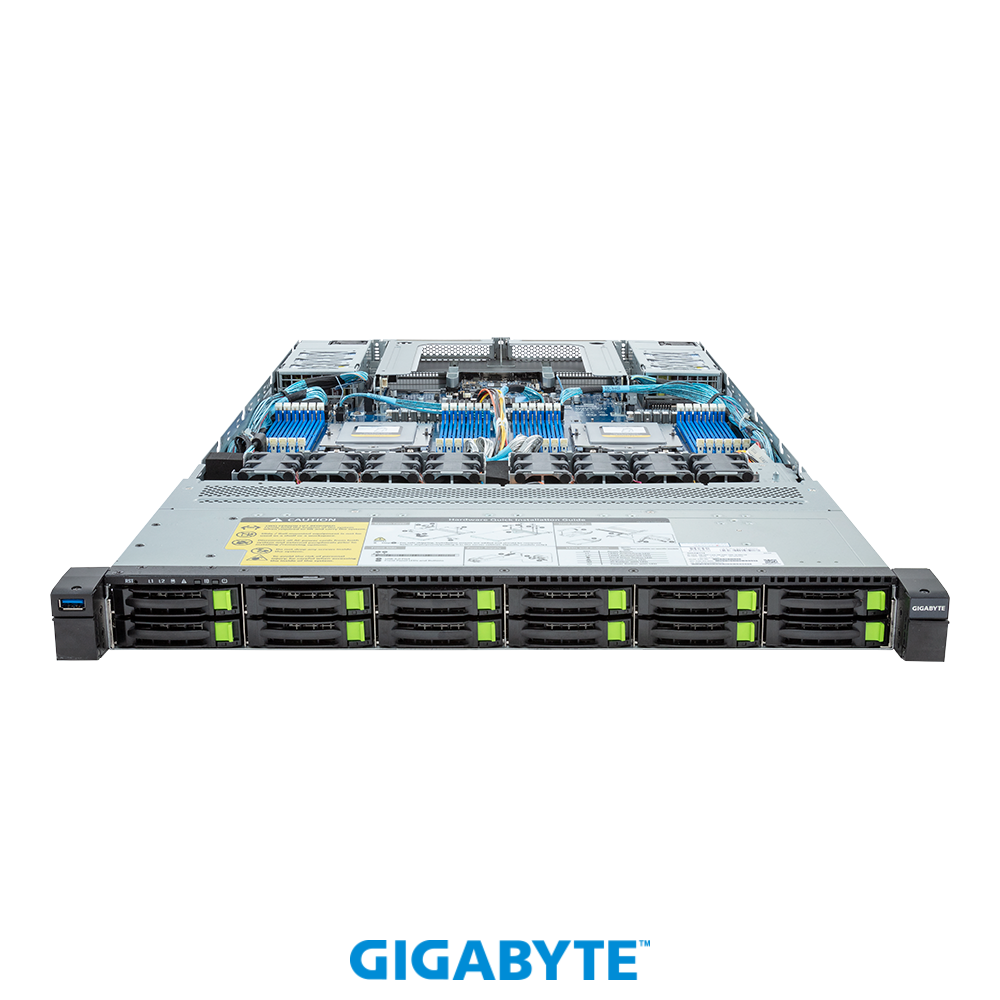

2.5インチ Gen4 NVMe/SATA/SAS ホットスワップベイ 12基
PCIe Gen3 x4およびx2インターフェース搭載のM.2スロット×3
FHHL PCIe Gen5 x16スロット×2
OCP NIC 3.0 PCIe Gen5 x16スロット×2
Graid Technology社製 SupremeRAID™ に対応
デュアル 1600W 80 PLUS Platinum 冗長電源

主な仕様

データシート

オンサイトサポート
対応製品

詳しくはこちら

製品仕様

Dimensions (WxHxD, mm)	1U 438 x 43.5 x 815
Motherboard	MZ93-FS0
CPU	AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series ProcessorsDual processor, cTDP up to 300W – OCP NIC 3.0 ≦ 21W at 30°C ambient, cTDP up to 400W^[1] ^[1]Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs. ^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket	2 x LGA 6096 Socket SP5
Chipset	System on Chip
Memory	24 x DIMM slots DDR5 memory supported 12-Channel memory per processorAMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s
LAN	Rear (G-SCM board – CDCR114): 2 x 1Gb/s LAN (1 x Intel^® I350-AM2) – Support NCSI function1 x 10/100/1000 Mbps Management LAN
Video	Integrated in ASPEED^® AST2600 – 1 x Mini-DP
Storage	Front hot-swap: 12 x 2.5″ Gen4 NVMe/SATA/SAS^[1] – (4 x NVMe from CPU_0, 8 x NVMe from CPU_1) – (SATA from CPU_0)Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1 ^[1]SAS card is required to support SAS drives.
SAS	Require SAS add-in cards
RAID	Require RAID add-in cards Optional compatible RAID Cards: NVMe RAID Cards with SupremeRAID™ by Graid Technology RAID Card models: SR-1000-ED12 Support RAID 0/1/5/6/10
PCIe Expansion Slots	Riser Card CRS101T: – 1 x FHHL x16 (Gen5 x16), from CPU_0Riser Card CRS101Q: – 1 x FHHL x16 (Gen5 x16), from CPU_1 1 x OCP NIC 3.0 (Gen5 x16), from CPU_0 – Supports NCSI function 1 x OCP NIC 3.0 (Gen5 x16), from CPU_1 – Supports NCSI function
Front I/O	1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 2 x LAN activity LEDs 1 x Storage activity LED 1 x System status LED

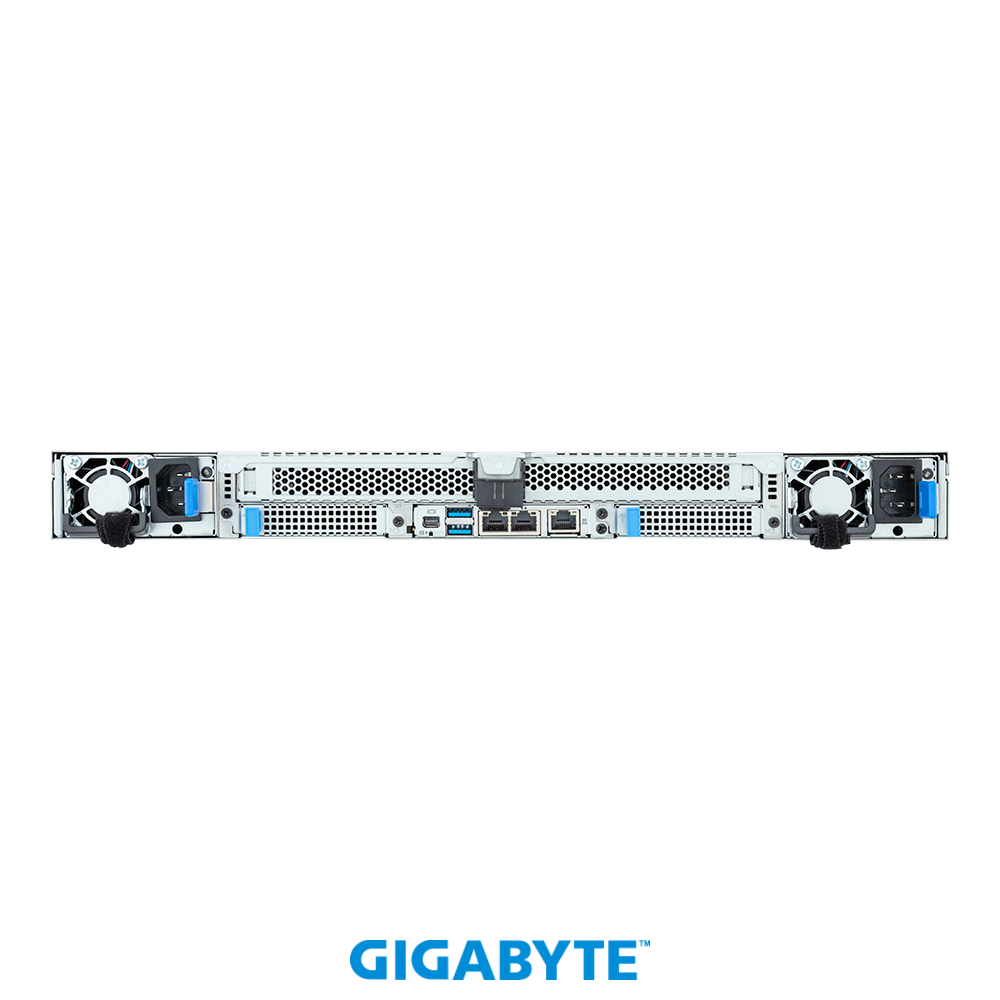

Rear I/O	G-SCM board – CDCR114: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID LED
Backplane Board	Speed and bandwidth: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules	1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010
Power Supply	Dual 1600W 80 PLUS Platinum redundant power supply AC Input: – 100-120V~/ 12A, 50/60Hz – 200-240V~/ 10A, 50/60Hz DC Input: (Only for China) – 240Vdc/ 10A DC Output: – Max 1000W/ 100-120V~ +12V/ 81.5A +12Vsb/ 2.5A – Max 1600W/ 200-240V~ or 240Vdc Input +12V/ 133A +12Vsb/ 2.5A ^[Note]GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management	ASPEED^® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface Dashboard HTML5 KVM Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Sensor Reading History Data FRU Information SEL Log in Linear Storage / Circular Storage Policy Hardware Inventory Fan Profile System Firewall Power Consumption Power Control Advanced power capping LDAP / AD / RADIUS Support Backup & Restore Configuration Remote BIOS/BMC/CPLD Update Event Log Filter User Management Media Redirection Settings PAM Order Settings SSL Settings SMTP Settings
OS Compatibility	Please refer to OS compatibility table in support page Additional certifications: VMware ESXi 8.0 or later Windows Server 2022 Windows Server 2025
System Fans	8 x 40x40x56mm (32,000rpm)
Operating Properties	Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing)
Weight	Net Weight: 22.77 kg Gross Weight: 32 kg
Packaging Dimensions	1052 x 602 x 267 mm
Packaging Content	1 x R183-Z92-AAD1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Part Numbers	– Barebone package: 6NR183Z92DR000ACD1* – Motherboard: 9MZ93FS0UR-000-3* – 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R – CPU heatsink: 25ST1-553202-A0R – M.2 heatsink: 12SP2-11000E-00R – Front panel board – CFP1013: 9CFP1030NR-00* – Backplane board – CBP10C0: 9CBP10C0NR-00* – Fan module: 25ST2-40562H-A0R – Riser card – CRS101Q: 9CRS101QNR-00* – Riser card – CRS101T: 9CRS101TNR-00* – G-SCM board – CDCR114: 9CDCR114NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – Power supply: 25EP0-216008-L0SOptional parts: – RAID card (SR-1000-ED12): 25FC1-SRBUN3-AFS – 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R – Cable Management Arm: 25HB1-R18300-K0R – RMA packaging: 6NR183Z92SR-RMA-A100
