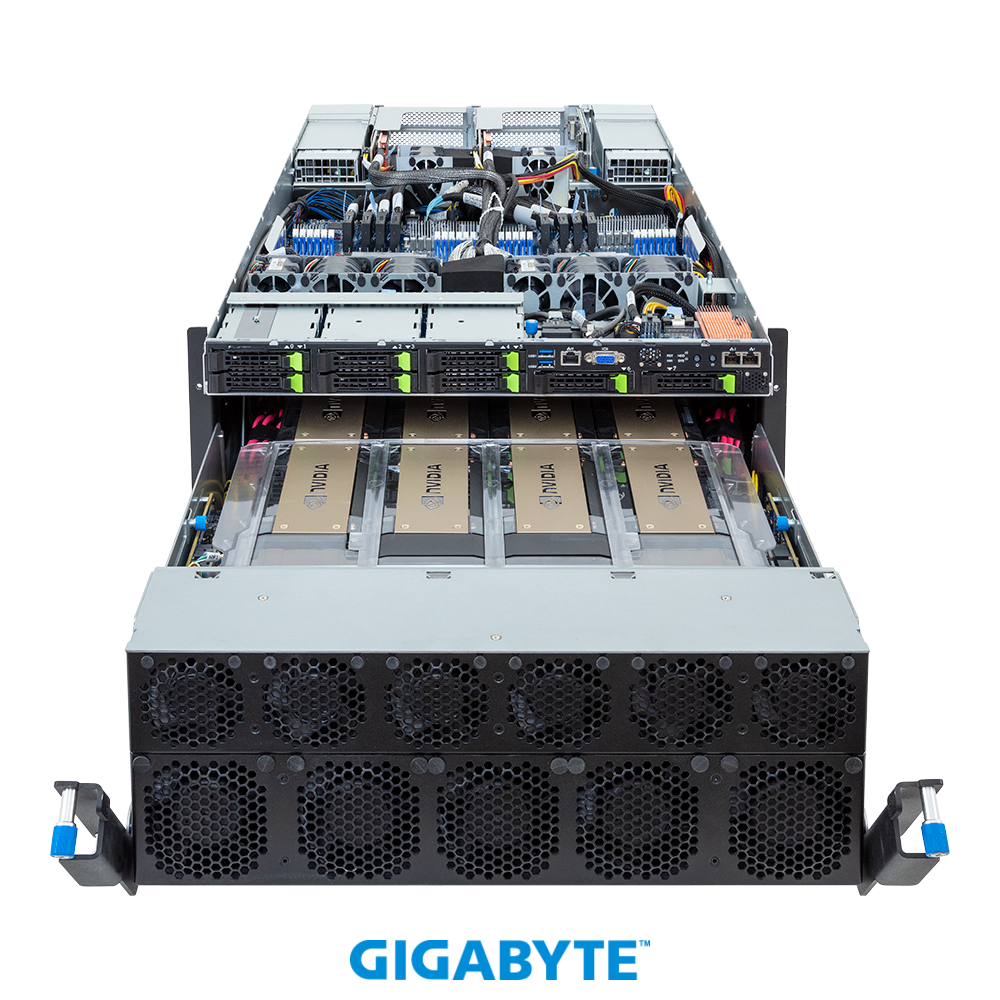

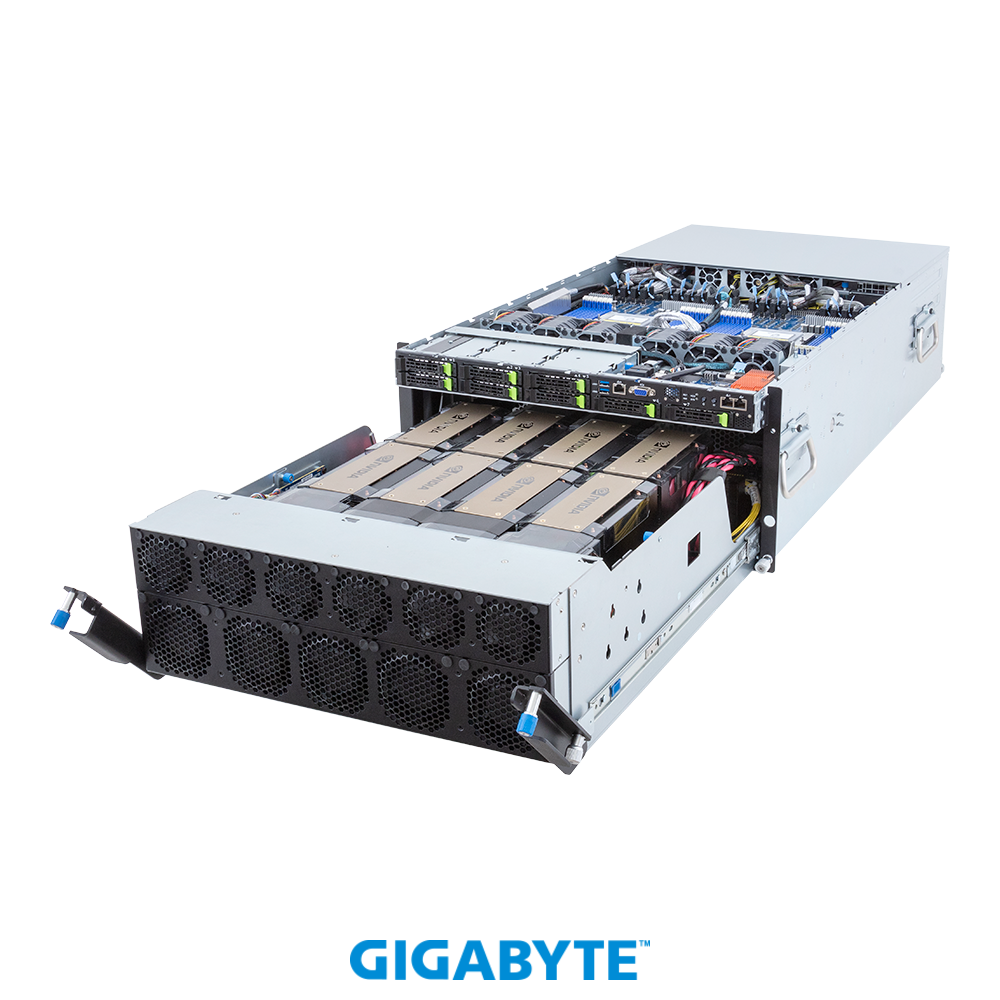

G593-ZD1-AAX3 (rev. 3.x)
HPC/AIサーバー - AMD EPYC™ 9005/9004 - 5U デュアルプロセッサ NVIDIA HGX™ H200
5U以上 EPYC9005EPYC9004 8GPU リダンダント電源 GPUサーバー
- NVIDIA HGX™ H200
- NVIDIA NVLink™ および NVSwitch™ による 900GB/s の GPU 間帯域幅
- AMD EPYC™ 9005/9004 シリーズ プロセッサ 2基
- 12チャネル DDR5 RDIMM、DIMM 24スロット
- デュアル ROM アーキテクチャ
- Intel® X710-AT2 による 10Gb/s LAN ポート 2基
- PCIe Gen3 x4およびx1インターフェースを備えたM.2スロット×2
- 2.5インチ Gen5 NVMe/SATA/SAS-4 ホットスワップベイ×8
- FHHL PCIe Gen5 x16スロット×4
- LP PCIe Gen5 x16スロット×8
- 5+1基の3000W 80 PLUS Titanium 冗長電源
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 5U 447 x 219.7 x 945 |
|---|---|

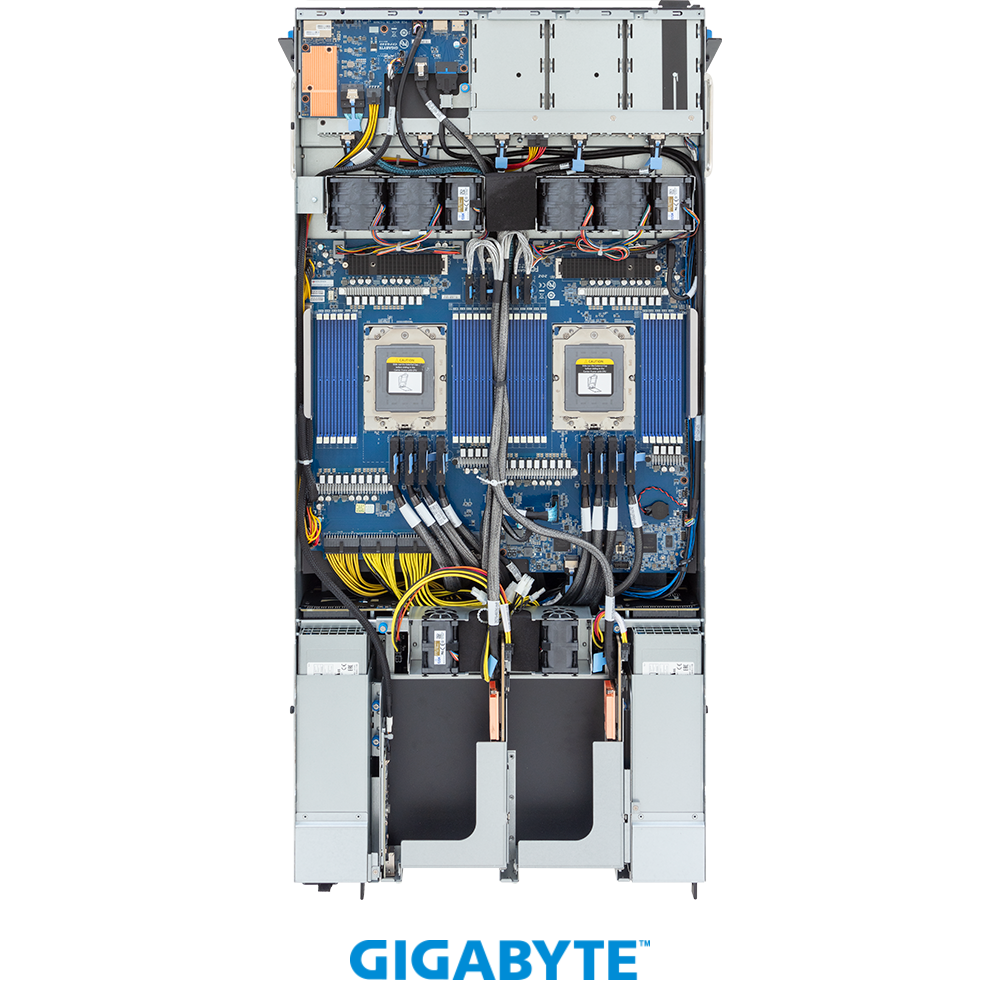

| Motherboard | MZB3-G43 |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series ProcessorsDual processor, cTDP up to 400W [1] – At 25°C ambient, cTDP up to 500W [1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs. [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 6096 Socket SP5 |
| Chipset | System on Chip |
| Memory | 24 x DIMM slots DDR5 memory supported 12-Channel memory per processorAMD EPYC™ 9005: RDIMM: Up to 6400 MT/sAMD EPYC™ 9004: RDIMM: Up to 4800 MT/s |
| LAN | Front: 2 x 10Gb/s LAN (1 x Intel® X710-AT2) – Support NCSI function1 x 10/100/1000 Mbps Management LANRear (MLAN board – CDB66): 1 x 10/100/1000 Mbps Management LAN [Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default. |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Storage | Front hot-swap: 8 x 2.5″ Gen5 NVMe/SATA/SAS-4 [1] – (NVMe from PEX89104)Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1 1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0 [1] Storage card is required to support SATA and SAS drives. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards |
| Modular GPU | NVIDIA HGX™ H200 with 8 x SXM GPUs |
| PCIe Expansion Slots | Extension Board CPBG044 x 2: – 8 x LP x16 (Gen5 x16), from PEX89104Riser Card CPBGD20 x 2: – 4 x FHHL x16 (Gen5 x16), from PEX89048 [Note] Supports NVIDIA® BlueField®-3 DPUs and SuperNICs at ambient 30°C. Please contact our sales representatives for assistance with PCIe slot tray modifications. |
| Front I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 2 x RJ45 ports 1 x MLAN port (default) 1 x Power button with LED 1 x ID button with LED 1 x NMI button 1 x Reset button 1 x Storage activity LED 1 x System status LED |

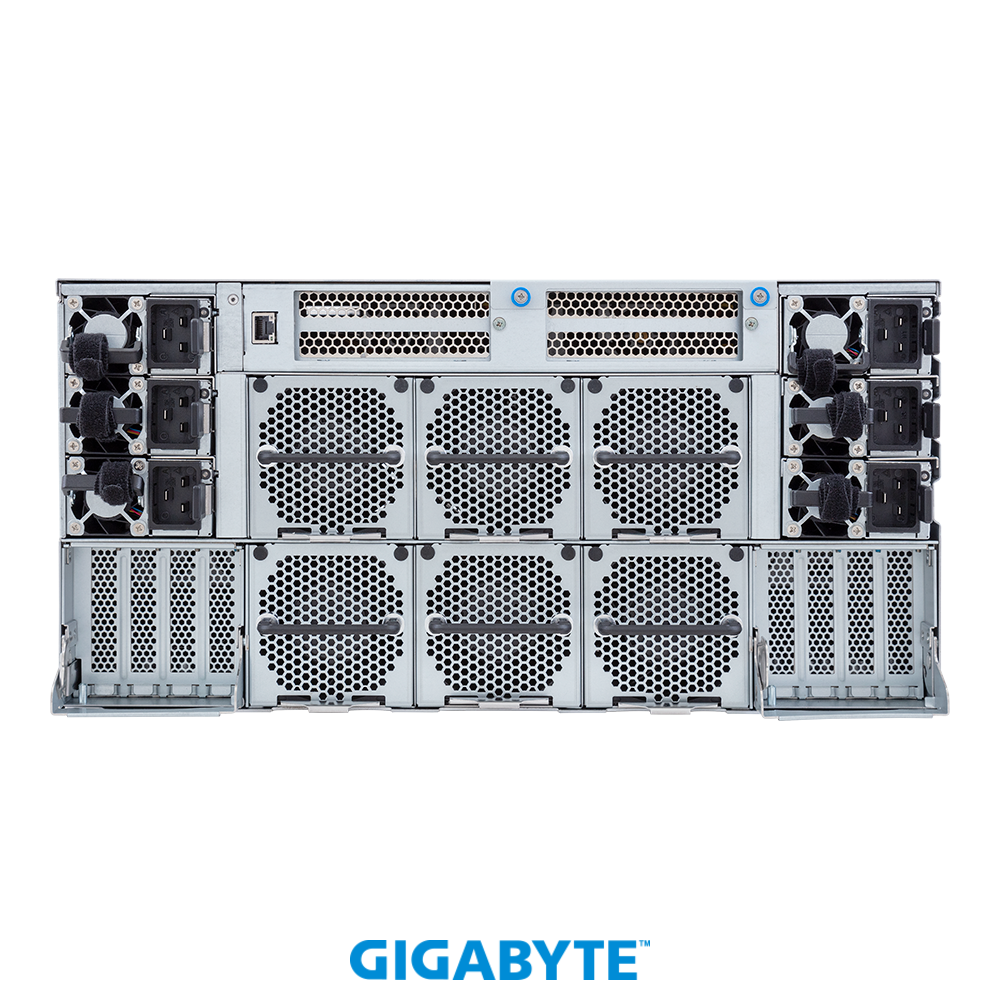

| Rear I/O | MLAN board – CDB66: 1 x MLAN port |
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply | 5+1 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input: DC Input: (Only for China) DC Output: [1] The system power supply requires C19 power cord. |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | Please refer to OS compatibility table in support page
Additional certifications: |
| System Fans | Motherboard: 2 x 40x40x56mm / 4 x 60x60x56mmPCIe slots: 4 x 40x40x28mm / 2 x 40x40x56mmGPU tray: 6 x 60x60x76mm / 11 x 80x80x80mm |
| Operating Properties | Operating temperature: 10°C to 35°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Weight | Net Weight: 91 kg Gross Weight: 120.2 kg |
| Packaging Dimensions | 1200 x 800 x 485 mm |
| Packaging Content | 1 x G593-ZD1-AAX3 2 x CPU heatsinks 1 x L-shape Rail kit |
| Part Numbers | – Barebone with NVIDIA module: 6NG593ZD1DR000ACX3* – Motherboard: 9MZB3G43UR-000-3* – L-shape Rail kit: 25HB2-A96102-K0R – CPU heatsink: 25ST1-44320Z-C1R – Front panel board – CFPG540: 9CFPG540NR-00* – Backplane board – CBPG680: 9CBPG680NR-00* – Fan module 40x40x28mm: 25ST2-44282D-D0R – Fan module 40x40x56mm: 25ST2-40562M-A0R – Fan module 40x40x56mm: 25ST2-40562N-A0R – Fan module 60x60x56mm: 25ST2-665620-S1R – Fan module 60x60x76mm: 25ST2-667630-S1R – Fan module 80x80x80mm: 25ST2-808037-S1R – Fan module 80x80x80mm: 25ST2-888032-S1R – Riser card – CPBGD20: 9CPBGD20NR-00* – PCIe extension board – CPBG044: 9CPBG044NR-00* – PCIe switch board – CPBG903: 9CPBG903NR-00* – Rear MLAN board – CDB66: 9CDB66NR-00* – Power supply: 25EP0-23000J-D0S |
