R183-ZF1-AAJ1 (rev. 3.x)
ラックサーバー - AMD EPYC™ 9005/9004 - 1U デュアルプロセッサ 1 x PCIe Gen5 GPU 12 x ドライブベイ
1U EPYC9005EPYC9004 1GPU リダンダント電源 クラウドサーバー 仮想化サーバー GPUサーバー
- 1基のデュアルスロット Gen5 GPUに対応
- AMD EPYC™ 9005/9004シリーズプロセッサを2基搭載
- 12チャネル DDR5 RDIMM、DIMMスロット24基
- デュアルROMアーキテクチャ
- 2.5インチ Gen5 NVMe/SATA/SAS-4 ホットスワップベイ 12基
- GPU用 FHFL PCIe Gen5 x16スロット 1基
- FHFL PCIe Gen5 x16スロット ×1
- FHHL PCIe Gen5 x16スロット ×1
- OCP NIC 3.0 PCIe Gen5 x16スロット ×1
- 1+1構成の2000W 80 PLUS Titanium認定冗長電源
オンサイトサポート
対応製品
製品仕様
| Dimensions (WxHxD, mm) | 1U 438 x 43.5 x 815 |
|---|---|
| Motherboard | MZF3-GP0 |
| CPU | AMD EPYC™ 9005 Series Processors AMD EPYC™ 9004 Series ProcessorsDual processor, cTDP up to 400W [1] [1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs. [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 6096 Socket SP5 |
| Chipset | System on Chip |
| Memory | 24 x DIMM slots DDR5 memory supported 12-Channel memory per processorAMD EPYC™ 9005: RDIMM: Up to 6400 MT/s AMD EPYC™ 9004: |
| LAN | Rear: 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x Mini-DP |
| Storage | Front hot-swap: 12 x 2.5″ Gen5 NVMe/SATA/SAS-4 [1] – (4 x NVMe from CPU_0, 8 x NVMe from CPU_1) – (6 x SATA via CRS2810 from CPU_0) – (6 x SATA via CRS2810 from CPU_1)Internal M.2: 1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA 1 x M.2 (2280), PCIe Gen3 x4, from CPU_1, occupied for SATA [1] SAS card is required to support SAS drives. [Note] SATA hotplug utility can be downloaded on support page. |
| SAS | Require SAS add-in cards |
| RAID | Require RAID add-in cards |
| PCIe Expansion Slots | PCIe Cable x 3: – 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs – 1 x FHFL x16 (Gen5 x16), from CPU_0 [1] – 1 x FHHL x16 (Gen5 x16), from CPU_11 x OCP NIC 3.0 (Gen5 x16), from CPU_0 – Supports NCSI function [1] Blocked when a Dual slot GPU is installed. |

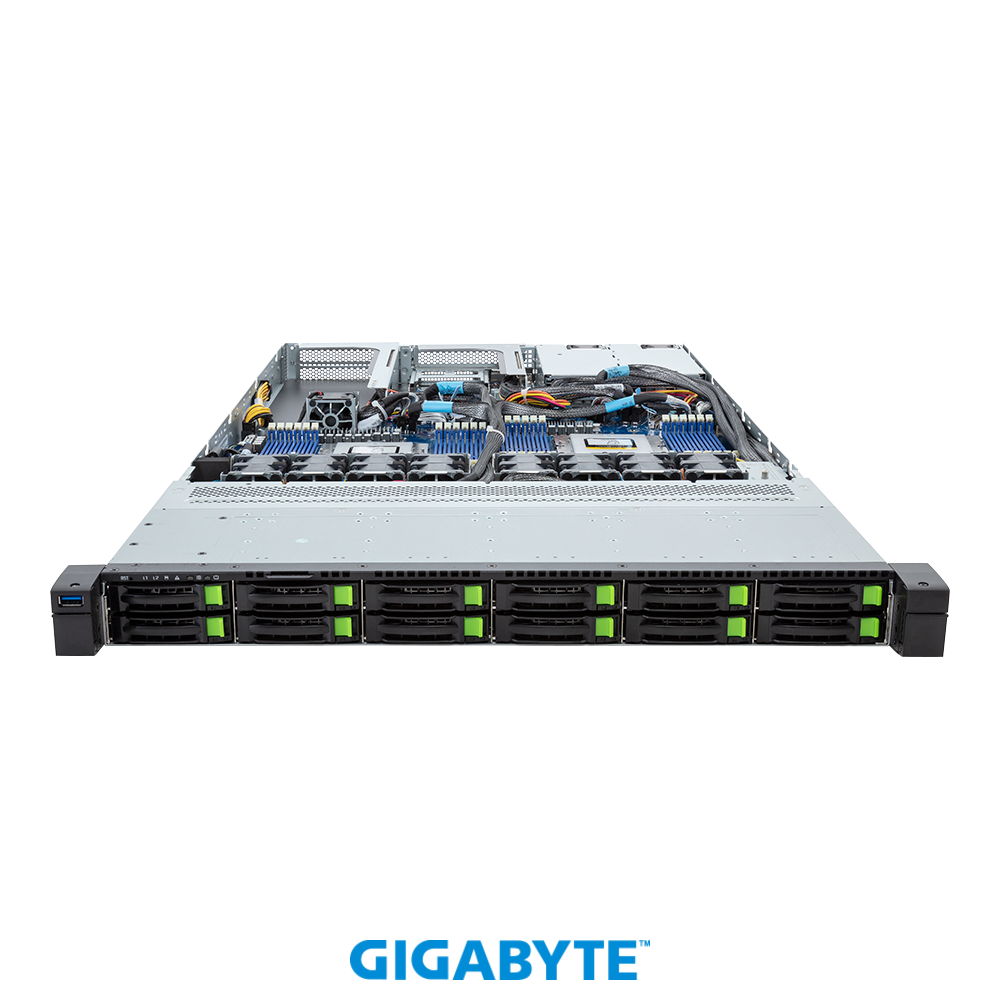

| Front I/O | 1 x USB 3.2 Gen1 port (Type-A) 1 x Power button with LED 1 x ID button with LED 1 x Reset button 1 x Storage activity LED 1 x System status LED |

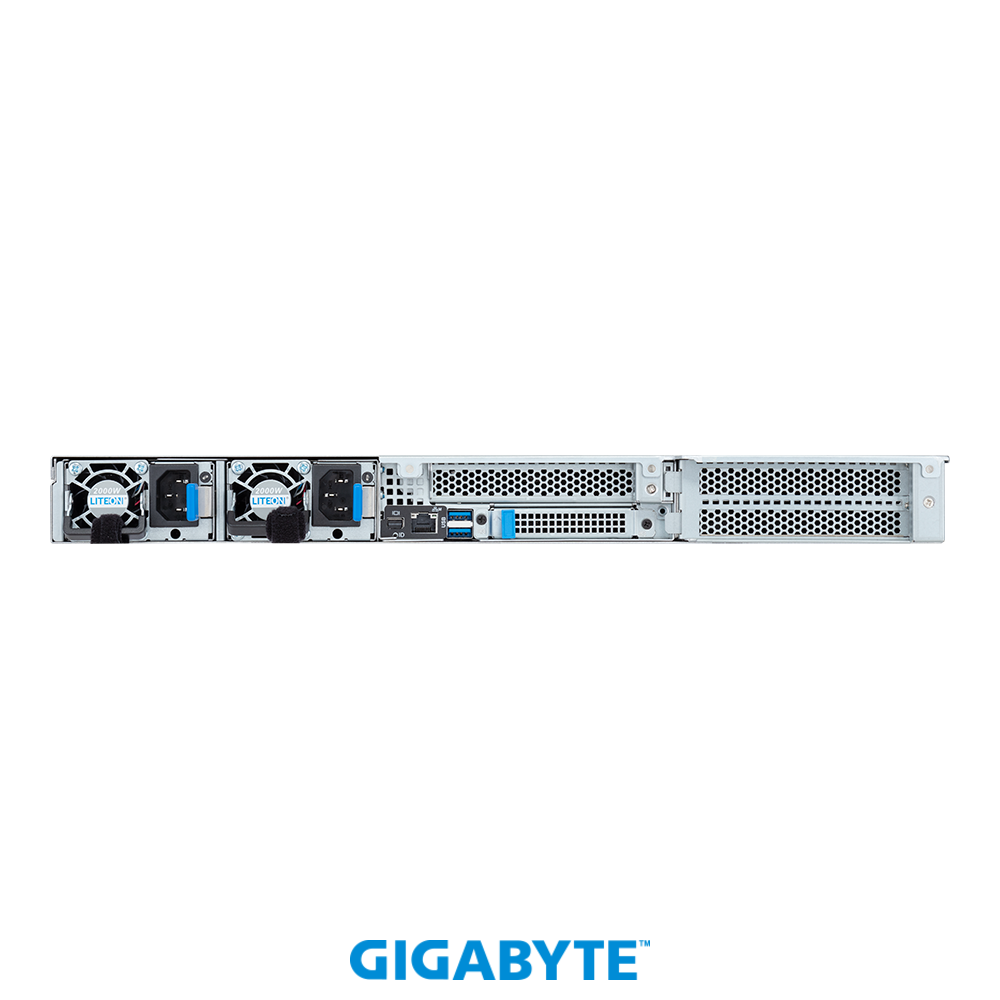

| Rear I/O | I/O board – CBG70: 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 1 x MLAN port 1 x ID LED |
| Backplane Board | Speed and bandwidth: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| Power Supply | 1+1 2000W 80 PLUS Titanium redundant power supplies
AC Input: DC Input: (Only for China) DC Output: [Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution. |
| System Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| OS Compatibility | Please refer to OS compatibility table in support page
Additional certifications: |
| System Fans | 1 x 40x40x28mm 8 x 40x40x56mm |
| Operating Properties | Operating temperature: 10°C to 30°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Weight | Net Weight: 23.9 kg Gross Weight: 28.9 kg |
| Packaging Dimensions | 1043 x 594 x 287 mm |
| Packaging Content | 1 x R183-ZF1-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x GPU power cable (12VHPWR, 150mm) 1 x 2-Section Rail kit |
| Part Numbers | – Barebone package: 6NR183ZF1DR000ACJ1* – Motherboard: 9MZF3GP0UR-000-3* – 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R – CPU heatsink: 25ST1-453400-M1R – Front panel board – CFP1030: 9CFP1030NR-00* – Backplane board – CBP10C2: 9CBP10C2NR-00* – Fan module 40x40x28mm: 25ST2-44282I-N2R – Fan module 40x40x56mm: 25ST2-40562H-A0R – M.2 type SATA card – CRS2810: 9CRS2810NR-00* – I/O board – CBG70: 9CBG70NR-00* – Mini-DP to D-Sub cable: 25CRN-200801-K1R – GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R – Power supply: 25EP0-22000J-G1SOptional parts: – 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R |
