サーバーマザーボード NEW

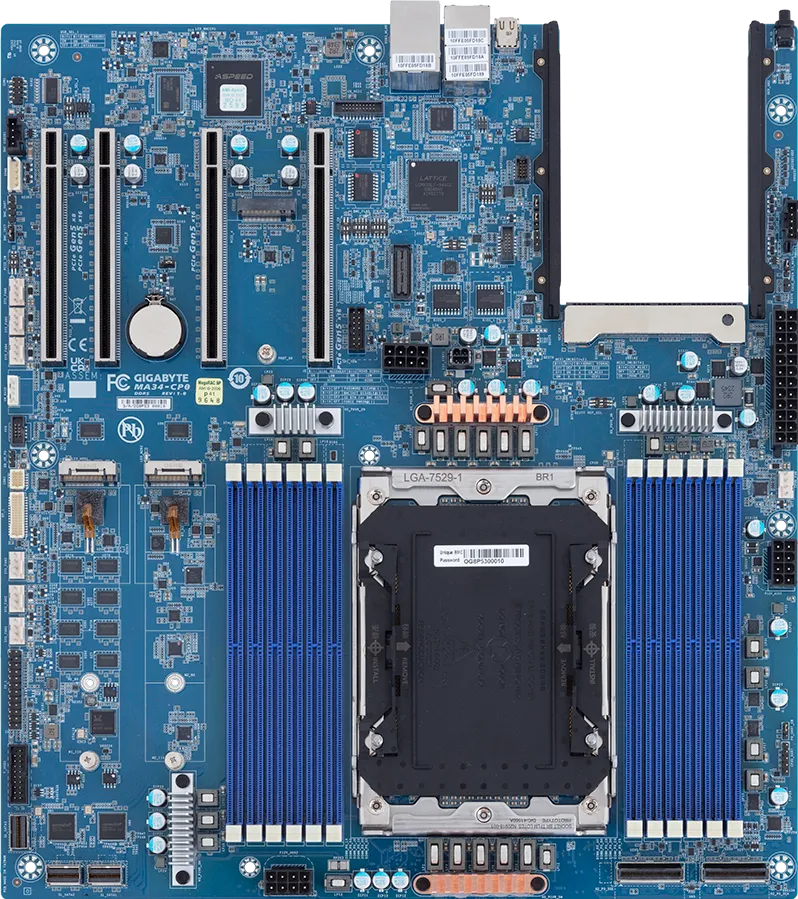

MA34-CP0 (rev. 1.x)
マザーボード - Intel® Xeon® 6 プロセッサー - E-ATX 対応
Xeon6 6900PXeon6 6900E
- Intel® Xeon® 6900シリーズ プロセッサー（シングル）
- 12チャネル DDR5 RDIMM / MRDIMM、DIMMスロット×12
- Intel® I210-AT 経由の 1Gb/s LANポート×2
- PCIe Gen5 x8インターフェース搭載のMCIO 8iコネクタ×2
- SATAインターフェース搭載のSlimSAS 4iコネクタ×3
- PCIe Gen5 x2インターフェース搭載のM.2スロット×2
- PCIe Gen5 x16およびx8拡張スロット×4
- OCP NIC 3.0 PCIe Gen5 x16スロット×1
製品仕様
| Form Factor (WxD, mm) | E-ATX 304.8 x 335.2 |
|---|---|
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6900 Series Processors Single processor, TDP up to 500W |
| Socket | 1 x LGA 7529 Socket BR |
| Chipset | System on Chip |
| Memory | 12 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 12-Channel memory per processor RDIMM: Up to 6400 MT/s MRDIMM: Up to 8800 MT/s [1] MRDIMMは、Pコアを搭載した特定のIntel® Xeon® 6プロセッサでのみサポートされています。 |
| LAN | 2 x 1Gb/s LAN (2 x Intel® I210-AT) – Support NCSI function 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x Mini-DP |
| Audio | N/A |
| Storage Interface | MCIO: 2 x MCIO 8i for 4 x Gen5 NVMe SlimSAS: 3 x SlimSAS 4i for 12 x SATA M.2: 1 x M.2 (2280/22110), PCIe Gen5 x2 1 x M.2 (2280/22110), PCIe Gen5 x2 |
| RAID | Onboard VROC key header |
| PCIe Expansion Slots | Slot_6: PCIe x16 (Gen5 x16) Slot_4: PCIe x16 (Gen5 x16) Slot_2: PCIe x16 (Gen5 x16 or x8), shared with Slot_1 Slot_1: PCIe x16 (Gen5 x8) 1 x OCP NIC 3.0 slot (Gen5 x16) – Supports NCSI function 2 x MCIO 8i (Gen5 x8) |
| Internal I/O | 1 x 24-pin ATX main power connector 3 x 8-pin ATX 12V power connectors 1 x 4-pin 12V standby power connector 1 x CPU fan header 6 x System fan headers 1 x USB 3.2 Gen1 x2 header 1 x USB 2.0 header for BMC 2 x M.2 slots 2 x MCIO 8i connectors 3 x SlimSAS 4i connectors 1 x VROC connector 1 x NCSI connector 1 x Front panel header 1 x Backplane board header 1 x COM header 1 x PMBus header 1 x IPMB header 1 x TPM header 1 x PRoT connector (only enabled on RoT SKU) |
| Rear I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM012 1 x PRoT connector (only enabled on RoT SKU) |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface |
| PSU Connectors | 1 x 24-pin ATX main power connector 3 x 8-pin ATX 12V power connectors 1 x 4-pin 12V standby power connector |
| Operating Properties | Operating temperature: 10°C to 40°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Retail Packaging Content | 1 x MA34-CP0 1 x I/O shield 1 x Quick start guide 1 x Carrier 1 x SlimSAS 4i to 4 x SATA cable (600mm) Single Box dimensions: 409 x 355 x 78 mm Carton dimensions: 729 x 415 x 432 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content | 10 x MA34-CP0 10 x I/O shields 30 x Carriers Carton dimensions: 600 x 473 x 517 mm |
| Reference Numbers | Retail: 9MA34CP0MR-000-1* Bulk: 9MA34CP0NR-000-1* Part Numbers: - I/O shield: 12AIO-MA34CP-00R – SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600700-A4R |
