サーバーマザーボード NEW

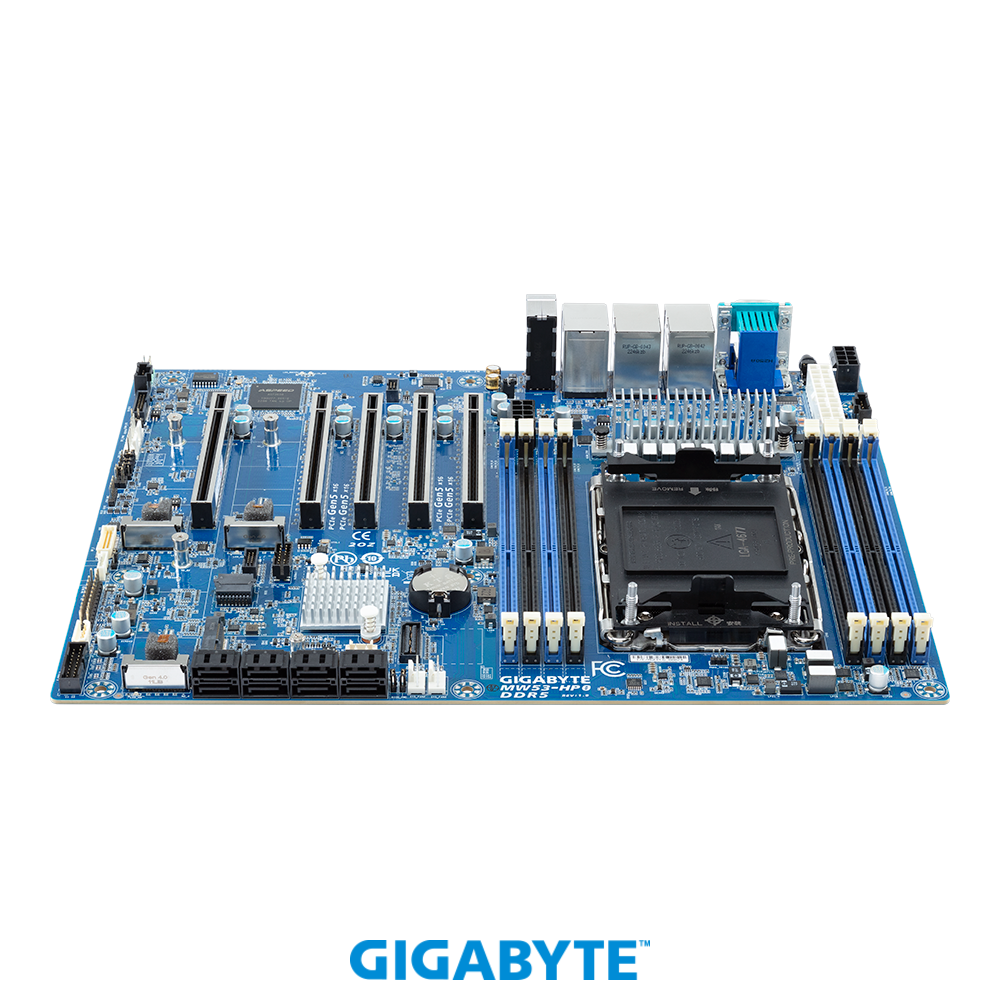

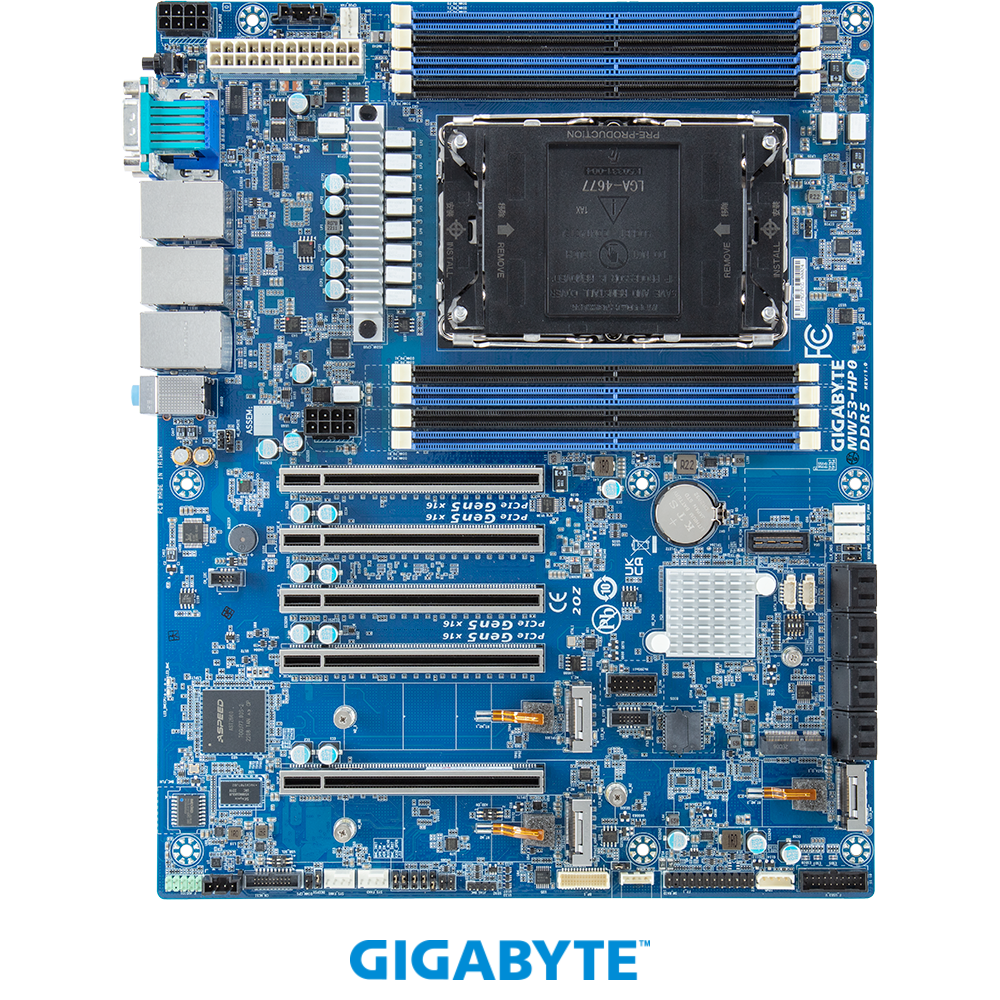

MW53-HP0 (rev. 1.x/3.x)
マザーボード - Intel® Xeon® W-3500/2500/3400/2400 - ATX シングルプロセッサー
Xeon W-2500Xeon W-3500Xeon W-3400Xeon W-2400
- Intel® Xeon® W-3500/3400 プロセッサー（シングル）
- Intel® Xeon® W-2500/2400 プロセッサー（シングル）
- 4チャネル DDR5 RDIMM、DIMM スロット 8基
- Intel® I226-LM 搭載 2.5Gb/s LAN ポート×2
- SATA 7ピンポート ×8
- PCIe Gen4 x4インターフェース搭載M.2スロット ×3
- Wi-Fiアドインカード用PCIe Gen3 x1インターフェース搭載M.2スロット ×1
- PCIe Gen5 x16拡張スロット ×4
- PCIe Gen3 x4拡張スロット ×1
製品仕様
| Form Factor | ATX 304.8 x 244 |
|---|---|
| CPU | Intel® Xeon® W-3500 Processors [1] Intel® Xeon® W-2500 Processors Intel® Xeon® W-3400 Processors [1] Intel® Xeon® W-2400 ProcessorsSingle processor, TDP up to 385W [1] Carriers for Intel® Xeon® W-3500/3400 Processors are not included. Please refer to the optional parts for proper support. |
| Socket | 1 x LGA 4677 |
| Chipset | Intel® W790 |
| Memory | 8 x DIMM slots Support DDR5 RDIMM 4-channel memory per processor Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC) [Note] When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0. |
| LAN | 2 x 2.5Gb/s LAN (2 x Intel® I226-LM) 1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Audio | Realtek® ALC897 HD Audio Codec Supports 2/4/5.1/7.1 channel configurations 3 x Audio jacks (Audio in/Audio out/Mic) |
| Storage Interface | SATA 7-pin: 8 x SATA, from PCHM.2: 3 x M.2 (2280), PCIe Gen4 x4, from PCH |
| RAID | Intel® SATA RAID 0/1/10/5 Onboard VROC key header |
| Expansion Slots | Slot_7: PCIe x16 (Gen5 x16), from CPU Slot_6: PCIe x16 (Gen5 x16), from CPU Slot_5: PCIe x16 (Gen5 x16), from CPU Slot_4: PCIe x16 (Gen5 x16), from CPU Slot_2: PCIe x16 (Gen3 x4), from PCH1 x M.2 (2230), E-key (Wi-Fi), PCIe Gen3 x1, from PCH |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 4 x System fan headers 1 x Front audio header 1 x USB 3.2 Gen1 x2 header 3 x M.2 slots for storage 1 x M.2 slot for Wi-Fi 8 x SATA 7-pin connectors 1 x VROC connector 1 x Front panel header 1 x Backplane board header 1 x PMBus header 1 x IPMB header 1 x TPM header |

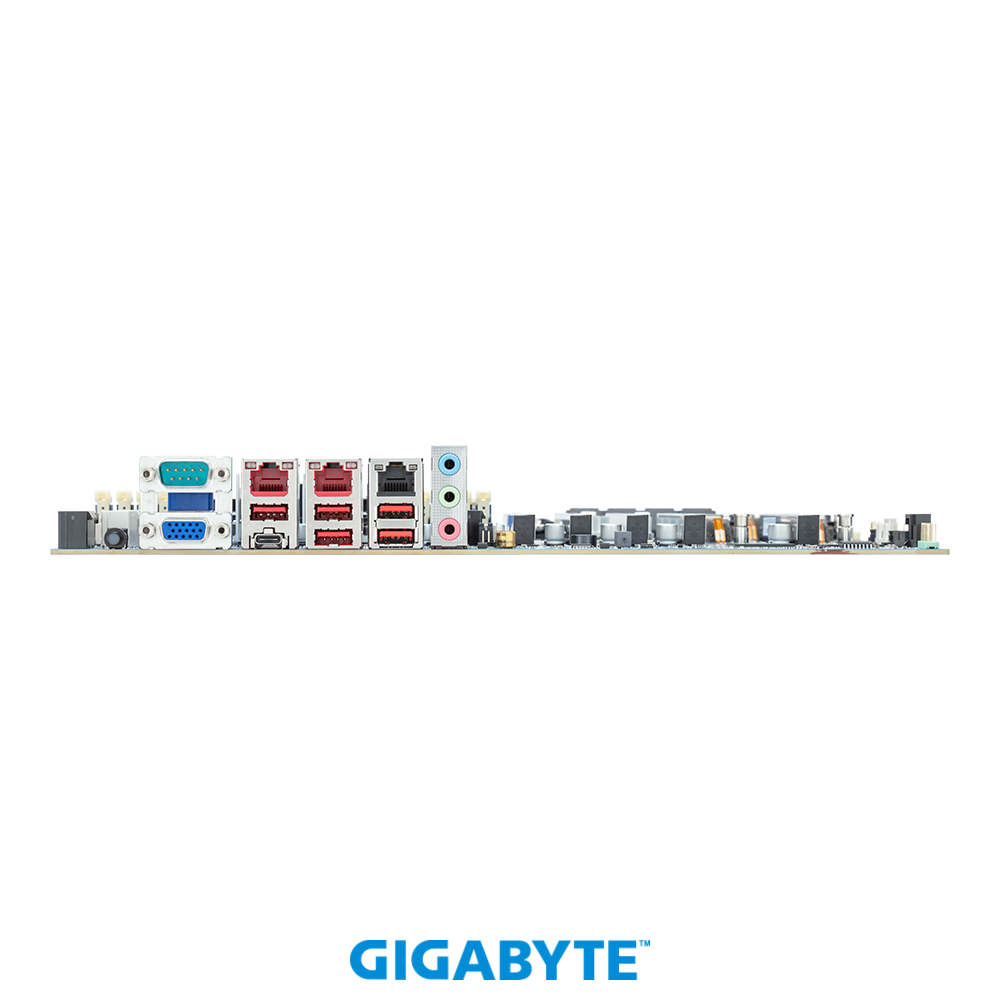

| Rear I/O | 1 x USB 3.2 Gen2x2 port (Type-C) 5 x USB 3.2 Gen2x1 ports (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 3 x Audio jacks 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM010 |
| OS Compatibility | CentOS Stream 9 Debian 11.5.0 Red Hat Enterprise Linux 9.0 Ubuntu 22.04 LTS Windows 11 Enterprise |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface
|
| PSU Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Operating Properties | Operating temperature: 10°C to 40°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Retail Packaging Content | 1 x MW53-HP0 1 x I/O shield 1 x Quick start guide 1 x W-2500/2400 (E1B) carrier [1] 3 x M.2 heatsinks 4 x SATA cables (500mm)Single Box dimensions: 360 x 330 x 80 mm Carton dimensions: 674 x 424 x 385 mm Quantity: 10 x single boxes in one carton [1] Carriers for Intel® Xeon® W-3500/3400 Processors are not included. Please refer to the optional parts for proper support. |
| Bulk Packaging Content | 10 x MW53-HP0 10 x I/O shields 10 x W-2500/2400 (E1B) carriers [1]Carton dimensions: 600 x 473 x 495 mm [1] Carriers for Intel® Xeon® W-3500/3400 Processors are not included. Please refer to the optional parts for proper support. |
| Reference Numbers | Retail (W-3500/2500): 9MW53HP0MR-000-3* Bulk (W-3500/2500): 9MW53HP0NR-000-3* Retail (W-3400/2400): 9MW53HP0MR-000-1* Bulk (W-3400/2400): 9MW53HP0NR-000-1*Part Numbers:– I/O shield: 12AIO-MW53HP-10R – W-2500/2400 (E1B) carrier: 12KRC-0I4677-10R – M.2 heatsink: 12SP2-080027-00R – SATA cable (500mm)(2 in 1 package): 12CF1-2SAT01-31R Optional parts: – CPU fansink: 25ST0-0Z9221-A3R |
