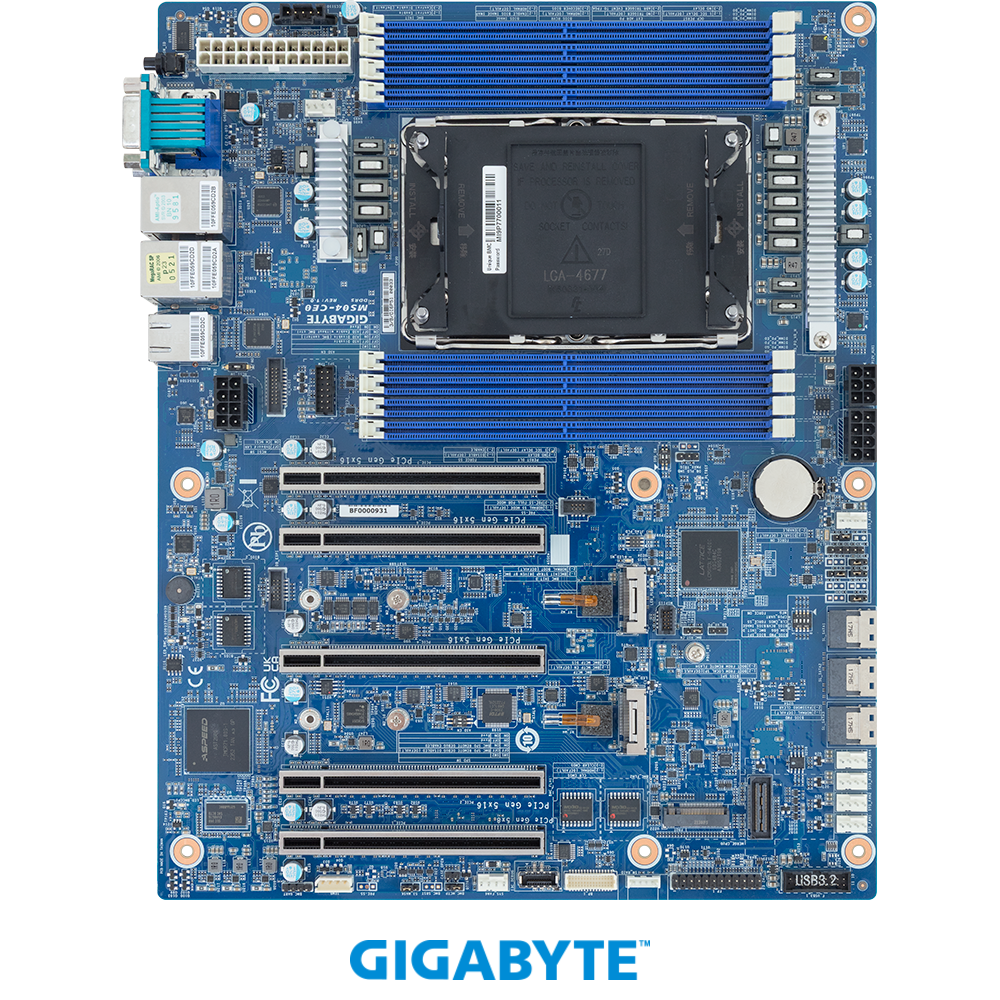

サーバーマザーボード
MS04-CE0 (rev. 1.x)
マザーボード - Intel® Xeon® 6 プロセッサ - ATX シングルプロセッサー
Xeon6 6500PXeon6 6700PXeon6 6700E
- Intel® Xeon® 6700/6500シリーズ プロセッサー（シングル）
- 8チャネル DDR5 RDIMM / MRDIMM、DIMMスロット×8
- Intel® I210-AT 経由の 1Gb/s LAN ポート x 2
- SATA インターフェース搭載の SlimSAS 4i コネクタ x 3
- PCIe Gen5 x2 インターフェース搭載の M.2 スロット x 2
- PCIe Gen5 x16 および x8 拡張スロット x 5
製品仕様
| Form Factor | ATX 304.8W x 244D mm |
|---|---|
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6700-Series Processors – Intel® Xeon® 6500-Series ProcessorsSingle processor, TDP up to 350W |
| Socket | 1 x LGA 4710 Socket E2 |
| Chipset | System on Chip |
| Memory | 8 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 8-Channel memory per processor RDIMM: Up to 6400 MT/s MRDIMM: Up to 8000 MT/s [1] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores. |
| LAN | 2 x 1Gb/s LAN (2 x Intel® I210-AT) – Support NCSI function1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Audio | N/A |
| Storage Interface | SlimSAS: 3 x SlimSAS 4i for 12 x SATAM.2: 2 x M.2 (2280/22110), PCIe Gen5 x2 |
| RAID | Onboard VROC key header |
| Expansion Slots | Slot_7: PCIe x16 (Gen5 x16) Slot_6: PCIe x16 (Gen5 x16) Slot_4: PCIe x16 (Gen5 x16) Slot_2: PCIe x16 (Gen5 x16) Slot_1: PCIe x16 (Gen5 x8) |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX 12V power connector 1 x CPU fan header 6 x System fan headers 1 x USB 3.2 Gen1 x2 header 2 x M.2 slots 3 x SlimSAS 4i connectors 1 x VROC connector 1 x NCSI connector 1 x Front panel header 1 x Backplane board header 1 x PMBus header 1 x IPMB header 1 x TPM header 1 x PRoT connector (only enabled on RoT SKU) |

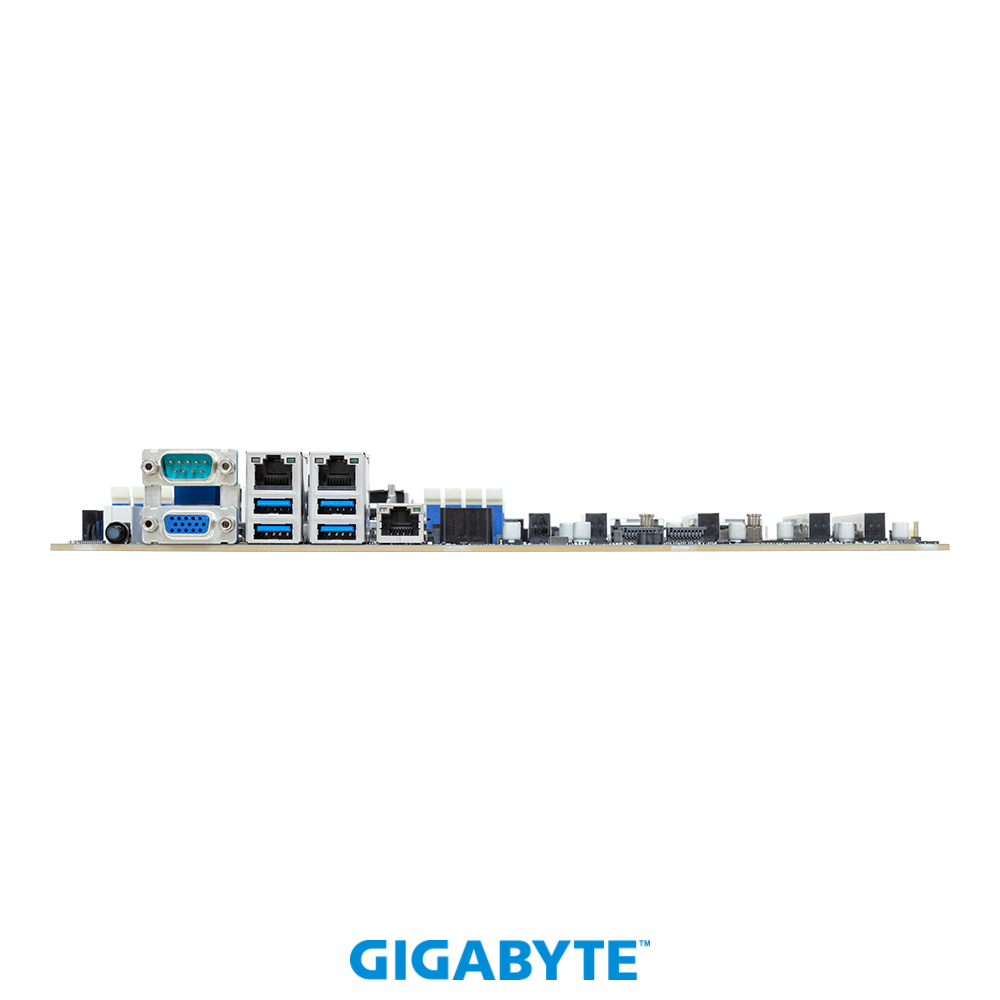

| Rear I/O | 4 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x Serial port 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM0121 x PRoT connector (only enabled on RoT SKU) |
| OS Compatibility | Please refer to OS compatibility table in support page |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface |
| PSU Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 6-pin ATX 12V power connector |
| Operating Properties | Operating temperature: 10°C to 40°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Retail Packaging Content | 1 x MS04-CE0 1 x I/O shield 1 x Quick start guide 2 x Carriers 1 x SlimSAS 4i to 4 x SATA cable (600mm)Single Box dimensions: 360 x 330 x 80 mm Carton dimensions: 674 x 424 x 385 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content | 10 x MS04-CE0 10 x I/O shields 20 x CarriersCarton dimensions: 600 x 473 x 495 mm |
| Reference Numbers | Retail: 9MS04CE0MR-000-1* Bulk: 9MS04CE0NR-000-1*Part Numbers:– I/O shield: 12AIO-MS04CE-00R – SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600700-A4R |
