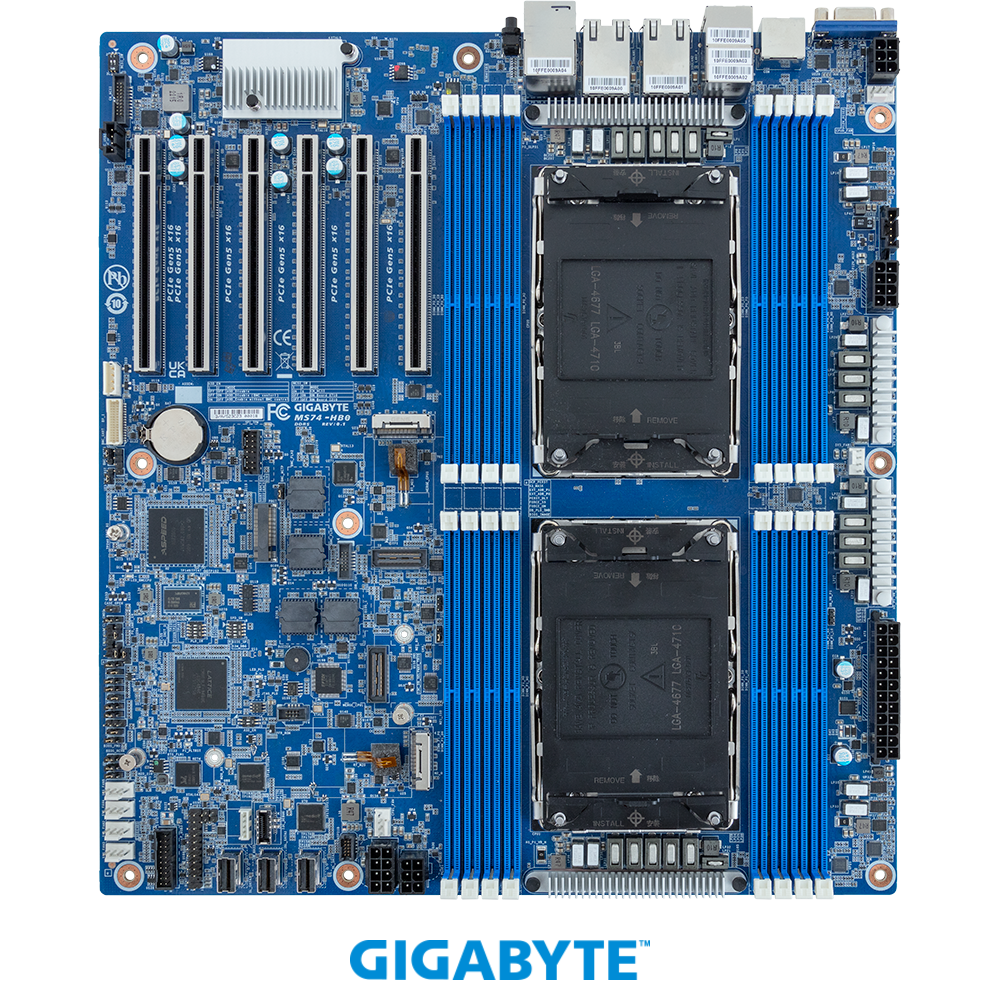

サーバーマザーボード
MS74-HB0 (rev. 1.x)
マザーボード - Intel® Xeon® 6 プロセッサー - E-ATX デュアルプロセッサー
Xeon6 6500PXeon6 6700PXeon6 6700E
- デュアル Intel® Xeon® 6700/6500 シリーズ・プロセッサー
- 8チャネル DDR5 RDIMM / MRDIMM、DIMM スロット 16基
- Intel® X710-AT2 搭載 10Gb/s LAN ポート 2基
- Intel® I210-AT経由の1Gb/s LANポート×2
- SATAインターフェース搭載のSlimSAS 4iコネクタ×3
- PCIe Gen5 x4インターフェース搭載のM.2スロット×2
- PCIe Gen5 x16拡張スロット×6
製品仕様
| Form Factor | E-ATX 304.8W x 330.2D mm |
|---|---|
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6700-Series Processors – Intel® Xeon® 6500-Series ProcessorsDual processor, TDP up to 350W [Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| Socket | 2 x LGA 4710 Socket E2 |
| Chipset | System on Chip |
| Memory | 16 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 8-Channel memory per processor RDIMM: Up to 6400 MT/s MRDIMM: Up to 8000 MT/s [1] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores. |
| LAN | 2 x 10Gb/s LAN (1 x Intel® X710-AT2) 2 x 1Gb/s LAN (2 x Intel® I210-AT) – Support NCSI function1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x VGA port |
| Audio | N/A |
| Storage Interface | SlimSAS: 3 x SlimSAS 4i for 12 x SATA, from CPU_0M.2: 2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0 |
| RAID | Onboard VROC key header |
| Expansion Slots | Slot_6: PCIe x16 (Gen5 x16), from CPU_0 Slot_5: PCIe x16 (Gen5 x16), from CPU_0 Slot_4: PCIe x16 (Gen5 x16), from CPU_0 Slot_3: PCIe x16 (Gen5 x16), from CPU_1 Slot_2: PCIe x16 (Gen5 x16), from CPU_1 Slot_1: PCIe x16 (Gen5 x16), from CPU_1 |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x 6-pin ATX 12V power connectors 2 x CPU fan headers 5 x System fan headers 1 x USB 3.2 Gen1 x2 header 2 x M.2 slots 3 x SlimSAS 4i connectors 1 x VROC connector 1 x NCSI connector 1 x Front panel header 1 x Backplane board header 1 x PMBus header 1 x IPMB header 1 x TPM header 1 x PRoT connector (only enabled on RoT SKU) |

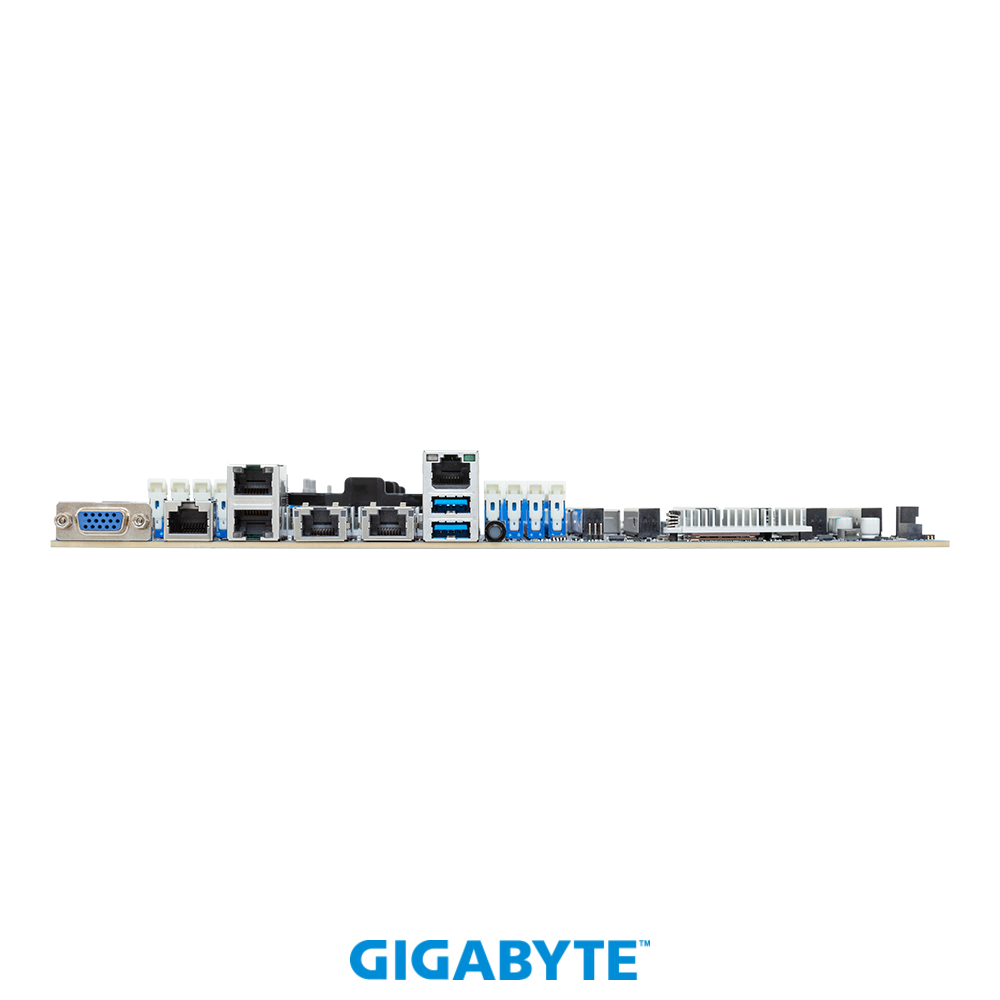

| Rear I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x VGA port 1 x RJ45 serial port 4 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM0121 x PRoT connector (only enabled on RoT SKU) |
| OS Compatibility | Please refer to OS compatibility table in support page |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface |
| PSU Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x 6-pin ATX 12V power connectors |
| Operating Properties | Operating temperature: 10°C to 40°C Operating humidity: 8% to 80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 20% to 95% (non-condensing) |
| Retail Packaging Content | 1 x MS74-HB0 1 x I/O shield 1 x Quick start guide 4 x Carriers 1 x SlimSAS 4i to 4 x SATA cable (600mm)Single Box dimensions: 409 x 355 x 78 mm Carton dimensions: 729 x 415 x 432 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content | 10 x MS74-HB0 10 x I/O shields 40 x CarriersCarton dimensions: 600 x 473 x 517 mm |
| Reference Numbers | Retail: 9MS74HB0MR-000-1* Bulk: 9MS74HB0NR-000-1*Part Numbers:– I/O shield: 12AIO-MD72HB-00R – SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600800-A4R |
