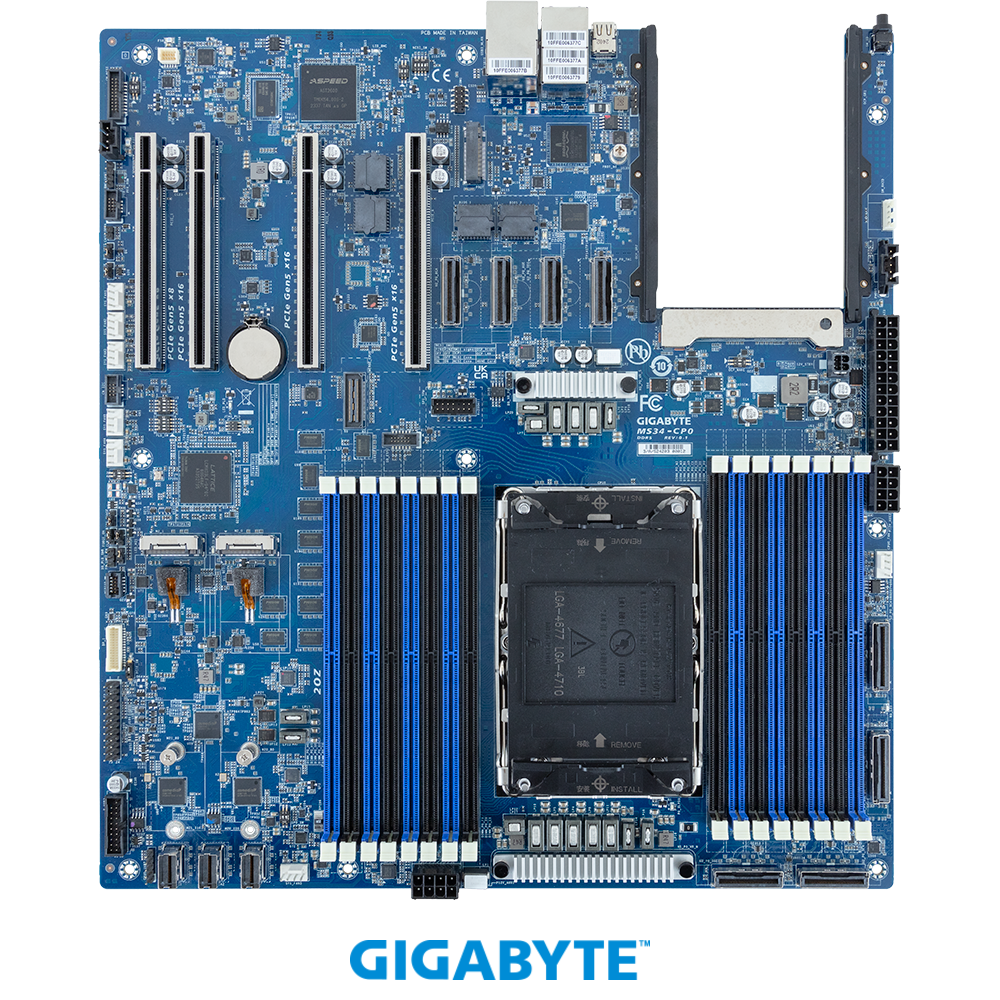

サーバーマザーボード
MS34-CP0 (rev. 1.x)
マザーボード - Intel® Xeon® 6 プロセッサ R1S - E-ATX シングルプロセッサ
Xeon6 6500PXeon6 6700PXeon6 6700E
- Intel® Xeon® 6700/6500シリーズプロセッサ（シングル）搭載、136本のPCIeレーン
- 8チャネルDDR5 RDIMM / MRDIMM、DIMMスロット16基
- Broadcom® BCM5720経由の1Gb/s LANポート×2
- PCIe Gen5 x8インターフェース搭載のMCIO 8iコネクタ×2
- PCIe Gen5 x8インターフェース搭載のMCIO 8iコネクタ×6（136 PCIeレーンのCPUが必要）
- SATAインターフェース搭載のSlimSAS 4iコネクタ×3
- PCIe Gen5 x2インターフェース搭載のM.2スロット×1
- PCIe Gen5 x2インターフェース搭載のM.2スロット×1（SATAと共用）
- PCIe Gen5 x16およびx8拡張スロット×4
- OCP NIC 3.0 PCIe Gen5 x16スロット×1
製品仕様
| Form Factor | E-ATX 304.8W x 330.2D mm |
|---|---|
| CPU | Intel® Xeon® 6 Processors – Intel® Xeon® 6700-Series Processors – Intel® Xeon® 6500-Series ProcessorsSingle processor, TDP up to 350W |
| Socket | 1 x LGA 4710 Socket E2 |
| Chipset | System on Chip |
| Memory | 16 x DIMM slots Support DDR5 RDIMM/MRDIMM [1] 8-Channel memory per processor RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s [1] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores and only in a 1DPC configuration. |
| LAN | 2 x 1Gb/s LAN (1 x Broadcom® BCM5720) – Support NCSI function1 x 10/100/1000 Mbps Management LAN |
| Video | Integrated in ASPEED® AST2600 – 1 x Mini-DP |
| Audio | N/A |
| Storage Interface | MCIO: 2 x MCIO 8i for 4 x Gen5 NVMeSlimSAS: 3 x SlimSAS 4i for 12 x SATA [1]M.2: 1 x M.2 (2280/22110), PCIe Gen5 x2 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA [1] SATA support is shared with 1 x M.2 slot. Please adjust the switch according to the manual for proper support. |
| RAID | Onboard VROC key header |
| Expansion Slots | Slot_6: PCIe x16 (Gen5 x16) Slot_4: PCIe x16 (Gen5 x16) Slot_2: PCIe x16 (Gen5 x16 or x8), shared with Slot_1 Slot_1: PCIe x16 (Gen5 x8)1 x OCP NIC 3.0 (Gen5 x16) – Supports NCSI function2 x MCIO 8i (Gen5 x8) 6 x MCIO 8i (Gen5 x8) [1] [1] Require CPU with 136 PCIe lanes. |
| Internal I/O | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 4-pin 12V standby power connector 1 x CPU fan header 6 x System fan headers 1 x USB 3.2 Gen1 x2 header 2 x M.2 slots 8 x MCIO 8i connectors 3 x SlimSAS 4i connectors 1 x VROC connector 1 x NCSI connector 1 x Front panel header 1 x Backplane board header 1 x COM header 1 x PMBus header 1 x IPMB header 1 x TPM header 1 x PRoT connector (only enabled on RoT SKU) |

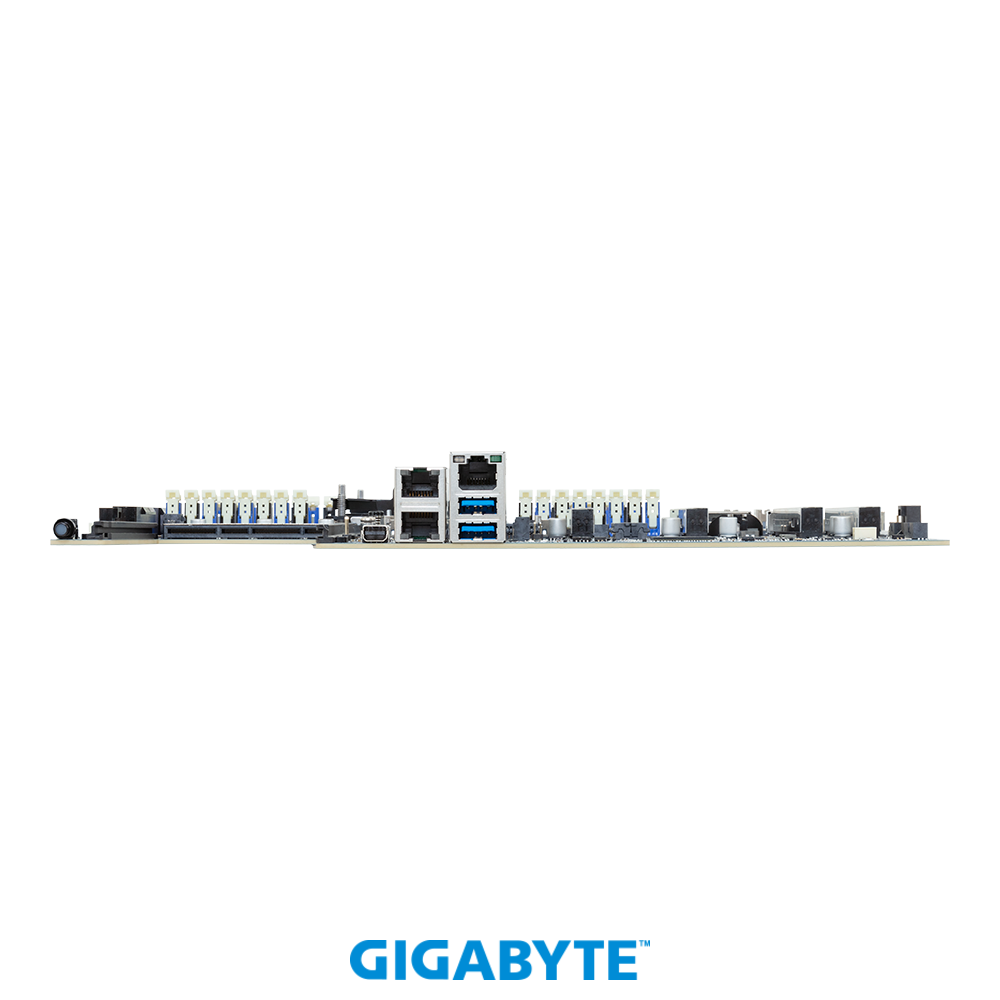

| Rear I/O | 2 x USB 3.2 Gen1 ports (Type-A) 1 x Mini-DP 2 x RJ45 ports 1 x MLAN port 1 x ID button with LED |
| Security Modules | 1 x TPM header with SPI interface – Optional TPM2.0 kit: CTM0121 x PRoT connector (only enabled on RoT SKU) |
| OS Compatibility | Please refer to OS compatibility table in support page |
| Board Management | ASPEED® AST2600 Baseboard Management Controller GIGABYTE Management Console web interface |
| PSU Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 4-pin 12V standby power connector |
| Operating Properties | |
| Retail Packaging Content |
Retail Packaging Content
1 x MS34-CP0
1 x I/O shield 1 x Quick start guide 1 x Mini-DP to D-Sub cable 2 x CarriersSingle Box dimensions: 409 x 355 x 78 mm Carton dimensions: 729 x 415 x 432 mm Quantity: 10 x single boxes in one carton |
| Bulk Packaging Content | 10 x MS34-CP0 10 x I/O shields 20 x CarriersCarton dimensions: 600 x 473 x 517 mm |
| Reference Numbers | RRetail: 9MS34CP0MR-000-1* Bulk: 9MS34CP0NR-000-1*Part Numbers:– I/O shield: 12AIO-MS33CP-00R – Mini-DP to D-Sub cable: 25CRN-200801-K1R |
