サーバーマザーボード
QBi-6412A
インテル® Celeron® J6412 プロセッサー搭載 組み込みコンパクトボードシングルチャネル DDR4 メモリCOM ポート × 1SATA 6Gb/s × 1USB × 6
Celeron J6400
- 組込み用IPCマザーボード
- インテル® Celeron® J6412 プロセッサー
- シングルチャンネルDDR4、1 x SO-DIMM
- 2 x GbE LANポート
- 1 x SATA 6Gb/秒ポート
- PCIe Gen3 x2インターフェイス搭載超高速M.2
- 2 x マルチディスプレイ用HDMIポート
- 1 x COMポート(RS-232)
製品仕様
| Form Factor | Embedded Compact Board 105W x 110D (mm) |
|---|---|
| CPU | Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W |
| Socket | 1 x FCBGA1493 |
| Memory | 1 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules |
|
Ethernet |
2 x GbE LAN Ports (Intel® I210AT) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors : 2 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x SATA 6Gb/s Port |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 2-pin power connector 1 x SATA power header 1 x CPU fan header 1 x Front panel header 2 x USB 2.0 headers |

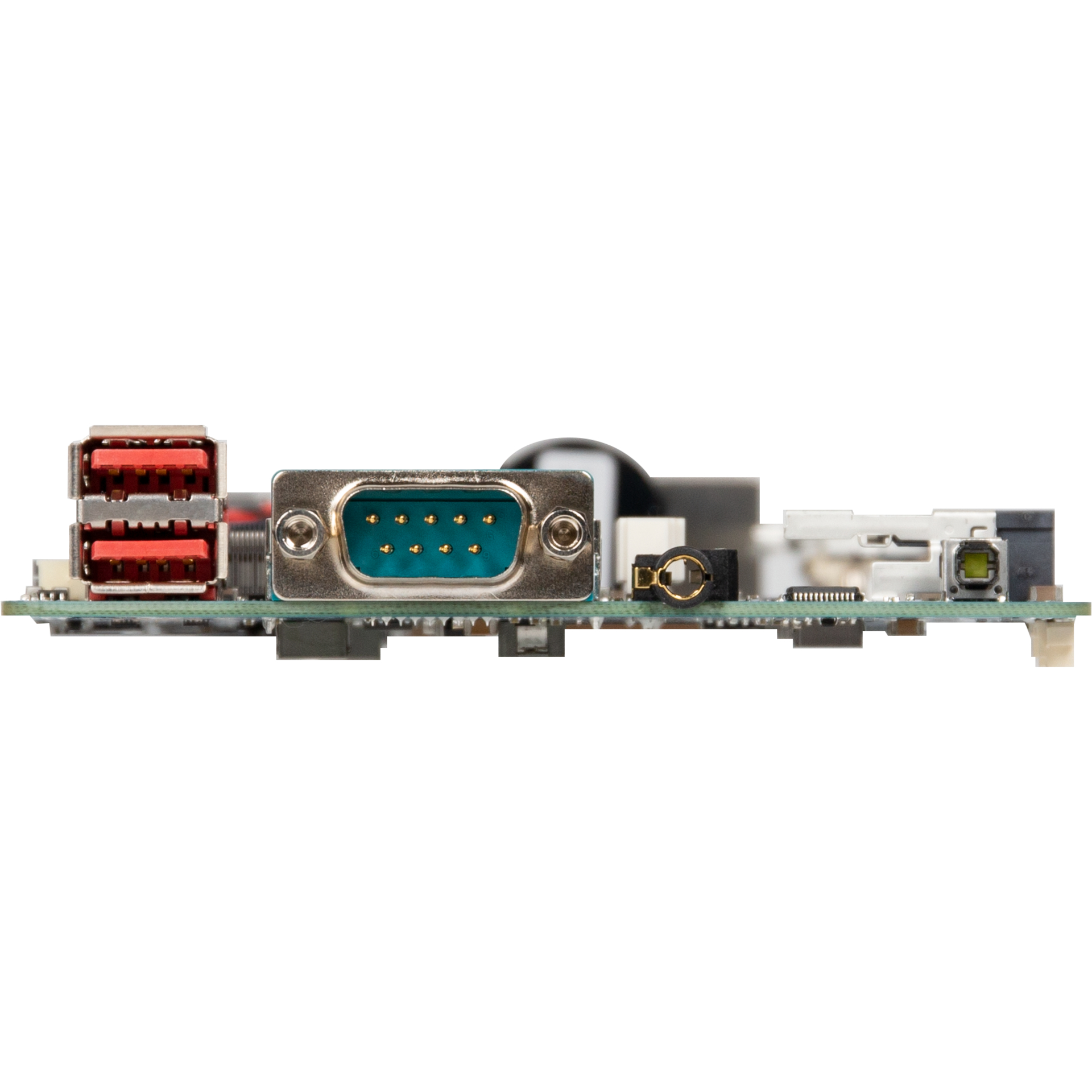

| Front I/O | 2 x USB 3.2 Gen 2×1 1 x COM Port (RS-232) 1 x Combo Audio Jack (Microphone & Headphone) 1 x Power button |

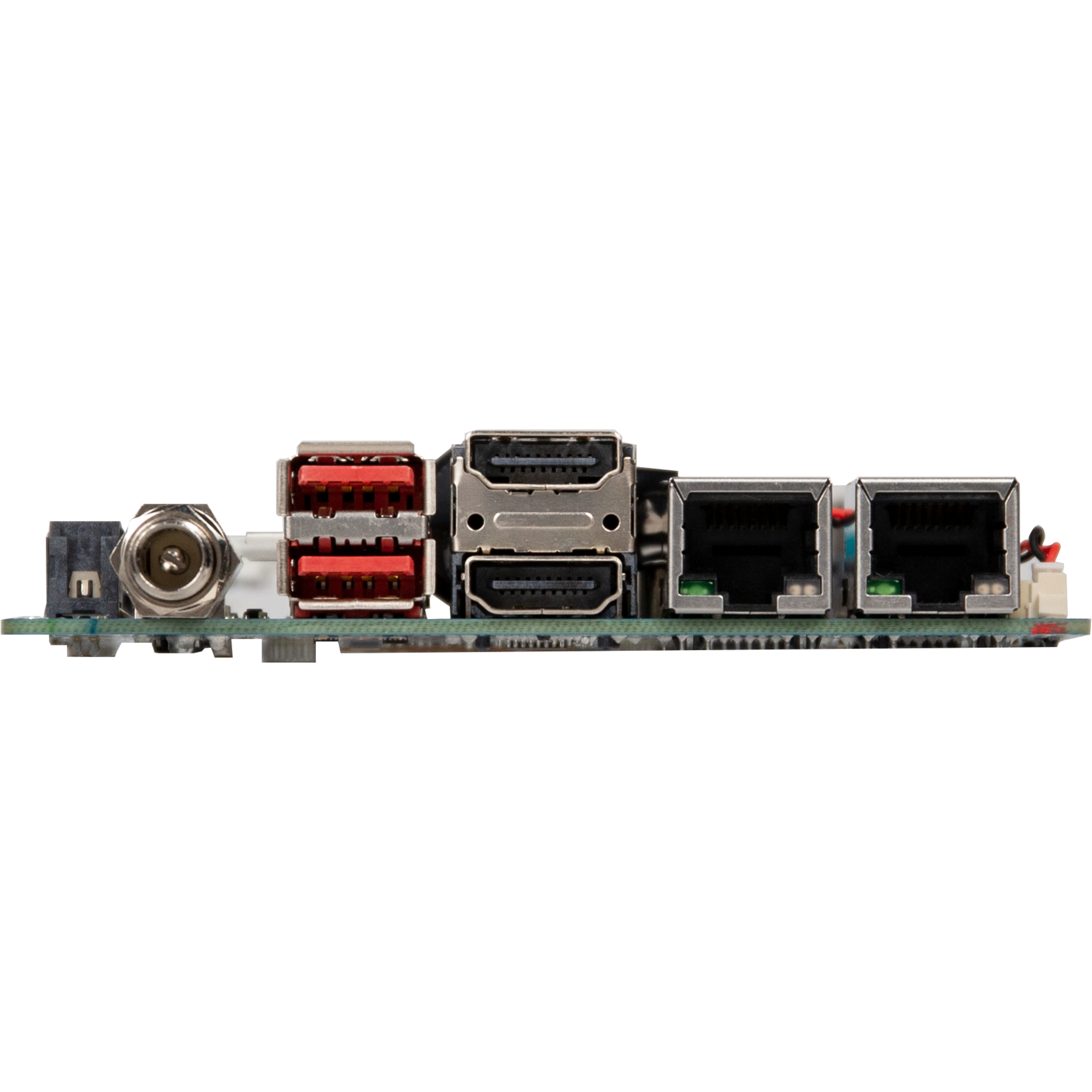

| Rear I/O | 2 x RJ45 LAN Ports 2 x HDMI 2 x USB 3.2 Gen 2×1 1 x Screw type DC Jack (+12V~19VDC) |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packaging Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.5kg Including: SATA power cable 150mm x 1 (P/N: 25CRI-150621-K1R) |
| Ordering Information | 9MEHLJAHMR-SI (Box Packing) |
|
Optional Kit |
Fanless Heatsink P/N: 25ST1-12311C-A7R Fansink P/N: 12SF2-01A103-00R Heat spreader P/N: 25ST5-641200-Y0R |
