製品仕様
|
Dimension |
160W x 118D x 62.6H (mm) |
|---|---|
| CPU | Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W |
| Memory | 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules |
|
Ethernet |
2 x GbE LAN Ports (Intel® I210AT) |
|
Graphics Support |
Integrated Graphics Processor- Intel® UHD Graphics for 10th Gen Intel® Processors: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920×1200 @60Hz (2 independent display outputs) |
|
Audio |
Realtek® Audio codec |
|
Storage |
1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x 3052/3042 M.2 B key with SIM Slot –4G/5G Support 1 x Vertical USB 2.0 |
|
Front I/O |
2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI 1 x VGA 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 1 x Power button with LED 1 x WiFi/HDD LED 1 x Remote control connector 1 x Headphone Jack 1 x External Antenna Hole (Optional) |

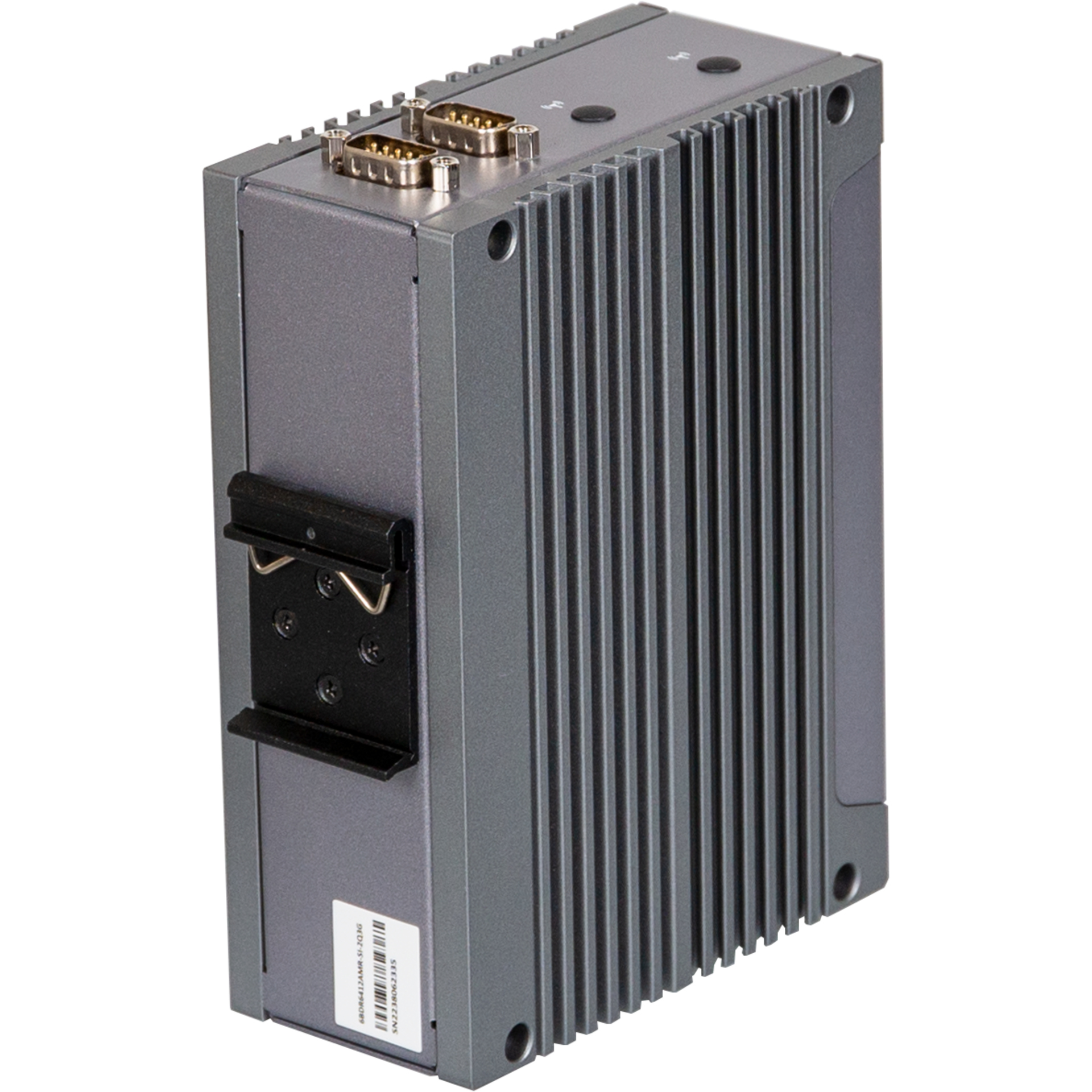

| Rear I/O | 1 x Din Rail Mounting Support |
|
Side I/O |
1 x GPIO (8 bits) 1 x 3-pin Terminal Block 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 2 x External Antenna Holes (Optional) |
|
Power |
+9V~36VDC (Full Range) |
|
Operation Temperature |
Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
|
Vibration During Operation |
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
|
Shock During Operation |
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 416 x 409 x 347 (mm) Packing Capacity: 6pcs Single Box size: 308 x 191 x 130 (mm) Single Box weight: Approx. 1.8kg Including: Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R) Terminal Blocks 1*2P x 1 (P/N: 25IO0-EC3500-D2R) Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R) SATA cable x 1 (P/N: 25CF4-500500-S9R) SATA power cable x 1 (P/N: 25CRI-190920-S9R) Screw HDD M3x4L x 4 (P/N: 25984G-1C014-S00) |
|
Mounting |
DIN Rail Wall mount (Optional) |
| Ordering Information | 6BDR6412AMR-SI (Box packing) |
