サーバーマザーボード
mITX-Q67EB
Intel® Q670Eチップセット搭載Mini-ITXマザーボード、第14/13/12世代Intel® Core™プロセッサー対応、デュアルチャネルDDR4メモリ、PCIe、COM×2、USB×10、SATA 6Gb/s×4
Core i9-14900Core i9-13900Core i9-12900Core i7-14700Core i7-13700Core i7-12700Core i5-14000Core i5-13000Core i5-12000Core i3-14000Core i3-13000Core i3-12000Pentium Gold G7400Celeron G6900
- Mini-ITXフォームファクター
- 第13/12世代インテル® Core™ プロセッサー対応
- インテル® Q670Eチップセット
- デュアルチャンネルDDR4、2 x SO-DIMMs
- 1 x GbE LANポート
- 1 x 2.5GbE LANポート
- 4 x SATA 6Gb/秒ポート
- HDMI、ディスプレイポート、VGAポート（マルチディスプレイ用
- 1×COMポート（RS-232）
- 1×COMポート（RS-232/422/485およびRI/5V/12V)
製品仕様
| Form Factor | Mini-ITX 170W x 170D(mm) |
|---|---|
| CPU | Support for 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package TDP under 65W |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® Q670E Chipset |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR4 3200 MHz memory modules |
|
Ethernet |
1 x GbE LAN Port (Intel® I219LM) 1 x 2.5GbE LAN Port (Intel® I226V) |
| Video | Integrated Graphics Processor – depends on CPU: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096×2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096×2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920×1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® Audio codec |
| Storage | 4 x SATA 6Gb/s Ports |
| RAID | RAID 0/1/5/10 |
| Expansion Slots | 1 x PCIe x16 (Gen 4×16) 1 x 2280 M.2 M-Key (PCIe Gen 3×4) 1 x 2230 M.2 E-Key (WiFi/BT) |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 6 x USB 2.0 headers 1 x COM header (RS-232) 1 x GPIO (8 bits) & SMBus header 1 x Clear CMOS jumper 1 x Buzzer 1 x AT/ATX mode select jumper |

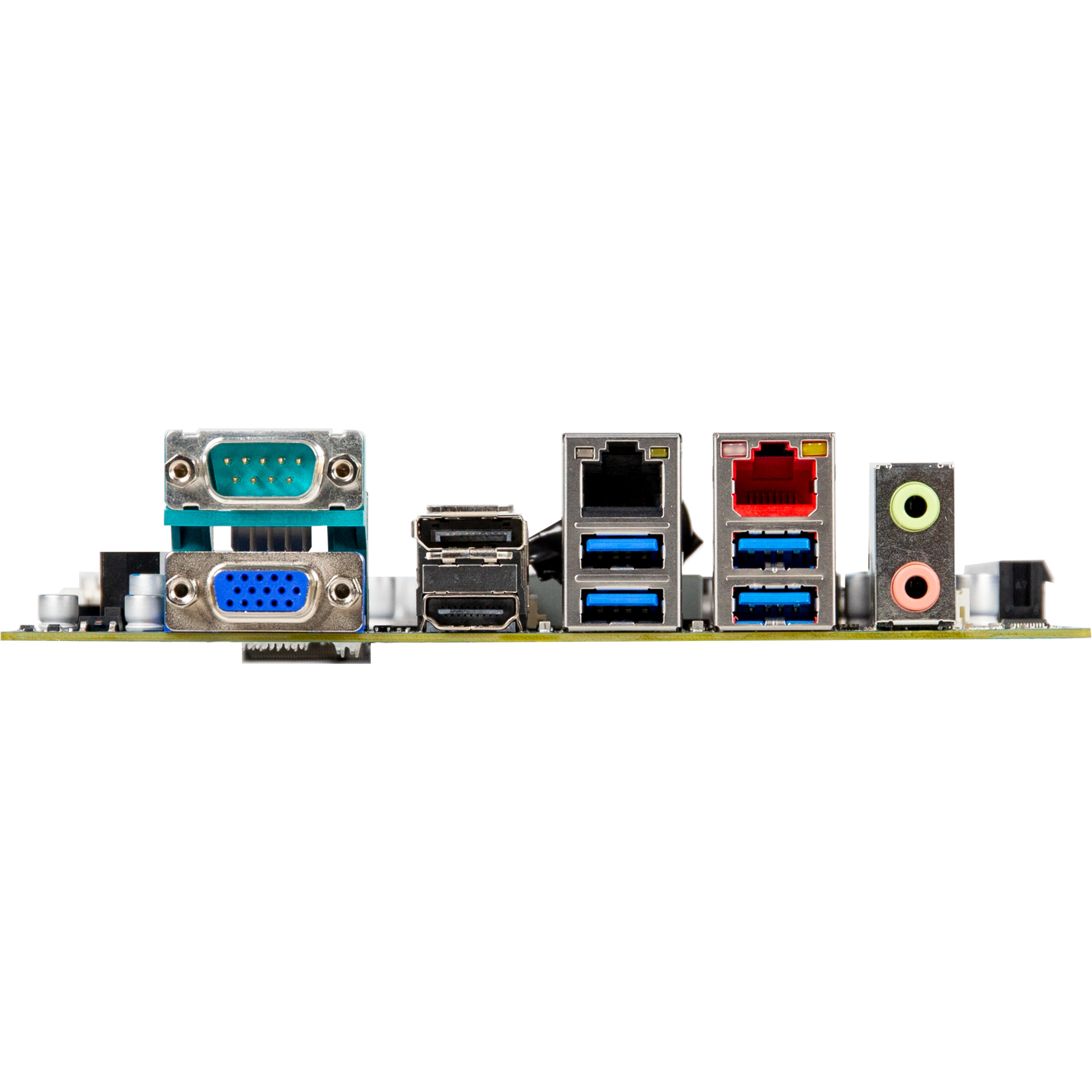

| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x HDMI 1 x Display Port 1 x VGA 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packaging Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size : 221 x 178 x 65 (mm) Single Box weight: Approx. 0.8kg Including: IO Shield x 1 (P/N: 12AIO-MQ67EB-00R) SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R) |
| Ordering Information | 9MQ67EBIMR-SI (Box packing) |
|
Optional Kit |
CPU Cooler P/N: 25ST0-037820-Y0R CPU Cooler Backplate P/N: 12KRH-0A1700-00R TPM 2.0 module P/N: 9CTM010NR-00 |
