製品仕様
| Product SKUs | |
|---|---|

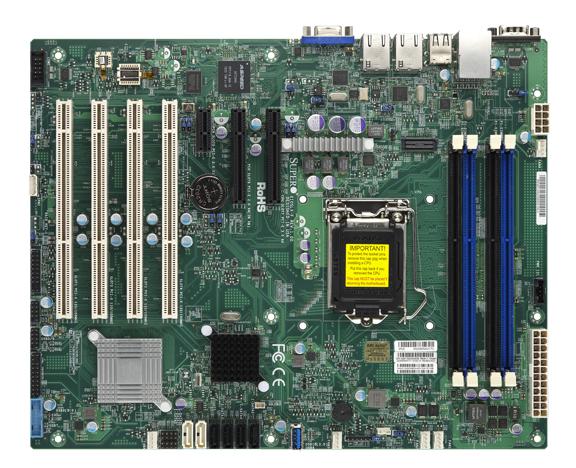

| MBD-X10SLX-F | X10SLX-F |
| Physical Stats | |
| Form Factor | ATX |
| Dimensions | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor/Cache | |
| CPU | Intel® 4th Generation Core i3 series Intel® Celeron® Intel® Pentium® Intel® Xeon® processor E3-1200 v3 series Intel® Xeon® Processor E3-1200 v4 series Single Socket LGA 1150 supported; CPU TDP support Up to 95W TDP |
| System Memory | |
| Memory Capacity | Up to 32GB Unbuffered ECC UDIMM, DDR3-1600MHz, in 4 DIMM slots 4 240-pin DDR3 DIMM sockets |
| Memory Type | 1600MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs |
| DIMM Sizes | 1GB, 2GB, 4GB, 8GB |
| Memory Voltage | 1.35V, 1.5V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| On-Board Devices | |
| Chipset | Intel® C222 Express PCH |
| SATA | Intel® C222 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1 Intel® C222 controller for 4 SATA2 (3 Gbps) ports; RAID 0,1,5,10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 with 10/100/1000M bps MAC |
| Network Controllers | Dual Intel® i210 Gigabit Ethernet Controller |
| Graphics | Aspeed AST2400 BMC VGA Ports for IPMI only. |
| Input / Output | |
| SATA | 2 SATA3 (6Gbps) port 4 SATA2 (3Gbps) ports |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 7 USB 2.0 ports (4 rear, 3 via header(s)) 2 USB 3.0 ports (1 via header(s), 1 Type A) |
| Video Output | 1 VGA port(s) |
| Serial Port / Header | 2 COM Ports (1 rear, 1 header(s)) |
| TPM | TPM Header |
| Expansion Slots | |
| PCI-E | 1 PCI-E 3.0 x8 1 PCI-E 2.0 x4 (in x8 slot) 1 PCI-E 2.0 x1 4 PCI-X 64-bit slots |
| System BIOS | |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | SMBIOS 2.7.1 ACPI 5.0 USB Keyboard support |
| Management | |
| Software | IPMI2.0 NMI SuperDoctor III Watchdog |
| Power Configurations | ACPI Power Management Main Switch Override Mechanism Power-on mode for AC power recovery Internal/External modem ring-on |
| PC Health Monitoring | |
| Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V, HT, VBAT |
| FAN | 4x 4-pin fan headers (up to 4 fans) 4 fans with tachometer monitoring Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Status monitoring for on/off control Status monitoring for speed control Support 3-pin fans (w/o speed control) |
| Temperature | Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI FC temperature sensing logic |
| LED | CPU / System Overheat LED +5V Standby alert LED |
| Other Features | Chassis intrusion detection Chassis intrusion header |
| Operating Environment | |
| Operating Temperature Range | 0°C ~ 50°C (32°F ~ 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
